◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#128473) — 35 parça
çizim 381697
123
BalonParca AdiParca NoAdetTipApplied Date
123 BELT ASM; SEAT 8-98097-971-0 01 1 1310-1412
123 BELT ASM; SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-971-0 01 1 1501-
çizim 381839
169 160 170 6 5
BalonParca AdiParca NoAdetTipApplied Date
5 BELT; CENTER SEAT,BUCKLE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-332-1 01 1 1501-
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 1310-1412
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97407-377-1 01 1 1501-
6 BELT; CENTER SEAT,TONGUE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-330-1 01 1 1501-
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97423-515-1 01 1 1310-1412
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97423-515-1 01 1 1501-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 03 1 1310-
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1310-
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=36 		8-94271-620-1 02 1 1310-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-329-0 01 1 1501-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-521-2 01 1 1310-1407
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-394-0 01 1 1408-1412
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97428-394-0 01 1 1501-

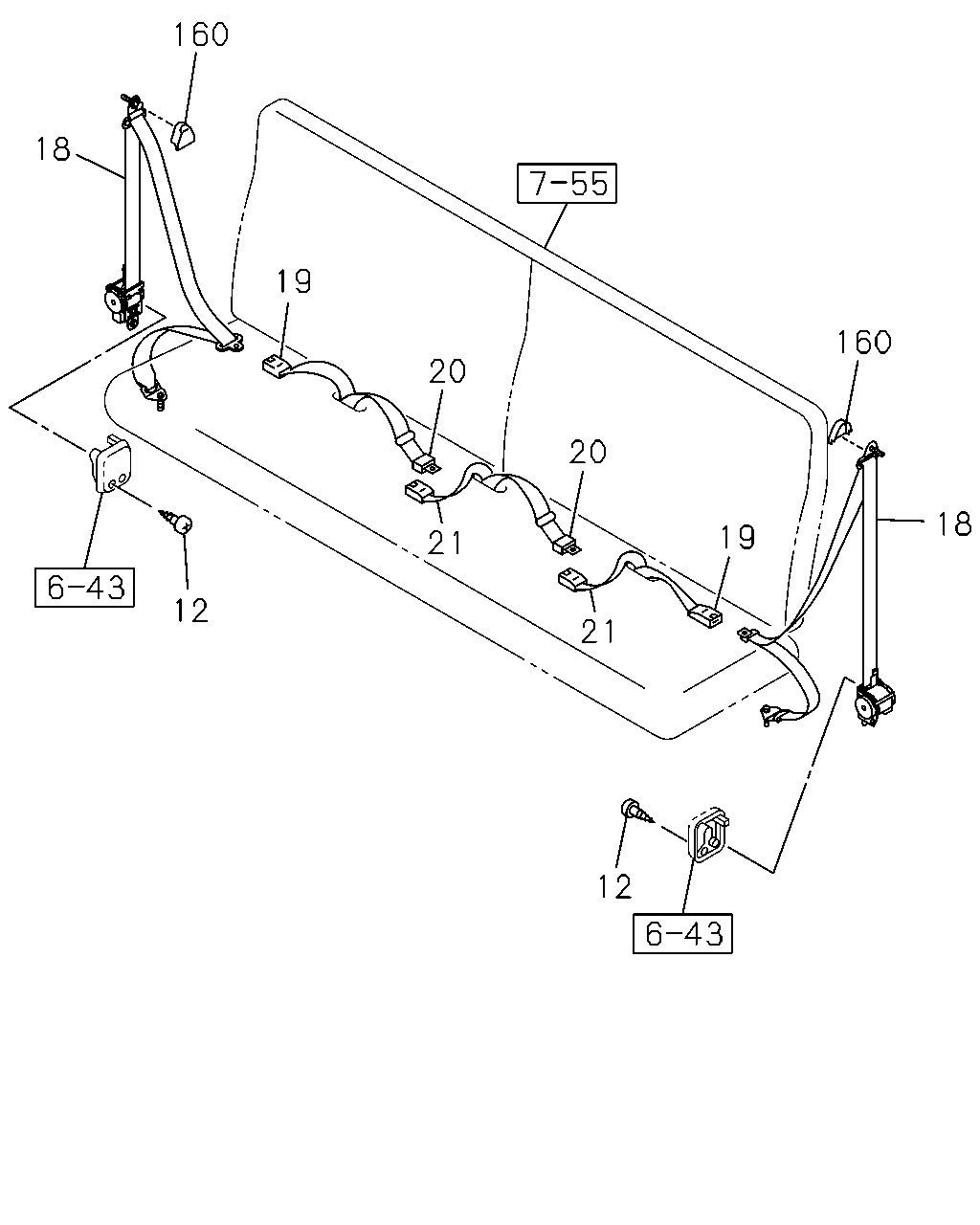

çizim 381906
12 19 20 21 21 20 19 12 160 18 18 160
BalonParca AdiParca NoAdetTipApplied Date
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1310-
18 BELT; SEAT,RR
FLEET USER PACKAGE<6SX> 		8-97465-403-8 02 1 1501-
18 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 1310-1412
18 BELT; SEAT,RR
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97405-185-8 02 1 1501-
19 BELT; RR SEAT,BUCKLE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-359-0 02 1 1502-
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97407-379-0 02 1 1310-1501
19 BELT; RR SEAT,BUCKLE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97407-379-0 02 1 1502-
20 BELT; RR SEAT CTR,TONGUE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-333-1 01 1 1501-
20 BELT; RR SEAT CTR,TONGUE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-334-1 01 1 1501-
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-709-1 01 1 1310-1412
20 BELT; RR SEAT CTR,TONGUE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97423-709-1 01 1 1501-
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-710-1 01 1 1310-1412
20 BELT; RR SEAT CTR,TONGUE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97423-710-1 01 1 1501-
21 BELT; RR SEAT CTR,BUCKLE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-357-1 01 1 1502-
21 BELT; RR SEAT CTR,BUCKLE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-360-0 01 1 1502-
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-380-0 01 1 1310-1501
21 BELT; RR SEAT CTR,BUCKLE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97407-380-0 01 1 1502-
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-381-1 01 1 1310-1501
21 BELT; RR SEAT CTR,BUCKLE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97407-381-1 01 1 1502-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 03 1 1310-
