Isuzu WW
▶
TRUCKS
▶
FRR
▶
11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-55 - REAR SEAT
▶

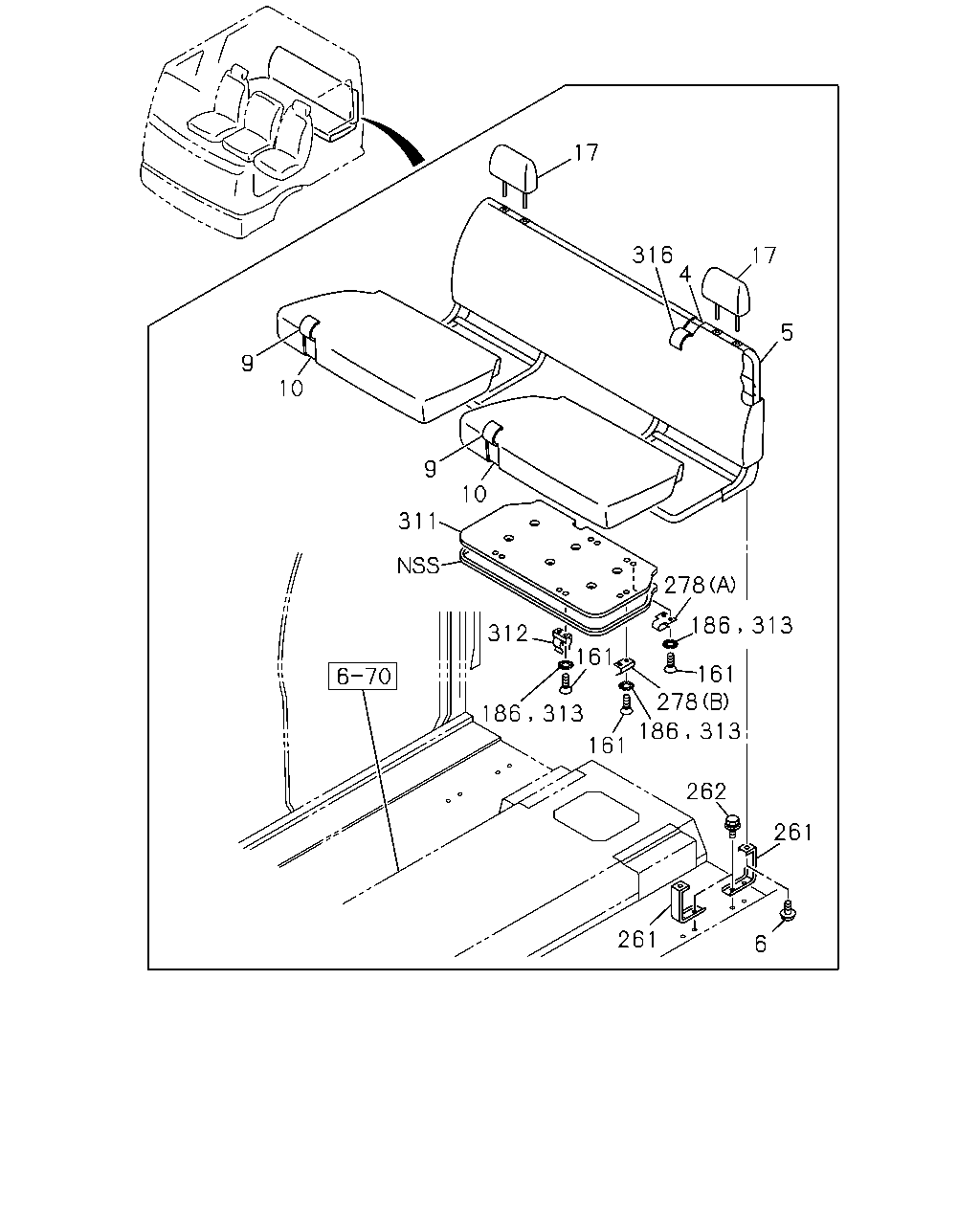

7-55 — REAR SEAT
(#128472) — 17 parça
9
10
17
316
17
5
9
10
311
278
312
161
186
313
186
313
161
161
278
186
313
262
261
6
261
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
PAD; RR,SEAT BACK
8-98055-738-0
01
1
1310-
5
FRAME ASM; RR SEAT BACK
8-98055-732-0
01
1
1310-
6
BOLT; RR SEAT
M8X20 FLANGE
0-28450-820-0
08
1
1310-
9
COVER ASM; TRIM,RR,CUSHION
DARK GRAY
8-97421-442-0
02
1
1310-
10
PAD; CUSHION,RR SEAT
8-98057-048-0
02
1
1310-
17
REST; HD,RR SEAT
DARK GRAY
8-97421-366-0
02
1
1310-
161
SCREW; RR SEAT BRKT
M6X16 CK-HEAD
9-03090-616-0
20
1
1310-
186
WASHER; LK,RR SEAT BRKT
ID=6.4 TOOTH LK COUNTERSUNK
9-09152-706-0
10
1
1310-
261
STAND; RR SEAT
1-75558-285-2
04
1
1310-
262
BOLT; STAND TO FLOOR
M8X20 FLANGE
0-28450-820-0
08
1
1310-
278
BRACKET; RR SEAT CUSHION
(A)
9-61407-082-0
04
1
1310-
278
BRACKET; RR SEAT CUSHION
(B)
9-61407-083-0
02
1
1310-
311
PAN ASM; SEAT CUSH,RR SEAT
8-98057-046-0
01
1
1310-
311
PAN ASM; SEAT CUSH,RR SEAT
8-98057-047-0
01
1
1310-
312
BRACKET; STOPPER,RR SEAT
8-94276-841-1
04
1
1310-
313
WASHER; LK,BRKT PAN
ID=6.4 TOOTH LK COUNTERSUNK
9-09152-706-0
10
1
1310-
316
COVER ASM; TRIM,RR SEAT
DARK GRAY
8-97421-446-0
01
1
1310-
