7-50 — FRONT SEAT (#128471) — 163 parça

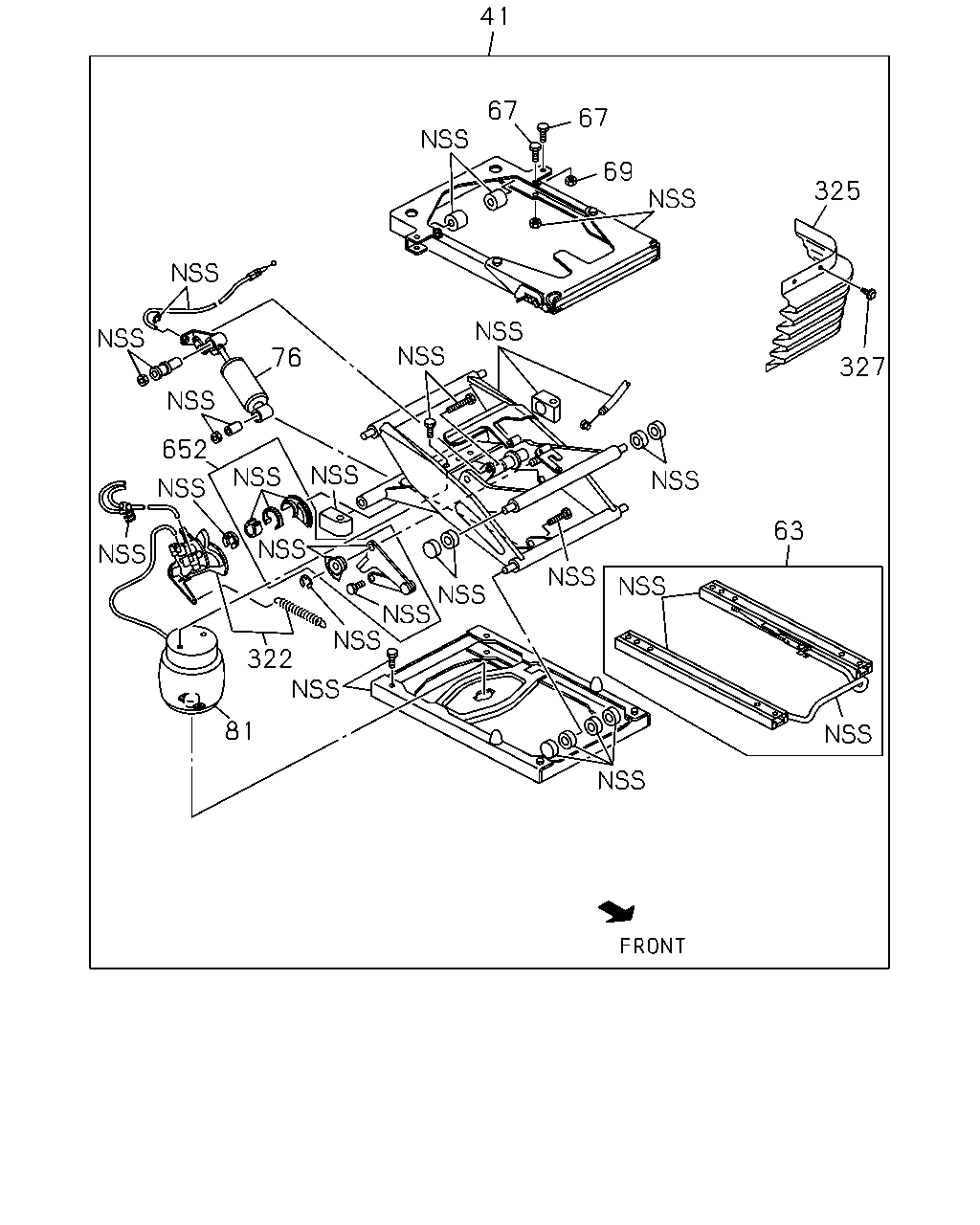

63 322 81 652 76 67 69 41 67 325 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER	8-98195-063-0	01	1	1310-1412
41	SEAT ASM; DRIVER EXC. FLEET USER PACKAGE<6SX>	8-98195-063-0	01	1	1501-
63	ADJUSTER; SEAT SLIDE	8-98098-005-0	01	1	1310-1412
63	ADJUSTER; SEAT SLIDE EXC. FLEET USER PACKAGE<6SX>	8-98098-005-0	01	1	1501-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1310-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1310-
76	DAMPER; AIR SUSP	8-98097-999-0	01	1	1310-1412
76	DAMPER; AIR SUSP EXC. FLEET USER PACKAGE<6SX>	8-98097-999-0	01	1	1501-
81	SPRING; AIR	8-98098-000-0	01	1	1310-1412
81	SPRING; AIR EXC. FLEET USER PACKAGE<6SX>	8-98098-000-0	01	1	1501-
322	VALVE; AIR SPRING	8-98098-001-0	01	1	1310-1412
322	VALVE; AIR SPRING EXC. FLEET USER PACKAGE<6SX>	8-98098-001-0	01	1	1501-
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	1310-1412
325	COVER; SUSPENSION DEVICE EXC. FLEET USER PACKAGE<6SX>	8-98098-003-0	01	1	1501-
327	CLIP; COVER	8-98098-004-0	01	1	1310-1412
327	CLIP; COVER EXC. FLEET USER PACKAGE<6SX>	8-98098-004-0	01	1	1501-
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	1310-1412
652	LOCK ASM; HEIGHT EXC. FLEET USER PACKAGE<6SX>	8-98098-002-0	01	1	1501-

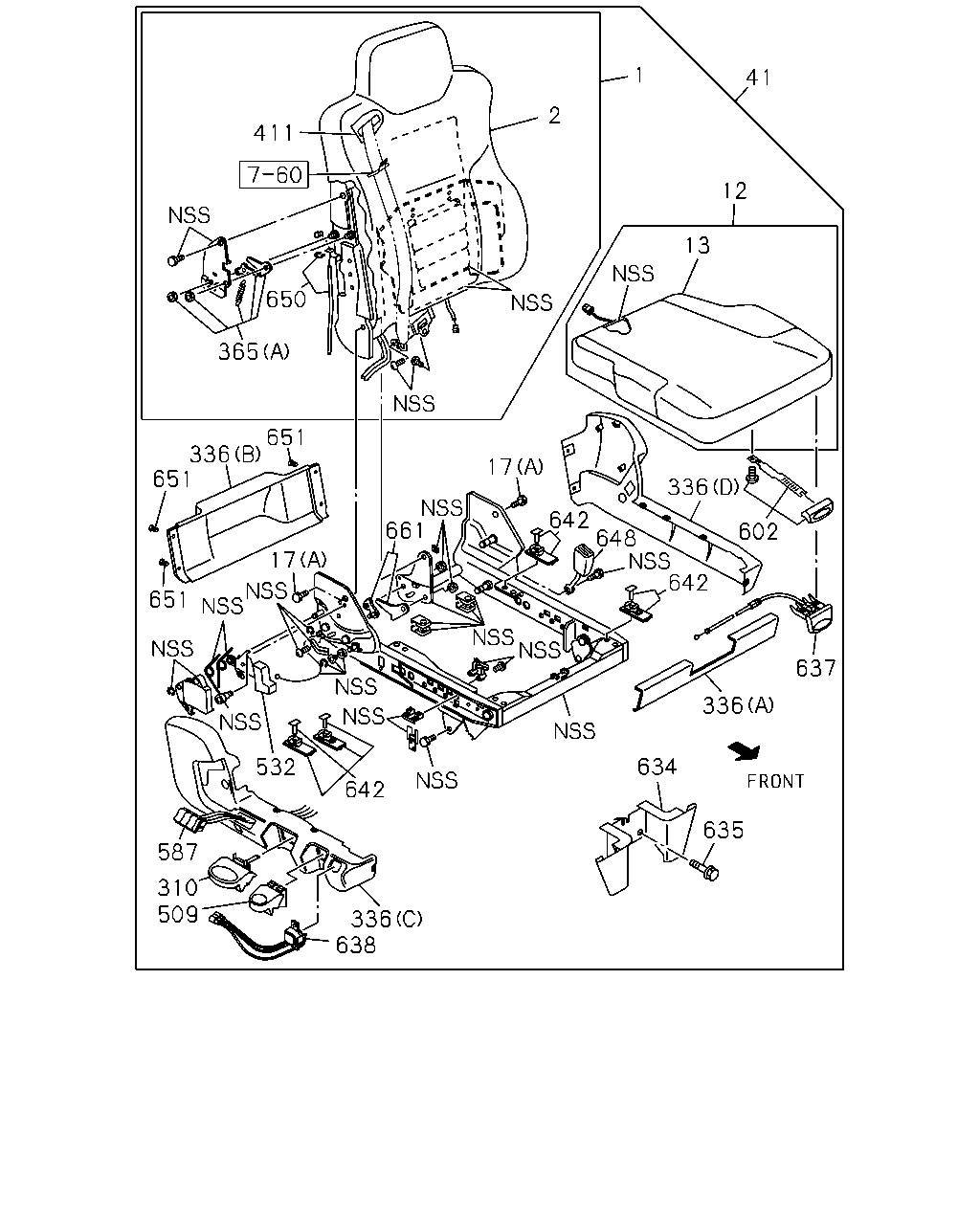

634 336 635 642 532 651 651 336 651 17 661 17 642 642 602 637 336 638 310 509 587 13 12 41 1 2 411 650 365 336 648

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT	8-98097-964-0	01	1	1310-1412
1	BACK ASM; SEAT EXC. FLEET USER PACKAGE<6SX>	8-98097-964-0	01	1	1501-
2	COVER; TRIM,FRT SEAT,BACK	8-98232-353-0	01	1	1310-1412
2	COVER; TRIM,FRT SEAT,BACK EXC. FLEET USER PACKAGE<6SX>	8-98232-353-0	01	1	1501-
12	CUSHION; SEAT,FRT	8-98098-006-0	01	1	1310-1412
12	CUSHION; SEAT,FRT EXC. FLEET USER PACKAGE<6SX>	8-98098-006-0	01	1	1501-
13	COVER; TRIM,FRT SEAT,CUSHION	8-98098-007-0	01	1	1310-1412
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FLEET USER PACKAGE<6SX>	8-98098-007-0	01	1	1501-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1310-
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1310-1412
17	BOLT; RECLINING EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-974-0	02	1	1501-
41	SEAT ASM; DRIVER	8-98195-063-0	01	1	1310-1412
41	SEAT ASM; DRIVER EXC. FLEET USER PACKAGE<6SX>	8-98195-063-0	01	1	1501-
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT	8-98097-992-0	01	1	1310-1412
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT EXC. FLEET USER PACKAGE<6SX>	8-98097-992-0	01	1	1501-
336	COVER; DRIVER SEAT (D)	8-98097-978-0	01	1	1310-1412
336	COVER; DRIVER SEAT EXC. FLEET USER PACKAGE<6SX> (D)	8-98097-978-0	01	1	1501-
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	1310-1412
336	COVER; DRIVER SEAT EXC. FLEET USER PACKAGE<6SX> (C)	8-98097-984-0	01	1	1501-
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	1310-1412
336	COVER; DRIVER SEAT EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-995-0	01	1	1501-
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	1310-1412
336	COVER; DRIVER SEAT EXC. FLEET USER PACKAGE<6SX> (B)	8-98097-996-0	01	1	1501-
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	1310-
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1310-1412
365	LOCK ASM; SEAT EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-972-0	01	1	1501-
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	1310-1412
411	GUIDE; SEAT BELT EXC. FLEET USER PACKAGE<6SX>	8-98097-967-0	01	1	1501-
509	LEVER; DAMPER	8-98097-988-0	01	1	1310-1412
509	LEVER; DAMPER EXC. FLEET USER PACKAGE<6SX>	8-98097-988-0	01	1	1501-
532	LEVER ASM; TILT	8-98097-982-0	01	1	1310-1412
532	LEVER ASM; TILT EXC. FLEET USER PACKAGE<6SX>	8-98097-982-0	01	1	1501-
587	VALVE; LUMBAR SUPPORT	8-98097-986-0	01	1	1310-1412
587	VALVE; LUMBAR SUPPORT EXC. FLEET USER PACKAGE<6SX>	8-98097-986-0	01	1	1501-
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	1310-1412
602	KNOB; ADJ,SEAT EXC. FLEET USER PACKAGE<6SX>	8-98098-008-0	01	1	1501-
634	COVER; CONNECTOR,SEAT	8-98088-279-0	01	1	1310-
635	BOLT; COVER M6X16	0-52000-616-0	02	1	1310-
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	1310-1412
637	LEVER; SLOPE ADJ EXC. FLEET USER PACKAGE<6SX>	8-98097-989-0	01	1	1501-
638	VALVE; LOWERING	8-98097-994-0	01	1	1310-1412
638	VALVE; LOWERING EXC. FLEET USER PACKAGE<6SX>	8-98097-994-0	01	1	1501-
642	SLIDER; CUSHION	8-98192-932-0	04	1	1310-1412
642	SLIDER; CUSHION EXC. FLEET USER PACKAGE<6SX>	8-98192-932-0	04	1	1501-
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	1310-1412
648	BUCKLE; SEAT BELT EXC. FLEET USER PACKAGE<6SX>	8-98097-976-0	01	1	1501-
650	CABLE	8-98232-354-0	01	1	1310-1412
650	CABLE EXC. FLEET USER PACKAGE<6SX>	8-98232-354-0	01	1	1501-
651	RIVET	8-98194-075-0	04	1	1310-1412
651	RIVET EXC. FLEET USER PACKAGE<6SX>	8-98194-075-0	04	1	1501-
661	LOCK ASM; RECLINING	8-98097-980-0	01	1	1310-1412
661	LOCK ASM; RECLINING EXC. FLEET USER PACKAGE<6SX>	8-98097-980-0	01	1	1501-

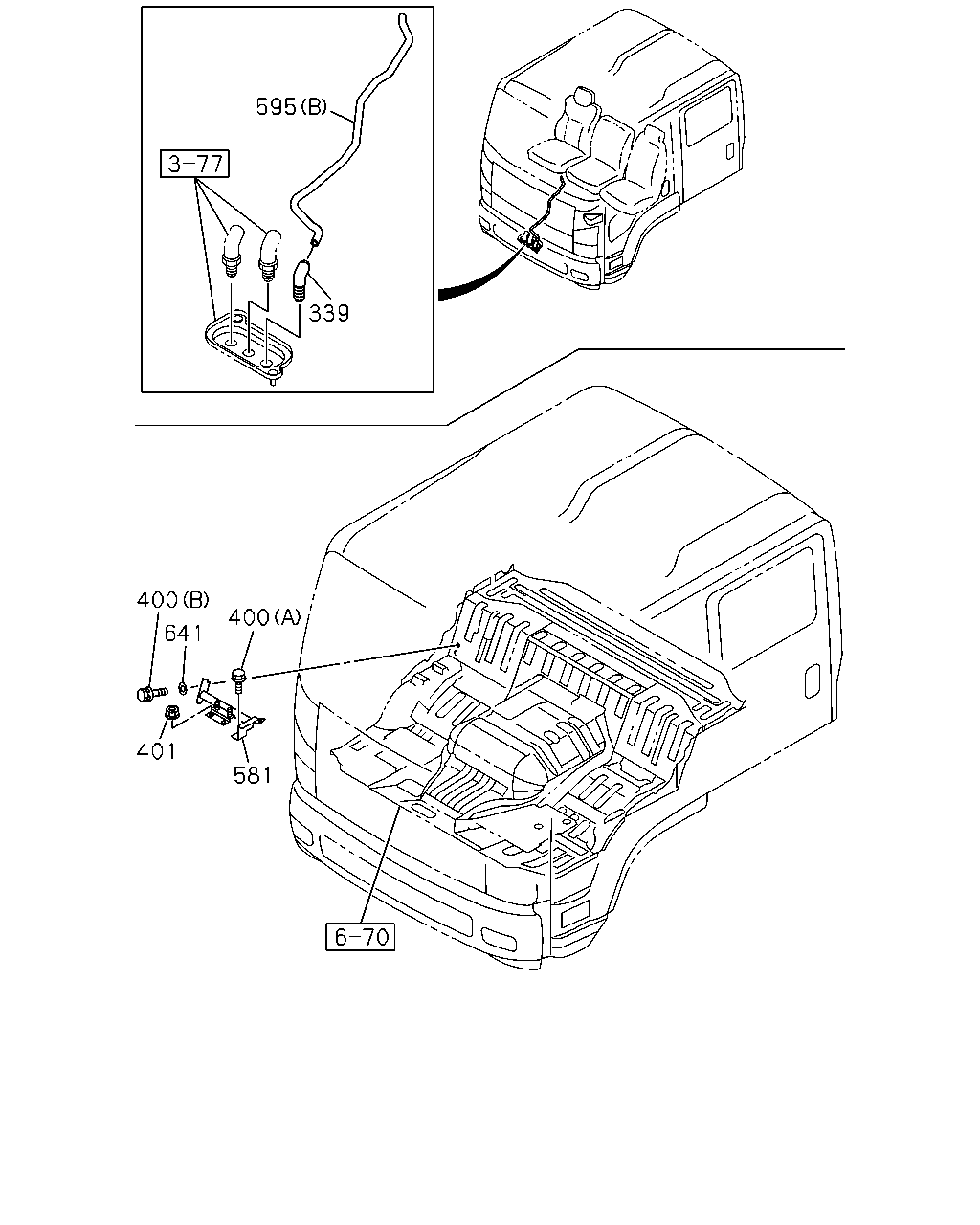

595 339 400 400 641 401 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT	8-98014-971-0	01	1	1310-
400	BOLT; SUPPORT (A) M8X20 FLANGE	0-28650-820-0	01	1	1310-
400	BOLT; SUPPORT (B)	8-98098-996-0	02	1	1310-
401	NUT; SUPPORT M10 FLANGE	0-91180-110-0	02	1	1310-
581	PIPE; SEAT	8-98051-067-2	01	1	1310-
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1310-
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1310-1412
595	TUBE; NYLON EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-348-0	01	1	1501-
641	WASHER; SUPPORT	8-98099-007-0	02	1	1310-

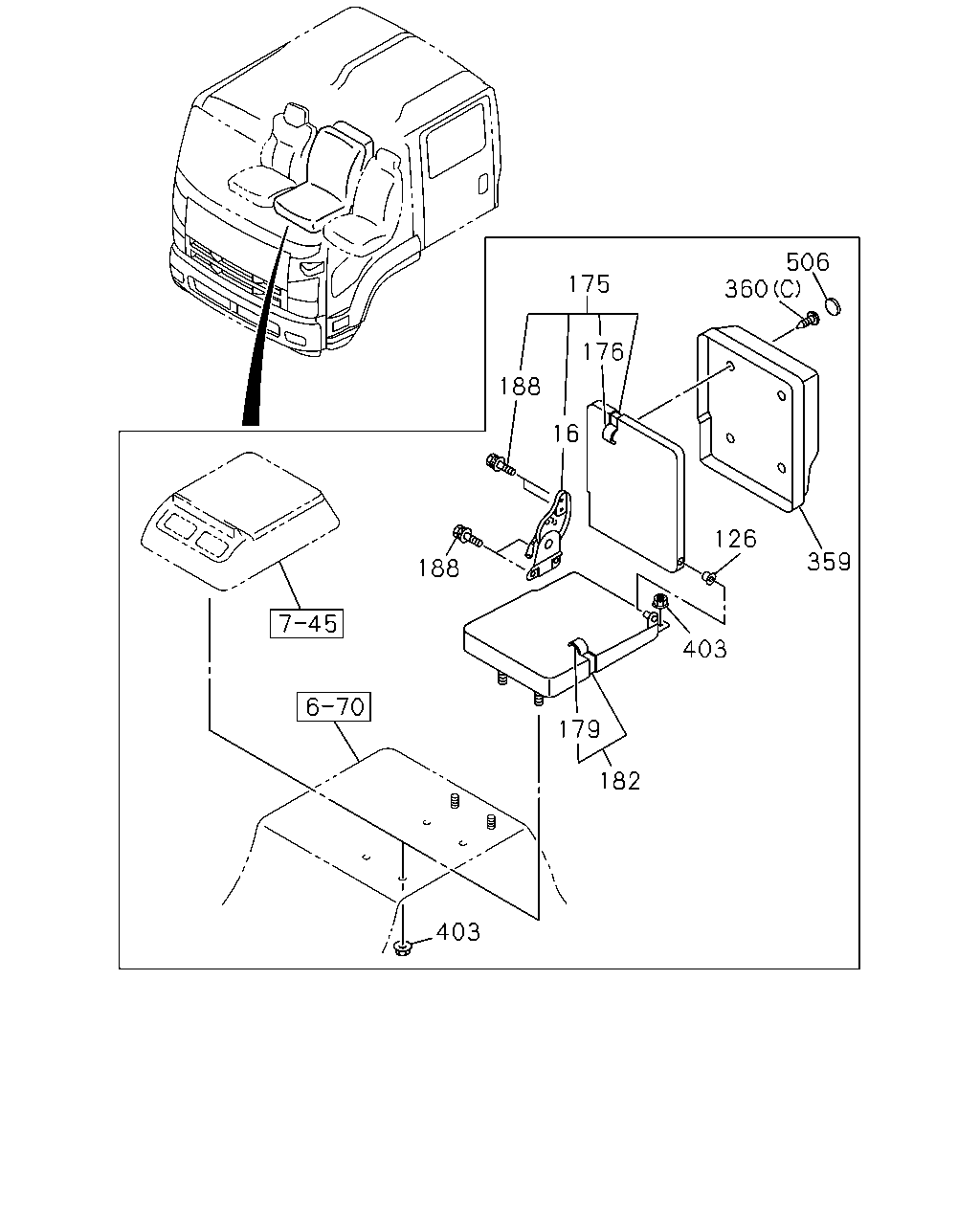

188 403 182 179 403 126 359 506 360 175 176 188 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	1310-
126	BUSHING; HINGE,RECLINING	8-97854-900-0	01	1	1310-
175	BACK ASM; PASSENGER CENTER SEAT DARK GRAY	8-97421-434-1	01	1	1310-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DARK GRAY	8-97421-435-1	01	1	1310-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DARK GRAY	8-97421-432-1	01	1	1310-
182	CUSHION ASM; CENTER SEAT DARK GRAY	8-97421-430-3	01	1	1310-
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	1310-
359	BOX; PARCEL GRAY	8-97417-261-0	01	1	1310-
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	1310-
360	SCREW; PARCEL (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1310-
360	SCREW; PARCEL (C) M5	8-98062-663-0	04	1	1310-
403	NUT; CENTER SEAT M8 FLANGE	0-91180-108-0	04	1	1310-
506	CAP; PARCEL BOX GRAY	8-97409-980-1	02	1	1310-

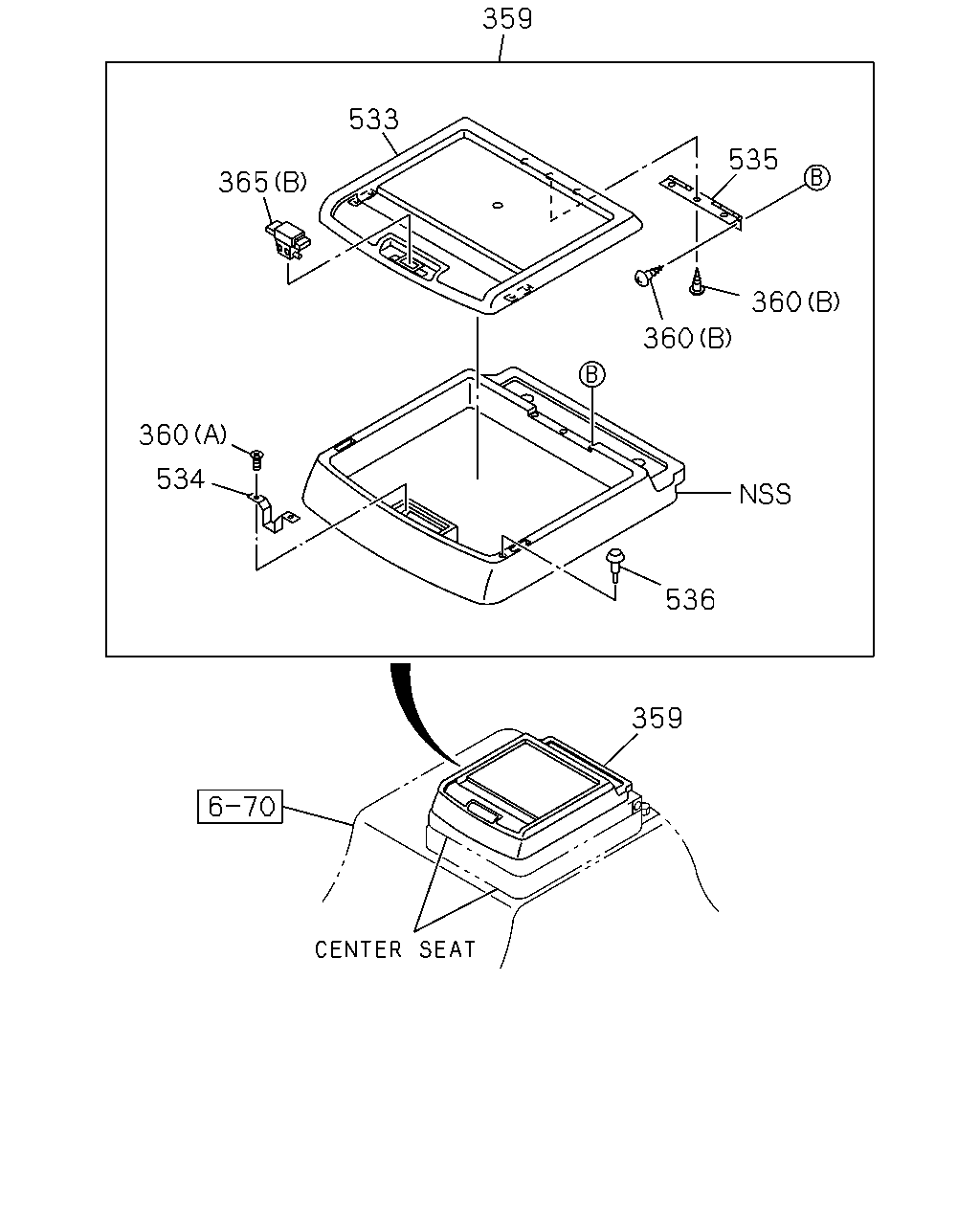

359 533 365 360 534 360 360 535 536 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL GRAY	8-97417-261-0	01	1	1310-
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	1310-
360	SCREW; PARCEL (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1310-
360	SCREW; PARCEL (C) M5	8-98062-663-0	04	1	1310-
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	1310-
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1310-1412
365	LOCK ASM; SEAT EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-972-0	01	1	1501-
533	LID; PARCEL BOX GRAY	8-97417-263-0	01	1	1310-
534	STRIKER; PARCEL BOX	1-72538-190-0	01	1	1310-
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	1310-
536	RUBBER; CUSHION	1-72538-187-0	02	1	1310-

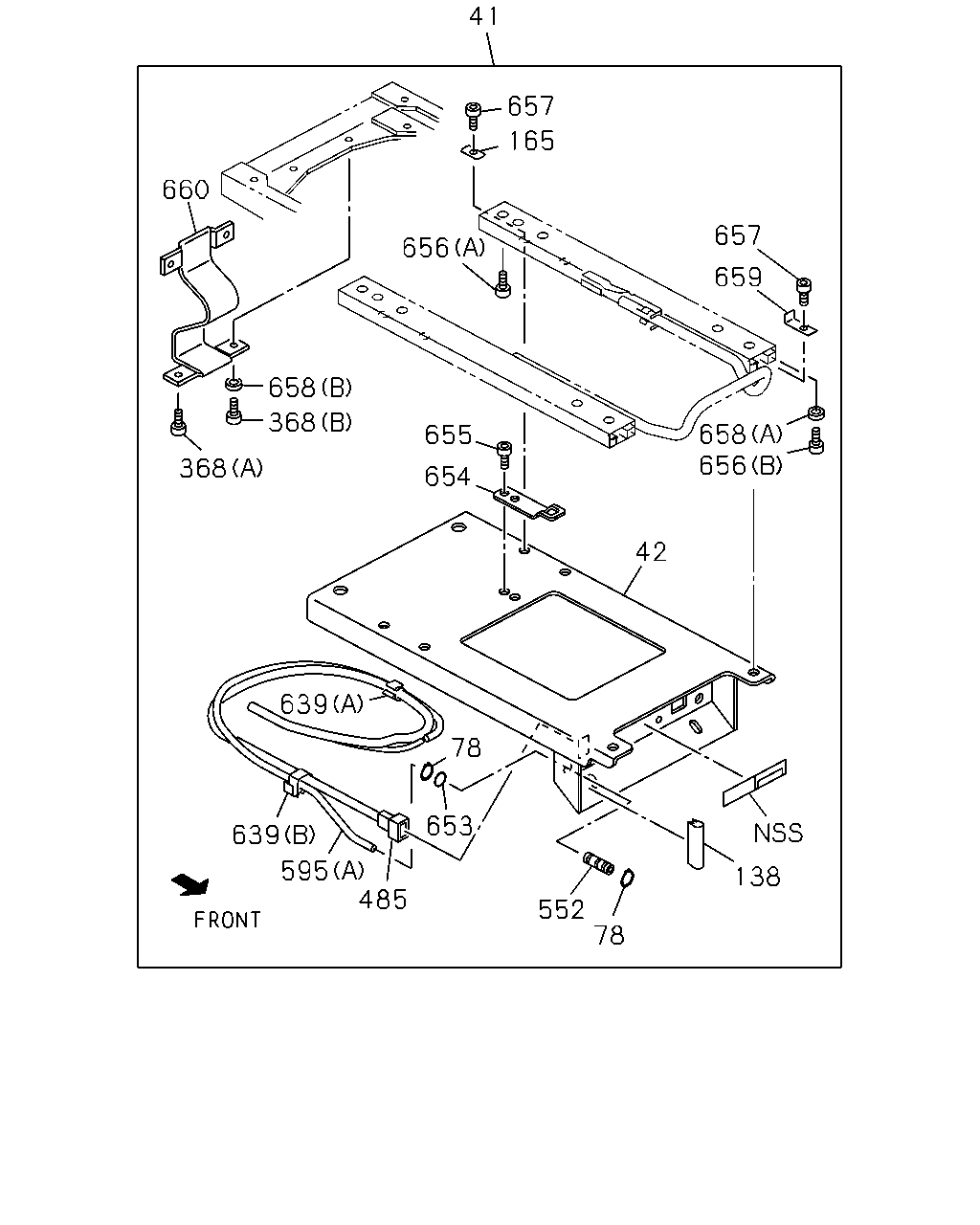

78 552 138 653 485 595 639 639 368 368 658 655 654 42 656 658 659 657 657 165 41 660 656 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER	8-98195-063-0	01	1	1310-1412
41	SEAT ASM; DRIVER EXC. FLEET USER PACKAGE<6SX>	8-98195-063-0	01	1	1501-
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	1310-1412
42	STAND; DRIVER SEAT EXC. FLEET USER PACKAGE<6SX>	8-98106-346-0	01	1	1501-
78	RING; SNAP	8-98101-900-0	02	1	1310-1412
78	RING; SNAP EXC. FLEET USER PACKAGE<6SX>	8-98101-900-0	02	1	1501-
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	1310-1412
138	PROTECTOR; SEAT STAND EXC. FLEET USER PACKAGE<6SX>	8-98106-351-0	01	1	1501-
165	WASHER; PL	1-75590-086-0	04	1	1310-1412
165	WASHER; PL EXC. FLEET USER PACKAGE<6SX>	1-75590-086-0	04	1	1501-
368	BOLT; SEAT (A)	8-98106-353-0	03	1	1310-1412
368	BOLT; SEAT EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-353-0	03	1	1501-
368	BOLT; SEAT (B)	8-98106-358-0	01	1	1310-1412
368	BOLT; SEAT EXC. FLEET USER PACKAGE<6SX> (B)	8-98106-358-0	01	1	1501-
485	HARNESS; FRT SEAT	8-98106-360-0	01	1	1310-1412
485	HARNESS; FRT SEAT EXC. FLEET USER PACKAGE<6SX>	8-98106-360-0	01	1	1501-
552	CONNECTOR	8-98101-902-0	01	1	1310-1412
552	CONNECTOR EXC. FLEET USER PACKAGE<6SX>	8-98101-902-0	01	1	1501-
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1310-
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1310-1412
595	TUBE; NYLON EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-348-0	01	1	1501-
639	CLIP; SEAT (A)	8-98106-349-0	01	1	1310-1412
639	CLIP; SEAT EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-349-0	01	1	1501-
639	CLIP; SEAT (B)	8-98106-350-0	01	1	1310-1412
639	CLIP; SEAT EXC. FLEET USER PACKAGE<6SX> (B)	8-98106-350-0	01	1	1501-
653	GASKET	8-98101-901-0	01	1	1310-1412
653	GASKET EXC. FLEET USER PACKAGE<6SX>	8-98101-901-0	01	1	1501-
654	HOOK; STOPPER	8-98106-352-0	01	1	1310-1412
654	HOOK; STOPPER EXC. FLEET USER PACKAGE<6SX>	8-98106-352-0	01	1	1501-
655	BOLT; HOOK	8-98106-353-0	02	1	1310-1412
655	BOLT; HOOK EXC. FLEET USER PACKAGE<6SX>	8-98106-353-0	02	1	1501-
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	1310-1412
656	BOLT; SLIDER TO SEAT EXC. FLEET USER PACKAGE<6SX> (A)	1-75590-085-0	04	1	1501-
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	1310-1412
656	BOLT; SLIDER TO SEAT EXC. FLEET USER PACKAGE<6SX> (B)	8-98106-354-0	02	1	1501-
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	1310-1412
657	BOLT; SLIDER TO STAND EXC. FLEET USER PACKAGE<6SX>	1-75590-085-0	06	1	1501-
658	SPACER; BOLT (A)	8-98106-355-0	02	1	1310-1412
658	SPACER; BOLT EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-355-0	02	1	1501-
658	SPACER; BOLT (B)	8-98106-359-0	01	1	1310-1412
658	SPACER; BOLT EXC. FLEET USER PACKAGE<6SX> (B)	8-98106-359-0	01	1	1501-
659	STOPPER	8-98106-356-0	02	1	1310-1412
659	STOPPER EXC. FLEET USER PACKAGE<6SX>	8-98106-356-0	02	1	1501-
660	BELT; TETHER	8-98106-357-0	01	1	1310-1412
660	BELT; TETHER EXC. FLEET USER PACKAGE<6SX>	8-98106-357-0	01	1	1501-

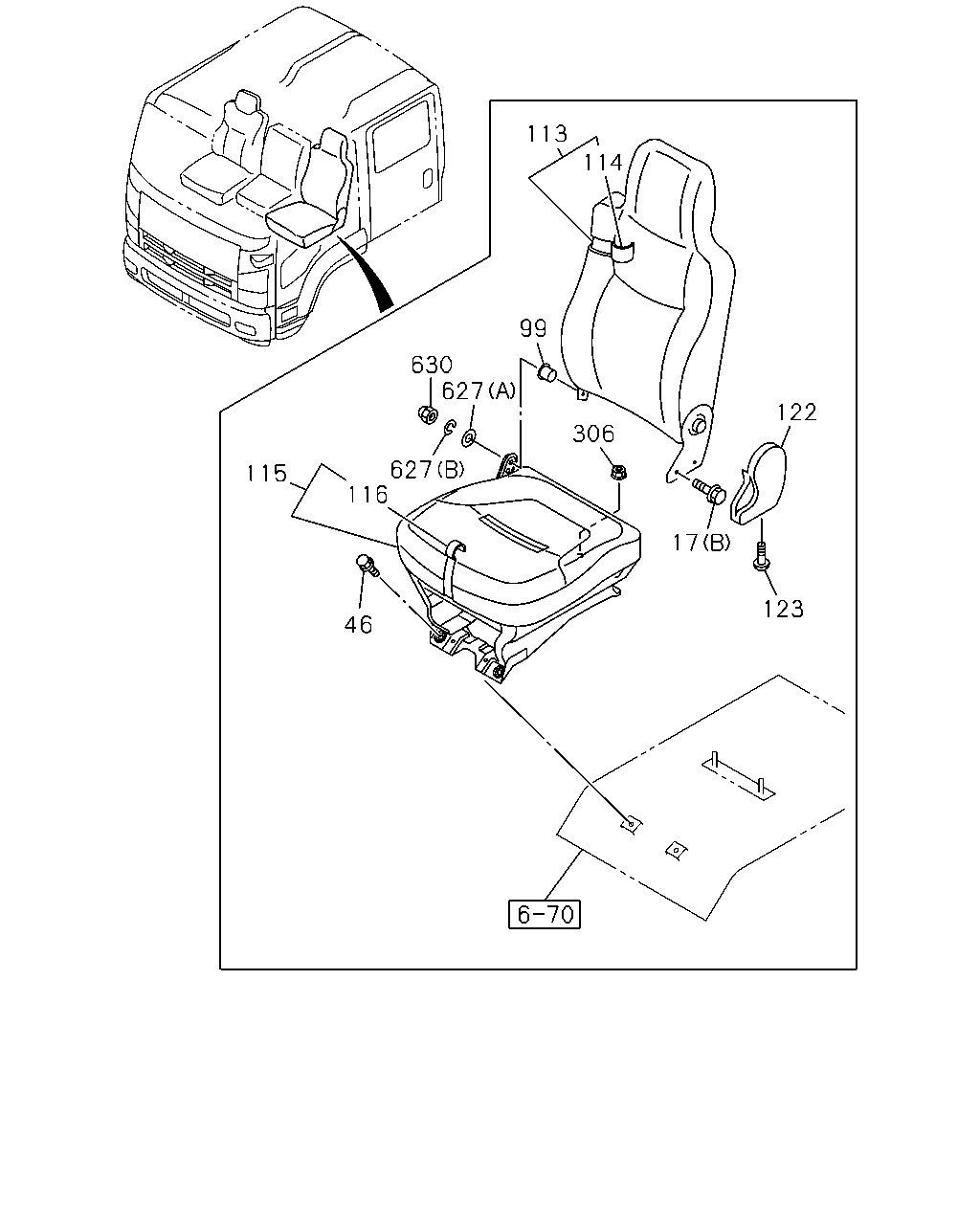

630 113 114 99 627 627 115 116 46 17 123 122 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1310-
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1310-1412
17	BOLT; RECLINING EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-974-0	02	1	1501-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1310-
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1310-
113	BACK ASM; SEAT DARK GRAY	8-97421-422-0	01	1	1310-
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-424-0	01	1	1310-
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-418-1	01	1	1310-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-420-0	01	1	1310-
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1310-
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	1310-
306	NUT; SEAT ADJ M10 FLANGE	0-91180-110-0	02	1	1310-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1310-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1310-
630	NUT; CAP M8	8-98063-225-0	01	1	1310-
