11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#128469) — 99 parça
◀

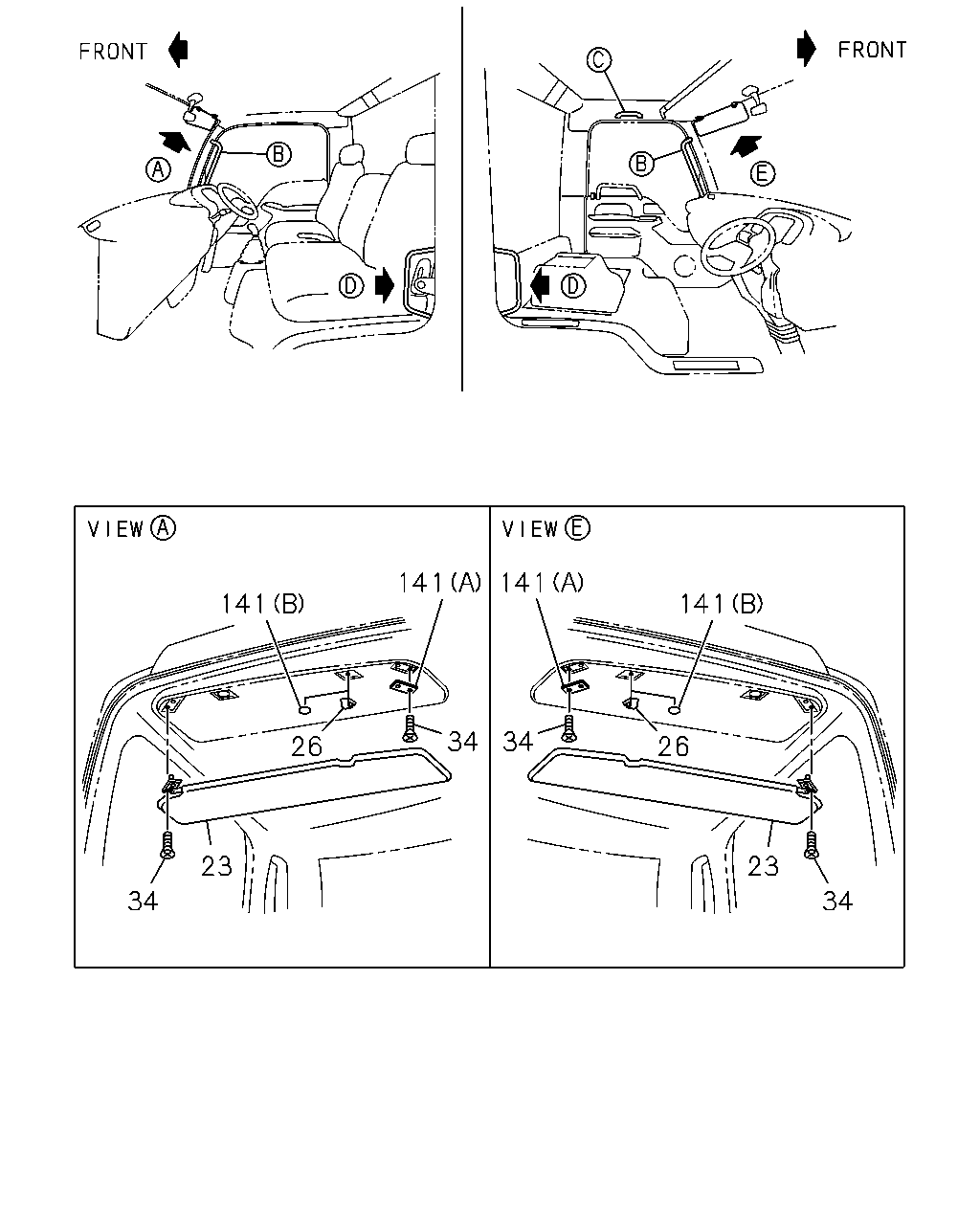

[743A] SUN VISOR (12 parça)

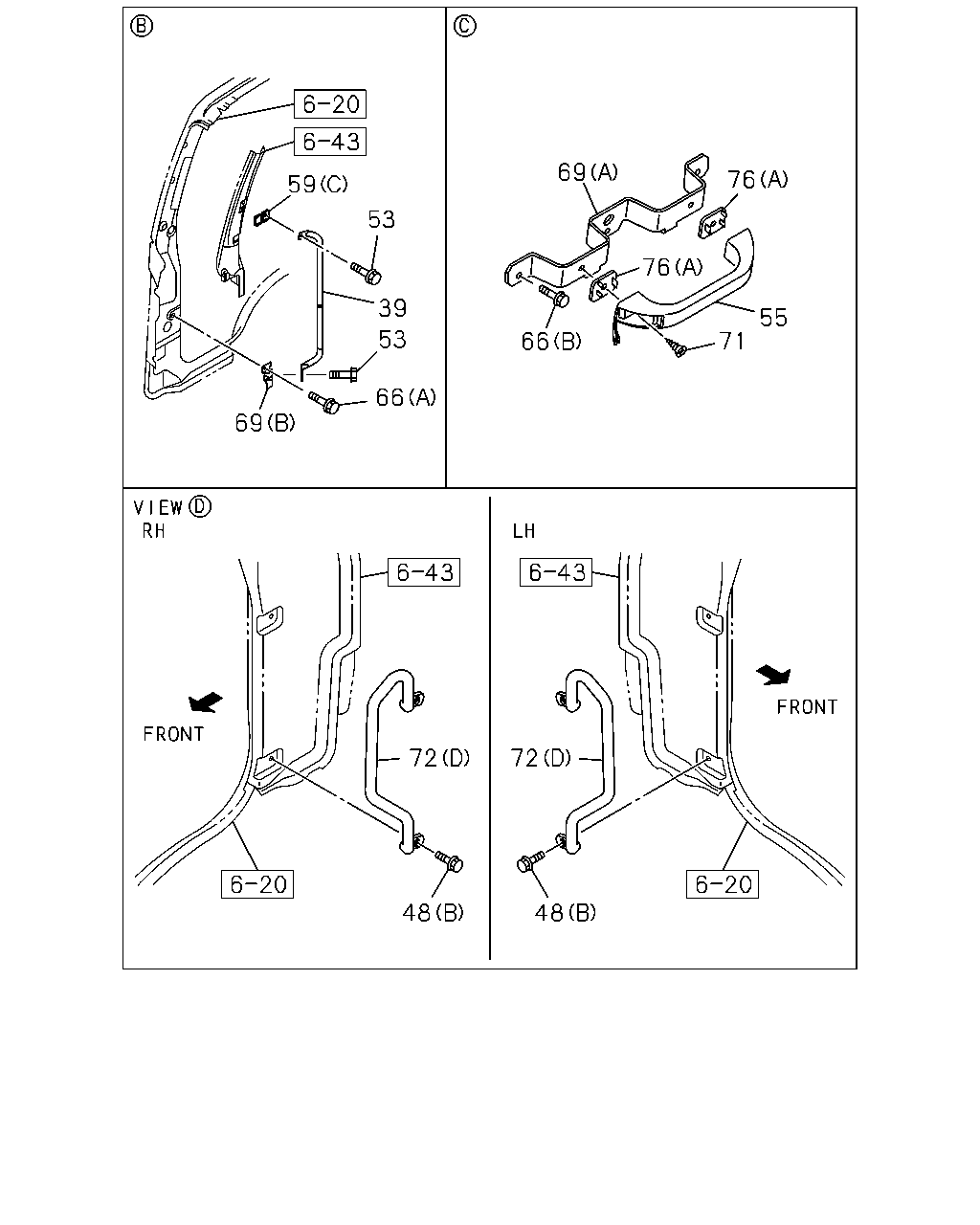

[743A] ASSIST GRIP NO.1 (26 parça)

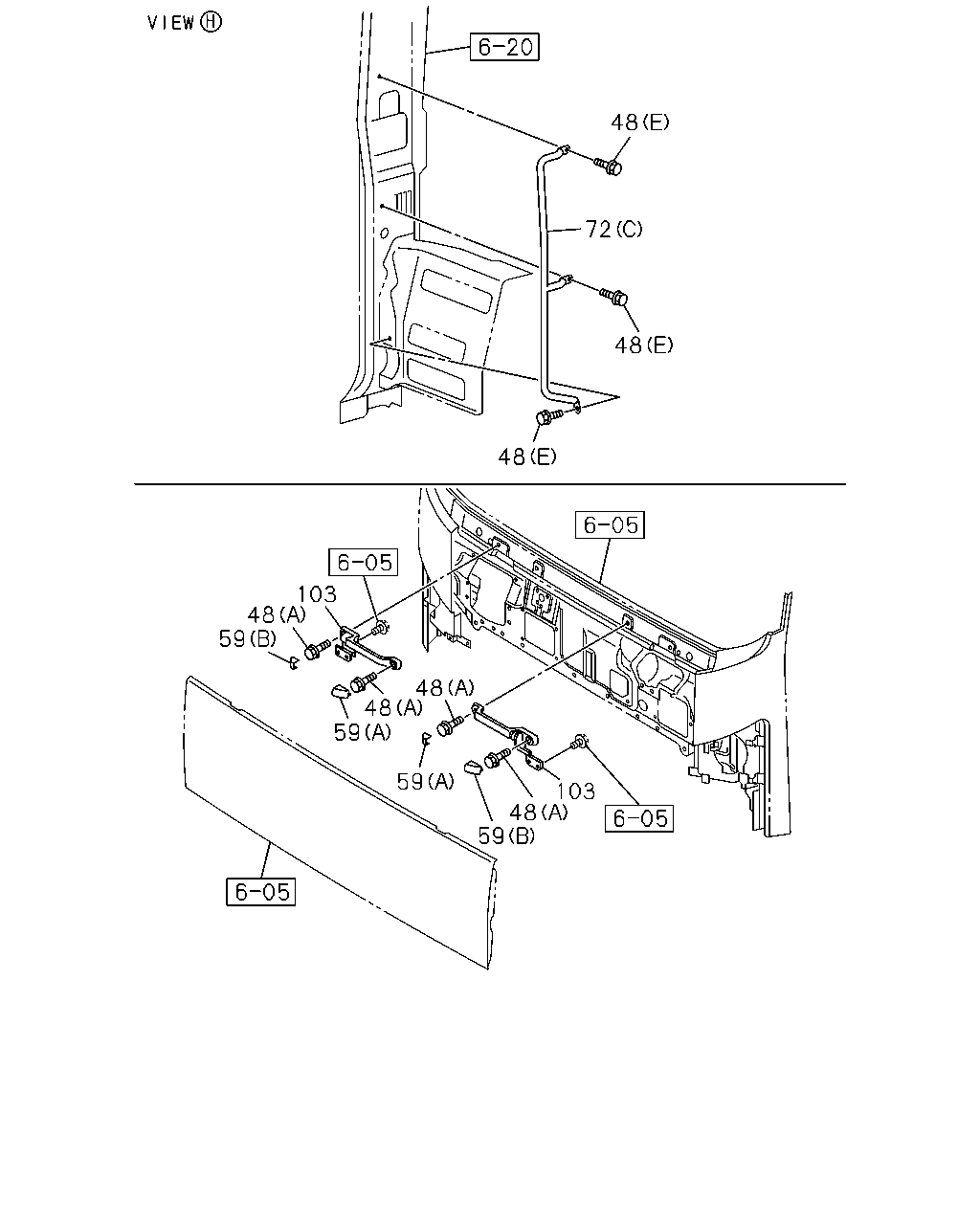

[743A] ASSIST GRIP NO.3 (16 parça)

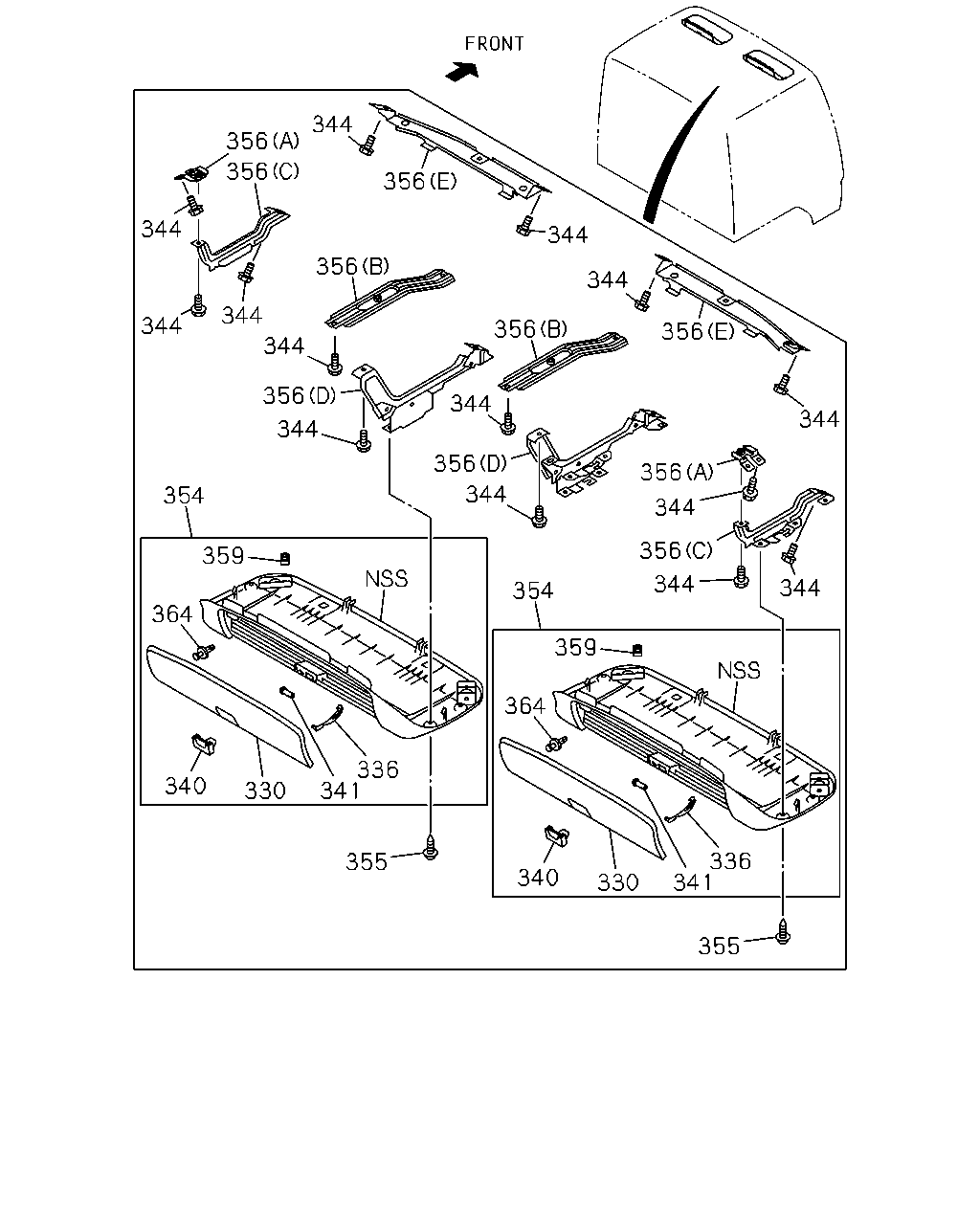

[743A] TRAY;HEADER ROOF (30 parça)

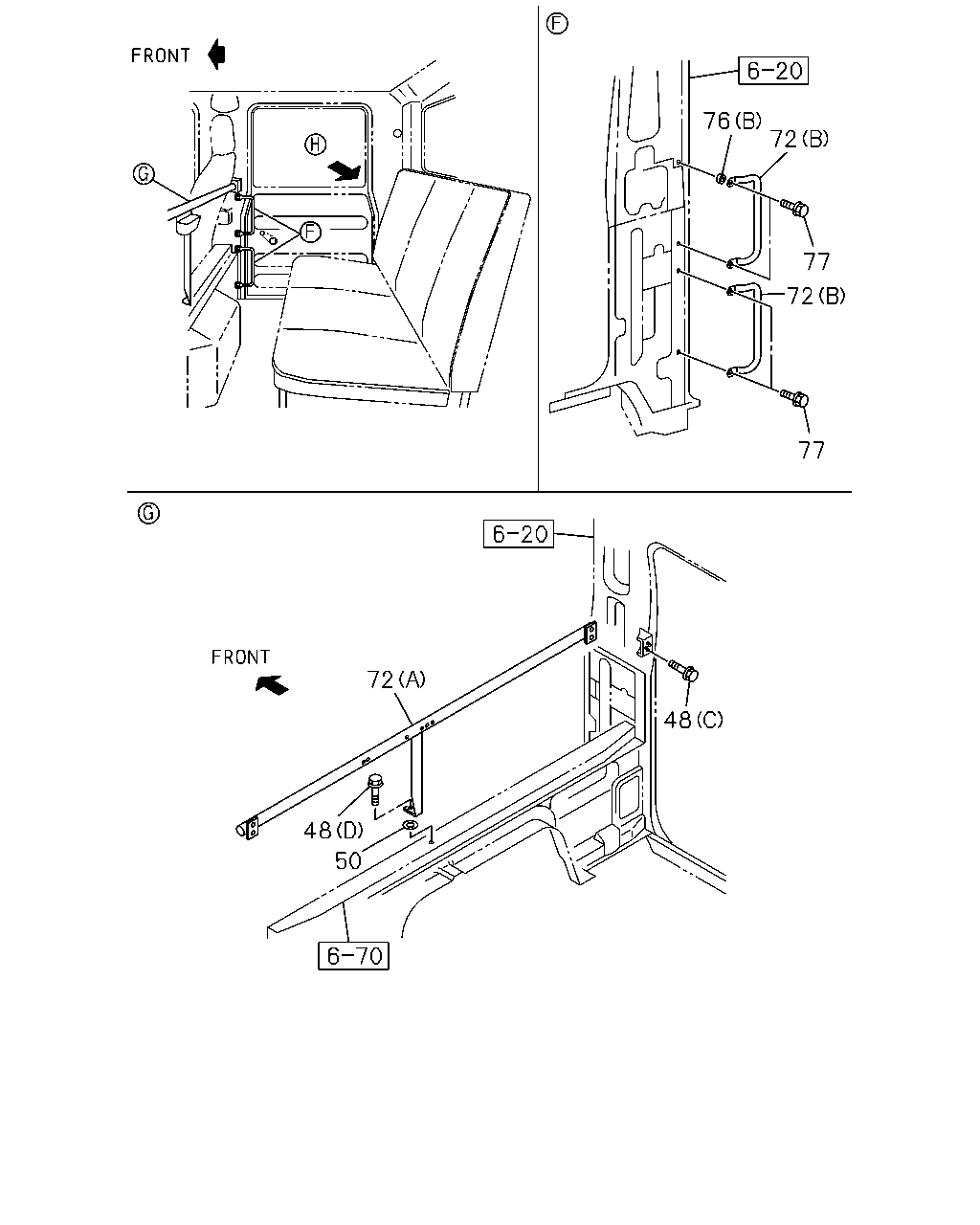

[743A] ASSIST GRIP NO.2 (15 parça)
▶
141
141
26
34
23
34
141
34
141
26
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SUN VISOR
DARK GRAY
8-97405-170-3
01
1
1310-
23
SUN VISOR
DARK GRAY
8-97427-611-0
01
1
1310-
26
HOLDER; SUN VISOR
DARK GRAY
8-97405-171-0
01
1
1310-
26
HOLDER; SUN VISOR
DARK GRAY
8-97405-171-0
01
1
1310-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
04
1
1310-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
04
1
1310-
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1310-
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1310-
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1310-1401
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1310-1401
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1402-
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1402-
66
55
71
76
76
69
59
39
53
66
69
72
72
48
48
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97412-923-1
01
1
1310-
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97412-924-1
01
1
1310-
48
BOLT; ASSIST GRIP
(C) M6X10 FLANGE
0-28050-610-0
04
1
1310-
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1310-
48
BOLT; ASSIST GRIP
(D) M6X20 FLANGE
0-28650-620-0
01
1
1310-
48
BOLT; ASSIST GRIP
(E) M8X20 FLANGE
0-28650-820-0
06
1
1310-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1310-
53
SCREW; ASSIST HANDLE
M8X20 FLANGE
0-28650-820-0
04
1
1310-
55
GRIP; ASSIST,CAB SIDE UPR
DARK GRAY
8-97405-285-2
01
1
1310-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1310-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1310-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1310-
66
BOLT; ASSIST GRIP BRKT
(A) M8X16 FLANGE
0-28050-816-0
04
1
1310-
66
BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE
8-97108-669-0
06
1
1310-
69
BRACKET; ASSIST GRIP
(A)
8-98014-094-0
02
1
1310-
69
BRACKET; ASSIST GRIP
(B)
8-98057-971-2
01
1
1310-
69
BRACKET; ASSIST GRIP
(B)
8-98057-972-2
01
1
1310-
71
SCREW
M6X28
8-98004-344-0
02
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(A)
8-97583-744-3
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(B)
8-98080-429-0
04
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(C)
8-98080-431-0
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(C)
8-98080-432-0
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(D)
8-98084-136-1
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(D)
8-98084-137-1
01
1
1310-
76
SPACER; ASSIST GRIP
(A) DARK GRAY
8-97405-286-0
02
1
1310-
76
SPACER; ASSIST GRIP
(B)
8-98081-584-0
02
1
1310-
48
72
48
48
48
48
103
48
59
59
59
59
48
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(C) M6X10 FLANGE
0-28050-610-0
04
1
1310-
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1310-
48
BOLT; ASSIST GRIP
(D) M6X20 FLANGE
0-28650-620-0
01
1
1310-
48
BOLT; ASSIST GRIP
(E) M8X20 FLANGE
0-28650-820-0
06
1
1310-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1310-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1310-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1310-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(A)
8-97583-744-3
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(B)
8-98080-429-0
04
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(C)
8-98080-431-0
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(C)
8-98080-432-0
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(D)
8-98084-136-1
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(D)
8-98084-137-1
01
1
1310-
103
GRIP; ASSIST,FRT PNL
8-98036-565-1
01
1
1310-
103
GRIP; ASSIST,FRT PNL
8-98036-566-1
01
1
1310-
344
356
344
344
356
344
356
356
344
344
344
356
344
356
344
356
344
356
344
356
344
356
344
344
359
354
364
340
330
341
336
355
354
359
364
340
330
341
355
336
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
01
1
1310-
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
01
1
1310-
336
STAY; LID
1-72448-379-3
02
1
1310-
336
STAY; LID
1-72448-379-3
02
1
1310-
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
1310-
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
1310-
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1310-
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1310-
344
BOLT; BRKT,FRT
M6X12 FLANGE
8-97108-669-0
08
1
1310-
344
BOLT; BRKT,FRT
M6X12 FLANGE
8-97108-669-0
12
1
1310-
354
TRAY; HEADER ROOF
DARK GRAY
8-97407-386-5
01
1
1310-1401
354
TRAY; HEADER ROOF
DARK GRAY
8-97407-386-5
01
1
1310-1401
354
TRAY; HEADER ROOF
DARK GRAY
8-97428-821-0
01
1
1402-
354
TRAY; HEADER ROOF
DARK GRAY
8-97428-821-0
01
1
1402-
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1310-
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1310-
356
BRACKET; ROOF OUTER
(C)
8-98014-088-3
01
1
1310-
356
BRACKET; ROOF OUTER
(C)
8-98016-871-3
01
1
1310-
356
BRACKET; ROOF OUTER
(D)
8-98023-257-2
01
1
1310-
356
BRACKET; ROOF OUTER
(D)
8-98042-009-2
01
1
1310-
356
BRACKET; ROOF OUTER
(E)
8-98042-015-3
01
1
1310-
356
BRACKET; ROOF OUTER
(E)
8-98042-016-3
01
1
1310-
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1310-
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1310-
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1310-
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1310-
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
1310-
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
1310-
364
STOPPER; LID
8-98010-867-1
03
1
1310-
364
STOPPER; LID
8-98010-867-1
03
1
1310-
48
72
48
50
77
72
77
72
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(C) M6X10 FLANGE
0-28050-610-0
04
1
1310-
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1310-
48
BOLT; ASSIST GRIP
(D) M6X20 FLANGE
0-28650-620-0
01
1
1310-
48
BOLT; ASSIST GRIP
(E) M8X20 FLANGE
0-28650-820-0
06
1
1310-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1310-
50
WASHER; PL,ASSIST GRIP
ID=8.4 OD=16
0-91610-508-0
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(A)
8-97583-744-3
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(B)
8-98080-429-0
04
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(C)
8-98080-431-0
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(C)
8-98080-432-0
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(D)
8-98084-136-1
01
1
1310-
72
GRIP; ASSIST,CAB ENTRY,BACK
(D)
8-98084-137-1
01
1
1310-
76
SPACER; ASSIST GRIP
(A) DARK GRAY
8-97405-286-0
02
1
1310-
76
SPACER; ASSIST GRIP
(B)
8-98081-584-0
02
1
1310-
77
SCREW; ASSIST GRIP
M6X25 W/LK&PL WASHER
0-50640-625-0
08
1
1310-
