Isuzu WW
▶
TRUCKS
▶
FRR
▶
11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶
7-40 — INSTRUMENT PANEL AND BOX
(#128467) — 96 parça
◀

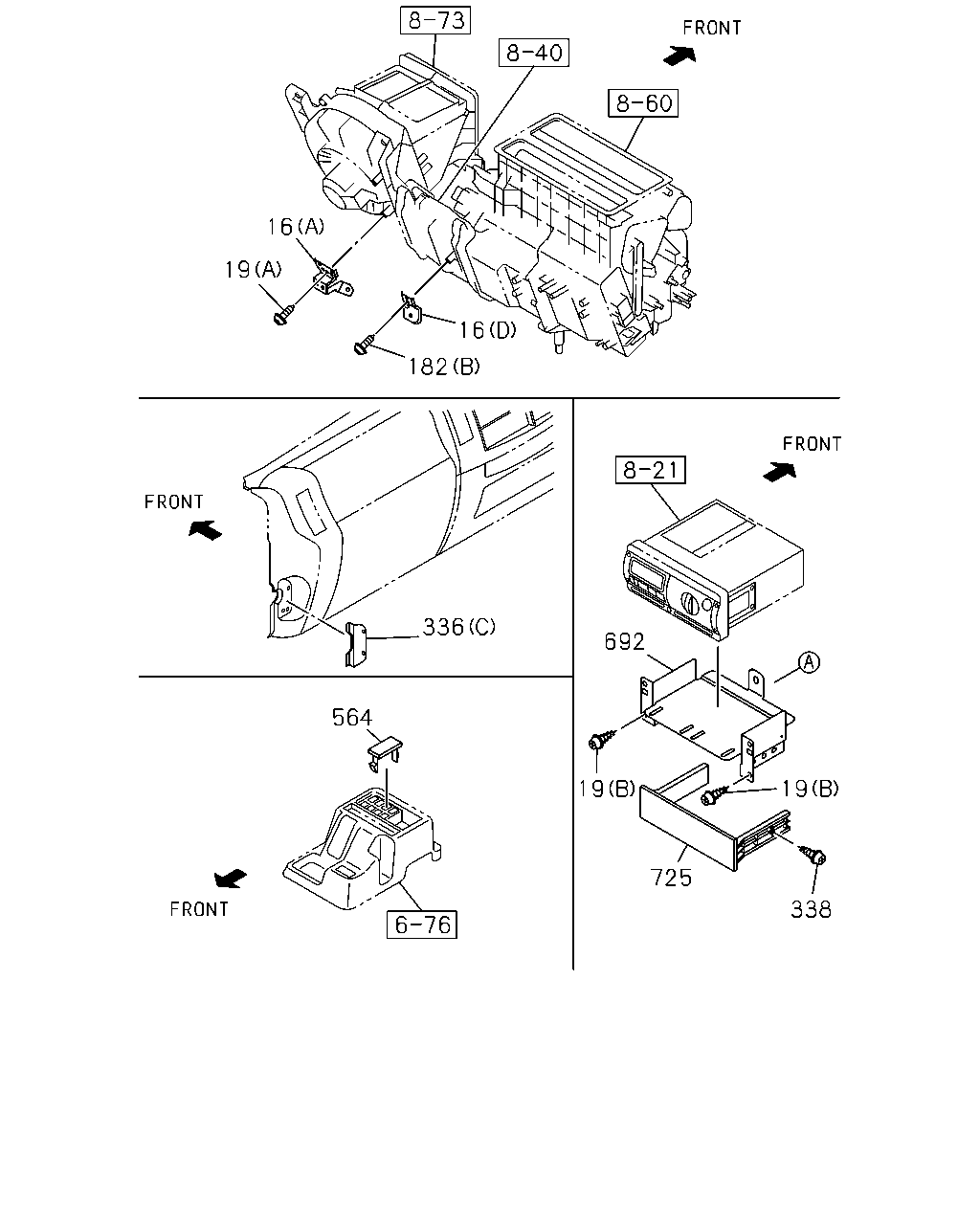

[740A] BRACKET AND COVER (19 parça)

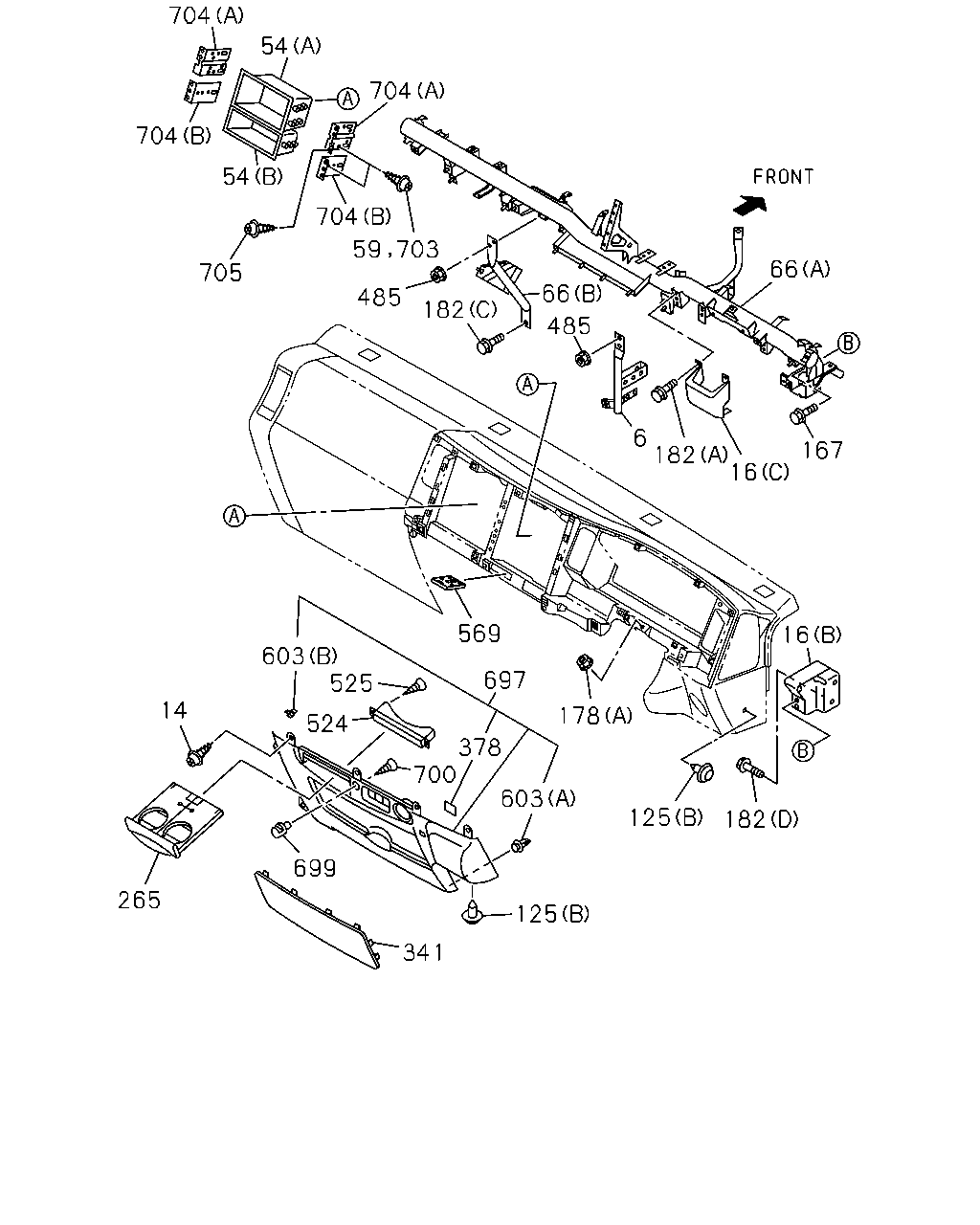

[740A] REINFORCEMENT AND OTHER PARTS (41 parça)

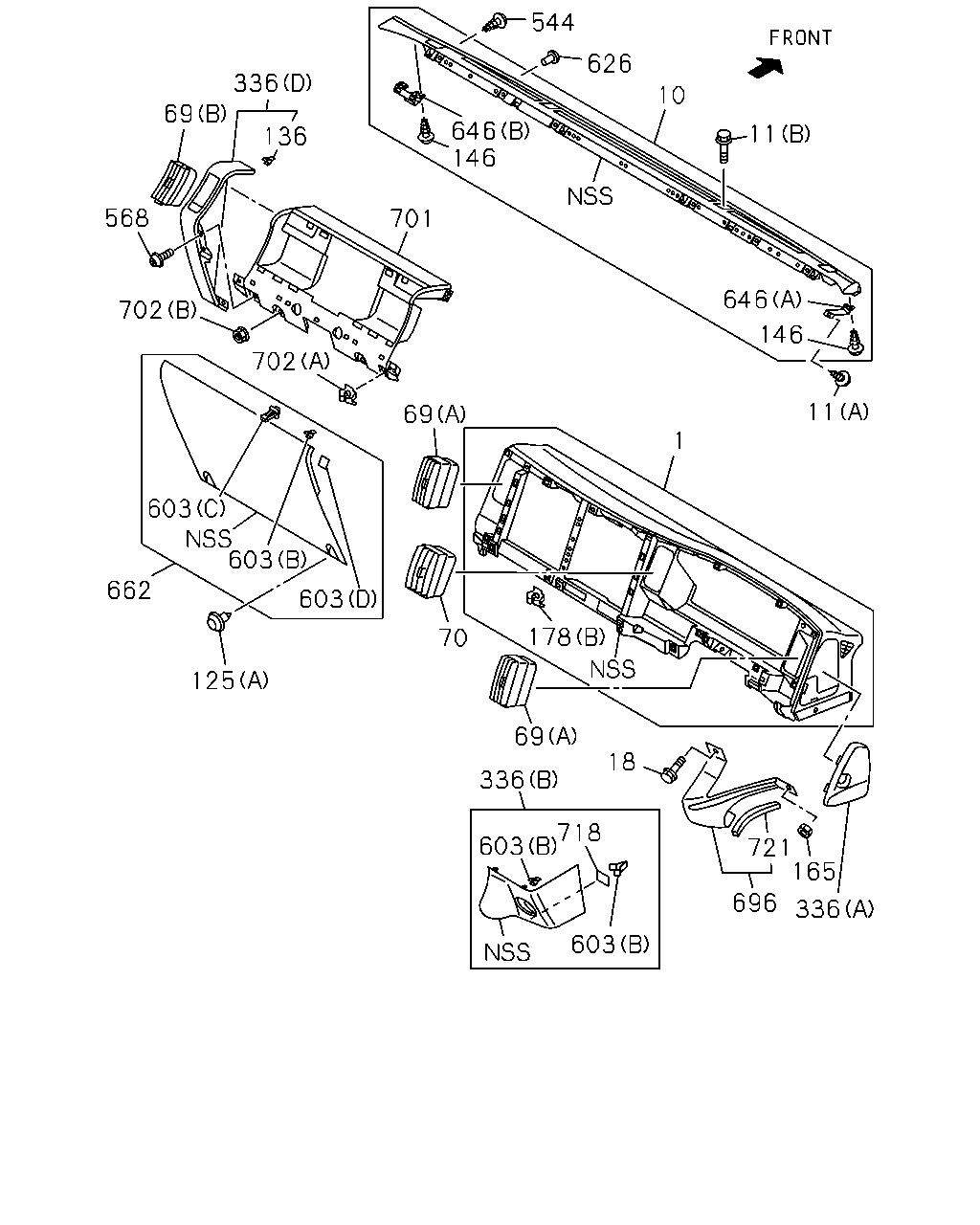

[740A] INST PANEL AND OTHER PARTS (36 parça)
▶
16
19
182
16
692
19
19
725
338
564
336
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
BRACKET; INST PNL
(A)
8-97585-612-2
01
1
1310-
16
BRACKET; INST PNL
(D)
8-98010-154-0
01
1
1310-
16
BRACKET; INST PNL
(B)
8-98017-202-1
01
1
1310-
16
BRACKET; INST PNL
(B)
8-98017-204-1
01
1
1310-
16
BRACKET; INST PNL
(C)
8-98053-711-0
01
1
1310-
19
SCREW; BRKT
(A) M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1310-
19
SCREW; BRKT
(B) M5X20 TAPPING HEXALOBULAR
0-72180-520-0
04
1
1310-
182
BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE
0-28050-816-0
04
1
1310-
182
BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER
0-52000-612-0
02
1
1310-
182
BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1310-
182
BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1310-
336
COVER; INST PANEL SIDE
(A) GRAY
8-97407-420-1
01
1
1310-
336
COVER; INST PANEL SIDE
(D) GRAY
8-97407-427-4
01
1
1310-
336
COVER; INST PANEL SIDE
(C) GRAY
8-97409-491-1
01
1
1310-
336
COVER; INST PANEL SIDE
(B) GRAY
8-97422-653-1
01
1
1310-
338
SCREW; COVER
T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1310-
564
COVER; SW
8-97043-732-1
06
1
1310-
692
BRACKET; TACHOGRAPH
8-98094-271-0
01
1
1310-
725
COVER; TACHOGRAPH
BLACK
8-97407-896-2
01
1
1310-
704
704
54
54
704
704
705
59
703
485
182
66
485
66
167
16
182
6
16
182
125
178
603
697
569
378
700
525
603
524
125
341
699
14
265
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
SUPPORT; INST PANEL
8-98196-255-0
01
1
1310-
14
SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1310-
16
BRACKET; INST PNL
(A)
8-97585-612-2
01
1
1310-
16
BRACKET; INST PNL
(D)
8-98010-154-0
01
1
1310-
16
BRACKET; INST PNL
(B)
8-98017-202-1
01
1
1310-
16
BRACKET; INST PNL
(B)
8-98017-204-1
01
1
1310-
16
BRACKET; INST PNL
(C)
8-98053-711-0
01
1
1310-
54
POCKET; CENTER CLUSTER
(A) H=108.4 BLACK
8-97407-129-3
01
1
1310-
54
POCKET; CENTER CLUSTER
(B) H=69.8 BLACK
8-97408-865-3
01
1
1310-
59
SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1310-
66
REINFORCEMENT; INST PANEL
(B)
8-97585-580-2
01
1
1310-
66
REINFORCEMENT; INST PANEL
(A)
8-98170-399-0
01
1
1310-1406
66
REINFORCEMENT; INST PANEL
(A)
8-98240-604-0
01
1
1407-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
04
1
1310-
125
CLIP; INST PANEL
(A) GRAY
8-97419-968-1
02
1
1310-
167
BOLT; REINF TO INST
M8X23 FLANGE
8-97264-766-0
04
1
1310-
178
NUT; INST PANEL
(A) M6 FLANGE
0-91180-106-0
01
1
1310-
178
NUT; INST PANEL
(B)
8-98037-629-0
15
1
1310-
182
BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE
0-28050-816-0
04
1
1310-
182
BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER
0-52000-612-0
02
1
1310-
182
BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1310-
182
BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1310-
265
HOLDER; CUP
GRAY
8-97418-528-0
01
1
1310-
341
LID; FUSE BOX
GRAY
8-97422-209-0
01
1
1310-
378
SEAL; INST PANEL
5X30
8-98176-199-0
01
1
1310-
485
NUT; SUPPORT CLIP,HARNESS
M6 FLANGE
0-91180-106-0
04
1
1310-
524
STAND ASM; CUP,INST
8-98054-414-0
01
1
1310-
525
SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1310-
569
HOLDER; CARD
8-97410-276-1
01
1
1310-
603
CLIP; COVER
(A)
8-98004-025-0
01
1
1310-
603
CLIP; COVER
(B)
8-98021-271-0
04
1
1310-
603
CLIP; COVER
(B)
8-98021-271-0
05
1
1310-
603
CLIP; COVER
(C)
8-98162-058-1
02
1
1310-
603
CLIP; COVER
(D)
8-98167-222-0
02
1
1310-
697
PANEL; INST CENTER
GRAY
8-97422-207-1
01
1
1310-
699
HOOK; INST PANEL
GRAY
8-97408-927-0
01
1
1310-
700
BOLT; HOOK
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1310-
703
SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
04
1
1310-
704
BRACKET; CENTER POCKET
(B)
8-97585-616-2
02
1
1310-
704
BRACKET; CENTER POCKET
(A)
8-97585-618-2
02
1
1310-
705
SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
08
1
1310-
336
69
568
702
702
69
701
136
603
662
603
125
603
70
178
69
336
603
718
603
696
336
165
721
18
1
11
146
646
11
10
626
544
646
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; INST
GRAY
8-97407-418-8
01
1
1310-
10
PANEL ASM; GARNISH
GRAY
8-97422-095-1
01
1
1310-
11
BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1310-
11
BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER
8-98018-440-0
04
1
1310-
18
BOLT; BRKT
M6X12 W/LK&PL WASHER
0-52000-612-0
01
1
1310-
69
GRILLE; SIDE,AIR OUTLET
(A)
8-98028-561-2
02
1
1310-
69
GRILLE; SIDE,AIR OUTLET
(B)
8-98028-562-2
01
1
1310-
70
GRILLE; CENTER,AIR OUTLET
8-98028-563-2
01
1
1310-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
04
1
1310-
125
CLIP; INST PANEL
(A) GRAY
8-97419-968-1
02
1
1310-
136
CLIP; INST COVER
8-98076-254-0
02
1
1310-
146
SCREW; TAP
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1310-
165
NUT; BRKT KNEE PAD
M6 FLANGE
0-91180-106-0
01
1
1310-
178
NUT; INST PANEL
(A) M6 FLANGE
0-91180-106-0
01
1
1310-
178
NUT; INST PANEL
(B)
8-98037-629-0
15
1
1310-
336
COVER; INST PANEL SIDE
(A) GRAY
8-97407-420-1
01
1
1310-
336
COVER; INST PANEL SIDE
(D) GRAY
8-97407-427-4
01
1
1310-
336
COVER; INST PANEL SIDE
(C) GRAY
8-97409-491-1
01
1
1310-
336
COVER; INST PANEL SIDE
(B) GRAY
8-97422-653-1
01
1
1310-
544
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1310-
568
BOLT; COVER
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1310-
603
CLIP; COVER
(A)
8-98004-025-0
01
1
1310-
603
CLIP; COVER
(B)
8-98021-271-0
04
1
1310-
603
CLIP; COVER
(B)
8-98021-271-0
05
1
1310-
603
CLIP; COVER
(C)
8-98162-058-1
02
1
1310-
603
CLIP; COVER
(D)
8-98167-222-0
02
1
1310-
626
RETAINER
OD=15 BLACK
8-94279-804-0
02
1
1310-
646
BRACKET; GARNISH PANEL
(A)
8-98051-490-2
01
1
1310-
646
BRACKET; GARNISH PANEL
(B)
8-98051-492-2
01
1
1310-
662
COVER; LWR,INST PANEL
GRAY
8-97419-960-2
01
1
1310-
696
BRACKET; KNEE
8-98066-085-1
01
1
1310-
701
TRAY; INST
GRAY
8-97417-196-2
01
1
1310-
702
NUT; TRAY
(B) M6 FLANGE
0-91180-106-0
02
1
1310-
702
NUT; TRAY
(A)
8-98037-629-0
01
1
1310-
718
SEAL; COVER
7X31
8-98061-777-0
01
1
1310-
721
FINISHER; BRKT,KNEE
L=140
8-97892-742-0
01
1
1310-
