◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#128465) — 131 parça

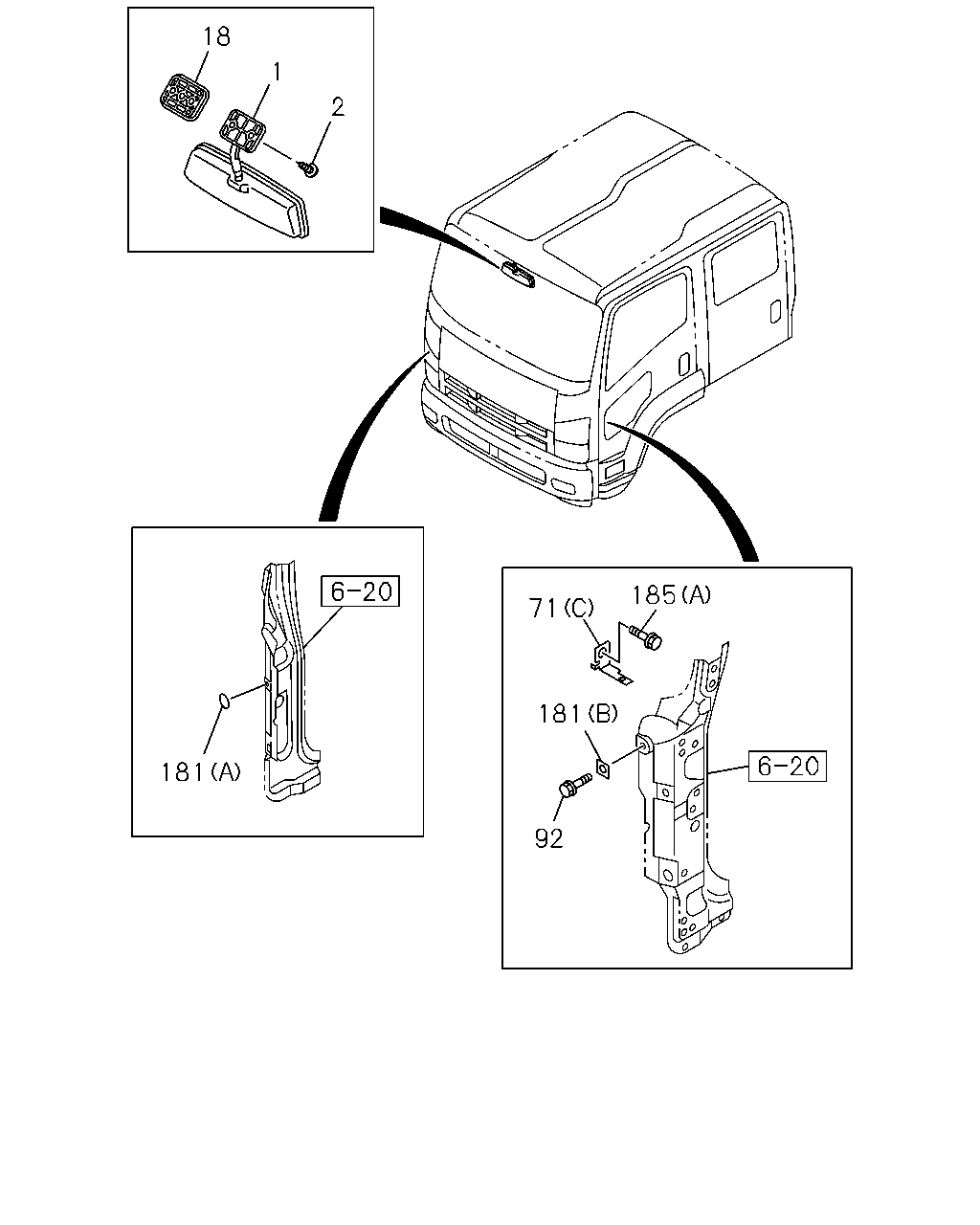

çizim 379630
18 1 2 181 71 181 92 185
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1310-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1310-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1310-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1310-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1310-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1310-
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 1310-

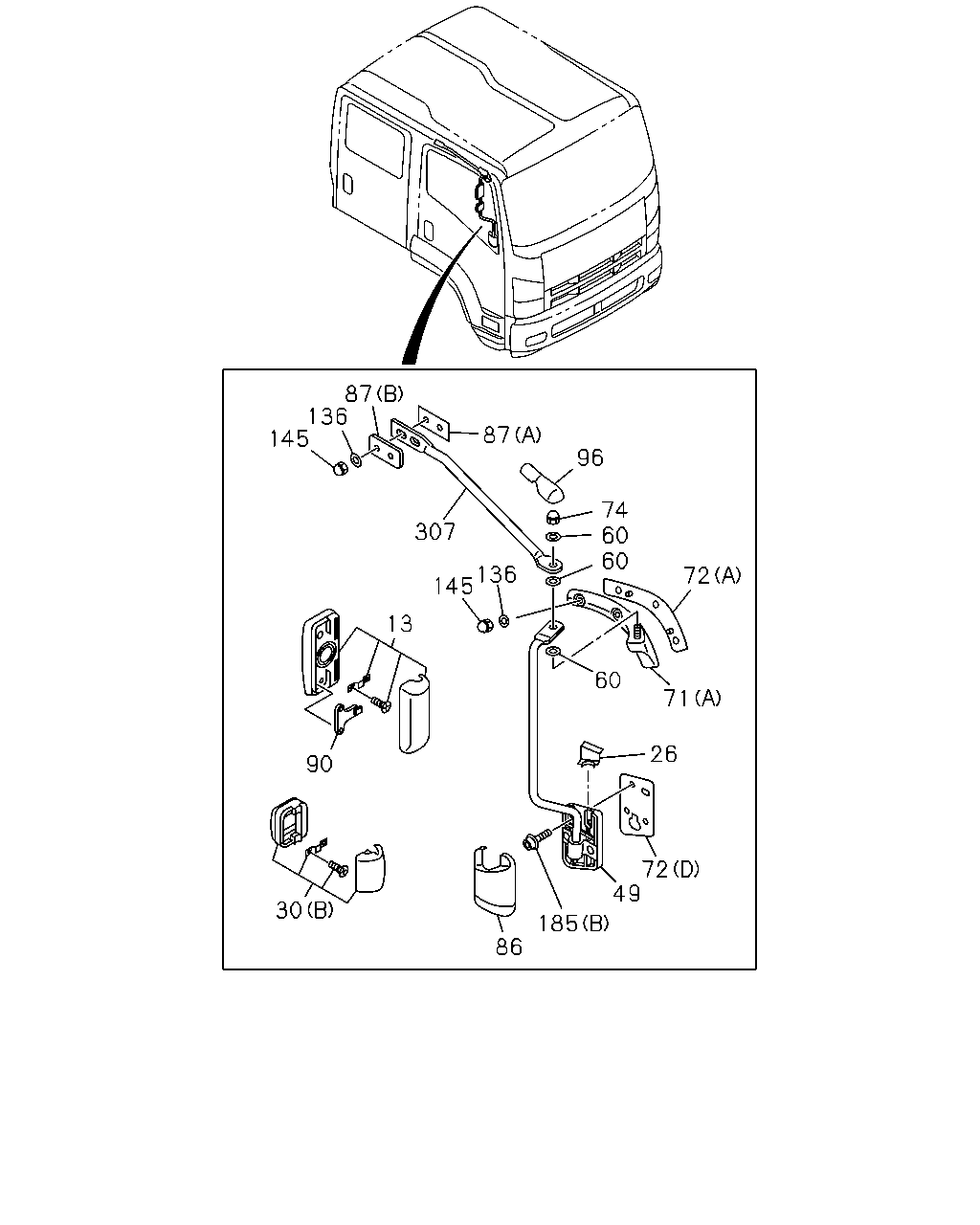

çizim 379649
86 49 185 72 26 60 71 72 60 74 60 96 87 87 136 145 307 136 145 13 90 30
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-991-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-992-1 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1310-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1310-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1310-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1310-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-188-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-189-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-180-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-181-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-194-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-195-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-206-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-207-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-190-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-191-0 01 1 1310-
60 WASHER; PL,OUTSIDE MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1310-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1310-
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 1310-
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 1310-
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1310-
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1310-
72 SHEET
(A) 		8-98031-796-0 01 1 1310-
72 SHEET
(A) 		8-98031-797-0 01 1 1310-
72 SHEET
(B) 		8-98060-245-1 01 1 1310-
72 SHEET
(C) 		8-98064-776-0 01 1 1310-
74 NUT
M10 CAP NUT 		1-09984-134-0 02 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1310-
87 SPACER
(A) 		8-98063-786-0 02 1 1310-
87 SPACER
(B) 		8-98063-789-0 01 1 1310-
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98129-822-0 02 1 1506-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1310-
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1310-

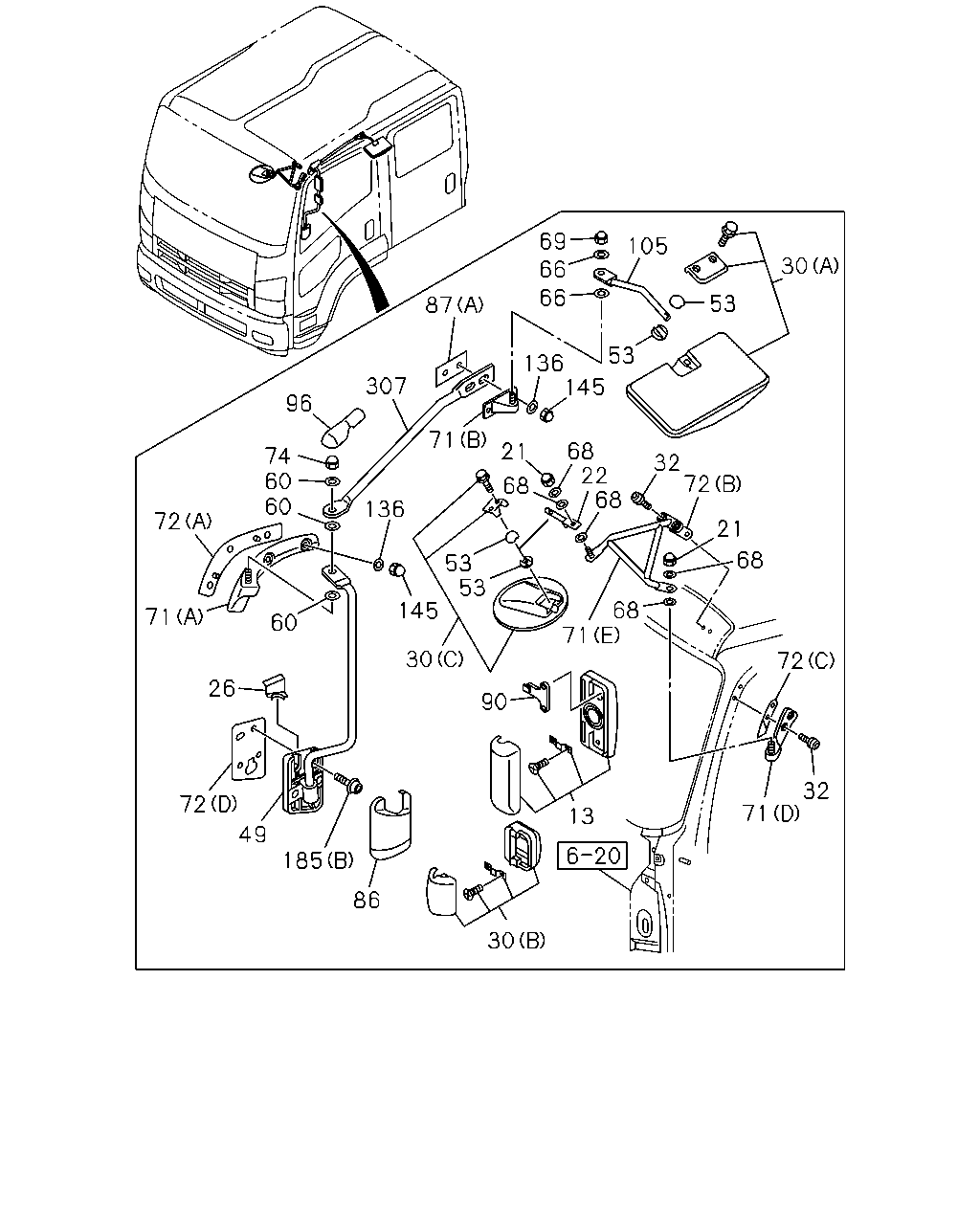

çizim 380964
69 66 66 105 53 53 145 136 87 71 21 68 22 68 32 72 21 68 72 32 71 68 68 307 96 136 53 53 71 145 30 90 13 60 60 60 74 72 71 26 72 49 185 86 30 30
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-991-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-992-1 01 1 1310-
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1310-
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1310-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1310-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1310-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1310-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-188-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-189-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-180-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-181-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-194-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-195-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-206-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-207-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-190-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-191-0 01 1 1310-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1310-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1310-
60 WASHER; PL,OUTSIDE MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1310-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1310-
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1310-
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1310-
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 1310-
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 1310-
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1310-
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1310-
72 SHEET
(A) 		8-98031-796-0 01 1 1310-
72 SHEET
(A) 		8-98031-797-0 01 1 1310-
72 SHEET
(B) 		8-98060-245-1 01 1 1310-
72 SHEET
(C) 		8-98064-776-0 01 1 1310-
74 NUT
M10 CAP NUT 		1-09984-134-0 02 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1310-
87 SPACER
(A) 		8-98063-786-0 02 1 1310-
87 SPACER
(B) 		8-98063-789-0 01 1 1310-
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98129-822-0 02 1 1506-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1310-
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1310-
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1310-
