◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#128456) — 91 parça

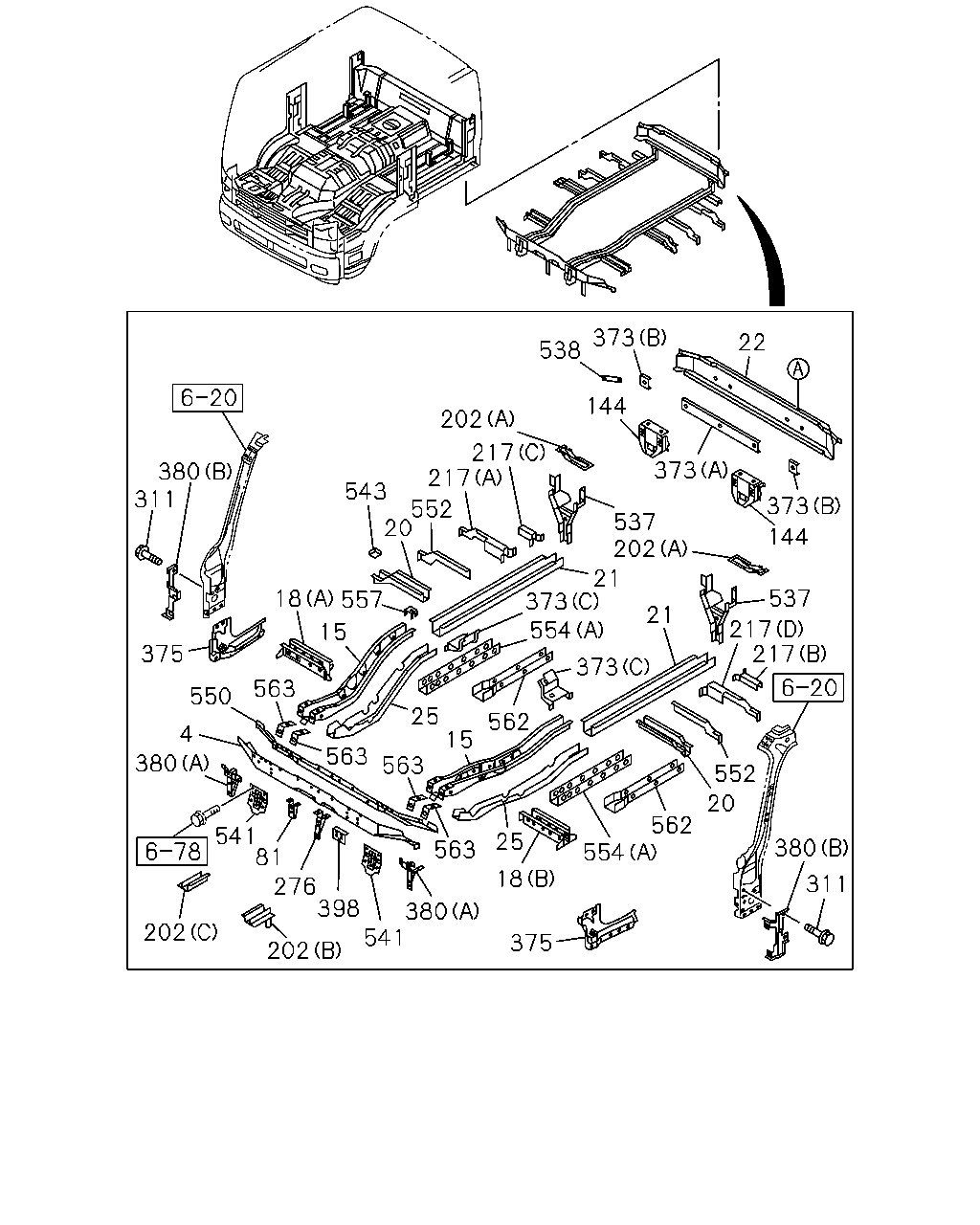

çizim 379575
538 373 22 373 144 202 217 543 380 311 375 550 380 563 4 541 202 202 375 541 398 276 81 563 563 380 563 18 562 554 25 562 15 25 15 18 557 20 217 552 537 554 373 373 202 21 552 20 380 311 373 537 21 217 217 144
BalonParca AdiParca NoAdetTipApplied Date
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1310-
15 FRAME; UNDER 8-97584-388-9 01 1 1310-
15 FRAME; UNDER 8-97584-412-7 01 1 1310-
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1310-
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-98242-338-1 01 1 1310-
20 FRAME; FLOOR SIDE,REAR 8-98057-164-1 01 1 1310-
20 FRAME; FLOOR SIDE,REAR 8-98057-167-1 01 1 1310-
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 1310-
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 1310-
22 FRAME; FLOOR REAR 8-97410-959-1 01 1 1310-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 1310-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 1310-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1310-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1310-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1310-
202 PANEL; CENTER MTG REINF
(A) 		8-97584-426-0 02 1 1310-
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 1310-
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 1310-
217 PANEL; SEAT STAND
(C) 		8-97410-945-1 01 1 1310-
217 PANEL; SEAT STAND
(B) 		8-97410-956-1 01 1 1310-
217 PANEL; SEAT STAND
(A) 		8-98057-178-1 01 1 1310-
217 PANEL; SEAT STAND
(D) 		8-98057-196-1 01 1 1310-
276 BRACKET; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98253-712-0 01 1 1412-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1310-1411
276 BRACKET; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> 		8-97589-596-3 01 1 1412-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1310-
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1310-
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1310-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97410-963-1 01 1 1310-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 1310-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1310-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1310-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1310-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1310-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1310-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1310-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1310-
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1310-
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1310-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1310-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1310-
543 GUSSET; RR PILLAR,LWR 8-98024-396-0 01 1 1310-
543 GUSSET; RR PILLAR,LWR 8-98035-734-0 01 1 1310-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1310-
552 PANEL; STEP RR 8-98057-170-0 01 1 1310-
552 PANEL; STEP RR 8-98057-171-0 01 1 1310-
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97584-351-2 01 1 1310-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-063-2 01 1 1310-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-064-2 01 1 1310-
557 PATCH; SEAT 8-98074-333-0 01 1 1310-
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 1310-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1310-

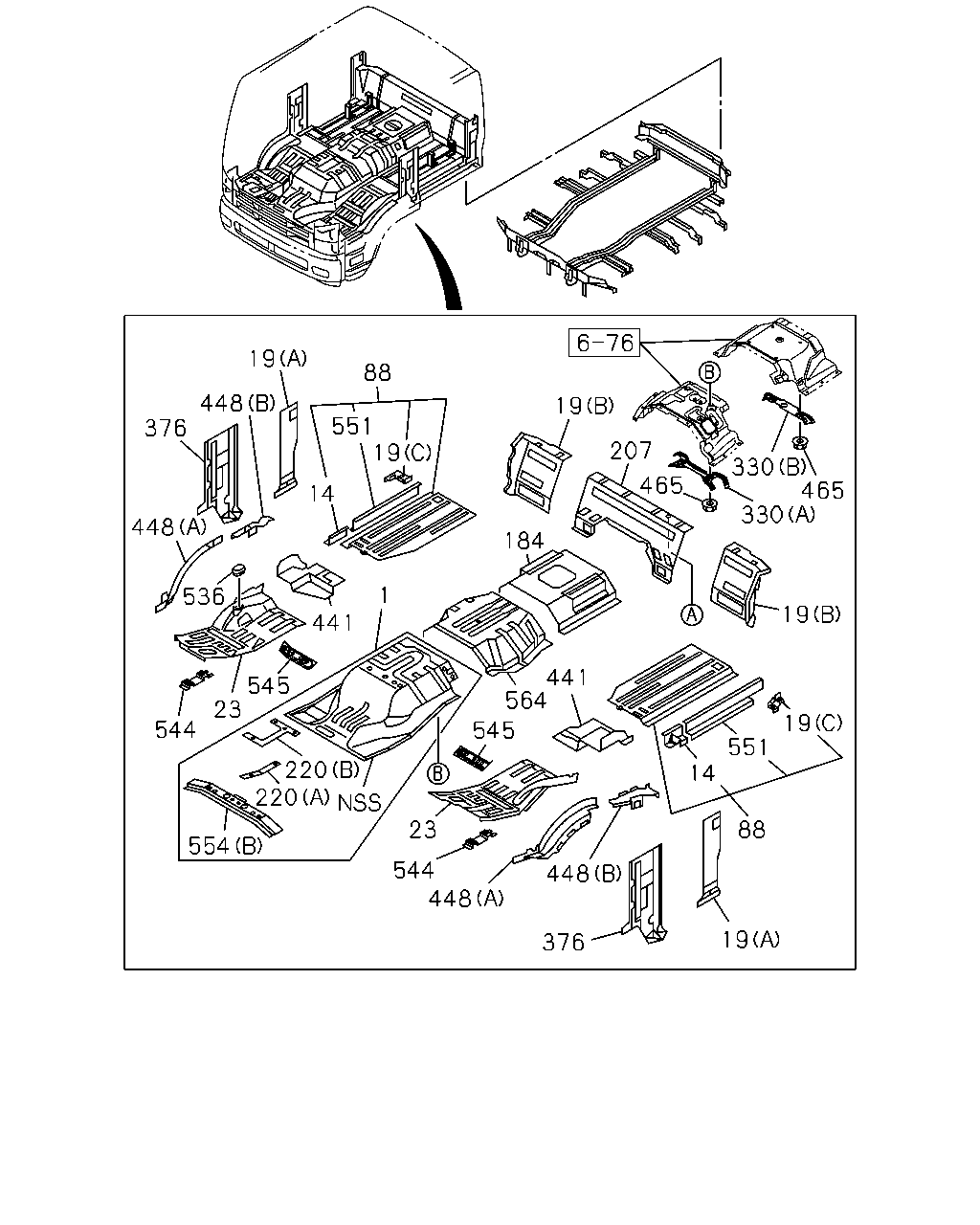

çizim 381115
19 448 376 448 536 545 23 544 554 220 220 23 441 14 551 88 19 465 207 184 1 564 545 544 448 376 448 19 88 14 441 551 19 19 330 330 465 19
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 8-97410-865-7 01 1 1310-
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 1310-
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 1310-
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 1310-
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 1310-
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 1310-
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 1310-
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-841-1 01 1 1310-
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-842-1 01 1 1310-
23 PANEL; FLOOR,SIDE 8-97410-882-4 01 1 1310-
23 PANEL; FLOOR,SIDE 8-98216-751-0 01 1 1310-
88 BOARD ASM; FLOOR 8-98085-409-1 01 1 1310-
88 BOARD ASM; FLOOR 8-98085-410-1 01 1 1310-
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 1310-
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 1310-
220 PATCH
(A) 		8-97589-603-3 01 1 1310-
220 PATCH
(B) 		8-97589-627-2 01 1 1310-
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1310-
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1310-
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1310-
376 CLOSING; PILLAR,LWR 8-98088-029-3 01 1 1310-
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-911-2 01 1 1310-
441 PANEL; EXTENSION,FLOOR SIDE 8-98050-317-2 01 1 1310-
448 CLOSING; ROCKER
(A) 		8-97610-658-1 01 1 1310-
448 CLOSING; ROCKER
(A) 		8-97610-659-1 01 1 1310-
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1310-
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1310-
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1310-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1310-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1310-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1310-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1310-
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1310-
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 1310-
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 1310-
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97584-351-2 01 1 1310-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-063-2 01 1 1310-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-064-2 01 1 1310-
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
