◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#128454) — 13 parça

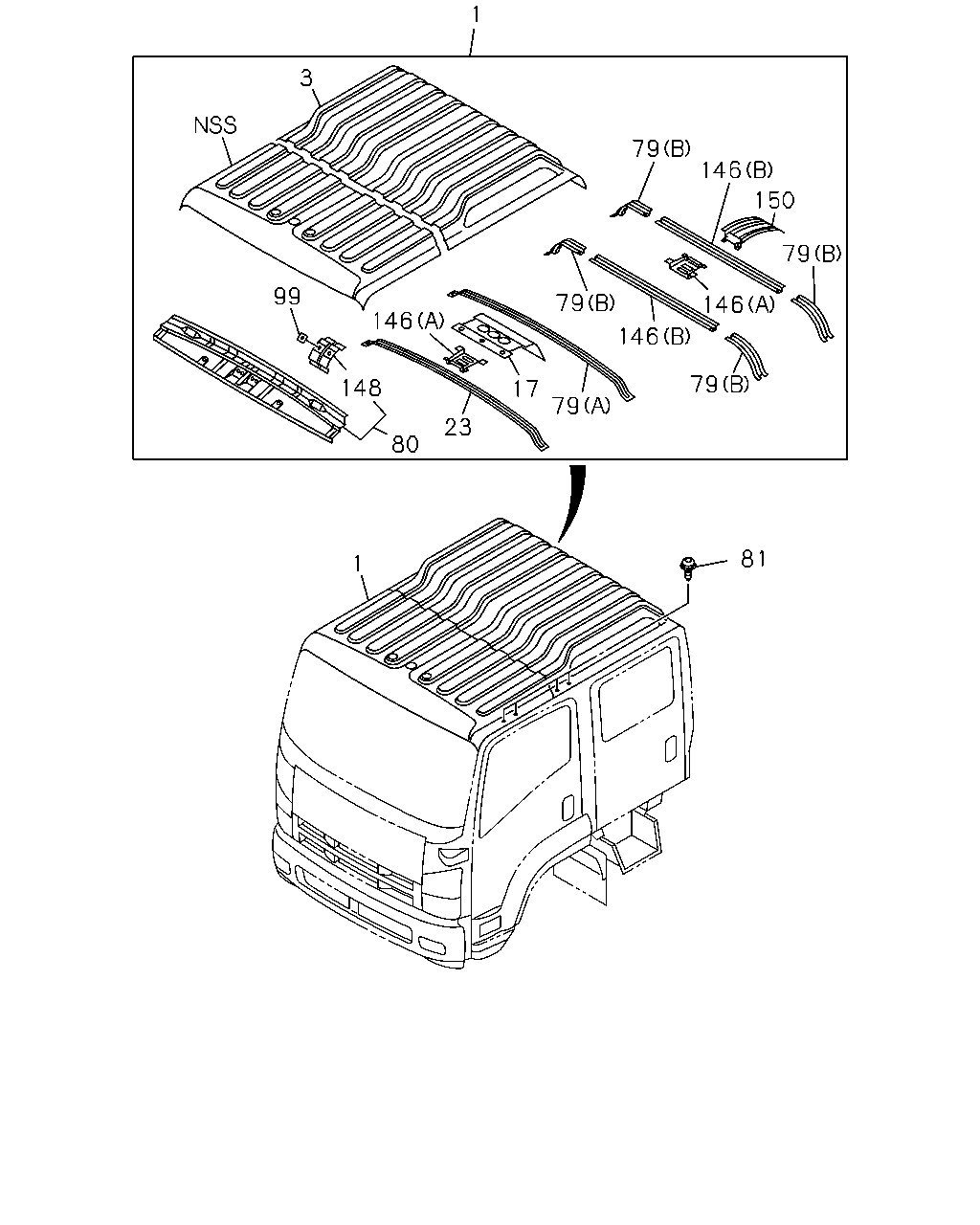

çizim 379610
81 1 80 23 17 79 146 148 99 3 1 79 146 79 146 79 150 146 79
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF 8-97587-641-7 01 1 1310-
3 PANEL; ROOF,RR 8-97411-040-1 01 1 1310-
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1310-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1310-
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 1310-
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-98008-023-0 04 1 1310-
80 PANEL; HEADER,ROOF 8-97584-191-4 01 1 1310-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1310-
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1310-
146 REINFORCEMENT; ROOM LAMP
(B) 		8-98010-736-1 02 1 1310-
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 02 1 1310-
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 1310-
150 REINFORCEMENT; ROOF BACK 8-98085-374-0 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
