Isuzu WW
▶
TRUCKS
▶
FRR
▶
11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-51 - REAR DOOR GLASS AND REGULATOR
▶

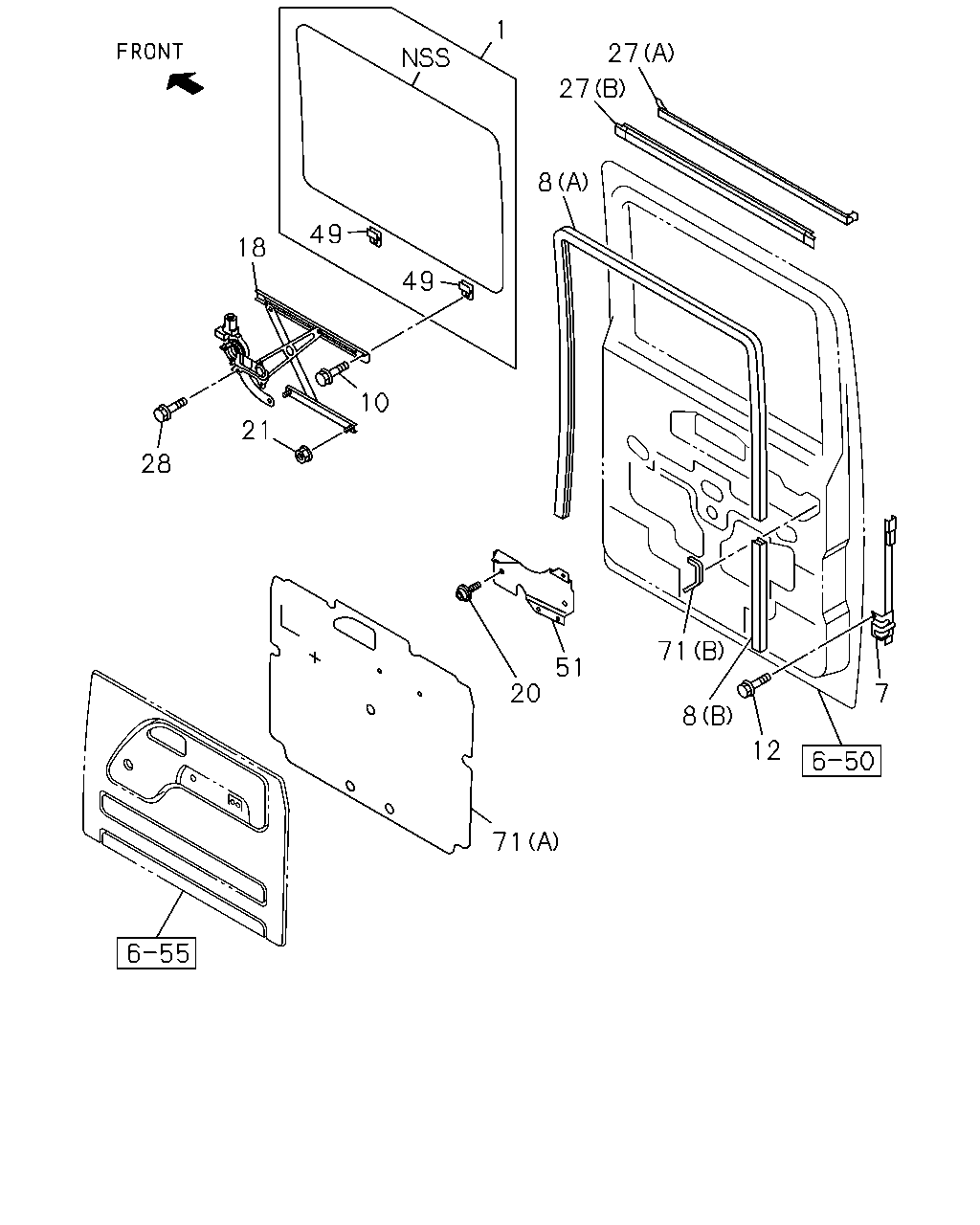

6-51 — REAR DOOR GLASS AND REGULATOR
(#128451) — 21 parça
7
12
71
8
51
20
71
28
21
10
49
49
18
1
27
27
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; RR DOOR
8-98211-769-0
01
1
1310-
1
GLASS; RR DOOR
8-98211-770-0
01
1
1310-
7
CHANNEL; GLASS RUN,RR DOOR
8-98032-137-2
01
1
1310-
7
CHANNEL; GLASS RUN,RR DOOR
8-98032-138-2
01
1
1310-
8
RUN; GLASS,RR DOOR
(A)
8-97587-685-1
01
1
1310-
8
RUN; GLASS,RR DOOR
(A)
8-98002-256-1
01
1
1310-
8
RUN; GLASS,RR DOOR
(B)
8-98070-147-0
02
1
1310-
10
SCREW; GLASS
M6X10 FLANGE
0-28050-610-0
04
1
1310-
12
SCREW; CHANNEL,GLASS RUN
M6X10 FLANGE
0-28050-610-0
04
1
1310-
18
REGULATOR; WINDOW,RR DOOR
8-97587-695-3
01
1
1310-
18
REGULATOR; WINDOW,RR DOOR
8-97587-696-3
01
1
1310-
20
SCREW
M6X14 W/TORQUES
8-98064-118-1
08
1
1310-
21
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
1310-
27
SEAL; WAIST,RR DOOR
(A)
8-97587-691-1
02
1
1310-
27
SEAL; WAIST,RR DOOR
(B)
8-97587-692-1
02
1
1310-
28
BOLT; WINDOW REG
M6X10 FLANGE
0-28050-610-0
08
1
1310-
49
HOLDER; DOOR GLASS
8-98211-762-0
04
1
1310-
51
PATCH; RR DOOR
8-98089-525-0
01
1
1310-
51
PATCH; RR DOOR
8-98089-526-0
01
1
1310-
71
SEAL; WATER,RR DOOR
(A)
8-97587-700-1
02
1
1310-
71
SEAL; WATER,RR DOOR
(B)
8-98061-351-0
02
1
1310-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
