6-20 — SIDE PANEL AND STEP (#128443) — 97 parça

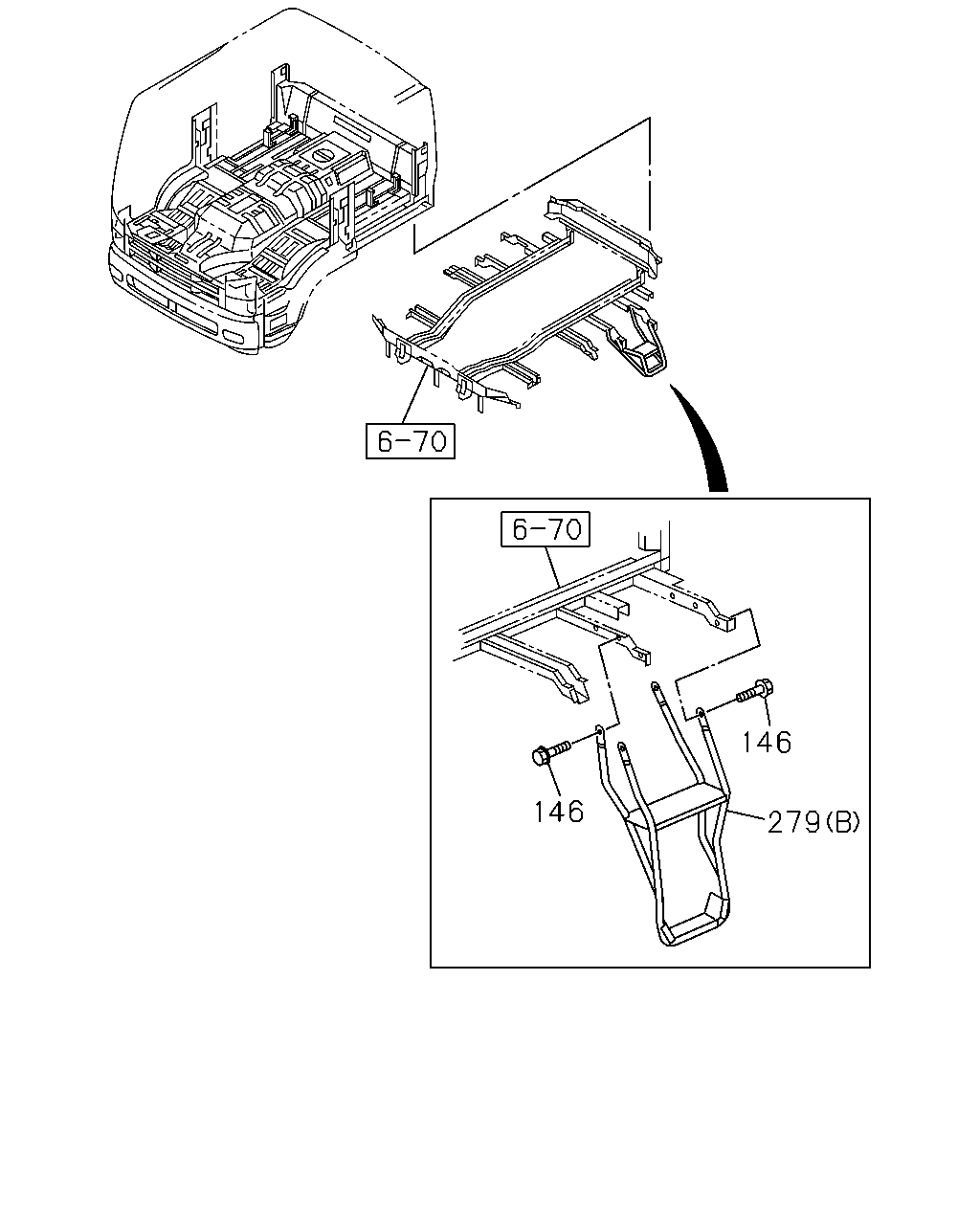

çizim 379863
146 279 146
BalonParca AdiParca NoAdetTipApplied Date
146 BOLT; STEP BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1310-
279 BOARD; STEP 1ST
(A) 		8-98080-627-0 01 1 1310-
279 BOARD; STEP 1ST
(A) 		8-98080-628-0 01 1 1310-
279 BOARD; STEP 1ST
(B) 		8-98115-499-0 01 1 1310-
279 BOARD; STEP 1ST
(B) 		8-98115-501-0 01 1 1310-

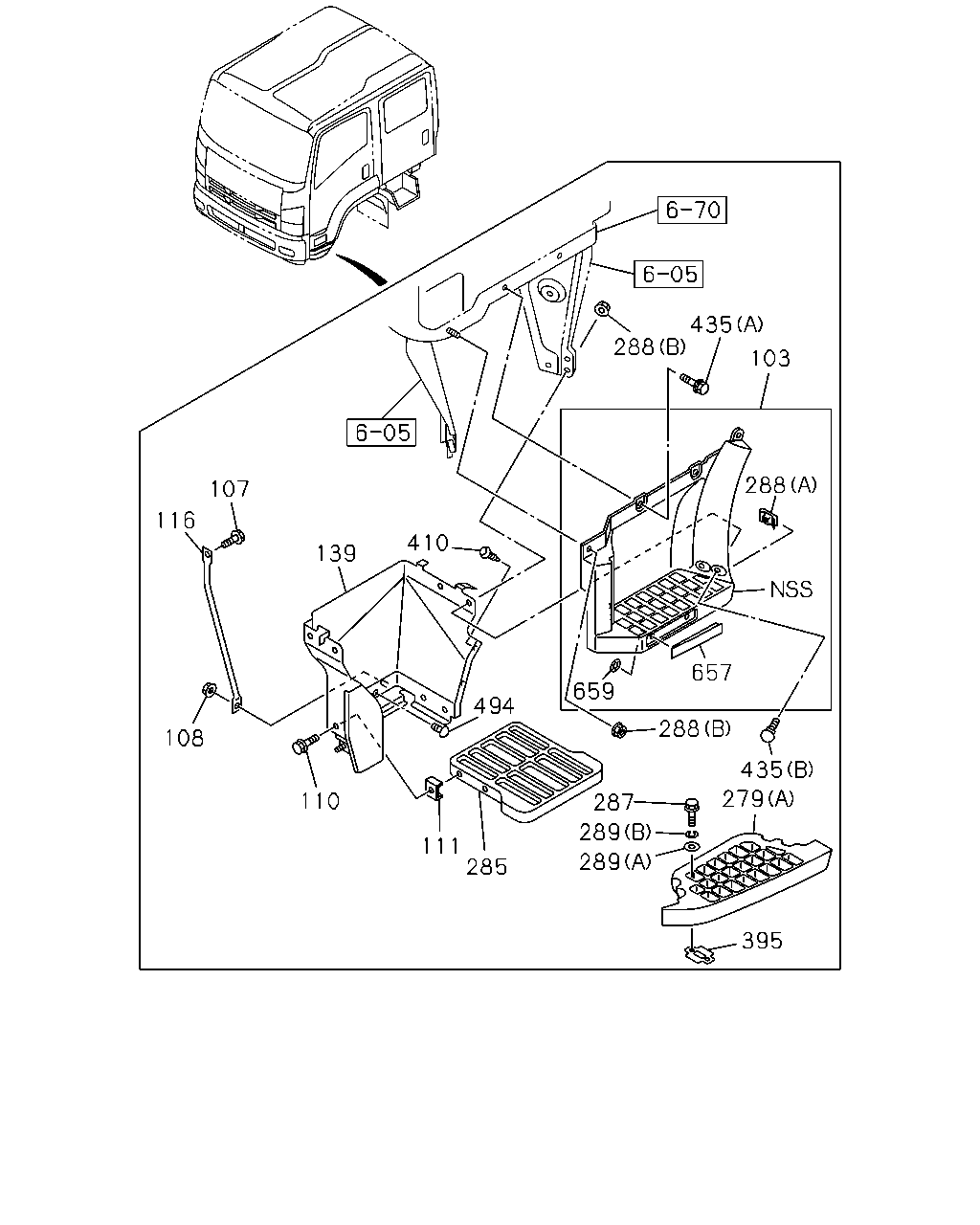

çizim 380162
107 116 139 410 494 285 111 110 108 288 435 103 288 657 659 288 435 279 287 289 289 395
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-327-3 01 1 1310-
103 PLATE; STEP 8-98037-329-3 01 1 1310-
107 BOLT; SIDE STEP
M8X20 FLANGE 		0-28650-820-0 02 1 1310-
108 NUT; SIDE STEP
M8 FLANGE 		0-91180-108-0 02 1 1310-
110 BOLT; 1ST STEP PLATE
M8X16 FLANGE 		0-28050-816-0 10 1 1310-
111 COVER; 1ST STEP 1-71998-153-0 10 1 1310-
116 STAY; 1ST STEP,FRT 8-98080-639-0 01 1 1310-
116 STAY; 1ST STEP,FRT 8-98080-640-0 01 1 1310-
139 CLOSING; 1ST STEP 8-98080-635-0 01 1 1310-
139 CLOSING; 1ST STEP 8-98080-636-0 01 1 1310-
279 BOARD; STEP 1ST
(A) 		8-98080-627-0 01 1 1310-
279 BOARD; STEP 1ST
(A) 		8-98080-628-0 01 1 1310-
279 BOARD; STEP 1ST
(B) 		8-98115-499-0 01 1 1310-
279 BOARD; STEP 1ST
(B) 		8-98115-501-0 01 1 1310-
285 PLATE; STEP,1ST STEP 1-71998-312-2 02 1 1310-
287 BOLT; BOARD STEP 8-98165-009-0 08 1 1310-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1310-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1310-
289 WASHER; PL,STEP
(A) 		8-98112-672-1 08 1 1310-
289 WASHER; PL,STEP
(B) 		8-98112-673-1 08 1 1310-
395 BRACKET; SIDE STEP 8-98080-646-1 04 1 1310-
410 CLIP; COVER,STEP PLATE
OD=12 L=14.8 		8-94279-921-0 06 1 1310-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1310-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1310-
494 STUD; BRKT 8-94389-701-0 02 1 1310-
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 1310-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1310-

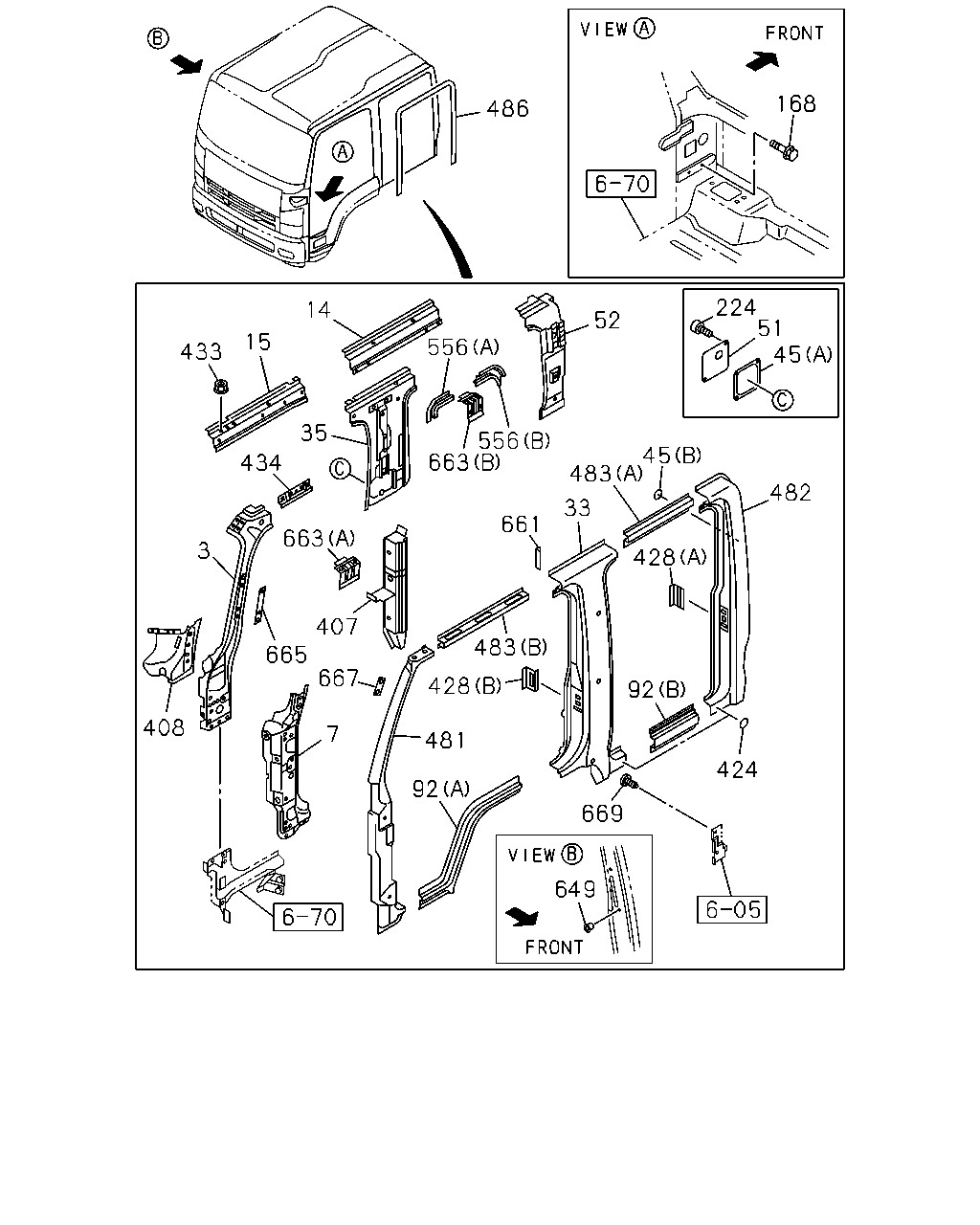

çizim 380940
45 51 224 52 486 168 556 56 33 483 45 428 483 428 481 669 424 649 92 667 407 663 3 35 434 15 433 14 663 665 408 7 661 92 482
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1310-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1310-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1310-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1310-
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1310-
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1310-
15 PANEL; CANT RAIL SIDE 8-97583-739-1 01 1 1310-
15 PANEL; CANT RAIL SIDE 8-97583-740-1 01 1 1310-
33 PANEL; CENTER PILLAR,OUTER 8-98069-091-0 01 1 1310-
33 PANEL; CENTER PILLAR,OUTER 8-98097-244-0 01 1 1310-
35 PANEL; CENTER PILLAR,INNER 8-98080-456-2 01 1 1310-
35 PANEL; CENTER PILLAR,INNER 8-98080-457-2 01 1 1310-
45 SEAL; B-C POST
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1310-
45 SEAL; B-C POST
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1310-
45 SEAL; B-C POST
(A) 		8-97853-731-2 02 1 1310-
51 COVER; HOLE,B-C POST 8-94273-658-0 02 1 1310-
52 PANEL; D-POST UPR 8-98062-005-1 01 1 1310-
52 PANEL; D-POST UPR 8-98062-006-1 01 1 1310-
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1310-
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1310-
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 1310-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1310-
224 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1310-
407 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 1310-
407 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 1310-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1310-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1310-
424 SEAL; CLOSING
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1310-
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1310-
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97851-445-1 01 1 1310-
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97851-446-1 01 1 1310-
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 1310-
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 1310-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1310-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1310-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1310-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1310-
481 PANEL; SIDE FRT PILLAR 8-98092-915-0 01 1 1310-
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1310-
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 1310-
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 1310-
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1310-
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1310-
483 PANEL; SIDE CANTRAIL
(A) 		8-98069-095-0 02 1 1310-
486 SEAL; BODY SIDE 8-98154-664-0 02 1 1310-
556 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 1310-
556 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 1310-
556 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 1310-
556 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 1310-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1310-
661 BRACKET; SIDE PANEL 8-98012-621-1 01 1 1310-
661 BRACKET; SIDE PANEL 8-98012-623-1 01 1 1310-
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1310-
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1310-
663 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1310-
663 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1310-
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1310-
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1310-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1310-
669 STUD; FENDER
M6X12 		8-98013-112-0 01 1 1310-
669 STUD; FENDER
M6X12 		8-98013-112-0 01 1 1310-

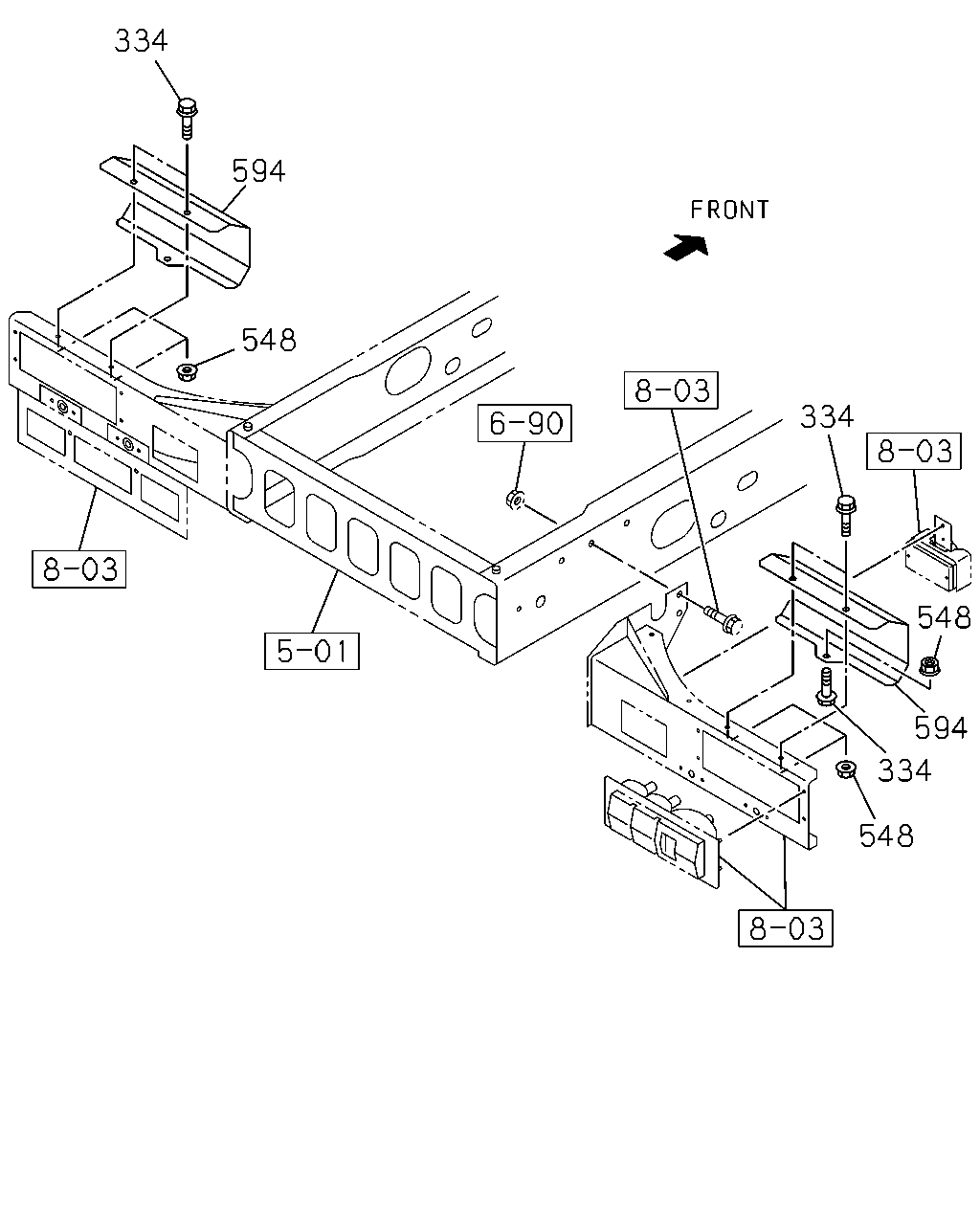

çizim 381503
548 594 334 548 334 548 594 334
BalonParca AdiParca NoAdetTipApplied Date
334 BOLT; COVER
M8X12 FLANGE 		0-28060-812-0 06 1 1310-
548 NUT; BRKT
M8 CAP NUT FLANGE 		8-97372-242-0 06 1 1310-1312
548 NUT; BRKT
M8 CAP NUT FLANGE 		8-98261-347-0 06 1 1401-
594 COVER; RR COMB LAMP 8-98249-274-0 02 1 1310-
