◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#128439) — 253 parça

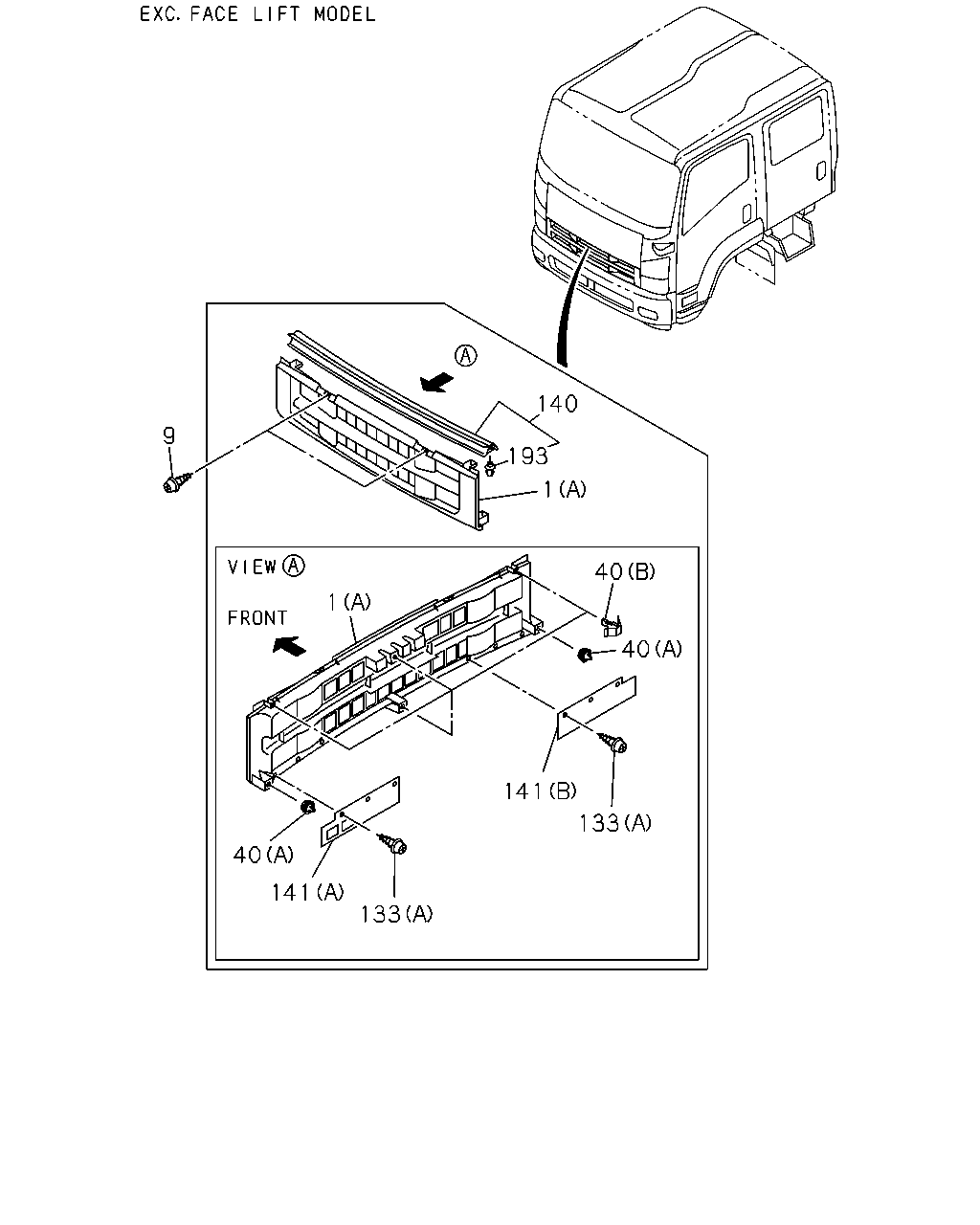

çizim 380032
9 140 193 40 40 1 1 133 141 141 40 133
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> (D) CHROMIUM PLATE 		8-98250-829-1 01 1 1412-
1 GRILLE; RAD
FACE LIFT MODEL<TX7> (E) BLACK 		8-98250-843-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR AL GRAY(517) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) GRAY 		8-97429-649-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-638-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-651-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-641-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) WHITE 		8-97429-659-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-653-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) DARK GREEN 		8-97429-648-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) YELLOW 		8-97429-667-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BEIGE 		8-97429-669-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-670-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) YELLOW 		8-97429-665-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-654-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) ORANGE 		8-97429-658-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) WHITE 		8-97429-662-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GREEN(989) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) GREEN 		8-97429-644-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-642-1 01 1 1412-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98046-505-7 01 1 1310-1411
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> (B) CHROMIUM PLATE 		8-98046-505-7 01 1 1412-
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-918-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-918-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-919-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-919-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-926-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-926-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-927-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-927-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-867-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-867-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-380-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-380-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-928-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-928-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-929-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-929-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-381-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-381-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-930-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-930-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-384-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-384-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-383-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-383-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-931-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-931-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-984-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-984-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-933-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-933-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-385-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-385-5 01 1 1412-
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1310-
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1310-
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1310-
133 SCREW; COVER
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> (B) T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 29 1 1412-
133 SCREW; COVER
(A) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 1310-
140 SEAL; RAD GRILLE 8-98060-339-0 01 1 1310-
141 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> (C) 		8-98250-849-1 01 1 1412-
141 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> (C) 		8-98250-850-1 01 1 1412-
141 COVER; RAD GRILLE
(B) 		8-98041-012-1 01 1 1310-
141 COVER; RAD GRILLE
(A) 		8-98060-783-0 01 1 1310-
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1310-

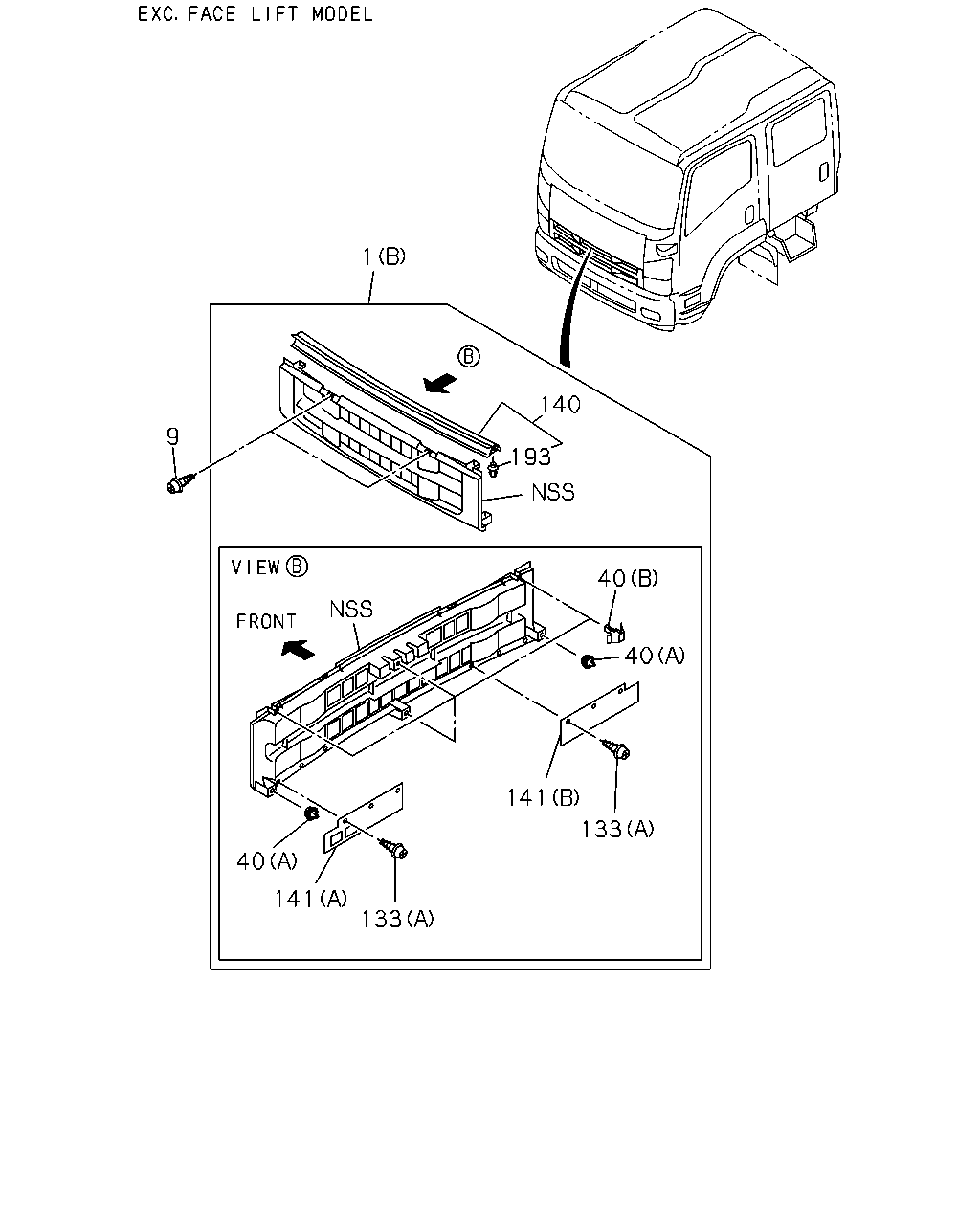

çizim 380124
1 140 193 9 40 141 133 141 133 40 40
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> (D) CHROMIUM PLATE 		8-98250-829-1 01 1 1412-
1 GRILLE; RAD
FACE LIFT MODEL<TX7> (E) BLACK 		8-98250-843-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR AL GRAY(517) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) GRAY 		8-97429-649-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-638-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-651-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-641-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) WHITE 		8-97429-659-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-653-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) DARK GREEN 		8-97429-648-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) YELLOW 		8-97429-667-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BEIGE 		8-97429-669-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-670-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) YELLOW 		8-97429-665-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-654-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) ORANGE 		8-97429-658-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) WHITE 		8-97429-662-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GREEN(989) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) GREEN 		8-97429-644-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-642-1 01 1 1412-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98046-505-7 01 1 1310-1411
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> (B) CHROMIUM PLATE 		8-98046-505-7 01 1 1412-
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-918-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-918-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-919-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-919-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-926-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-926-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-927-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-927-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-867-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-867-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-380-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-380-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-928-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-928-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-929-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-929-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-381-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-381-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-930-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-930-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-384-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-384-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-383-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-383-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-931-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-931-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-984-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-984-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-933-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-933-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-385-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-385-5 01 1 1412-
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1310-
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1310-
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1310-
133 SCREW; COVER
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> (B) T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 29 1 1412-
133 SCREW; COVER
(A) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 1310-
140 SEAL; RAD GRILLE 8-98060-339-0 01 1 1310-
141 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> (C) 		8-98250-849-1 01 1 1412-
141 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> (C) 		8-98250-850-1 01 1 1412-
141 COVER; RAD GRILLE
(B) 		8-98041-012-1 01 1 1310-
141 COVER; RAD GRILLE
(A) 		8-98060-783-0 01 1 1310-
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1310-

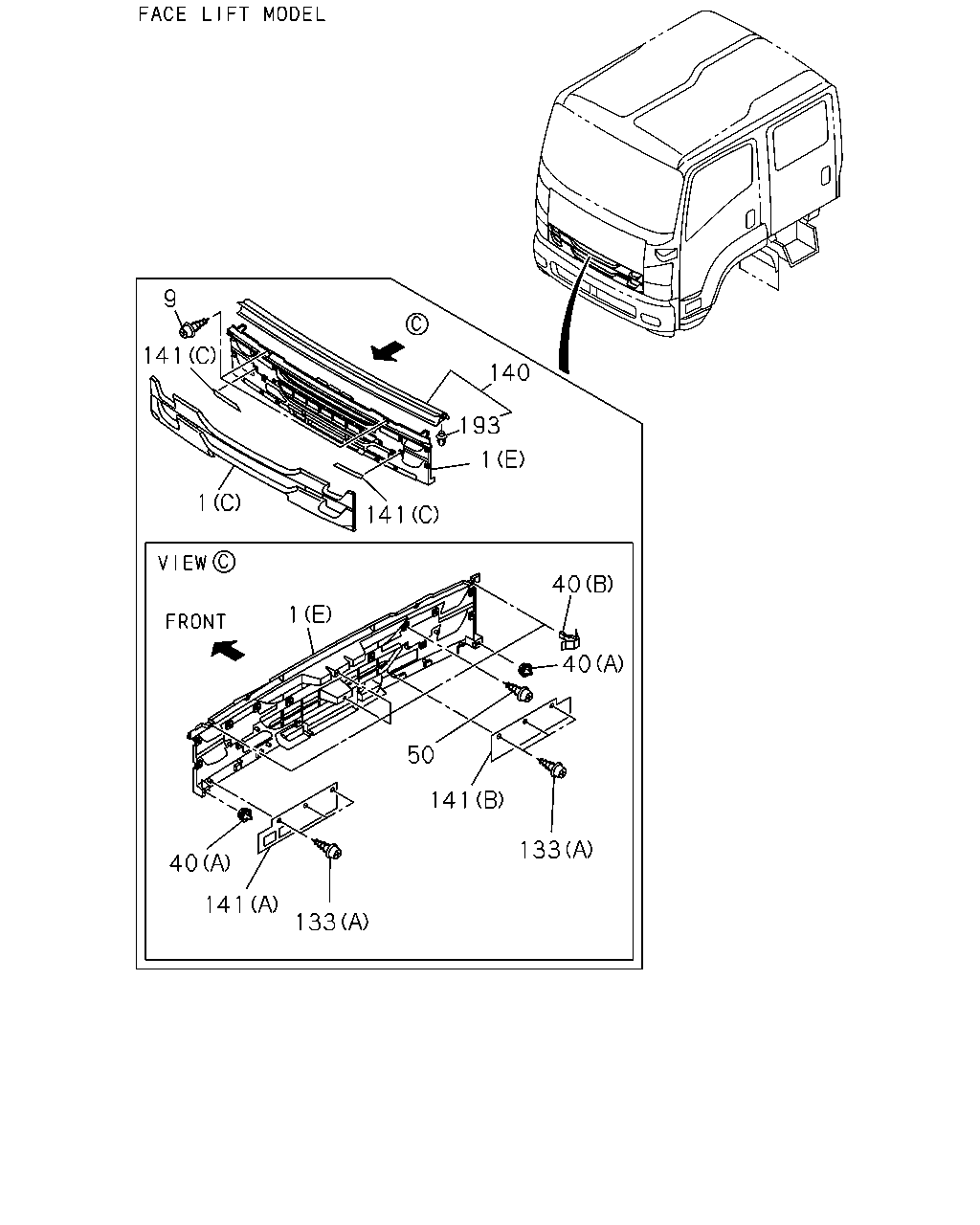

çizim 459795
9 141 1 140 193 141 1 40 40 141 133 50 133 141 40 1
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> (D) CHROMIUM PLATE 		8-98250-829-1 01 1 1412-
1 GRILLE; RAD
FACE LIFT MODEL<TX7> (E) BLACK 		8-98250-843-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR AL GRAY(517) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) GRAY 		8-97429-649-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-638-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-651-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-641-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) WHITE 		8-97429-659-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-653-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) DARK GREEN 		8-97429-648-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) YELLOW 		8-97429-667-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BEIGE 		8-97429-669-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-670-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) YELLOW 		8-97429-665-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-654-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) ORANGE 		8-97429-658-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) WHITE 		8-97429-662-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GREEN(989) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) GREEN 		8-97429-644-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-642-1 01 1 1412-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98046-505-7 01 1 1310-1411
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> (B) CHROMIUM PLATE 		8-98046-505-7 01 1 1412-
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-918-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-918-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-919-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-919-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-926-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-926-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-927-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-927-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-867-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-867-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-380-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-380-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-928-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-928-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-929-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-929-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-381-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-381-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-930-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-930-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-384-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-384-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-383-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-383-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-931-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-931-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-984-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-984-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-933-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-933-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-385-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-385-5 01 1 1412-
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1310-
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1310-
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1310-
50 BOLT; GRILLE
FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 15 1 1412-
133 SCREW; COVER
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> (B) T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 29 1 1412-
133 SCREW; COVER
(A) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 1310-
140 SEAL; RAD GRILLE 8-98060-339-0 01 1 1310-
141 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> (C) 		8-98250-849-1 01 1 1412-
141 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> (C) 		8-98250-850-1 01 1 1412-
141 COVER; RAD GRILLE
(B) 		8-98041-012-1 01 1 1310-
141 COVER; RAD GRILLE
(A) 		8-98060-783-0 01 1 1310-
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1310-

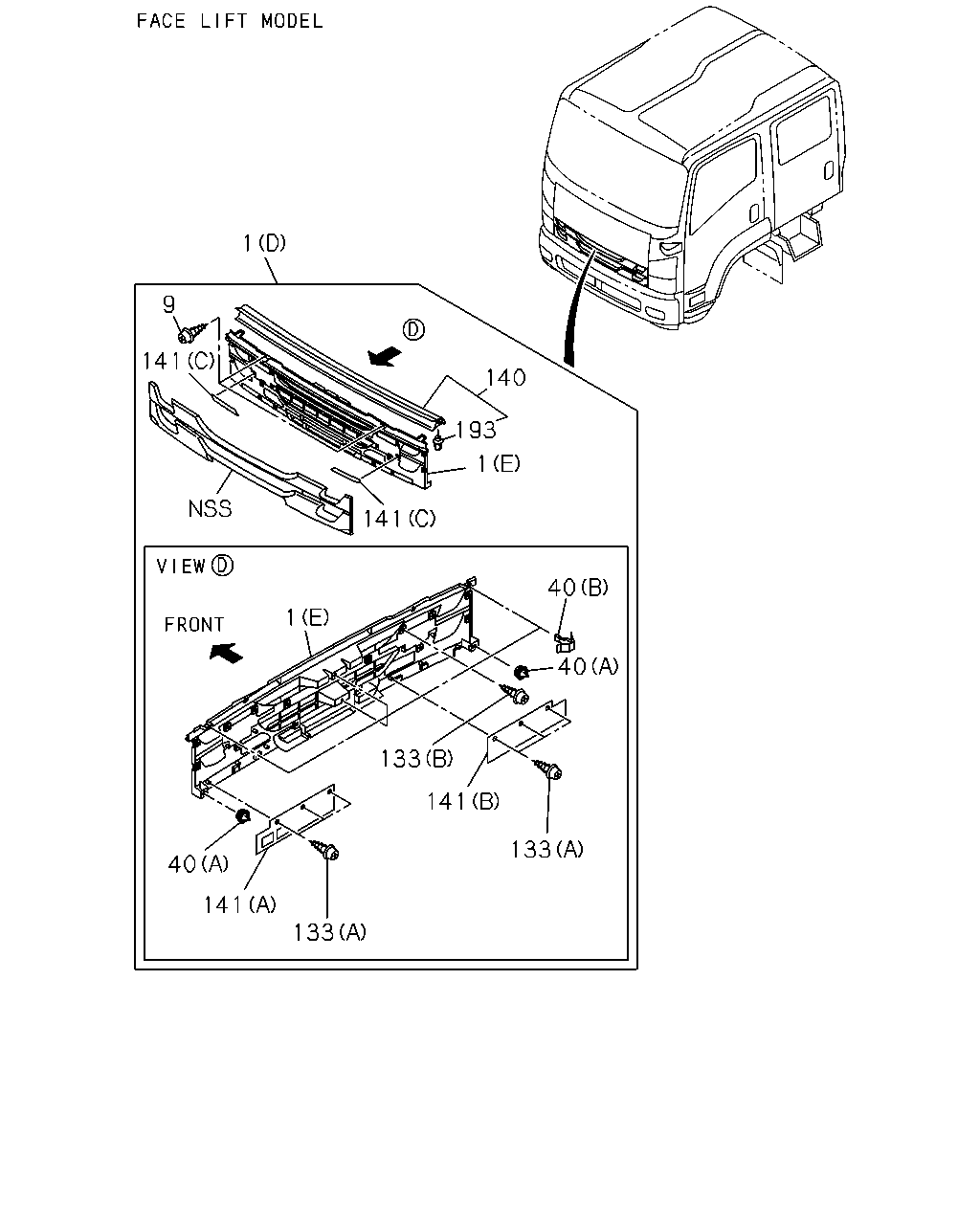

çizim 459817
1 9 141 141 1 193 140 1 40 40 133 141 133 133 141 40
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> (D) CHROMIUM PLATE 		8-98250-829-1 01 1 1412-
1 GRILLE; RAD
FACE LIFT MODEL<TX7> (E) BLACK 		8-98250-843-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR AL GRAY(517) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) GRAY 		8-97429-649-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-638-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-651-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-641-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) WHITE 		8-97429-659-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-653-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) DARK GREEN 		8-97429-648-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) YELLOW 		8-97429-667-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BEIGE 		8-97429-669-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-670-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) YELLOW 		8-97429-665-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) RED 		8-97429-654-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) ORANGE 		8-97429-658-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) WHITE 		8-97429-662-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR GREEN(989) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) GREEN 		8-97429-644-1 01 1 1412-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97429-642-1 01 1 1412-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98046-505-7 01 1 1310-1411
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> (B) CHROMIUM PLATE 		8-98046-505-7 01 1 1412-
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-918-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-918-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-919-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-919-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-926-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-926-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-927-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-927-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-867-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-867-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-380-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-380-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-928-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-928-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-929-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-929-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-381-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-381-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-930-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-930-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-384-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-384-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-383-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-383-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-931-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-931-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-984-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-984-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-933-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-933-5 01 1 1412-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-385-5 01 1 1310-1411
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-385-5 01 1 1412-
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1310-
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1310-
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1310-
133 SCREW; COVER
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> (B) T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 29 1 1412-
133 SCREW; COVER
(A) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 1310-
140 SEAL; RAD GRILLE 8-98060-339-0 01 1 1310-
141 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> (C) 		8-98250-849-1 01 1 1412-
141 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> (C) 		8-98250-850-1 01 1 1412-
141 COVER; RAD GRILLE
(B) 		8-98041-012-1 01 1 1310-
141 COVER; RAD GRILLE
(A) 		8-98060-783-0 01 1 1310-
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
