Isuzu WW
▶
TRUCKS
▶
FRR
▶
11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

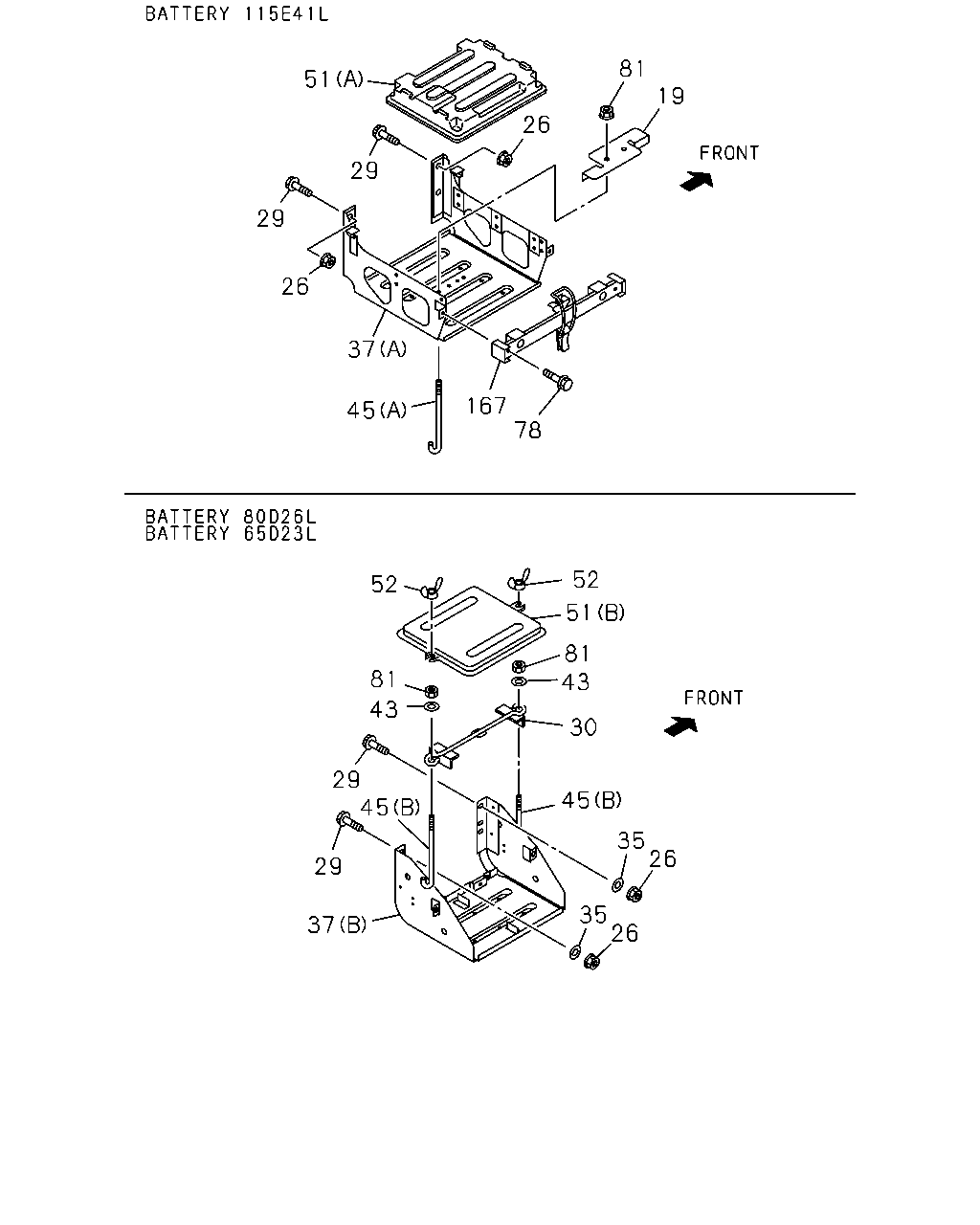

5-20 — BATTERY CARRIER
(#128436) — 17 parça
51
81
26
19
29
29
26
37
45
167
52
78
52
51
81
43
30
45
35
26
35
26
37
29
45
29
81
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
BATTERY 115E41L<8MA>
8-98120-443-0
01
1
1310-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1310-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1310-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1310-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1310-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (B)
8-97384-067-2
01
1
1310-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (B)
8-97384-068-2
01
1
1310-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (A)
8-98204-178-2
01
1
1310-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=8.4 OD=22
0-91614-708-0
02
1
1310-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
9-53616-615-0
02
1
1310-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A)
8-98120-478-0
02
1
1310-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1310-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
8-98124-443-0
01
1
1310-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1310-
78
BOLT; COVER
BATTERY 115E41L<8MA> M8X20 FLANGE
0-28650-820-0
02
1
1310-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1310-
167
BRACKET; STOPPER
BATTERY 115E41L<8MA>
8-98204-179-2
01
1
1310-
