Isuzu WW
▶
TRUCKS
▶
FRR
▶
11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#128433) — 78 parça
◀

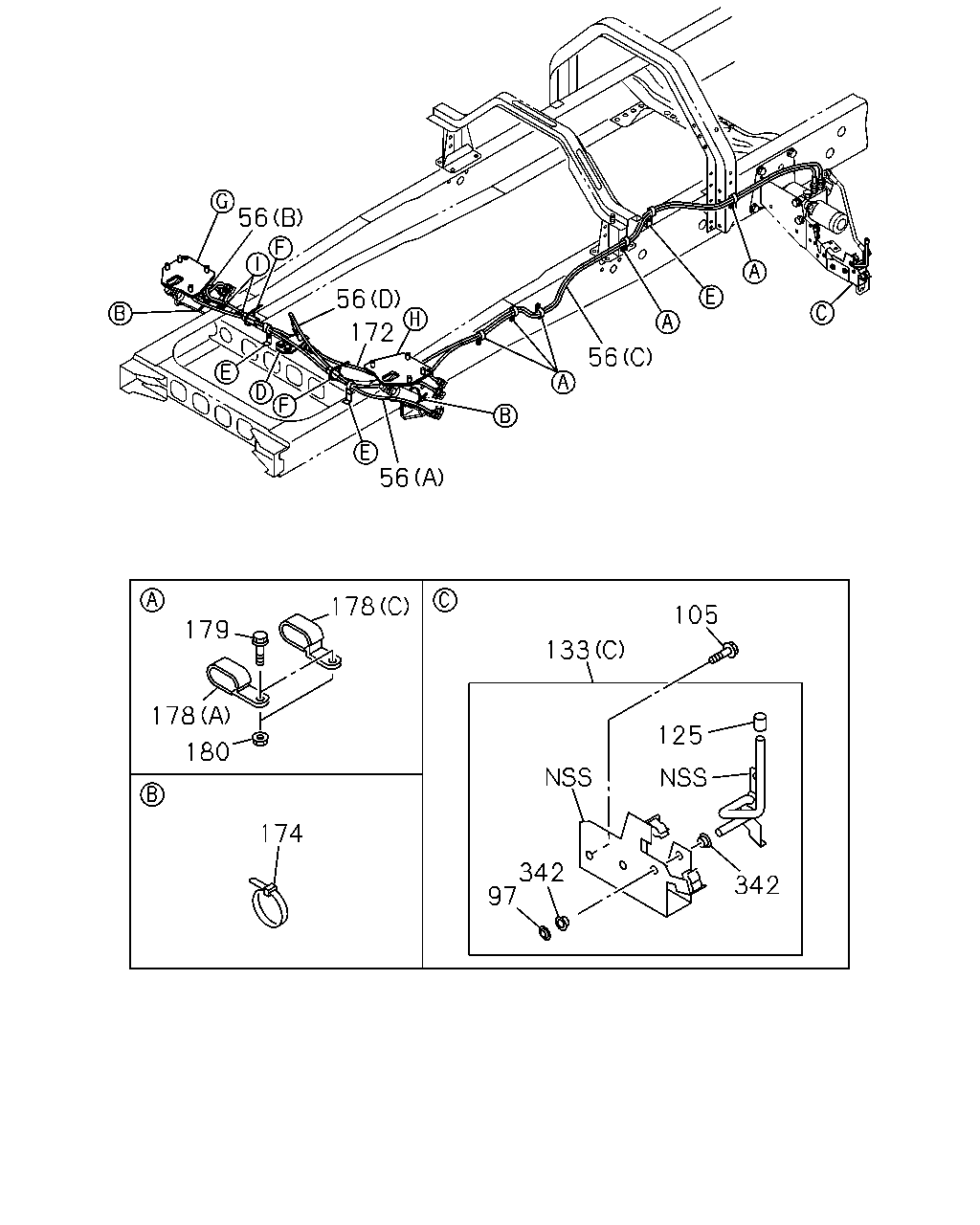

[515A] CAB TILT PIPING NO.1 (20 parça)

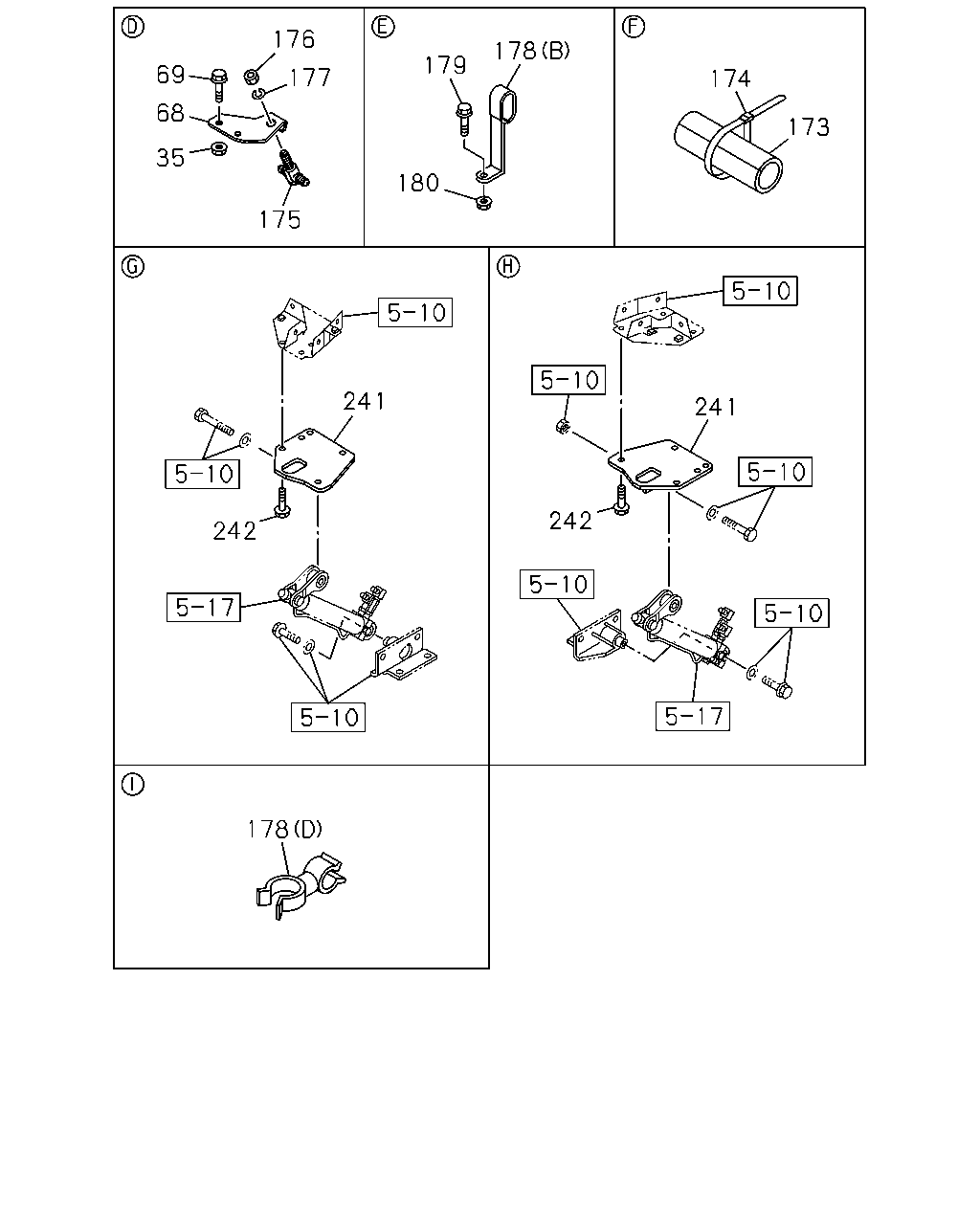

[515A] CAB TILT PIPING NO.2 (18 parça)

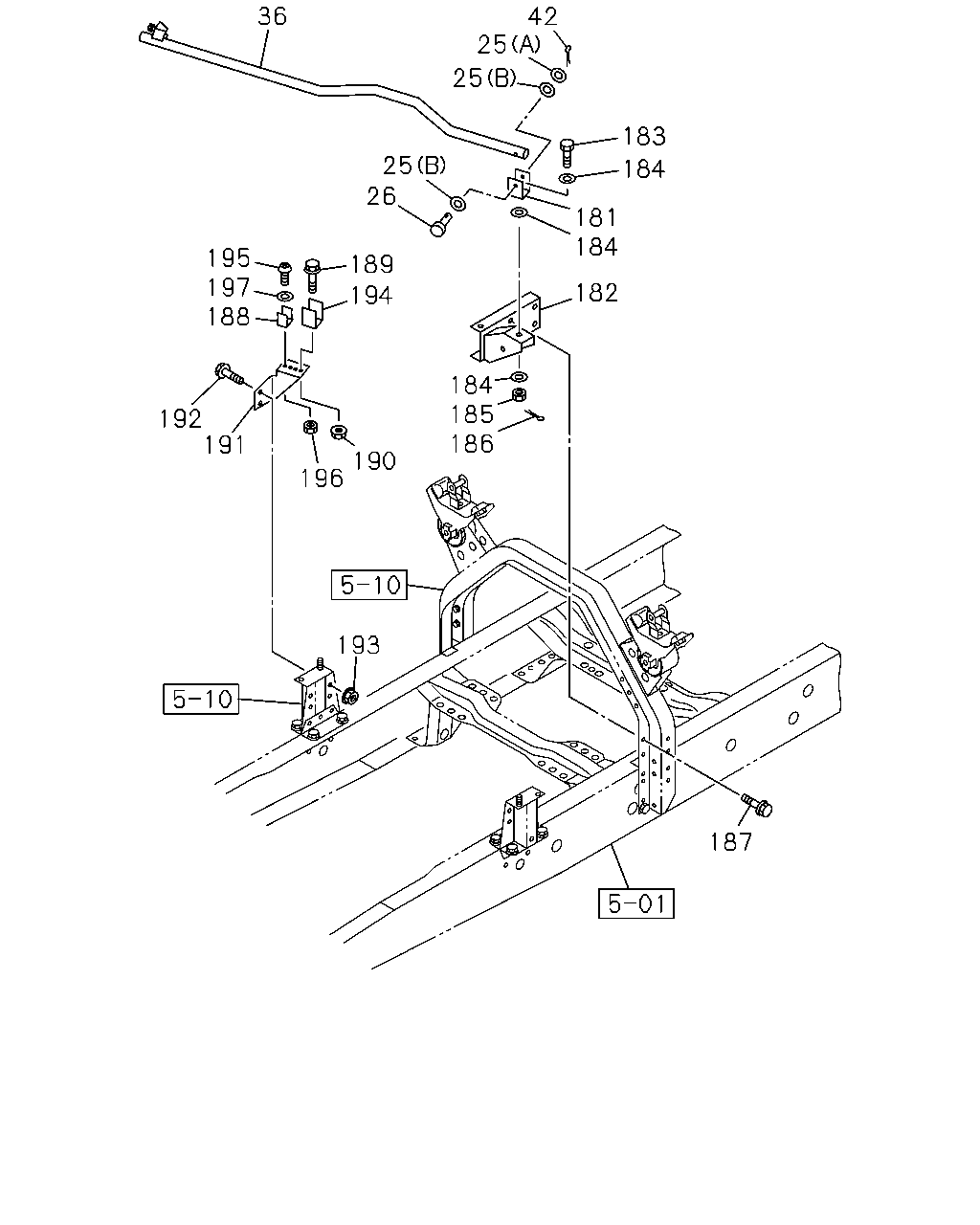

[515A] TILT STAY (22 parça)

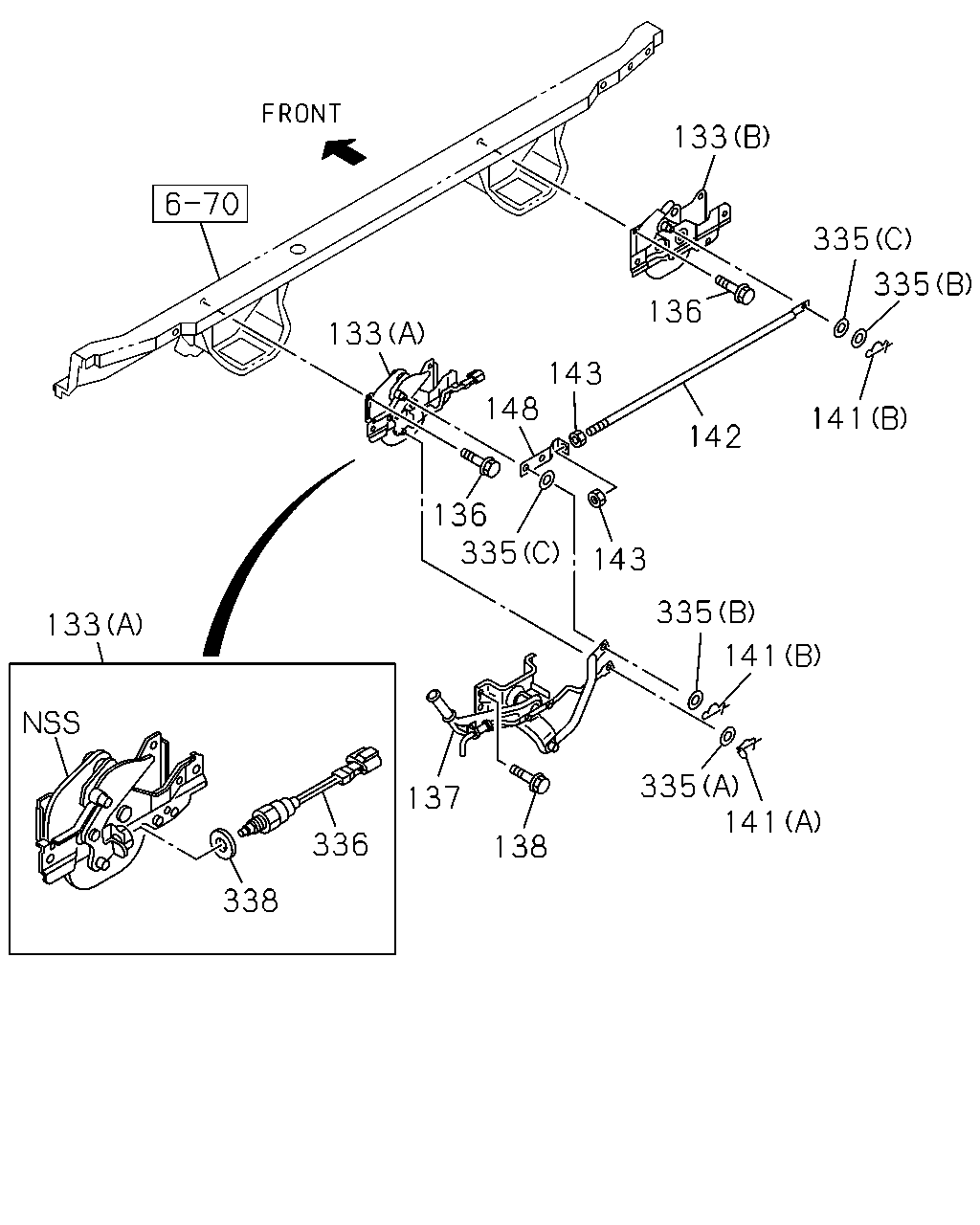

[515A] CAB LOCK (16 parça)

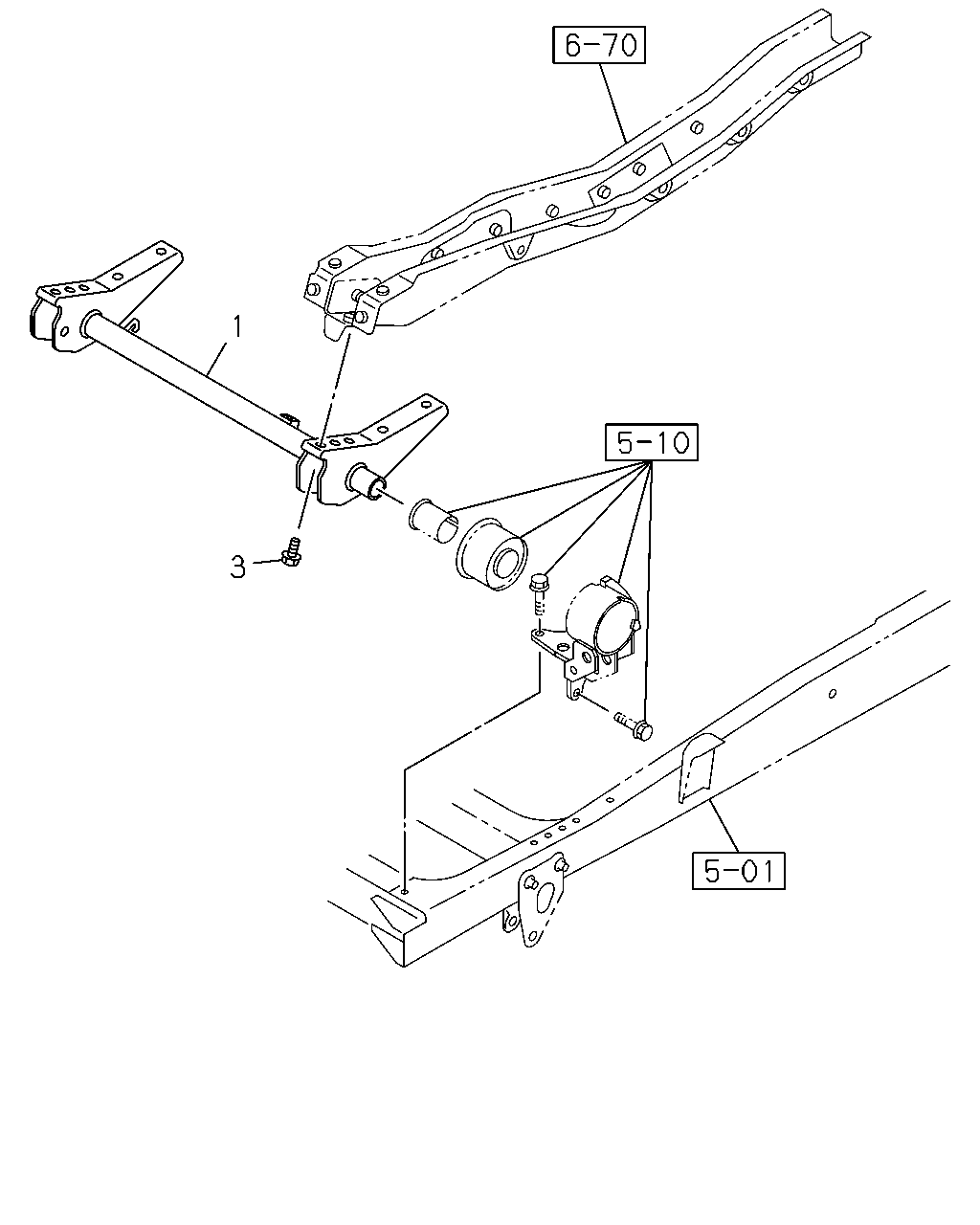

[515A] TORSION LEVER (2 parça)
▶
56
56
56
56
172
179
178
178
180
133
105
125
342
342
97
174
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
56
HOSE; FLEX,OIL PIPE
(D) L=1060
8-98044-010-2
01
1
1310-
56
HOSE; FLEX,OIL PIPE
(B) L=1270
8-98044-011-2
01
1
1310-
56
HOSE; FLEX,OIL PIPE
(C) L=2810
8-98239-748-0
01
1
1310-
56
HOSE; FLEX,OIL PIPE
(A) L=1500
8-98239-750-2
01
1
1310-
97
NUT; CAB STAY PIN
ID=9.9 PUSH NUT
8-97022-566-0
01
1
1310-
105
BOLT; CAB STAY
M8X16 FLANGE
0-28050-816-0
02
1
1310-
125
GRIP; HAND LEVER,CAB LOCK
ID=9.0
8-94207-303-0
01
1
1310-
133
LOCK ASM; CAB
(C)
8-97608-198-0
01
1
1310-
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1310-
133
LOCK ASM; CAB
(A)
8-98094-285-2
01
1
1310-
172
HOSE; FLEX,OIL TILT
L=3100
8-98239-749-0
01
1
1310-
174
CLIP; BAND,FLEX HOSE
L=140
5-09707-031-1
06
1
1310-
174
CLIP; BAND,FLEX HOSE
L=250
5-09707-030-1
02
1
1310-
178
CLIP; FLEX HOSE
(D) ID=8.3 & 10
8-94176-792-0
03
1
1310-
178
CLIP; FLEX HOSE
(A) ID=9X2 L=20
0-95324-835-0
04
1
1310-
178
CLIP; FLEX HOSE
(C) ID=11X2 L=16
1-09700-734-0
02
1
1310-
178
CLIP; FLEX HOSE
(B) M13X2 H=20 L=60
1-09701-280-0
03
1
1310-
179
BOLT; CLIP,FLEX HOSE
M8X20 FLANGE
0-28650-820-0
09
1
1310-
180
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1310-
342
BUSHING; LEVER,CAB LOCK
T=6 OD=17.5
9-33659-249-0
02
1
1310-
69
68
35
176
177
175
180
179
178
174
173
241
242
242
241
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1310-
68
BRACKET; UNION
8-98180-834-0
01
1
1310-
69
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1310-
173
SLEEVE; RUBBER,FLEX HOSE
ID=17 OD=21 L=40
1-09337-012-0
05
1
1310-
174
CLIP; BAND,FLEX HOSE
L=140
5-09707-031-1
06
1
1310-
174
CLIP; BAND,FLEX HOSE
L=250
5-09707-030-1
02
1
1310-
175
UNION; FLEX HOSE
M12 L=69
0-92138-506-0
01
1
1310-
176
NUT; UNION
M12
9-09840-280-0
01
1
1310-
177
WASHER; LK,UNION
1-09985-189-0
01
1
1310-
178
CLIP; FLEX HOSE
(D) ID=8.3 & 10
8-94176-792-0
03
1
1310-
178
CLIP; FLEX HOSE
(A) ID=9X2 L=20
0-95324-835-0
04
1
1310-
178
CLIP; FLEX HOSE
(C) ID=11X2 L=16
1-09700-734-0
02
1
1310-
178
CLIP; FLEX HOSE
(B) M13X2 H=20 L=60
1-09701-280-0
03
1
1310-
179
BOLT; CLIP,FLEX HOSE
M8X20 FLANGE
0-28650-820-0
09
1
1310-
180
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1310-
241
BRACKET; POWER CYL UPR,CAB TILT
8-98095-153-0
01
1
1310-
241
BRACKET; POWER CYL UPR,CAB TILT
8-98095-154-0
01
1
1310-
242
BOLT; POWER CYL BRKT,CAB TILT
M10X30 FLANGE
0-28661-030-0
08
1
1310-
187
181
184
182
184
183
25
25
42
36
195
197
188
189
194
26
25
184
185
186
190
196
191
192
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
WASHER; PL,STAY
(A) ID=15
0-91610-514-0
01
1
1310-
25
WASHER; PL,STAY
(B) ID=15
0-91614-614-0
02
1
1310-
26
PIN; STAY
OD=14 L=62
0-82354-462-0
01
1
1310-
36
STAY; OIL TILT
8-98057-730-1
01
1
1310-
42
PIN; SPLIT,STAY
OD=3.7 L=25
0-81124-025-0
01
1
1310-
181
BRACKET; STAY,OIL TILT
1-53719-018-1
01
1
1310-
182
BRACKET; STAY BRKT,OIL TILT
8-98100-303-1
01
1
1310-
183
BOLT; BRKT
M16X40 W/PIN HOLE
1-09042-043-0
01
1
1310-
184
WASHER; PL,BRKT
ID=17 OD=30
0-91610-516-0
03
1
1310-
185
NUT; BRKT
M16 SLOTTED
8-98049-689-0
01
1
1310-
186
PIN; BRKT
OD=3.7 L=25
0-81124-025-0
01
1
1310-
187
BOLT; BRKT
M8X25 FLANGE
0-28050-825-0
04
1
1310-
188
CLIP; STAY,OIL TILT
1-09709-114-0
01
1
1310-
189
BOLT; CLIP
M6X12 FLANGE
0-28050-612-0
02
1
1310-
190
NUT; CLIP
M6 FLANGE
0-91180-106-0
02
1
1310-
191
BRACKET; CLIP,STAY
8-98050-969-1
01
1
1310-
192
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1310-
193
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1310-
194
GUIDE; STAY
1-53719-020-0
01
1
1310-
195
SCREW; GUIDE
M4X12
0-34218-412-0
02
1
1310-
196
NUT; GUIDE
M4
9-99110-404-0
02
1
1310-
197
WASHER; LK,GUIDE
ID=4.1
0-91510-504-0
02
1
1310-
137
138
335
141
141
335
143
141
142
335
335
133
136
143
148
136
335
133
133
338
336
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
133
LOCK ASM; CAB
(C)
8-97608-198-0
01
1
1310-
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1310-
133
LOCK ASM; CAB
(A)
8-98094-285-2
01
1
1310-
136
BOLT; CAB LK
M8X20 FLANGE
0-28650-820-0
08
1
1310-
137
CONTROL UNIT; CAB LOCK
8-98057-300-3
01
1
1310-
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE
0-28650-820-0
04
1
1310-
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
1310-
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
1310-
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
1310-
143
NUT; JAW JOINT,HOOK TO HOOK
M10
0-91110-510-0
02
1
1310-
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
1310-
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16
0-91610-508-0
01
1
1310-
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
1310-
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22
8-98060-839-0
02
1
1310-
336
SWITCH; CAB LOCK
8-98091-155-1
01
1
1310-
338
WASHER; CAB LOCK
ID=17 OD=30
0-91610-516-0
01
1
1310-
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; TORSION BAR
8-98010-764-1
01
1
1310-
3
BOLT; LEVER
M12X42 FLANGE
8-98090-287-1
08
1
1310-
