Isuzu WW
▶
TRUCKS
▶
FRR
▶
11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#128432) — 44 parça
◀

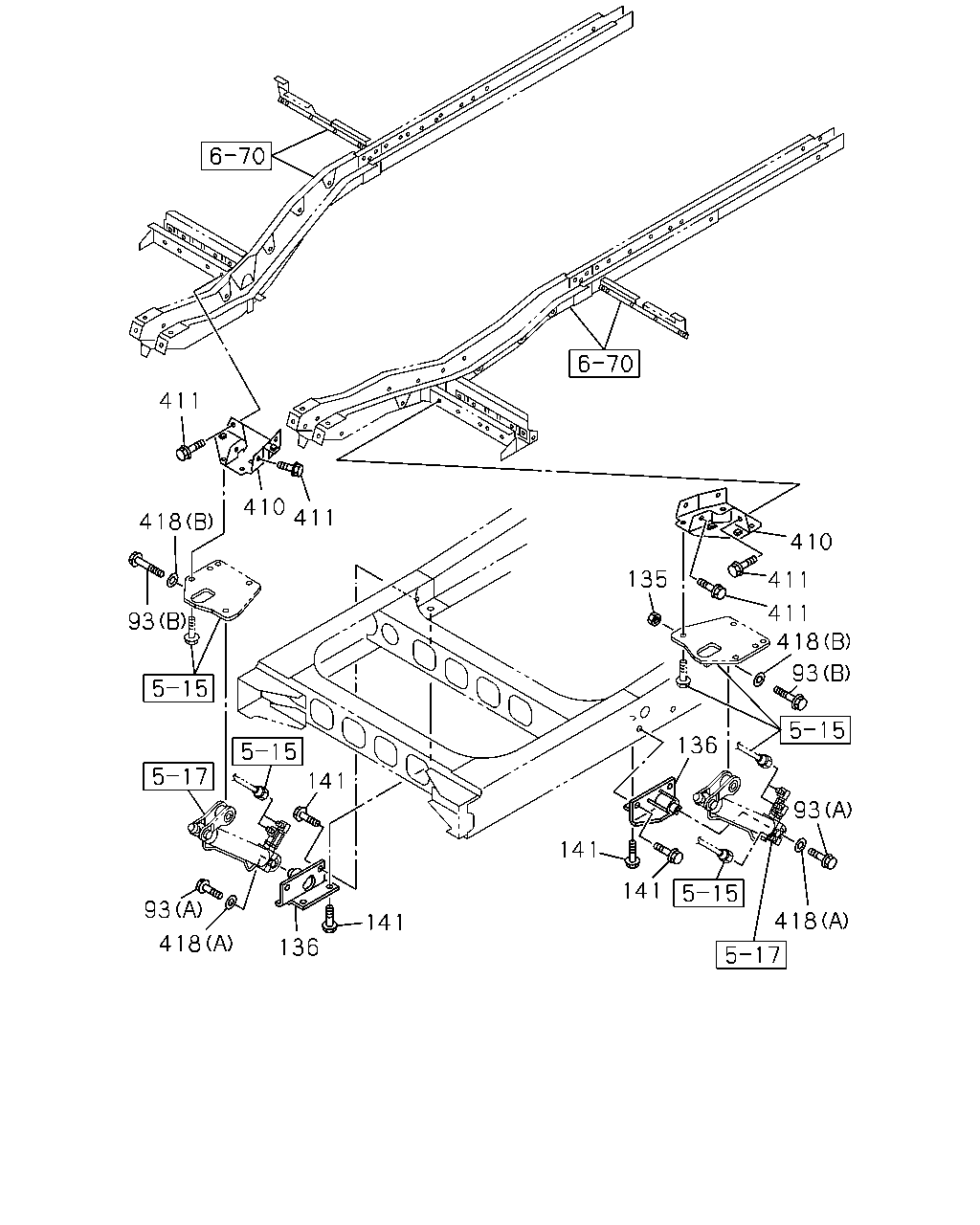

[510A] TILT CYLINDER FIXING (11 parça)

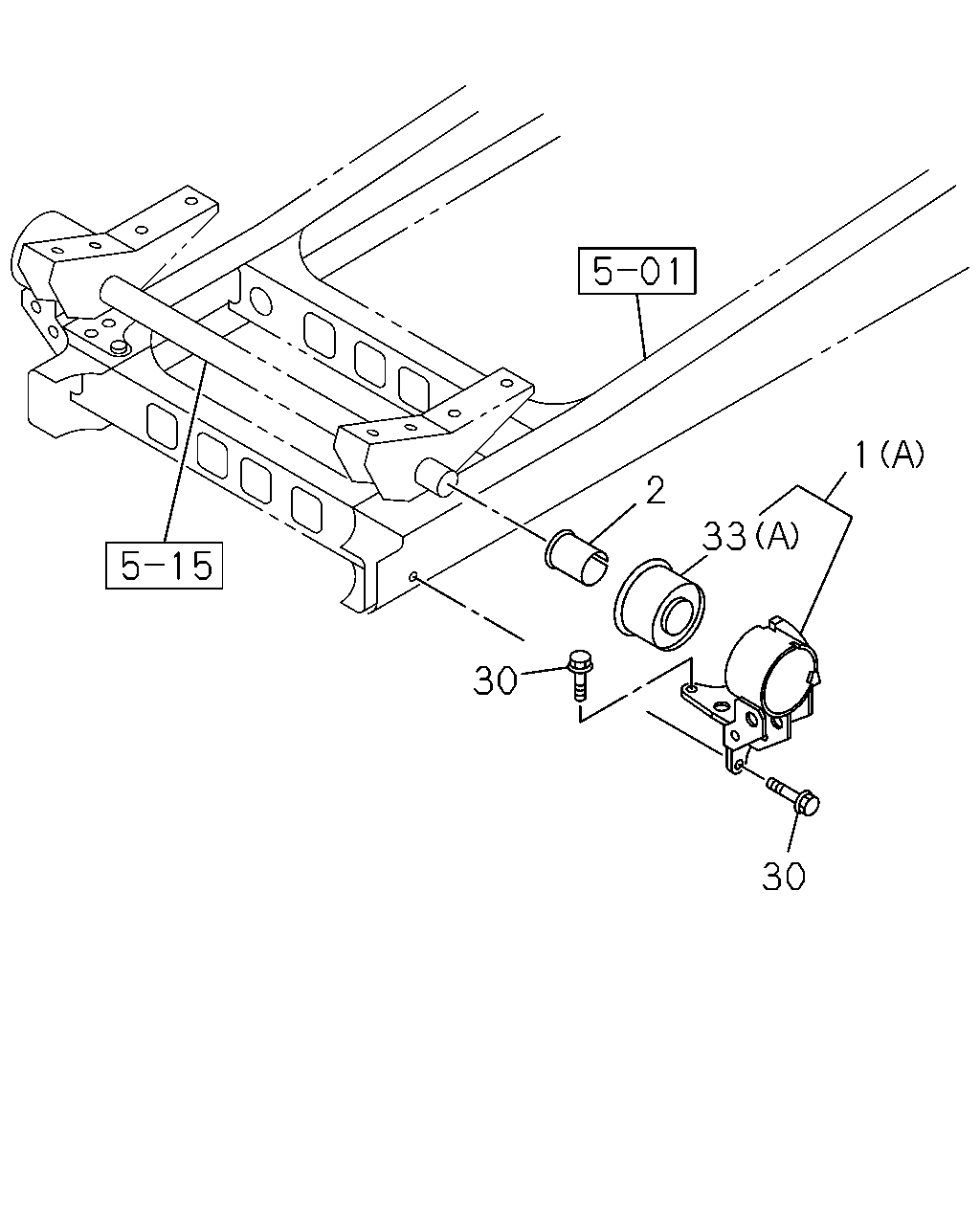

[510A] CAB MOUNTING FRONT (8 parça)

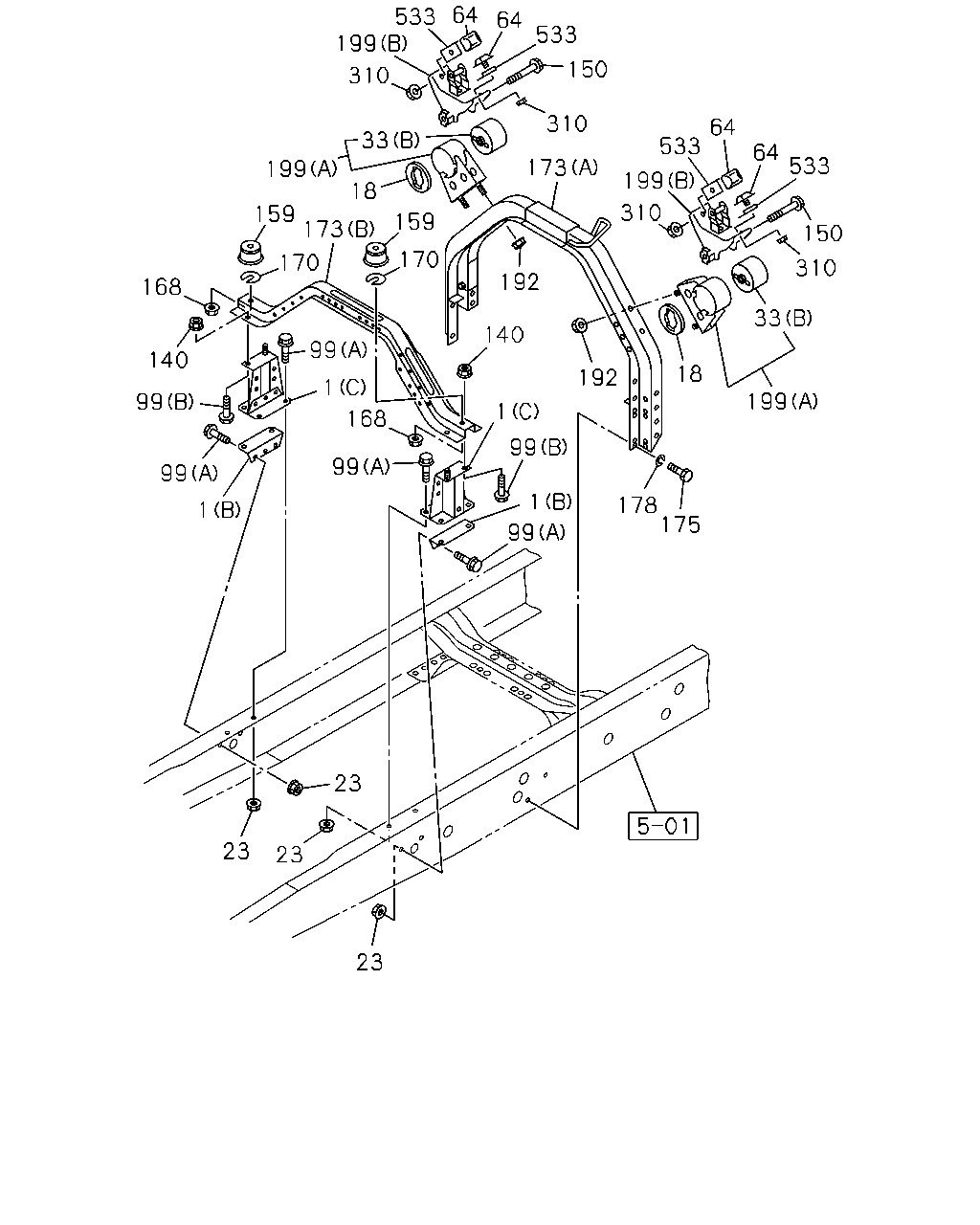

[510A] CAB MOUNTING REAR (25 parça)
▶
411
410
418
411
93
141
141
136
418
93
141
141
136
93
418
411
411
410
93
418
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
93
BOLT; PIN
(A) M10X20 FLANGE
0-28651-020-0
02
1
1310-
93
BOLT; PIN
(B) M14X70 FLANGE
0-29261-470-0
02
1
1310-
135
NUT; PIN
M14
0-91110-514-0
01
1
1310-
136
BRACKET; OIL CYL
8-98096-333-1
01
1
1310-
136
BRACKET; OIL CYL
8-98096-334-1
01
1
1310-
141
BOLT; BRKT
M14X35 FLANGE
0-28861-435-0
08
1
1310-
410
REINFORCEMENT; CAB TILT
8-97588-837-5
01
1
1310-
410
REINFORCEMENT; CAB TILT
8-97614-237-4
01
1
1310-
411
BOLT; REINFORCEMENT
M8X20 FLANGE
0-28650-820-0
08
1
1310-
418
WASHER; PL,PIN
(B) ID=15
0-91610-514-0
02
1
1310-
418
WASHER; PL,PIN
(A) ID=10.5 OD=32
0-91614-810-0
02
1
1310-
30
2
30
33
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
(A)
8-98017-665-2
01
1
1310-
1
BRACKET; CAB MTG
(A)
8-98017-666-2
01
1
1310-
1
BRACKET; CAB MTG
(B)
8-98094-593-0
02
1
1310-
1
BRACKET; CAB MTG
(C)
8-98182-180-1
02
1
1310-
2
BUSHING; TORSION BAR
8-98010-767-0
02
1
1310-
30
BOLT; CAB FRT FOOT
M14X45 FLANGE
0-28861-445-0
10
1
1310-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(A)
8-98013-933-1
02
1
1310-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98013-934-1
02
1
1310-
168
140
99
99
1
99
168
1
99
170
159
199
310
199
533
64
64
533
150
310
173
199
310
533
64
64
533
150
310
33
199
18
178
175
192
192
142
1
99
1
99
170
159
173
18
33
23
23
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
(A)
8-98017-665-2
01
1
1310-
1
BRACKET; CAB MTG
(A)
8-98017-666-2
01
1
1310-
1
BRACKET; CAB MTG
(B)
8-98094-593-0
02
1
1310-
1
BRACKET; CAB MTG
(C)
8-98182-180-1
02
1
1310-
18
PLATE; MTG BRKT FIX
8-98096-159-0
02
1
1310-
23
NUT; MTG BRKT
M12 FLANGE
0-91180-212-0
04
1
1310-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(A)
8-98013-933-1
02
1
1310-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98013-934-1
02
1
1310-
64
RUBBER; CUSHION
8-97113-340-0
04
1
1310-
99
BOLT; BRKT
(B) M12X25 FLANGE
0-28051-225-0
02
1
1310-
99
BOLT; BRKT
(A) M12X35 FLANGE
0-28061-235-0
12
1
1310-
140
NUT; BRKT
M12 FLANGE
0-91180-212-0
04
1
1310-
150
BOLT; CAB MTG RR
M14X100
0-10956-400-0
02
1
1310-
159
RUBBER; CUSHION,CAB MTG
9-54347-160-1
02
1
1310-
168
NUT; CUSHION RUBBER,BODY MTG
M12 FLANGE
0-91180-212-0
02
1
1310-
170
SHIM; CUSHION RUBBER
T=1.6
9-54347-136-1
AR
1
1310-
173
MEMBER; CAB MTG RR
(B)
1-53454-568-1
01
1
1310-
173
MEMBER; CAB MTG RR
(A)
8-98182-192-1
01
1
1310-
175
BOLT; MEMBER TO FRAME
M12X35
0-20951-235-0
08
1
1310-
178
WASHER; LK,MEMBER
ID=12.2
0-91510-612-0
08
1
1310-
192
NUT; BRKT FIX
M12 FLANGE
0-91180-212-0
04
1
1310-
199
BRACKET; CAB RR MTG
(A)
8-98044-033-1
02
1
1310-
199
BRACKET; CAB RR MTG
(B)
8-98095-166-0
02
1
1310-
310
NUT; CUSHION
M8 FLANGE
0-91180-108-0
04
1
1310-
533
SPACER; MTG RUBBER
8-98077-323-0
04
1
1310-
