4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#128422) — 64 parça

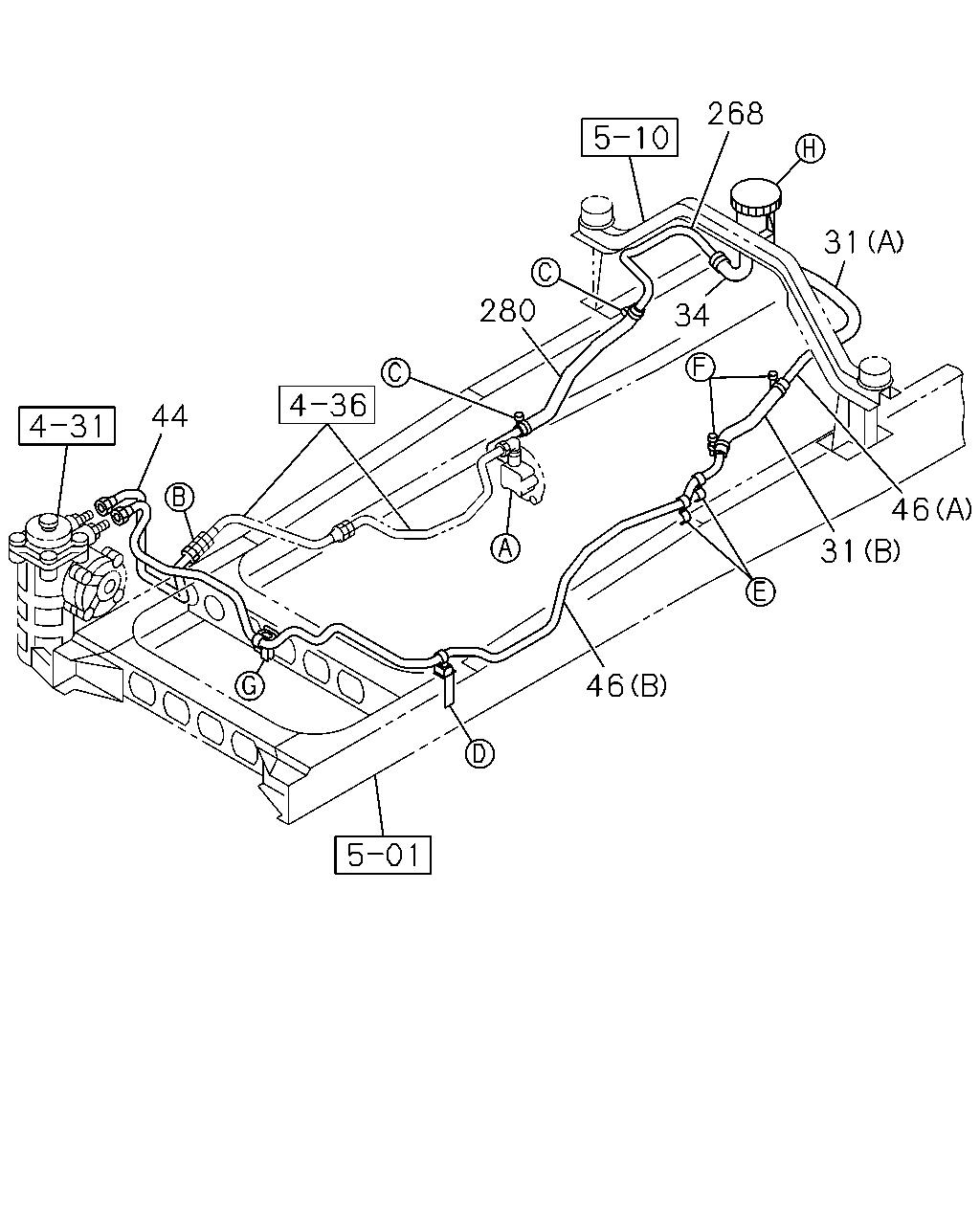

268 31 46 31 46 280 44 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL (A) L=400	0-09814-400-0	01	1	1310-
31	HOSE; P/S OIL TANK,INL (B) L=260 SERVICED BY L=400	0-09814-400-0	01	1	1310-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1310-
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98077-661-0	01	1	1310-
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	1310-
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=366	8-98183-766-0	01	1	1310-
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2577	8-98232-612-0	01	1	1310-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98183-765-0	01	1	1310-
280	HOSE; P/S OIL PUMP,INL	8-98086-764-1	01	1	1310-

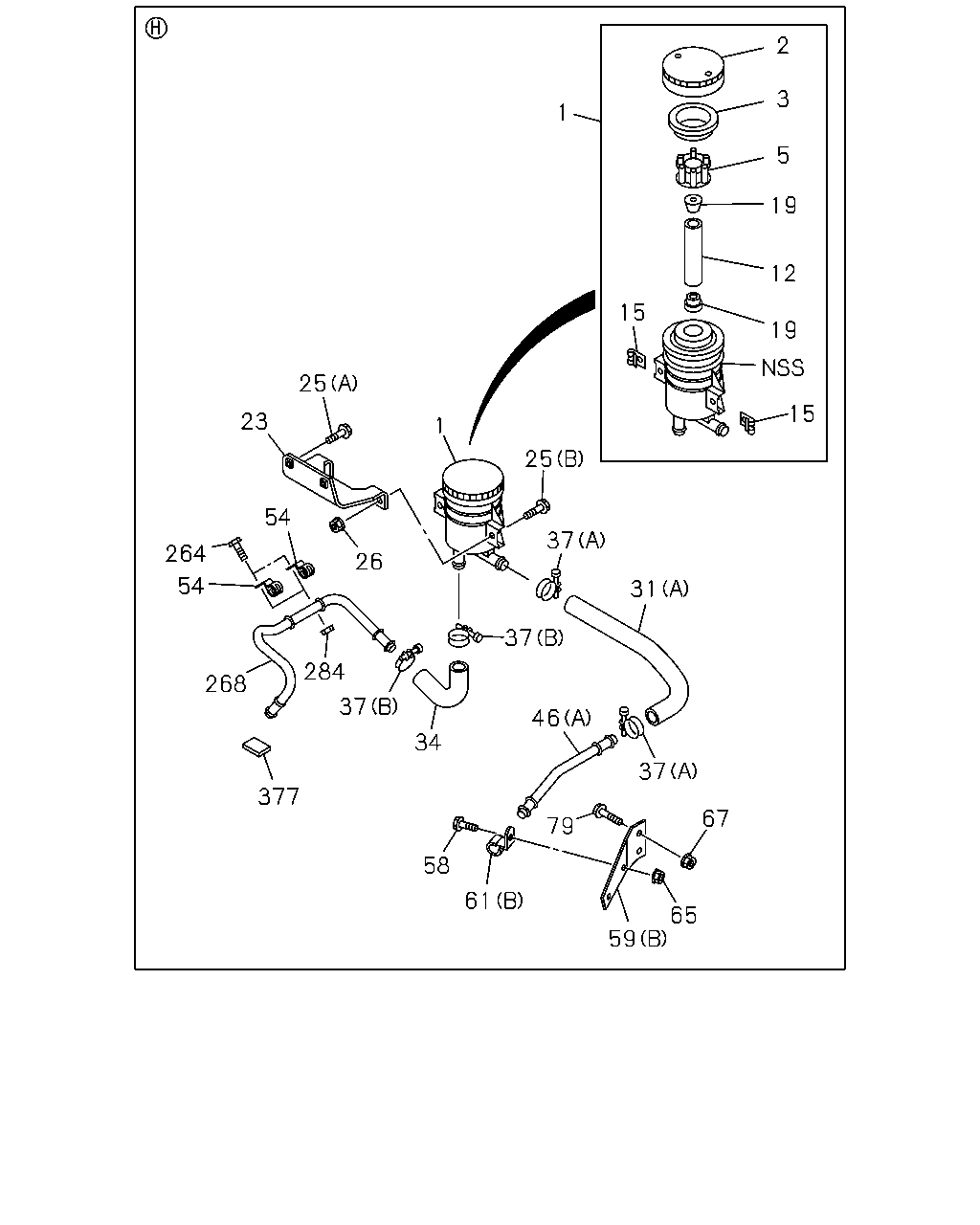

1 2 3 5 19 12 19 15 15 25 37 31 37 67 65 59 61 79 46 37 58 377 37 26 284 54 25 23 264 54 268 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1310-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1310-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1310-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1310-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1310-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1310-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1310-
23	BRACKET; OIL TANK,P/S	8-98060-024-0	01	1	1310-
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1310-
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1310-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1310-
31	HOSE; P/S OIL TANK,INL (A) L=400	0-09814-400-0	01	1	1310-
31	HOSE; P/S OIL TANK,INL (B) L=260 SERVICED BY L=400	0-09814-400-0	01	1	1310-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1310-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	1310-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1310-
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=366	8-98183-766-0	01	1	1310-
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2577	8-98232-612-0	01	1	1310-
54	CLIP; OIL PIPE ID=19 L=39 H=21	1-09700-972-1	02	1	1310-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1310-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1310-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1310-
59	BRACKET; CLIP,OIL PIPE (B)	8-98183-767-0	01	1	1310-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	03	1	1310-
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	1310-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1310-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1310-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1310-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1310-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	02	1	1310-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98183-765-0	01	1	1310-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1310-
377	INSULATOR FRIGID ZONE KIT<YL3>	8-98141-066-0	01	1	1310-1310
377	INSULATOR	8-98141-066-0	01	1	1311-1401
377	INSULATOR	8-98270-804-0	01	1	1402-

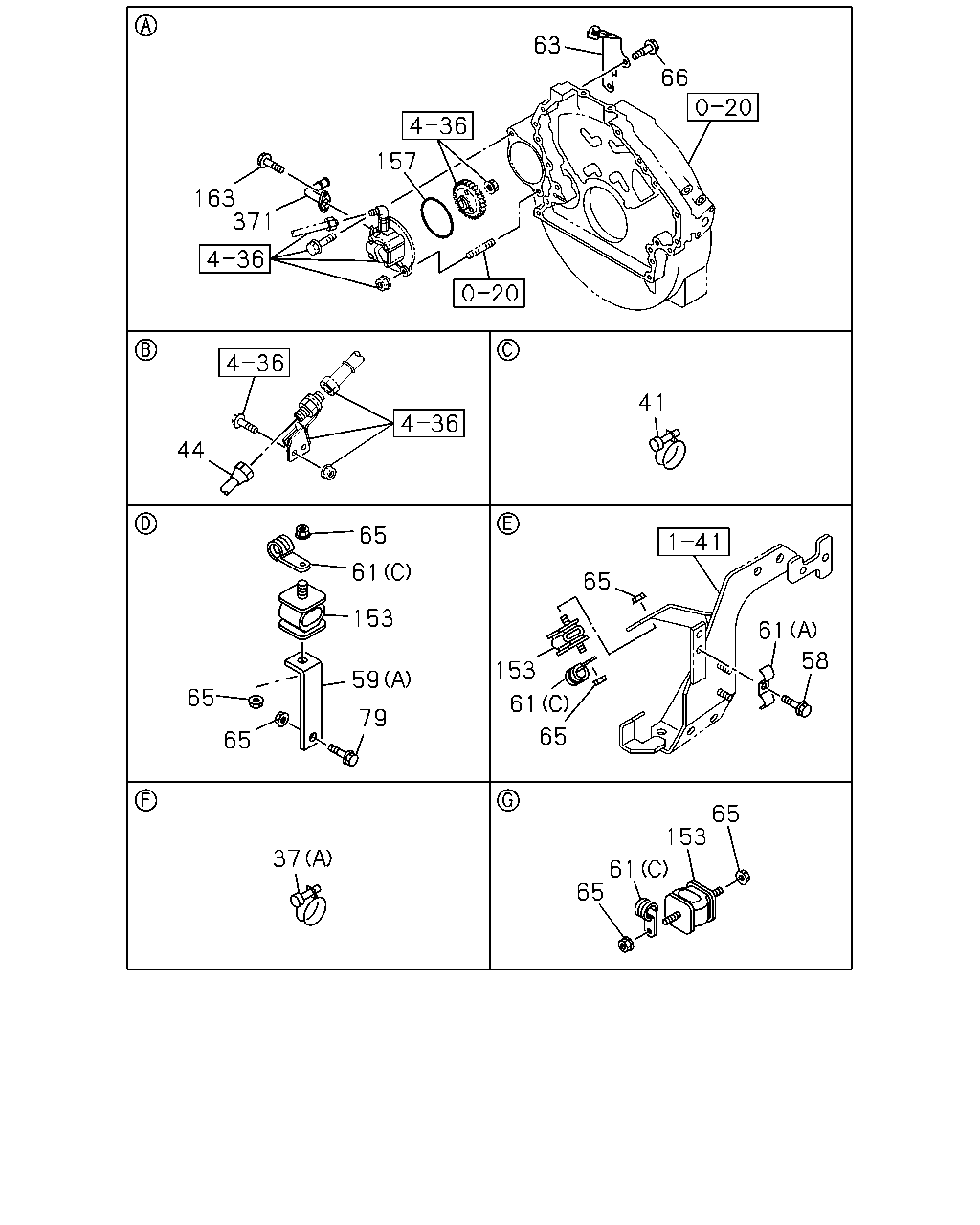

63 157 371 163 44 65 61 153 59 79 37 153 61 65 65 61 58 65 153 61 65 41 66 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	1310-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1310-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1310-
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98077-661-0	01	1	1310-
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	1310-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1310-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1310-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1310-
59	BRACKET; CLIP,OIL PIPE (B)	8-98183-767-0	01	1	1310-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	03	1	1310-
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	1310-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1310-
63	BRACKET; CLIP,P/S	8-98075-954-0	01	1	1310-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1310-
66	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1310-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1310-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1310-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1310-
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1310-
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1310-
