Isuzu WW
▶
TRUCKS
▶
FRR
▶
11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#128413) — 34 parça
◀

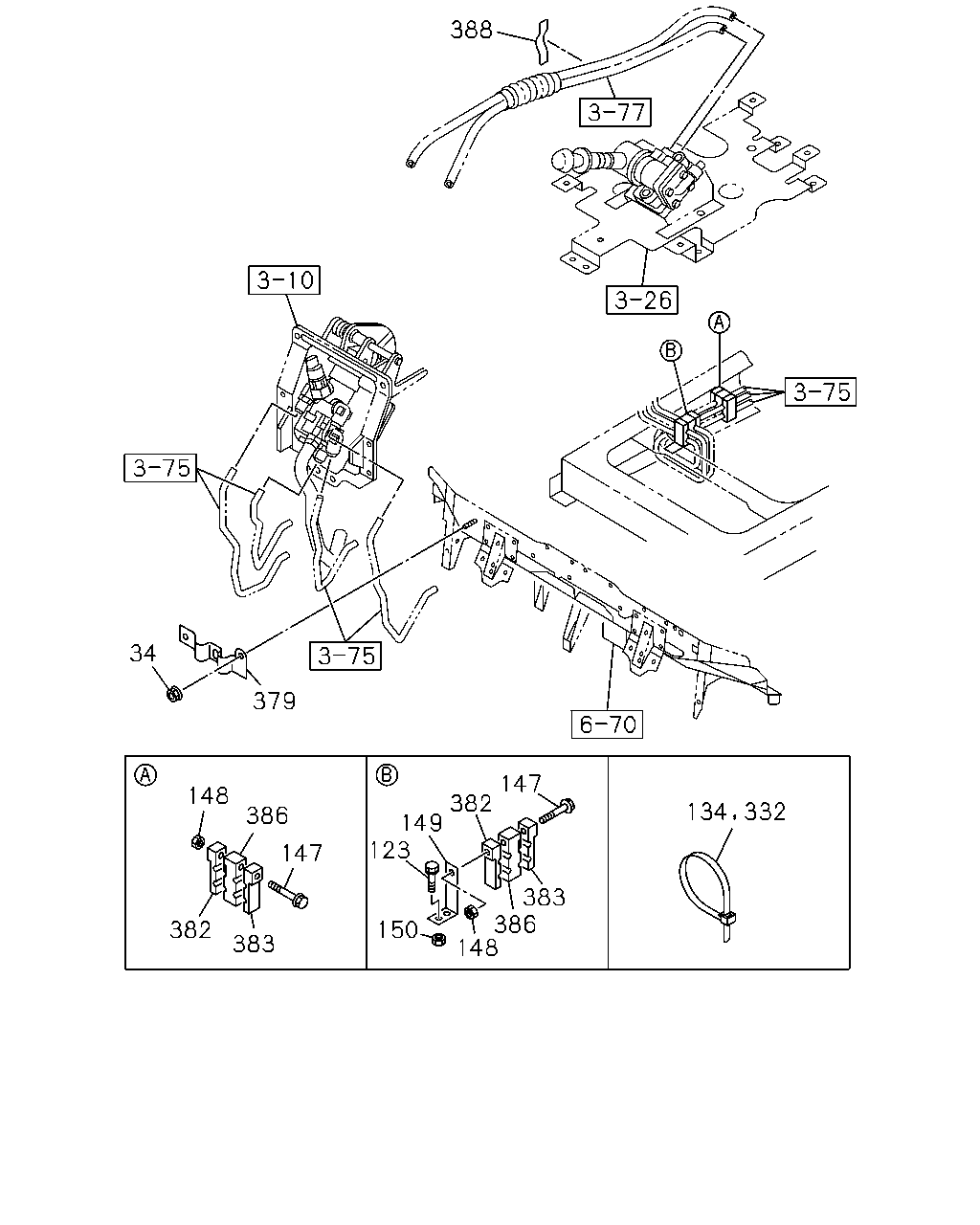

[378A] NO.1 (14 parça)
[378A] NO.2 (20 parça)
▶
379
34
148
386
147
382
383
150
148
386
383
382
149
147
123
134
332
388
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1310-
123
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
02
1
1310-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1310-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
03
1
1310-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
03
1
1310-
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
1310-1409
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1410-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
1310-
332
CLIP; BAND
L=250
1-09707-126-0
05
1
1310-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1310-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
03
1
1310-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
03
1
1310-
386
CLIP; CENTER
ID=10
1-09709-242-0
03
1
1310-
388
SEAL
100X40
1-72498-022-1
03
1
1310-

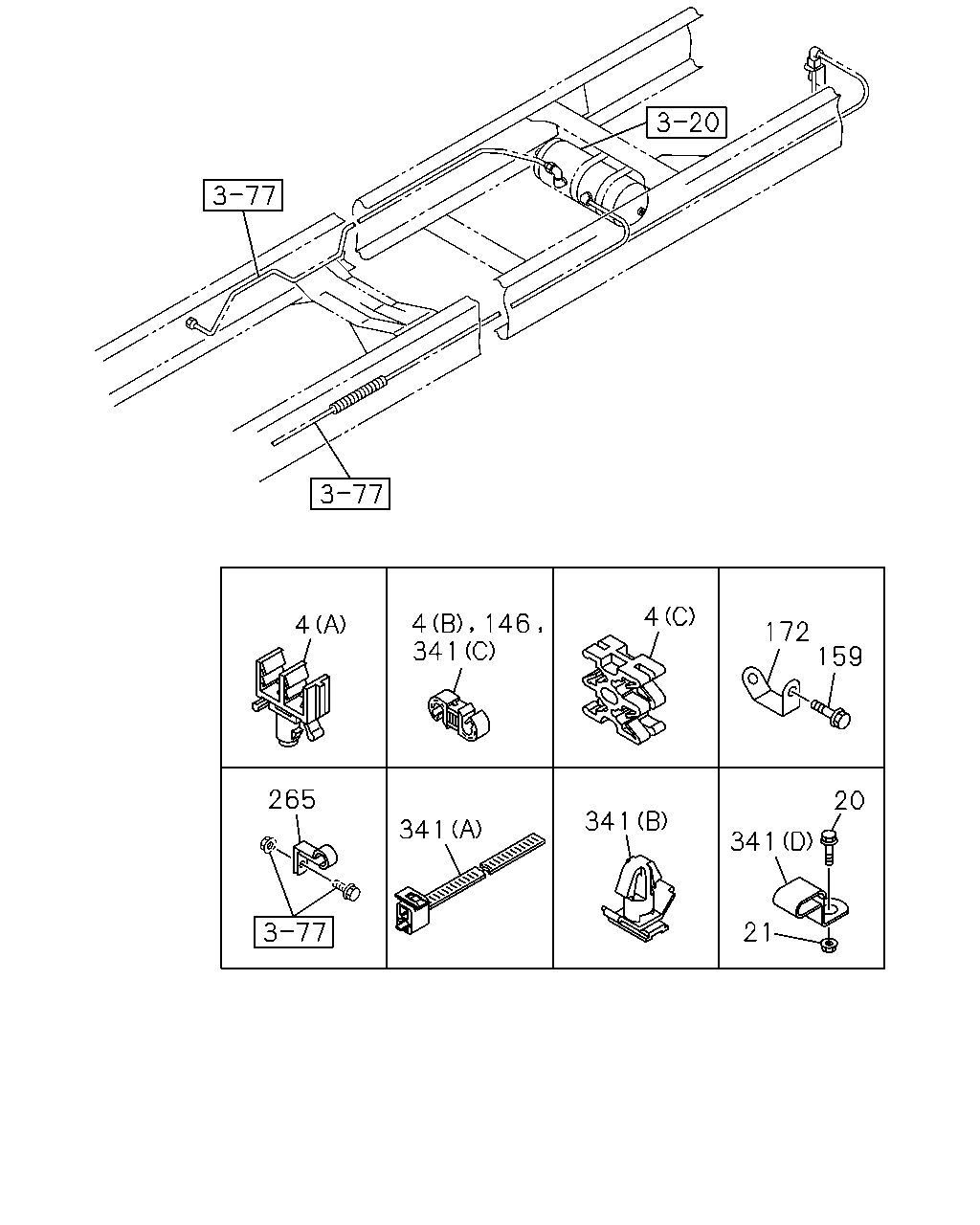

4
4
146
341
265
341
341
341
172
159
4
21
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(C) ID=4.7X4
1-09701-304-0
03
1
1310-
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
1310-
4
CLIP; AIR PIPE
(B) ID=6.35 & 12
1-09709-275-1
01
1
1310-
4
CLIP; AIR PIPE
(B) ID=10 & 10
1-09709-277-1
05
1
1310-
4
CLIP; AIR PIPE
(B) ID=10 & 12
1-09709-278-1
02
1
1310-
4
CLIP; AIR PIPE
(B) ID=4.76 & 6.35
1-09709-304-0
03
1
1310-
4
CLIP; AIR PIPE
(B) ID=4.76 & 10.0
1-09709-305-0
03
1
1310-
4
CLIP; AIR PIPE
(A) ID=4.8X2
8-94316-410-0
01
1
1310-
20
BOLT; CLIP
M10X30 FLANGE
0-28051-030-0
01
1
1310-
21
NUT; CLIP
M10 FLANGE
0-91180-210-0
01
1
1310-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
03
1
1310-
159
BOLT; CLIP BRKT
M10X30 FLANGE
0-28651-030-0
01
1
1310-
172
BRACKET; TUBE CLIP
8-98117-686-0
01
1
1310-
265
CLIP; NYLON TUBE
ID=21 H=25.5 L=26
8-94176-806-0
01
1
1310-
341
CLIP; HARNESS
(A) L=180
1-09707-162-1
01
1
1310-
341
CLIP; HARNESS
(B) OD=9 H=6
1-09709-178-0
02
1
1310-
341
CLIP; HARNESS
(C) ID=10 & 10
1-09709-277-1
02
1
1310-
341
CLIP; HARNESS
(C) ID=10 & 12
1-09709-278-1
01
1
1310-
341
CLIP; HARNESS
(C) ID=10 & 15
1-09709-279-1
01
1
1310-
341
CLIP; HARNESS
(D) ID=17.5X2 L=25
5-09700-358-0
01
1
1310-
