◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#128411) — 26 parça

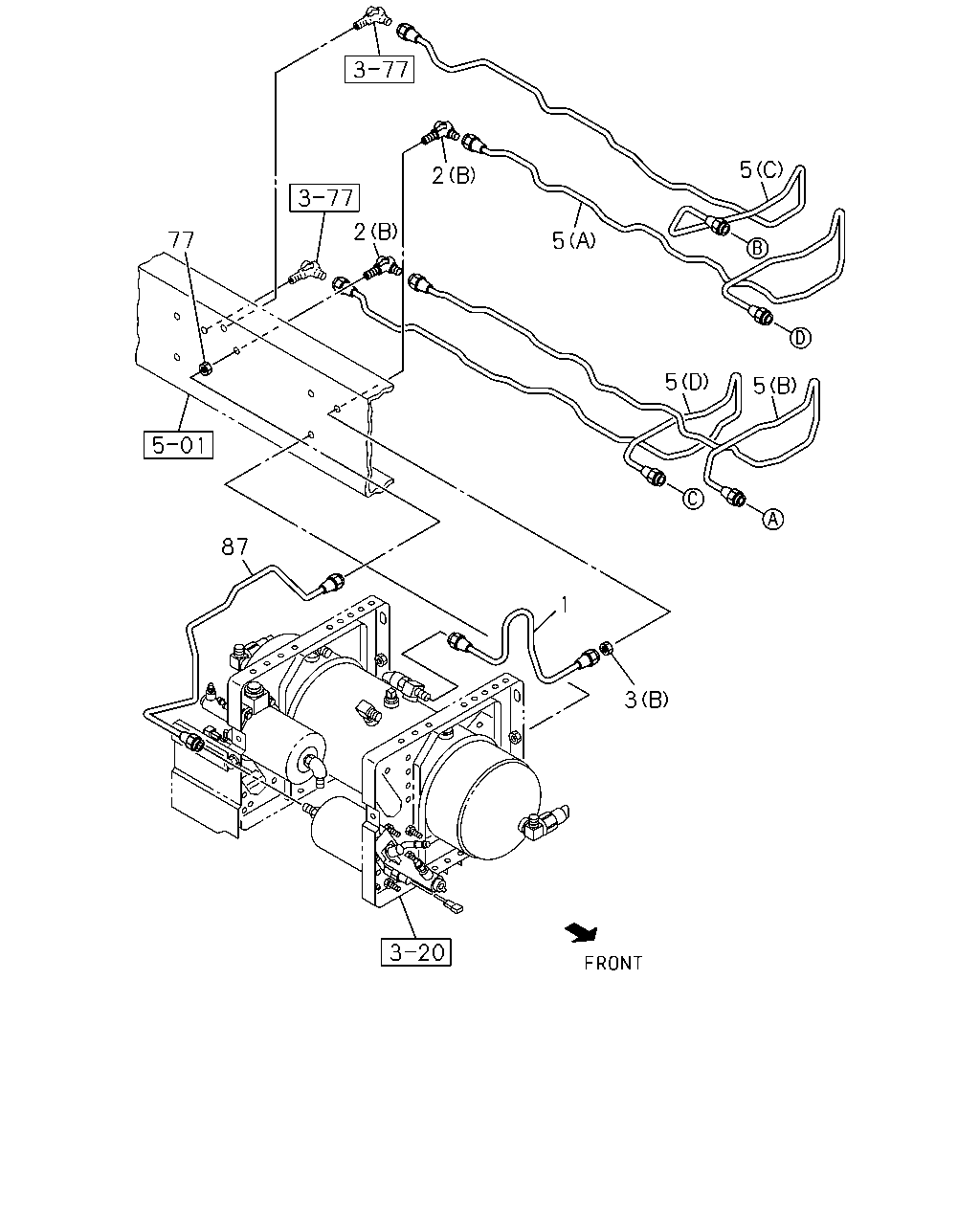

çizim 379806
5 5 5 5 2 77 87 1 3 2
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=347 		8-98101-769-0 01 1 1310-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1310-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1310-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1310-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1310-
5 PIPE; AIR,UNION TO UNION
(A) L=2212 SERVICED BY L=2500 		1-47428-883-0 01 1 1310-
5 PIPE; AIR,UNION TO UNION
(B) L=2447 SERVICED BY L=2500 		1-47428-883-0 01 1 1310-
5 PIPE; AIR,UNION TO UNION
(C) L=2590 SERVICED BY L=2600 		1-47428-884-0 01 1 1310-
5 PIPE; AIR,UNION TO UNION
(D) L=2589 SERVICED BY L=2600 		1-47428-884-0 01 1 1310-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1310-
87 PIPE; AIR,UNION TO AIR MASTER
L=1164 SERVICED BY L=1250 		1-47428-876-0 01 1 1310-

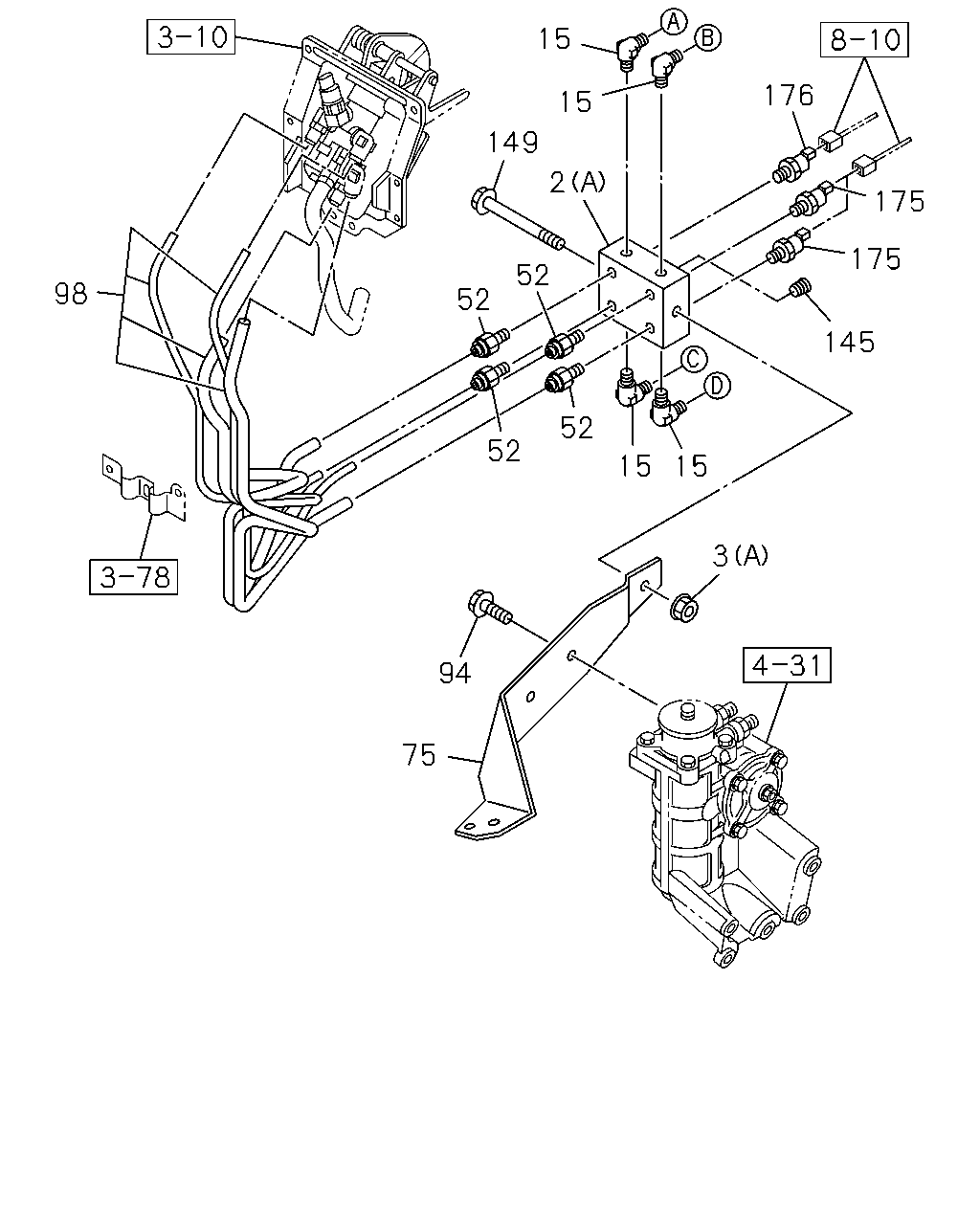

çizim 380033
175 176 175 145 15 15 52 52 52 52 2 149 15 15 98 94 75 3
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1310-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1310-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1310-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1310-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1310-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1310-
75 BRACKET; UNION
FACE LIFT MODEL<TX7> 		8-98257-652-0 01 1 1412-
75 BRACKET; UNION 8-98066-785-0 01 1 1310-1411
75 BRACKET; UNION
EXC. FACE LIFT MODEL<TX7> 		8-98066-785-0 01 1 1412-
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1310-
98 TUBE; NYLON 8-98079-179-0 01 1 1310-
145 PLUG
PT1/4 		9-99204-513-0 01 1 1310-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1310-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1310-
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1310-
