3-58 — FIXING PARTS; OIL PIPING
(#128409) — 16 parça
◀

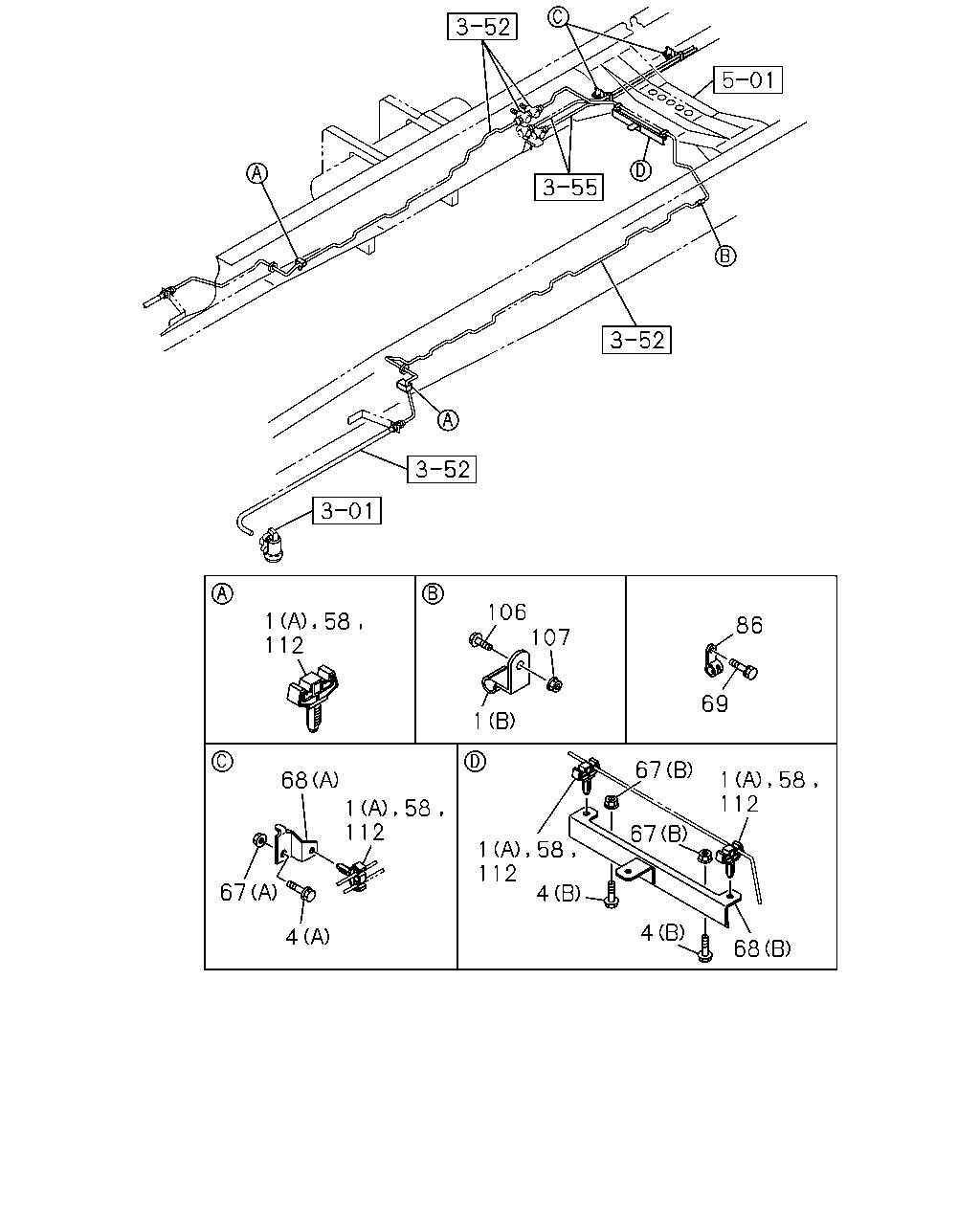

[358A] FRAME SIDE (14 parça)

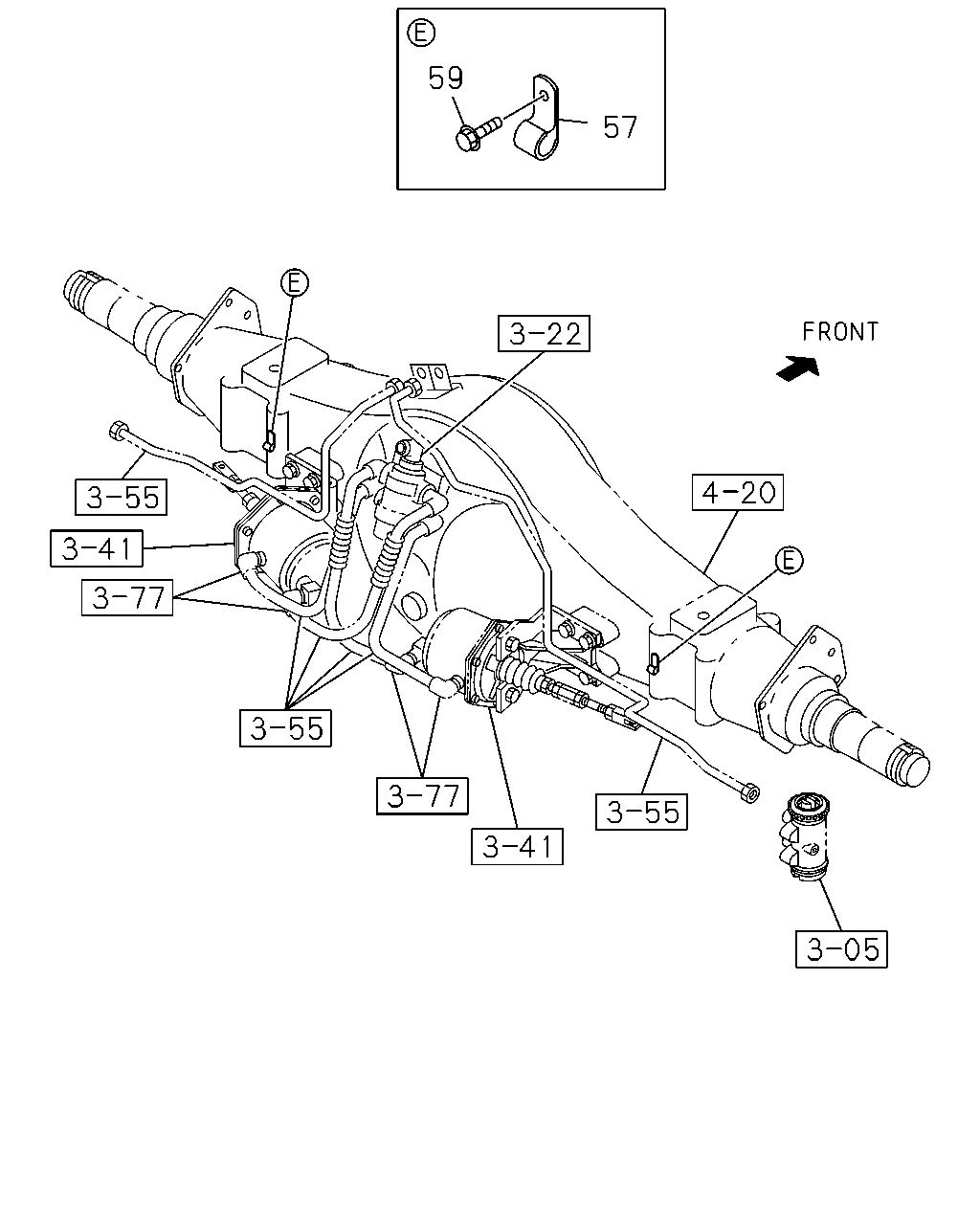

[358A] REAR AXLE SIDE (2 parça)
▶
67
4
68
1
112
112
112
112
68
58
67
67
4
58
1
1
106
107
1
86
69
1
58
58
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
08
1
1310-
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
04
1
1310-
4
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
02
1
1310-
4
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
02
1
1310-
58
CLIP; OIL PIPE
8-98012-254-1
04
1
1310-
67
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
02
1
1310-
67
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1310-
68
BRACKET; CLIP
(A)
8-98158-187-0
02
1
1310-
68
BRACKET; CLIP
(B)
8-98232-876-1
01
1
1310-
69
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1310-
86
CLIP; OIL PIPE
8-98085-372-0
02
1
1310-
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
04
1
1310-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
04
1
1310-
112
CLIP; OIL PIPE
8-98012-254-1
08
1
1310-
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
1310-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
1310-
