3-55 — BRAKE PIPING; OIL,REAR (#128408) — 26 parça

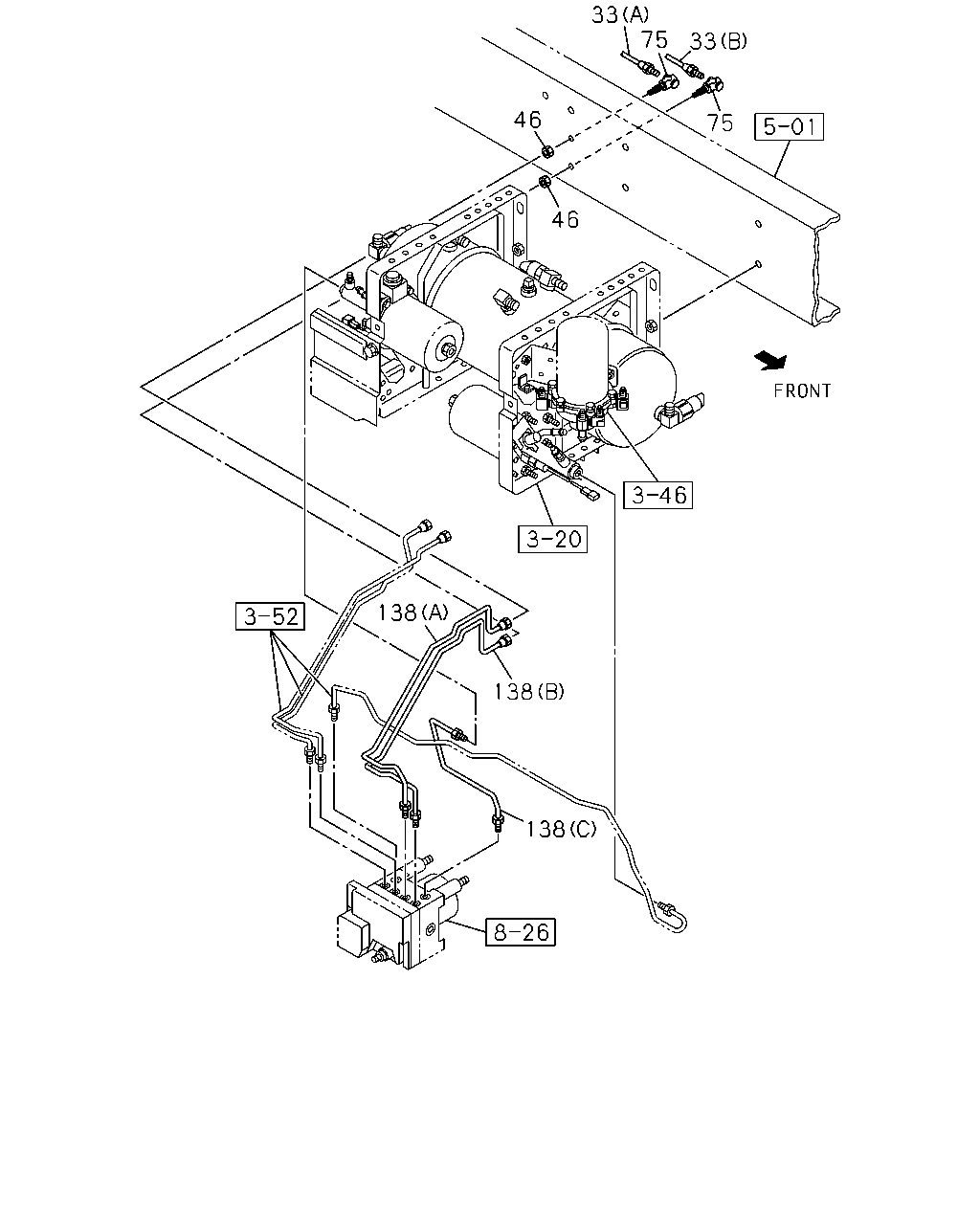

çizim 380051
138 138 138 75 46 46 75 33 33
BalonParca AdiParca NoAdetTipApplied Date
33 PIPE; OIL,UNION TO UNION
(A) L=3254 		8-98210-654-0 01 1 1310-
33 PIPE; OIL,UNION TO UNION
(B) L=3250 		8-98210-655-0 01 1 1310-
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1310-
75 UNION; OIL PIPE 8-98018-438-0 02 1 1310-
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 1310-
138 PIPE; HYDRAULIC UNIT
(B) L=681 		8-98101-777-0 01 1 1310-
138 PIPE; HYDRAULIC UNIT
(A) L=618 		8-98101-778-0 01 1 1310-

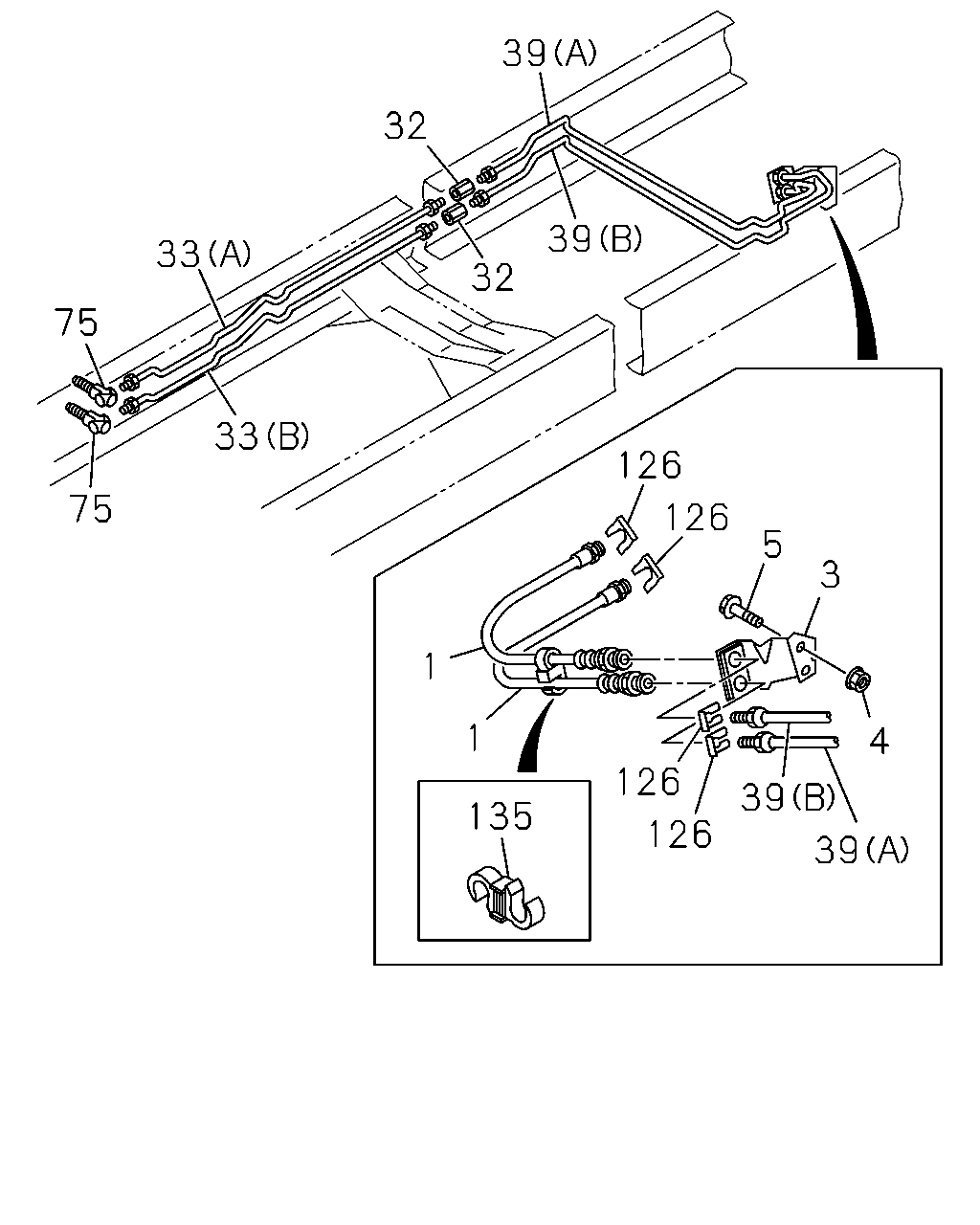

çizim 380297
39 126 126 4 3 5 126 126 1 1 135 39 32 33 75 75 33 32 39 39
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 1310-
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 1310-
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 1310-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1310-
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 1310-
33 PIPE; OIL,UNION TO UNION
(A) L=3254 		8-98210-654-0 01 1 1310-
33 PIPE; OIL,UNION TO UNION
(B) L=3250 		8-98210-655-0 01 1 1310-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=1671 		8-98203-627-0 01 1 1310-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) 		8-98203-628-0 01 1 1310-
75 UNION; OIL PIPE 8-98018-438-0 02 1 1310-
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1310-
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 1310-

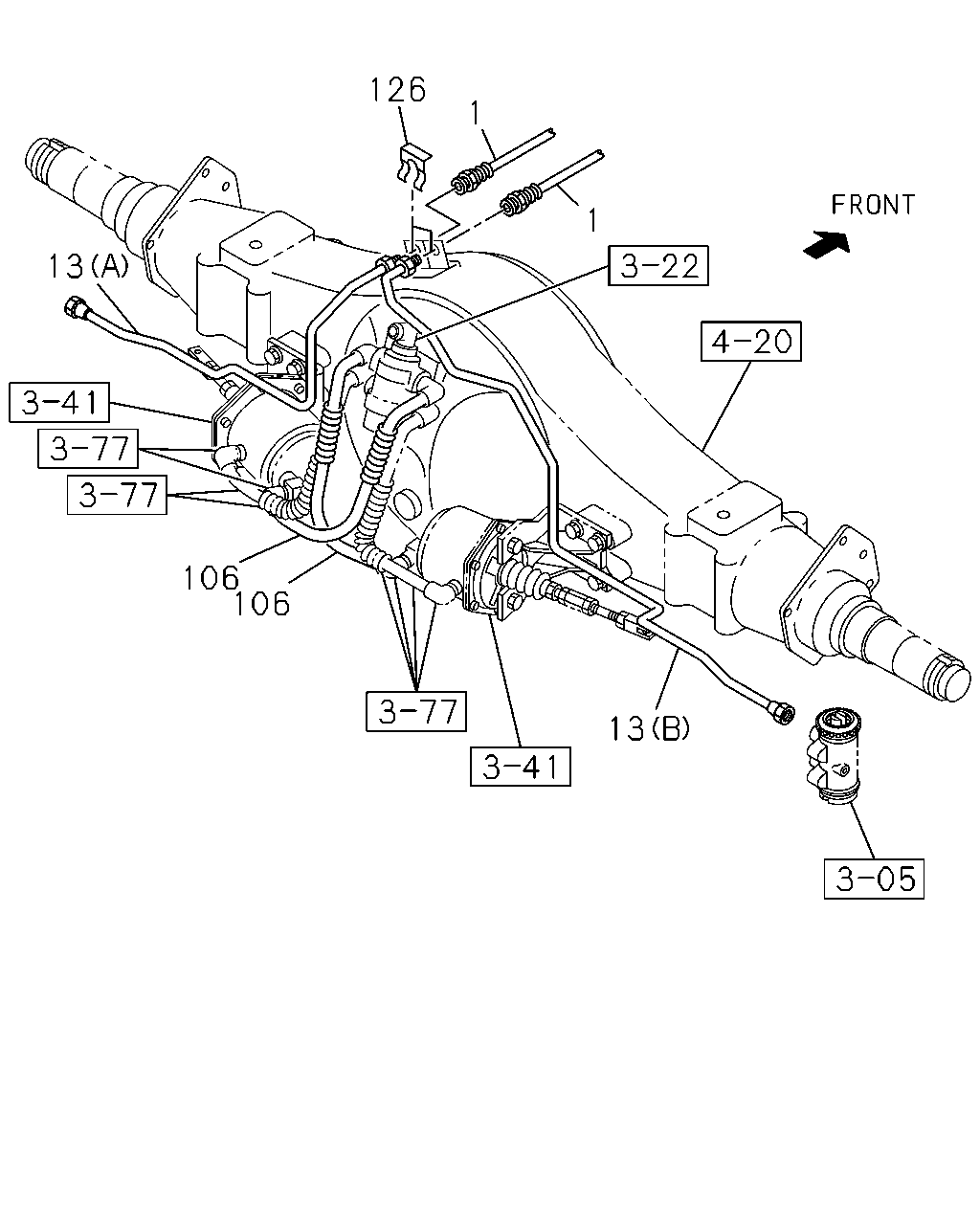

çizim 380338
126 13 106 106 1 1 13
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 1310-
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98107-928-0 01 1 1310-1409
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98281-557-0 01 1 1410-
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98107-929-0 01 1 1310-1409
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98281-558-0 01 1 1410-
106 TUBE; NYLON 8-98061-971-0 02 1 1310-
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1310-
