◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#128401) — 29 parça

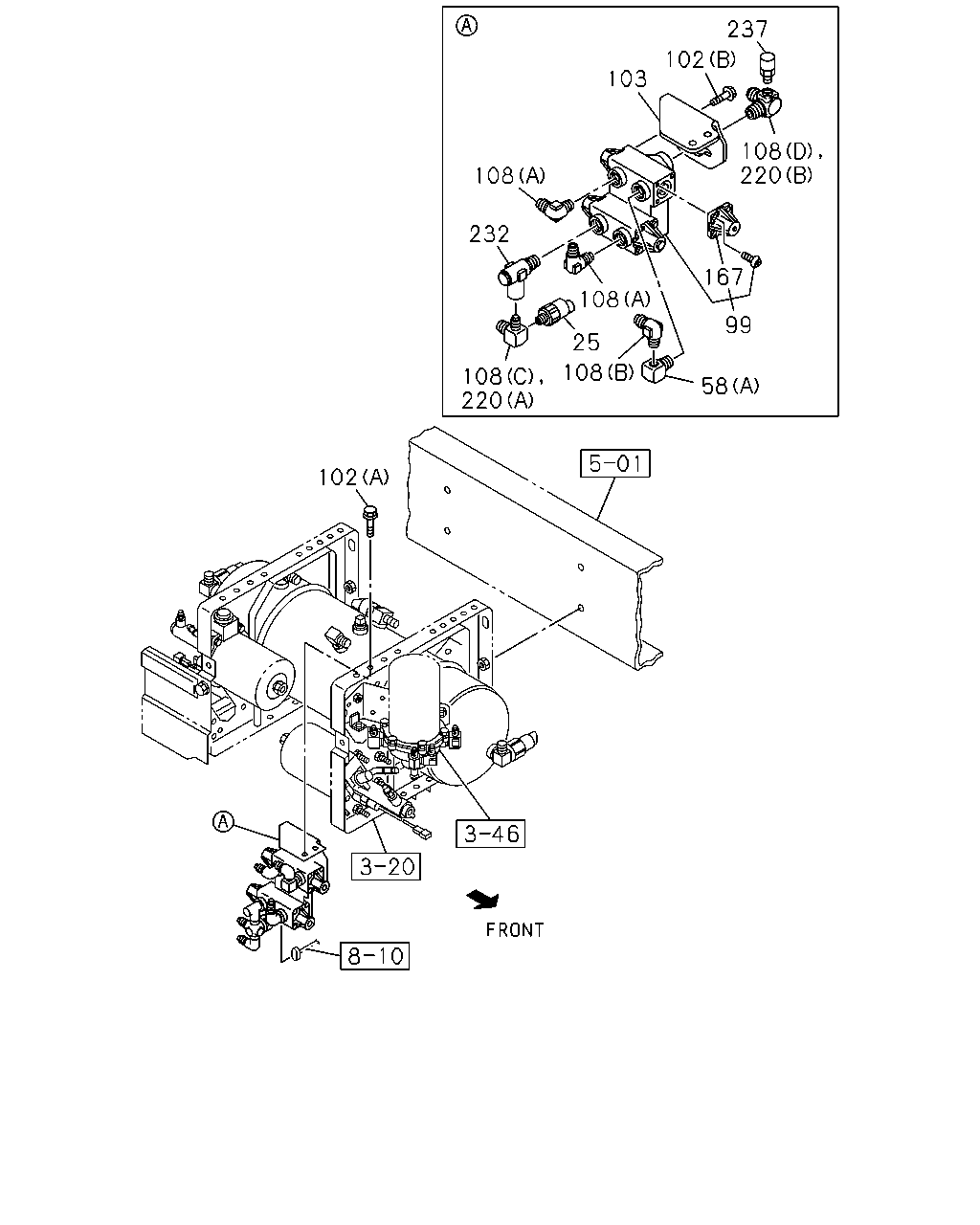

çizim 380548
237 102 103 108 220 167 99 58 108 25 108 232 108 108 220 102
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 1310-
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310-
58 ADAPTER
(B) 		1-09661-815-0 02 1 1310-
99 VALVE; PROTECTION 1-48110-290-3 01 1 1310-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
103 BRACKET; PROTECTION VALVE 8-98162-113-1 01 1 1310-1311
103 BRACKET; PROTECTION VALVE 8-98221-293-0 01 1 1312-
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1310-
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1310-
108 CONNECTOR; ELBOW
(C) 		1-09656-698-0 01 1 1310-1311
108 CONNECTOR; ELBOW
(D) 		8-98031-239-0 01 1 1310-1311
167 COVER; VALVE 1-48119-625-0 04 1 1310-
220 CONNECTOR; 3WAY
(A) 		1-09656-698-0 01 1 1312-
220 CONNECTOR; 3WAY
(B) 		8-98031-239-0 01 1 1312-
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1310-
237 VALVE; SAFETY 1-48320-012-2 01 1 1310-

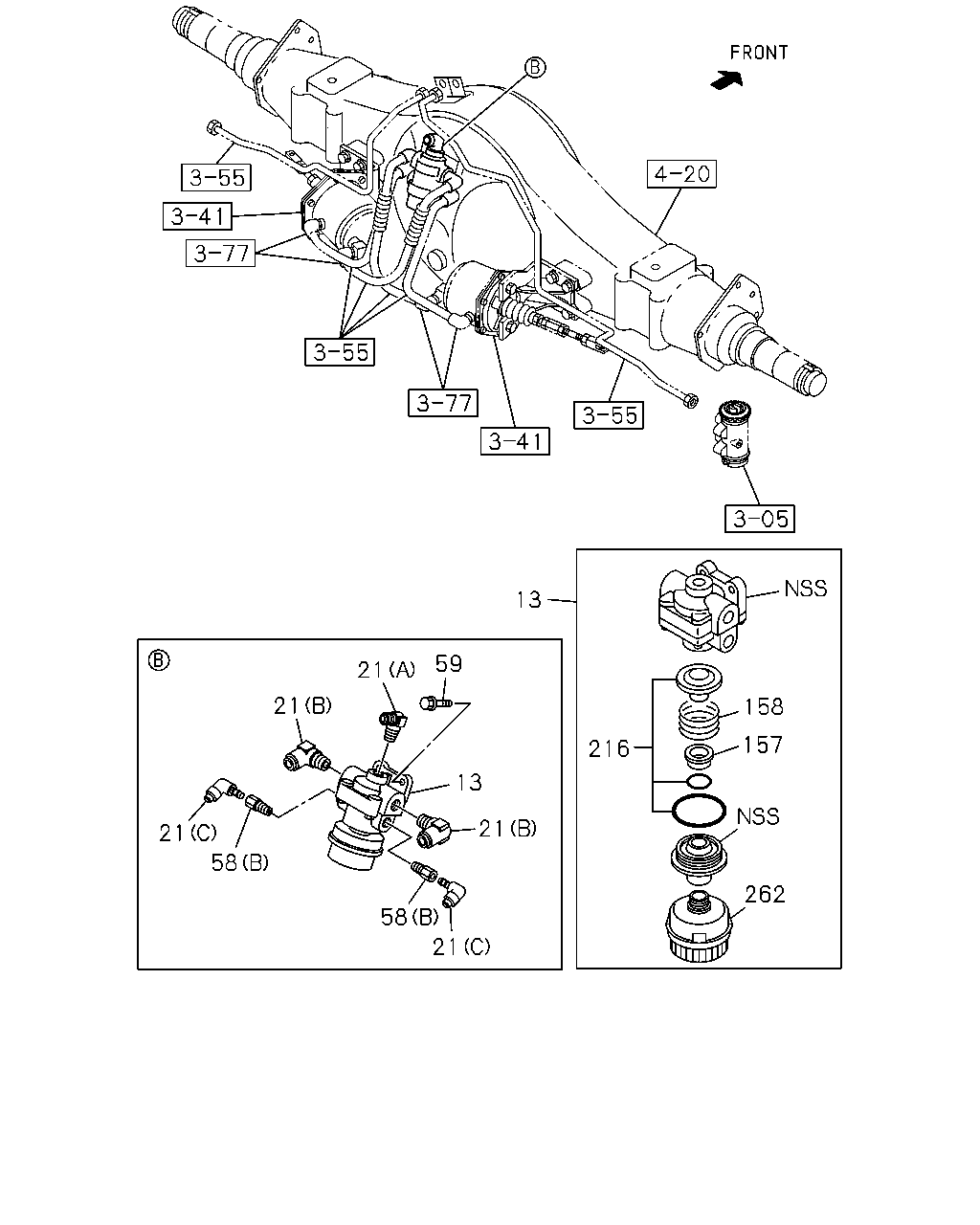

çizim 381209
13 216 158 157 262 13 21 59 21 21 21 58 58 21
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE 1-48410-781-2 01 1 1310-
21 CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1310-
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1310-
21 CONNECTOR; QUICK RELEASE VLV
(C) 		1-09661-816-0 02 1 1310-
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310-
58 ADAPTER
(B) 		1-09661-815-0 02 1 1310-
59 BOLT; RELEASE VALVE FIX
M8X20 FLANGE 		0-28050-820-0 02 1 1310-
157 RETAINER; VALVE 1-48419-036-0 01 1 1310-
158 SPRING; VALVE 9-48419-003-0 01 1 1310-
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 1310-
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1310-
çizim 493227
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 1310-
