◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#12840) — 69 parça

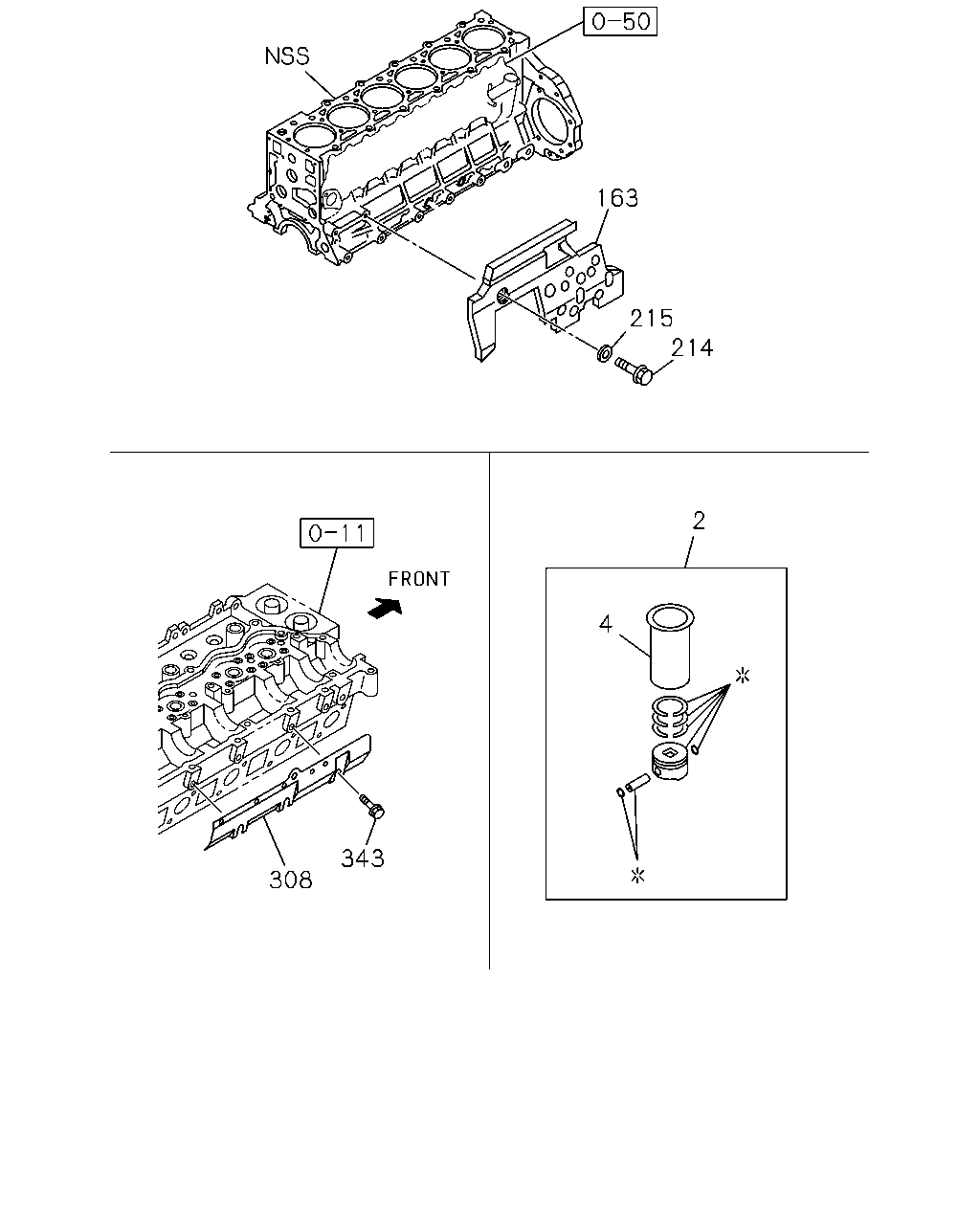

çizim 98178
163 215 214 2 4 343 308
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-6 06 1 0807- ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-6 06 1 0807- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 0807-1209 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 12 1 1210- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 0807-1209 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 12 1 1210- ● ●
163 COVER ASM; C/BL SKIRT 8-97601-248-0 01 1 0807-0911 ● ●
214 BOLT; NOISE COVER
M10X16 FLANGE THA 		0-28151-016-0 03 1 0807-0911 ● ●
215 WASHER; PL,NOISE COVER
ID=10.5 OD=32 		0-91614-810-0 02 1 0807-0911 ● ●
308 PROTECTOR; HEAT,HD COVER 8-94390-997-0 01 1 1103- ● ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 1103- ● ●

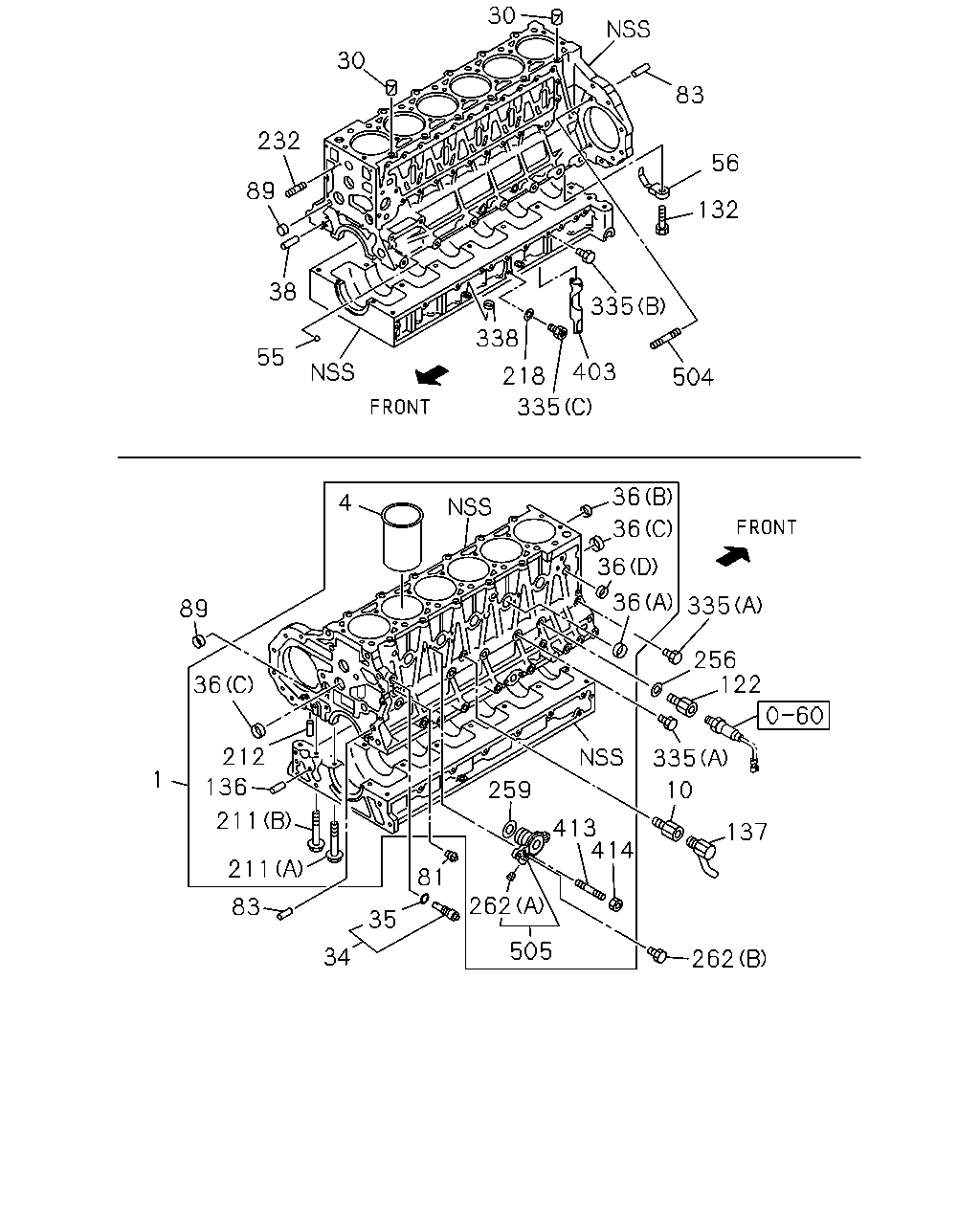

çizim 107064
83 56 132 30 30 232 89 38 55 338 335 218 403 504 335 36 36 36 36 335 256 122 335 10 137 262 414 413 259 262 505 81 35 34 83 211 211 136 1 36 212 89 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-97618-664-3 01 1 0807-1209 ● ●
1 BLOCK ASM; CYL 8-98206-967-0 01 1 1210-1303 ● ●
1 BLOCK ASM; CYL 8-98206-966-0 01 1 1304- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 0807-1209 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 12 1 1210- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 0807-1209 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 12 1 1210- ● ●
10 CONNECTOR; WATER DRAIN 8-94396-378-0 01 1 1103- ● ●
10 CONNECTOR; WATER DRAIN 8-94396-378-0 01 1 0807-1007 ● ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 0807- ● ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 0807- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 0807- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 0807- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 0807- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=25 		8-94399-005-0 01 1 0807- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-97096-824-0 04 1 0807- ● ●
38 PIN; TIMING GEAR CASE
L=22 THA 		8-94483-674-0 02 1 0807- ● ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 01 1 0807- ● ●
56 JET; OIL,PISTON COOLING 8-98020-649-0 06 1 0807-1007 ● ●
56 JET; OIL,PISTON COOLING 8-98173-342-0 06 1 1008- ● ●
81 PLUG; WATER JACKET
PT3/8 		8-94397-338-0 01 1 0807- ● ●
83 PIN; FLYWHEEL HSG
L=22 THA 		8-94483-674-0 02 1 0807- ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 0807-0908 ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0909- ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-97603-667-0 01 1 0807- ● ●
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 0807- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0807-0812 ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901-1209 ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 04 1 1210- ● ●
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 1103- ● ●
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 0807-1007 ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 0807-0905 ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 0906- ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 0807- ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0807-1209 ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 04 1 1210- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 0807-1312 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 01 1 1401- ● ●
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 0807- ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0807- ● ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 0807-1102 ● ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 02 1 1103- ● ●
262 PLUG; ADAPTER
(A) 		1-13163-002-0 01 1 1101-1303 ● ●
262 PLUG; ADAPTER
(B) M14 		8-94399-225-0 01 1 1101-1102 ● ●
262 PLUG; ADAPTER
(B) M14X14 THA 		9-09862-156-0 01 1 1103- ● ●
335 PLUG; C/BL,SIDE
(C) M12X10 		5-13265-001-0 01 1 0807- ● ●
335 PLUG; C/BL,SIDE
(A) M14X16.5 		8-97329-617-0 02 1 0807- ● ●
335 PLUG; C/BL,SIDE
(B) M8X10 		8-98003-416-0 01 1 0807- ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 0807- ● ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 0807- ● ●
413 STUD; ADAPTER
M8X30 L=41 THA 		0-41010-830-0 02 1 0807-1209 ● ●
413 STUD; ADAPTER
M8X30 L=41 THA 		0-41010-830-0 04 1 1210- ● ●
414 NUT; ADAPTER
M8 FLANGE THA 		0-91180-208-0 02 1 0807-1209 ● ●
414 NUT; ADAPTER
M8 FLANGE THA 		0-91180-208-0 04 1 1210- ● ●
504 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0807- ● ●
505 ADAPTER; WATER FEED 8-97611-854-0 01 1 1304- ● ●
505 ADAPTER; WATER FEED 8-97607-409-0 01 1 0807-1012 ● ●
505 ADAPTER; WATER FEED 8-98145-412-1 01 1 1101-1303 ● ●
