5-20 — BATTERY CARRIER (#1284) — 30 parça

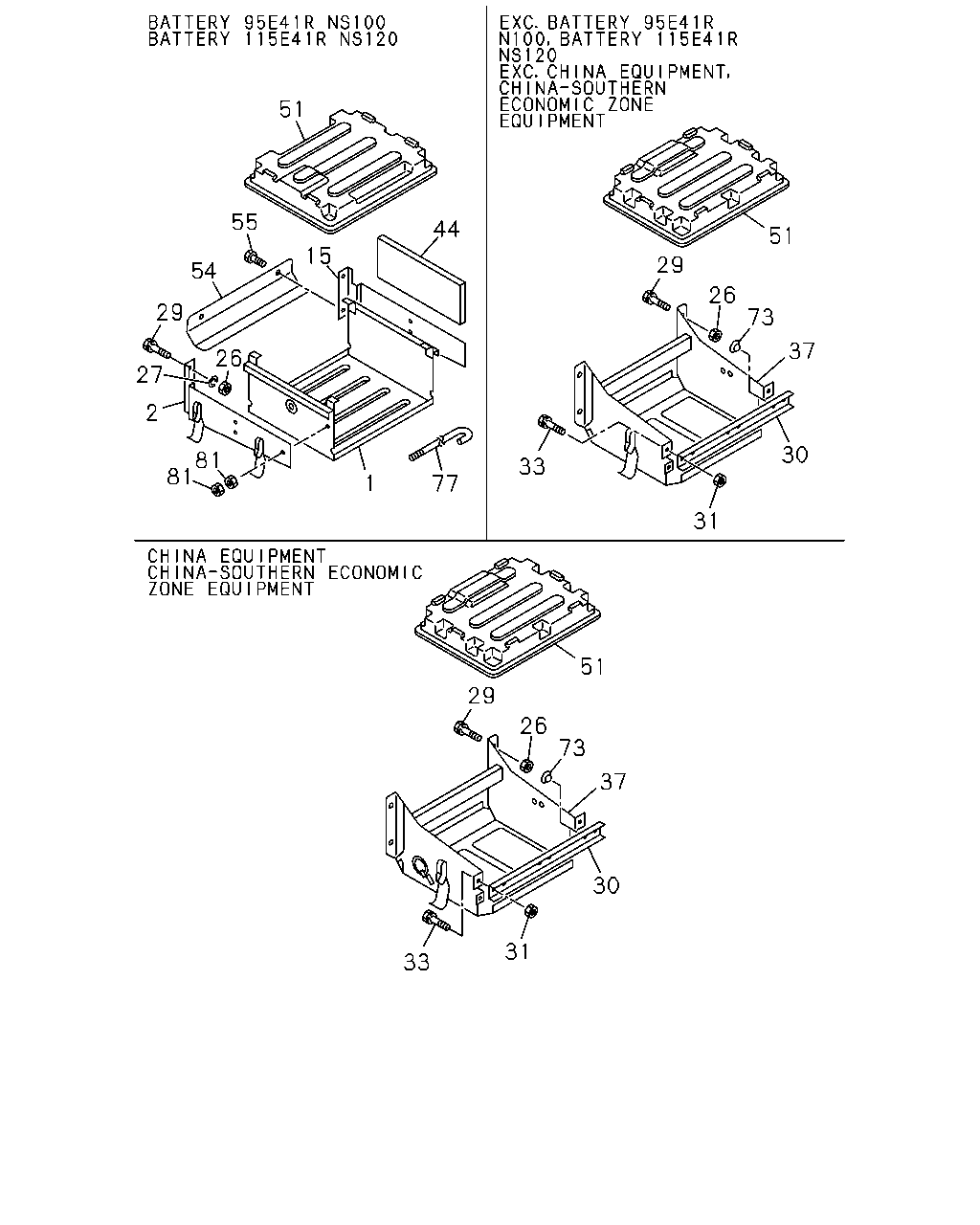

çizim 92402
51 55 54 29 27 2 81 81 26 15 44 77 1 33 31 30 37 73 26 29 51 51 29 26 73 37 30 31 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARRIER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53613-584-3 01 1 9202- ● ●
2 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-339-1 01 1 9202- ● ●
15 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-340-1 01 1 9202- ● ●
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		9-99110-414-0 04 1 9202- ● ●
26 NUT; BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 		9-09110-510-0 04 1 9202- ● ●
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		9-09150-514-0 04 1 9202- ● ●
29 BOLT; BRKT TO FRAME
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X30 W/LK WASHER 		0-50041-030-0 04 1 9202-9204 ●
29 BOLT; BRKT TO FRAME
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X30 W/LK WASHER 		0-50041-030-0 04 1 9202-9204 ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35 		0-20801-435-0 04 1 9202-9204 ● ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40 		0-20801-440-0 04 1 9205- ● ●
29 BOLT; BRKT TO FRAME
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50041-035-0 04 1 9202-9204 ● ●
29 BOLT; BRKT TO FRAME
WHEEL BASE 6000MM(60W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50041-035-0 04 1 9202-9204 ●
29 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50041-035-0 04 1 9205-9307 ● ●
29 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X30 FLANGE 		0-28081-030-0 04 1 9308- ● ●
30 PLATE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-046-3 01 1 9202- ● ●
31 NUT; PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 02 1 9202- ● ●
33 BOLT; PLATE TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28010-820-0 02 1 9202-9204 ● ●
33 BOLT; PLATE TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
37 BRACKET; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),BATTERY 115E41R NS120<W73> ,CHINA EQUIPMENT(YT2) 		1-53613-356-0 01 1 9202-9202 ● ●
37 BRACKET; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),BATTERY 115E41R NS120<W73> ,CHINA EQUIPMENT(YT2) 		1-53613-354-3 01 1 9203- ● ●
37 BRACKET; BATTERY
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-357-1 01 1 9202- ●
44 SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-006-0 02 1 9202- ● ●
51 COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-029-0 01 1 9202- ● ●
51 COVER; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-019-1 01 1 9202- ● ●
54 PROTECTOR; HEAT,BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-075-1 01 1 9202- ● ●
55 BOLT; HEAT PROTECTOR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X16 FLANGE 		0-28210-816-0 02 1 9202-9204 ● ●
55 BOLT; HEAT PROTECTOR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X16 FLANGE 		0-28280-816-0 02 1 9205- ● ●
73 RUBBER; CUSHION,PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-09337-002-0 04 1 9202- ● ●
77 BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-101-0 02 1 9202- ● ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 04 1 9202- ● ●
