◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#128389) — 77 parça

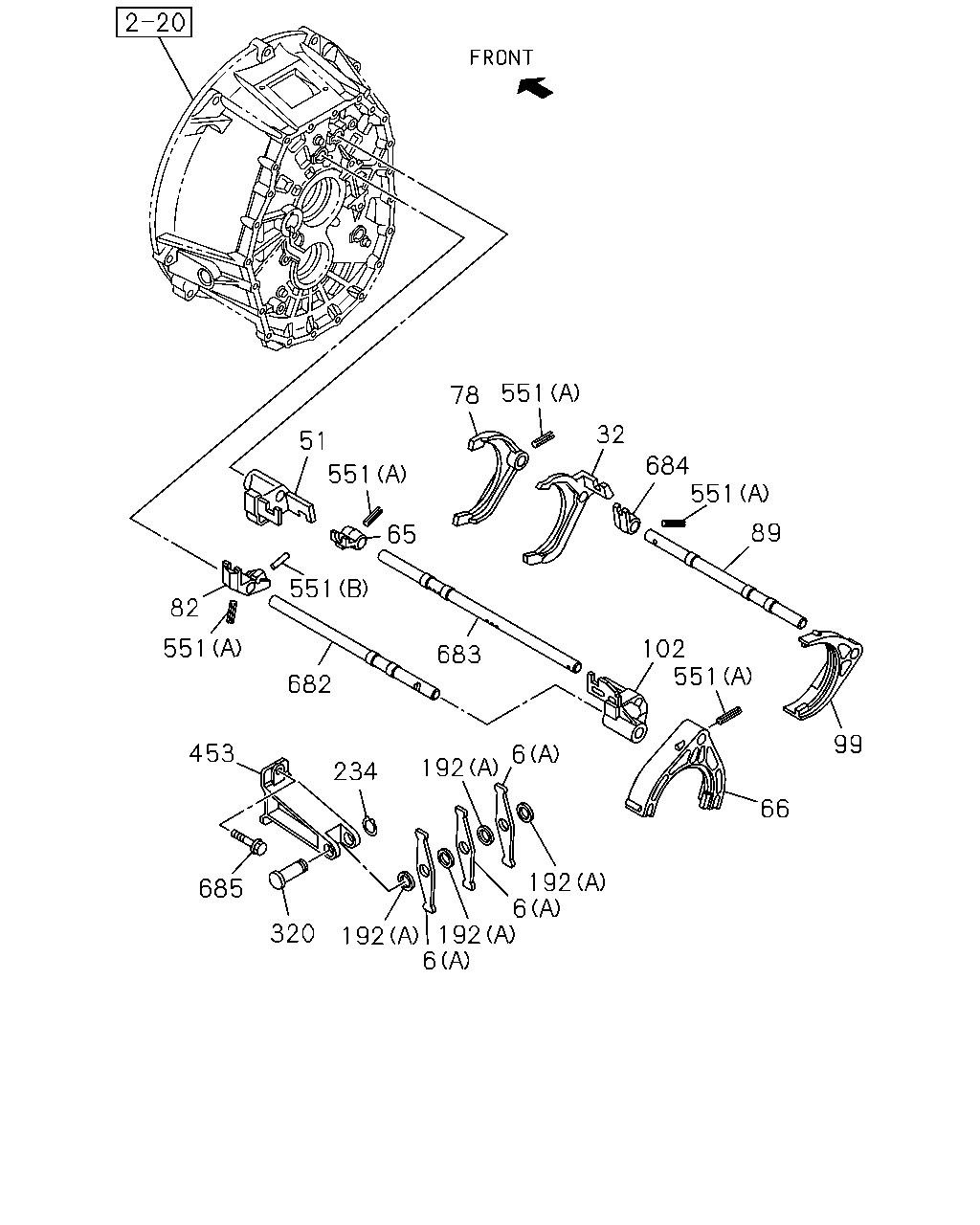

çizim 380492
66 99 551 102 89 551 684 32 551 78 51 65 551 551 683 82 551 682 453 234 192 685 320 6 192 6 192 6 192
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 1310-
6 LEVER; RELAY
(B) 		8-98014-157-1 01 1 1310-
32 ARM; SHIFT,1ST & 2ND 8-98236-424-1 01 1 1310-
51 BLOCK; SHIFT,1ST & 2ND 8-98074-457-1 01 1 1310-
65 BLOCK ASM; SHIFT,5TH & 6TH 8-97388-980-1 01 1 1310-
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 1310-
78 ARM; SHIFT,REV 8-97388-975-1 01 1 1310-
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 1310-
89 ROD; SHIFT,REV 8-98062-172-0 01 1 1310-
99 ARM; SHIFT,4TH & 3RD 8-98062-170-0 01 1 1310-1506
99 ARM; SHIFT,4TH & 3RD 8-98309-861-0 01 1 1507-
102 BLOCK; SHIFT,3RD & 4TH 8-97388-978-2 01 1 1310-
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 1310-
192 WASHER; PL
(B) 		8-97305-661-0 02 1 1310-
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1310-
320 SHAFT; LEVER 8-97377-928-0 01 1 1310-
453 BLOCK; RELAY LEVER 8-97377-927-1 01 1 1310-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1310-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1310-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1310-
682 ROD; SHIFT,REV,SUB 8-97388-974-0 01 1 1310-
683 ROD; SHIFT,5TH & 6TH 8-98062-173-1 01 1 1310-
684 BLOCK; SHIFT,REV,SUB 8-97388-970-0 01 1 1310-
685 BOLT; BLOCK
M8X30 FLANGE 		8-98034-764-0 02 1 1310-

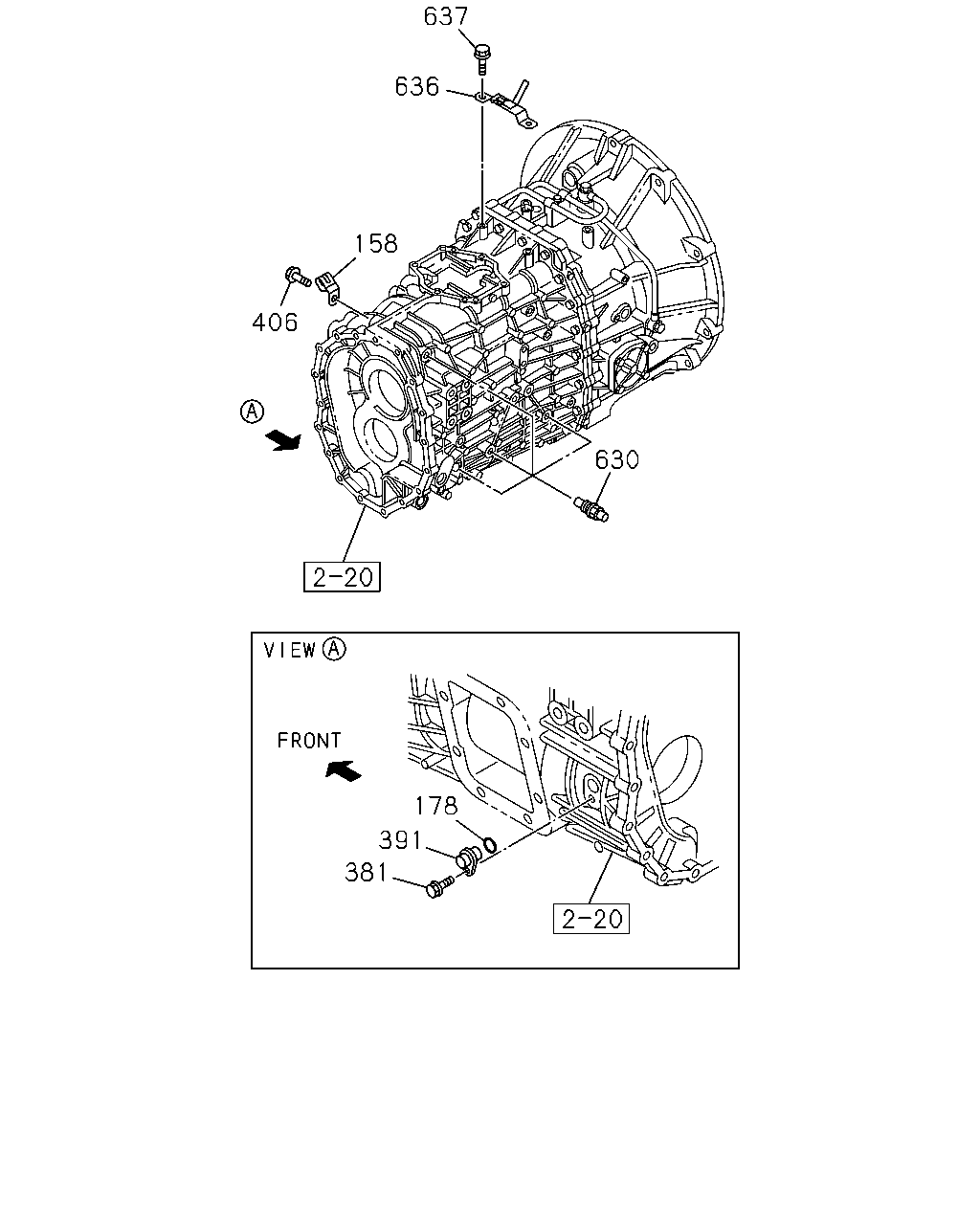

çizim 380870
637 636 158 406 630 178 391 381
BalonParca AdiParca NoAdetTipApplied Date
158 CLIP; HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1310-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1310-
381 BOLT
M6X16 FLANGE 		0-28650-616-0 01 1 1310-
391 PLUG; SW HOLE 8-97300-273-1 01 1 1310-
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1310-
630 DETENT ASM 8-98019-536-0 04 1 1310-
636 BRACKET; CLIP 8-97610-092-1 01 1 1310-1502
637 BOLT; BRACKET
M8X16 FLANGE 		0-28050-816-0 02 1 1310-1502

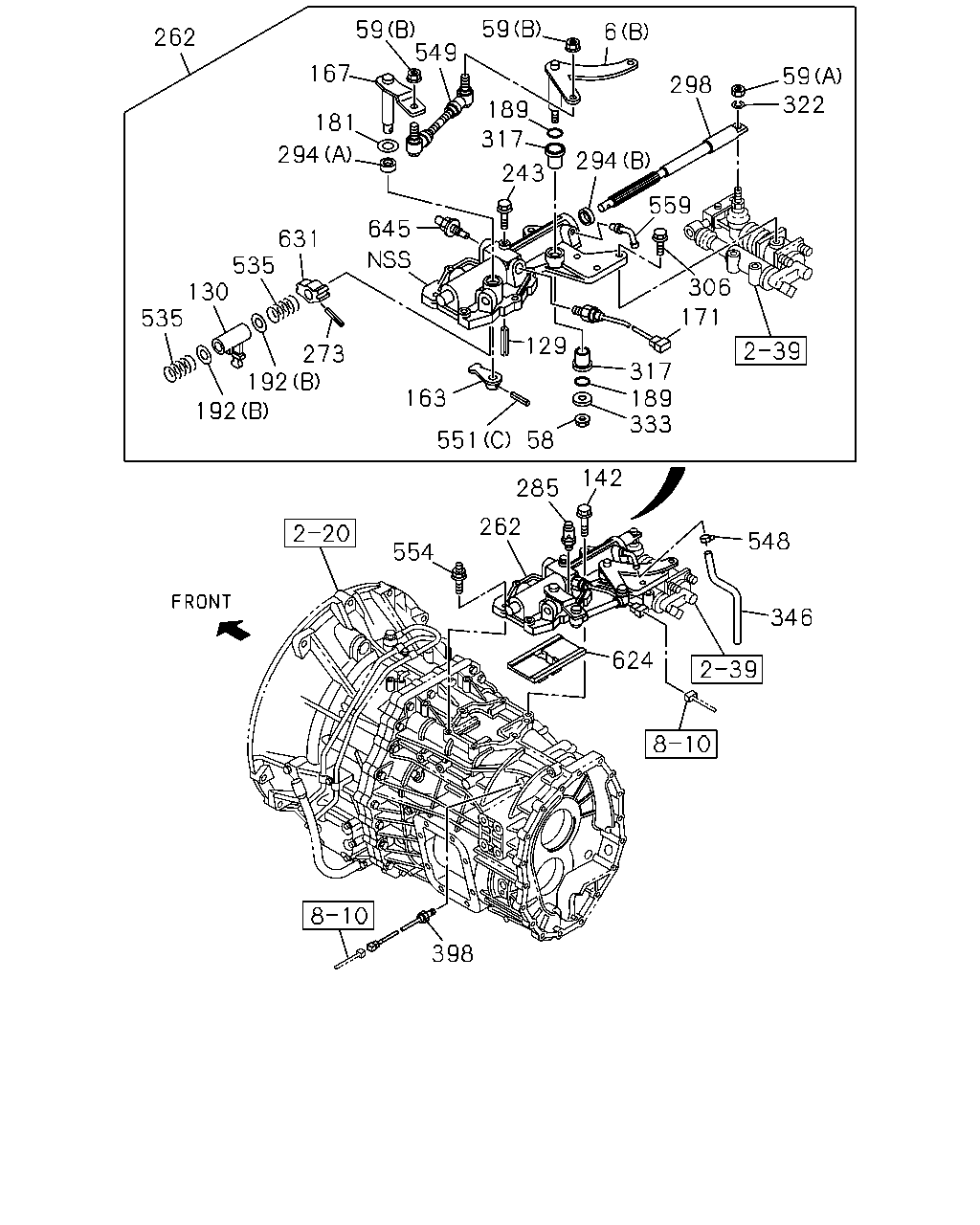

çizim 382412
59 262 167 181 294 631 535 130 535 192 192 273 645 163 551 58 129 333 189 317 171 306 559 294 243 317 189 549 59 6 298 59 322 554 262 285 142 548 346 624 398
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 1310-
6 LEVER; RELAY
(B) 		8-98014-157-1 01 1 1310-
58 NUT
M10 FLANGE 		0-91180-110-0 01 1 1310-
59 NUT
(A) M12 		0-91110-512-0 01 1 1310-
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1310-
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1310-
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1310-
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 1310-
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1310-
167 LEVER; SELECT,EXTERNAL 8-98021-489-0 01 1 1310-
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 1310-1312
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1310-
189 GASKET; SELECT LEVER,CONT BOX 1-09623-594-0 02 1 1310-
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 1310-
192 WASHER; PL
(B) 		8-97305-661-0 02 1 1310-
243 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 01 1 1310-
262 BOX ASM; SHIFT CONT 8-98249-039-0 01 1 1310-1312
262 BOX ASM; SHIFT CONT 8-98241-016-0 01 1 1401-1404
262 BOX ASM; SHIFT CONT 8-98276-159-1 01 1 1405-1507
262 BOX ASM; SHIFT CONT 8-98305-334-0 01 1 1508-
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 1310-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1310-1404
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97305-662-0 01 1 1310-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97363-225-0 01 1 1310-
298 SHAFT; SHIFT LEVER 8-98097-117-0 01 1 1310-1507
298 SHAFT; SHIFT LEVER 8-98305-343-0 01 1 1508-
306 BOLT; SHIFT ASSISTOR
M10X50 FLANGE 		0-28051-050-0 03 1 1310-
317 BUSHING; LEVER 1-09330-119-0 02 1 1310-
322 WASHER; LK 8-98031-750-0 01 1 1310-
333 WASHER; PL,LEVER
ID=10.5 		0-91610-710-0 01 1 1310-
346 HOSE; AIR 8-97309-855-0 01 1 1405-
398 SWITCH; REV LAMP 8-98023-050-0 01 1 1310-1312
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401-
535 SPRING; LEVER 8-97385-713-0 02 1 1310-
548 CLIP; HOSE 8-97031-674-0 01 1 1405-
549 ROD; LINK 8-98023-095-0 01 1 1310-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1310-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1310-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1310-
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1310-
559 PIPE; BREATHER 8-97358-318-0 01 1 1405-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1310-
631 STOPPER; SPRING 8-98014-158-0 01 1 1310-
645 DETENT ASM 8-98019-536-0 01 1 1310-
