◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#128383) — 52 parça

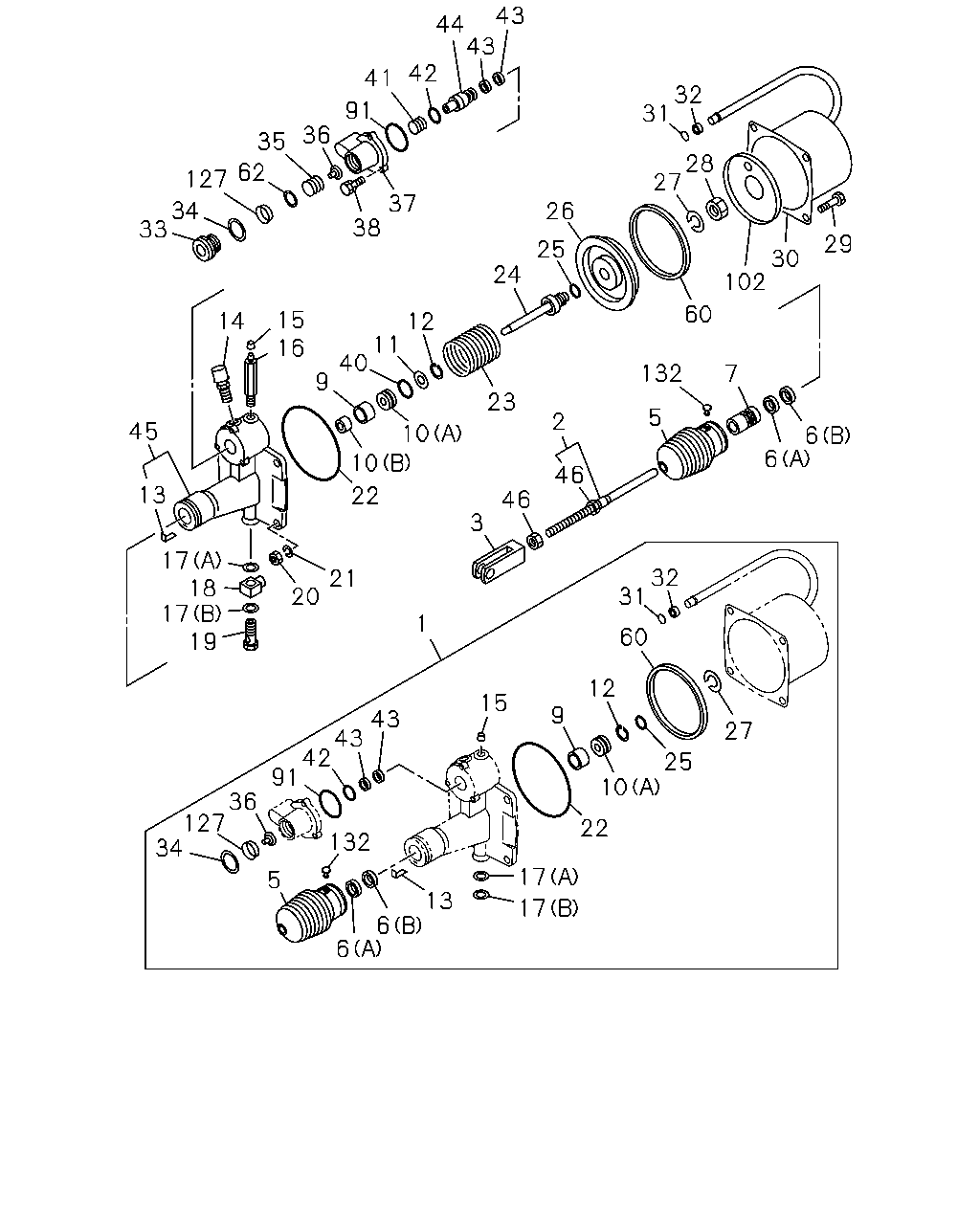

çizim 380994
43 43 44 42 41 91 36 35 62 127 34 33 38 37 15 14 16 45 13 17 17 19 18 20 21 22 10 10 9 40 11 12 24 23 25 26 31 32 28 27 29 30 102 60 132 5 2 46 46 3 1 7 6 6 32 31 60 12 9 15 43 43 42 91 36 127 34 5 132 6 6 13 17 17 22 10 25 27
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-636-0 01 1 1310-
2 ROD; PUSH,CLU BOOSTER 1-31824-261-0 01 1 1310-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-189-0 01 1 1310-
5 GUARD; PISTON,CLU BOOSTER 1-31829-633-0 01 1 1310-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1310-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1310-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1310-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1310-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1310-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1310-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1310-
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 1310-
13 PIN; SPR 1-31829-109-0 01 1 1310-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1310-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1310-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1310-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1310-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1310-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1310-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1310-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1310-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1310-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1310-
23 SPRING; SHELL,CLU BOOSTER 1-31829-632-0 01 1 1310-
24 ROD; PUSH,CLU BOOSTER 1-31824-259-0 01 1 1310-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1310-
26 PISTON; SHELL,CLU BOOSTER 1-31821-007-0 01 1 1310-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1310-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1310-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1310-
30 SHELL; CYL,CLU BOOSTER 1-31811-155-0 01 1 1310-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1310-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1310-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1310-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1310-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1310-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1310-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1310-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1310-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1310-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-329-0 01 1 1310-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 1310-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1310-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-092-0 01 1 1310-
45 PLATE; END,CLU BOOSTER 1-31811-156-0 01 1 1310-
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-624-0 02 1 1310-
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 1310-
62 RETAINER; POPPET 1-31829-489-0 01 1 1310-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1310-
102 PLATE; BOOSTER 1-31829-635-0 01 1 1310-
127 FILTER; POPPET 1-31829-495-0 01 1 1310-
132 CAP; CLU BOOSTER 1-31829-634-0 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
