2-05 — CLUTCH PIPING (#128382) — 32 parça
çizim 379458
48 101 50 239 104 50 23 173 39 173
BalonParca AdiParca NoAdetTipApplied Date
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1310-
39 GASKET; CONNECTOR 9-09920-268-0 01 1 1310-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1310-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1310-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1310-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1310-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=500 		8-98072-350-0 01 1 1310-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 		8-98067-058-0 01 1 1310-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2479 		8-98232-258-0 01 1 1310-
173 CONNECTOR
(B) 		8-98203-740-0 01 1 1310-
173 CONNECTOR
(A) 		8-98205-344-0 01 1 1310-
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 1310-

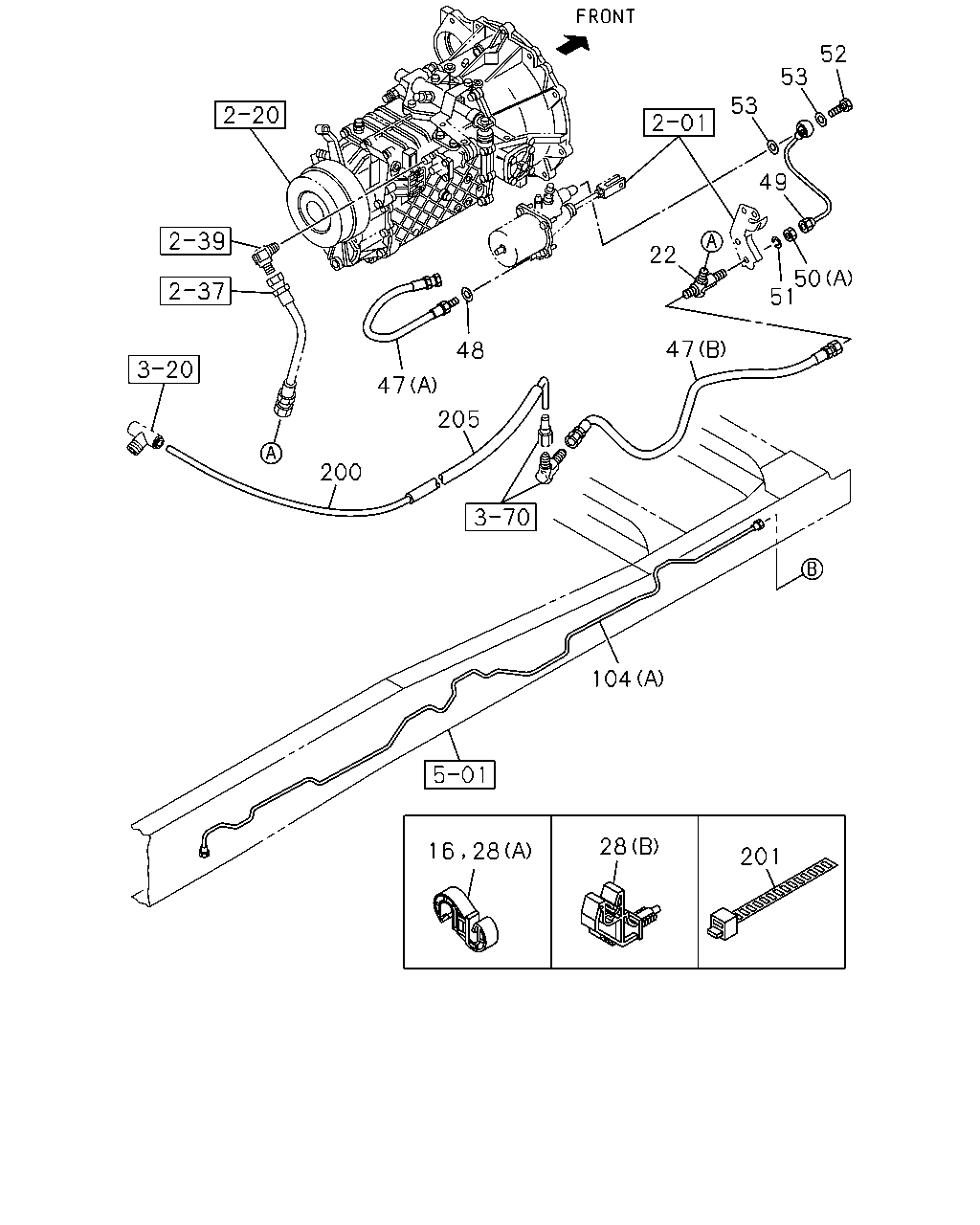

çizim 379983
52 53 53 49 50 51 47 22 205 48 47 200 104 16 28 28 201
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1310-
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 1310-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1310-
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 01 1 1310-
47 HOSE; FLEX,CLU CONT
(B) L=500 		1-09363-733-0 01 1 1310-
47 HOSE; FLEX,CLU CONT
(A) L=440 		8-98072-346-0 01 1 1310-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1310-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 8-98222-994-0 01 1 1310-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1310-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1310-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1310-
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1310-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 1310-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1310-1312
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 		8-98067-058-0 01 1 1310-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2479 		8-98232-258-0 01 1 1310-
200 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1310-
201 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1310-
205 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1310-
