◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#128381) — 21 parça

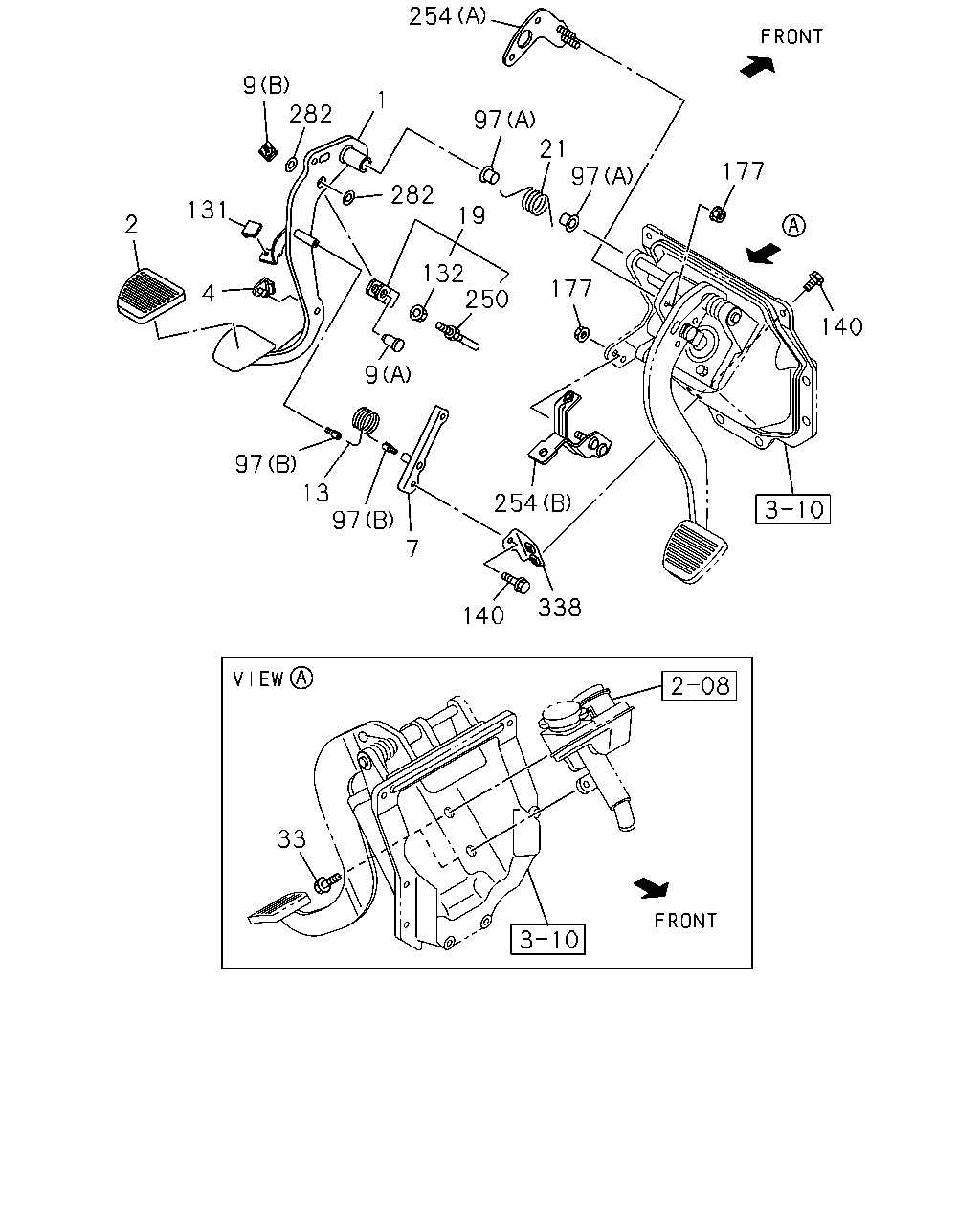

çizim 379770
254 1 9 131 2 4 97 9 132 282 282 19 97 177 21 97 177 140 254 338 140 7 97 13 33 250
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU 8-98222-862-0 01 1 1310-
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1310-
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1310-
7 BRACKET; CLU PEDAL 8-98222-860-0 01 1 1310-
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1310-
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1310-
13 SPRING; ASSIST,CLU PEDAL 8-98222-844-0 01 1 1310-
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1310-
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1310-
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1310-
97 BUSHING; CLU PEDAL SHAFT
(A) 		8-94238-596-0 02 1 1310-
97 BUSHING; CLU PEDAL SHAFT
(B) 		8-98222-859-0 02 1 1310-
131 STOPPER; CLU SW 8-97302-305-0 01 1 1310-
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1310-
140 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 03 1 1310-
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1310-
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1310-
254 BRACKET; CLU SENSOR
(A) 		8-98021-376-1 01 1 1310-
254 BRACKET; CLU SENSOR
(B) 		8-98021-377-1 01 1 1310-
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1310-
338 SUPPORT; CLUTCH 8-98222-861-0 01 1 1310-
