1-50 — EXHAUST PIPE AND SILENCER (#128377) — 106 parça

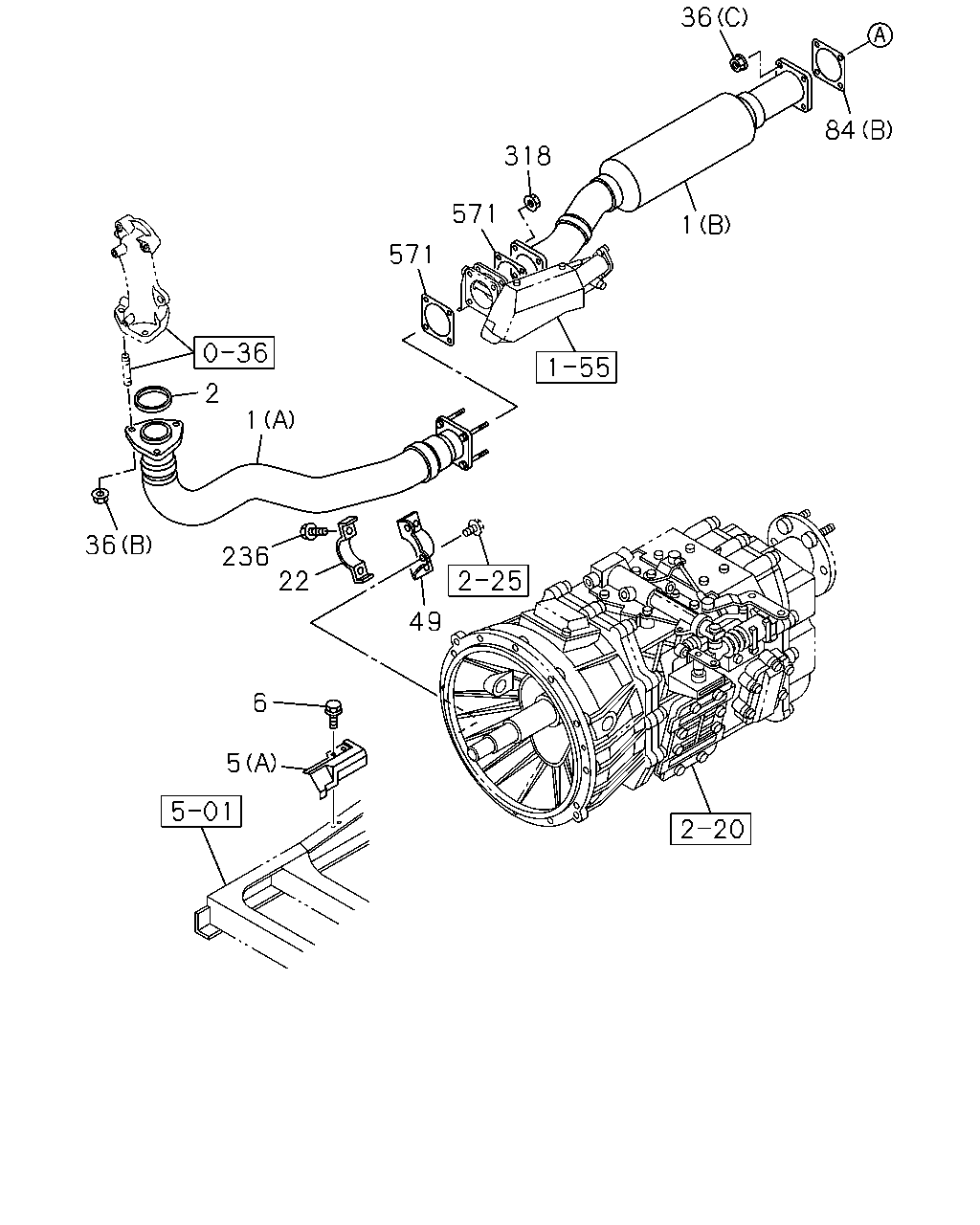

çizim 379533
36 84 318 571 571 2 1 36 236 22 49 6 5 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98229-233-0 01 1 1310-
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1310-
1 PIPE; EXH
(A) 		8-98243-550-0 01 1 1310-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 1310-
5 PROTECTOR; HEAT
(A) 		8-98044-122-0 01 1 1310-
5 PROTECTOR; HEAT
(B) 		8-98236-295-0 01 1 1310-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1310-
22 CLAMP; EXH PIPE 1-22133-295-0 01 1 1310-1310
22 CLAMP; EXH PIPE 8-97646-674-0 01 1 1310-
36 NUT; EXH PIPE
(A) M8 FLANGE 		0-91180-108-0 04 1 1310-
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1310-
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1310-
49 BRACKET; EXH PIPE TO TRANS 8-98208-167-0 01 1 1310-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1310-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 03 1 1310-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 1310-
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1310-
571 GASKET
ID=64 		8-97373-108-0 02 1 1310-

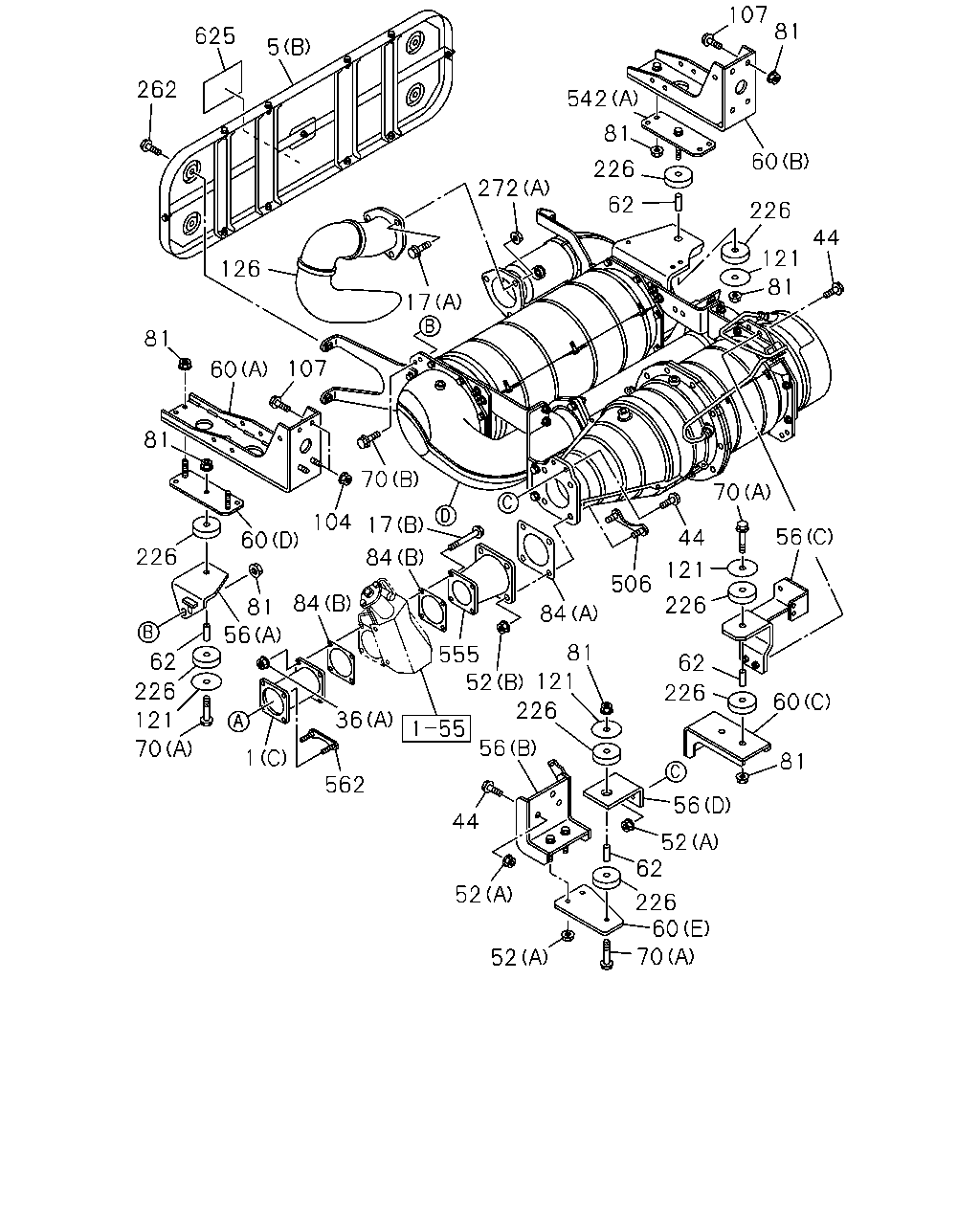

çizim 381408
52 70 60 226 52 62 52 56 44 56 81 60 226 62 226 121 81 226 121 44 70 56 81 121 44 226 60 107 81 542 81 226 62 272 17 506 84 52 555 36 562 1 70 121 226 62 56 81 84 84 17 104 60 226 81 70 107 60 81 126 262 625 5
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98229-233-0 01 1 1310-
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1310-
1 PIPE; EXH
(A) 		8-98243-550-0 01 1 1310-
5 PROTECTOR; HEAT
(A) 		8-98044-122-0 01 1 1310-
5 PROTECTOR; HEAT
(B) 		8-98236-295-0 01 1 1310-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1310-
17 BOLT; EXH PIPE
(B) M8X65 FLANGE 		1-09044-072-1 04 1 1310-
36 NUT; EXH PIPE
(A) M8 FLANGE 		0-91180-108-0 04 1 1310-
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1310-
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1310-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 09 1 1310-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 07 1 1310-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98203-966-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98224-250-1 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98229-042-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98229-237-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98159-854-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(D) 		8-98159-985-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98223-954-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(E) 		8-98224-330-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(C) 		8-98229-041-0 01 1 1310-
62 TUBE; DIST,BRKT 8-98131-254-0 04 1 1310-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 03 1 1310-
70 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 12 1 1310-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1310-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 03 1 1310-
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1310-
121 WASHER; PL,BRKT
ID=10.5 OD=70 		8-97625-671-0 04 1 1310-
126 PIPE; EXH,RR 8-98224-713-0 01 1 1310-
226 RUBBER; CUSHION 8-97625-670-0 08 1 1310-
262 BOLT; HANGER TO BODY
M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1310-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1310-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1310-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1310-
542 BRACKET
(B) 		8-98232-788-0 01 1 1310-
542 BRACKET
(A) 		8-98236-728-0 01 1 1310-
555 PIPE; EXH,DPD 8-98224-353-0 01 1 1310-
562 PLATE; STUD,BOLT 8-97373-966-0 02 1 1310-
625 LABEL; SAFETY 8-98236-285-0 01 1 1310-

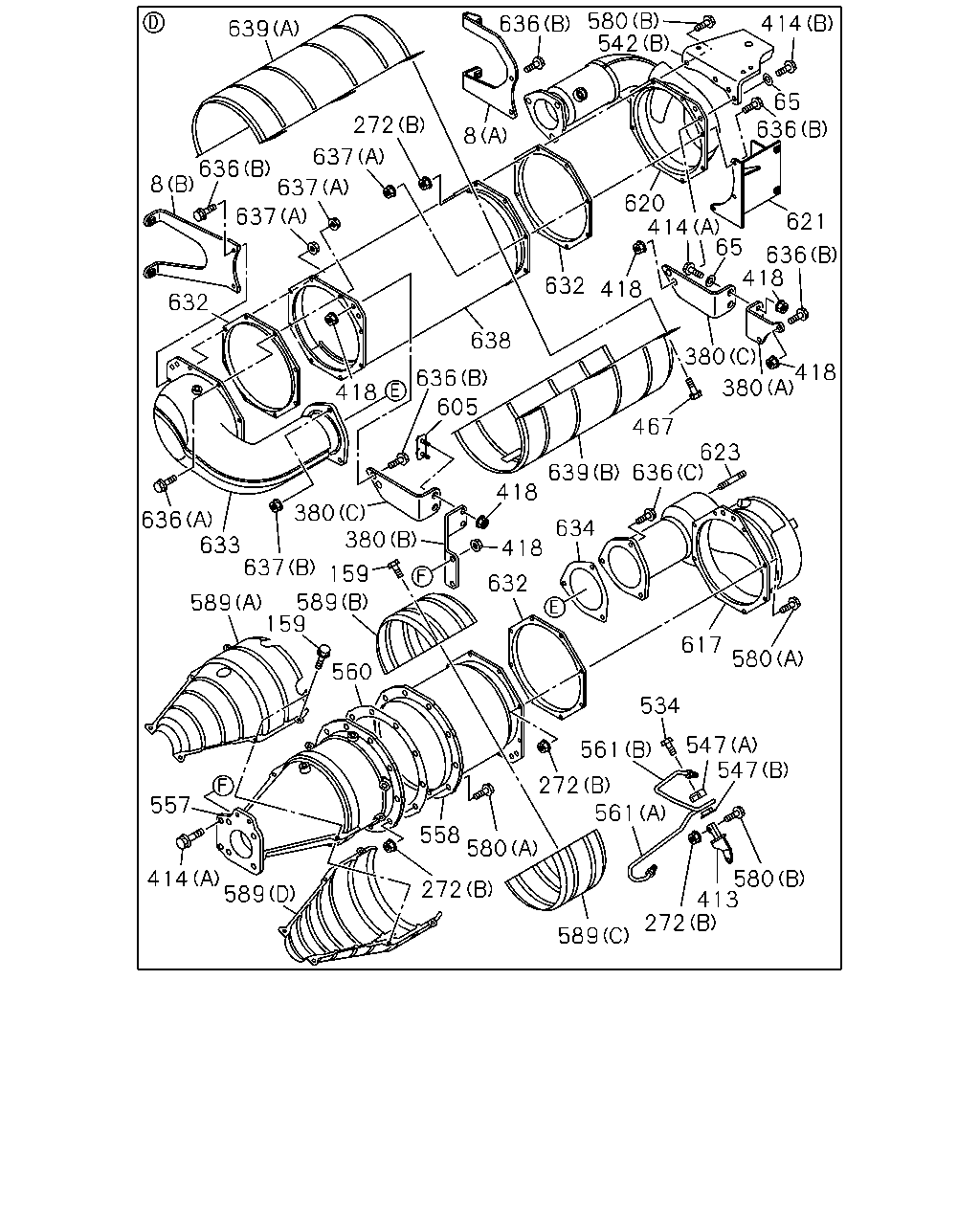

çizim 381505
639 272 8 637 637 636 637 8 632 636 418 380 633 589 637 159 159 589 380 605 636 638 632 418 636 580 542 414 65 636 621 636 65 414 620 418 418 380 380 467 623 636 639 418 418 634 632 617 580 534 561 272 558 580 272 557 414 589 589 272 413 580 547 547 561 560
BalonParca AdiParca NoAdetTipApplied Date
8 BRACKET; EXH PIPE
(A) 		8-98144-459-0 01 1 1310-
8 BRACKET; EXH PIPE
(B) 		8-98203-726-0 01 1 1310-
65 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 06 1 1310-
159 BOLT; HEAT PROTECTOR
M6X16 		8-98019-179-0 10 1 1310-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1310-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1310-
380 BRACKET; STAY
(A) 		8-98118-879-0 01 1 1310-
380 BRACKET; STAY
(C) 		8-98138-457-1 02 1 1310-
380 BRACKET; STAY
(B) 		8-98205-012-0 01 1 1310-
413 BRACKET; EXH PIPE,CONN 8-98138-485-0 01 1 1310-
414 BOLT; BRKT
(A) M10X35 FLANGE 		0-28051-035-0 06 1 1310-
414 BOLT; BRKT
(B) M10X45 FLANGE 		0-28051-045-0 02 1 1310-
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 10 1 1310-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 06 1 1310-
534 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 1310-
542 BRACKET
(B) 		8-98232-788-0 01 1 1310-
542 BRACKET
(A) 		8-98236-728-0 01 1 1310-
547 CLIP; PIPE
(A) 		8-97381-635-0 01 1 1310-
547 CLIP; PIPE
(B) 		8-97381-636-0 01 1 1310-
557 CATALYST ASM 8-98204-940-1 01 1 1310-
558 FILTER ASM 8-98204-942-0 01 1 1310-
560 GASKET; DPD 8-97611-080-0 01 1 1310-
561 PIPE; DPD
(A) 		8-98138-575-0 01 1 1310-
561 PIPE; DPD
(B) 		8-98138-576-0 01 1 1310-
580 BOLT; FLANGE
(A) M8X30 FLANGE 		0-28050-830-0 14 1 1310-
580 BOLT; FLANGE
(B) M8X40 FLANGE 		0-28050-840-0 04 1 1310-
589 PROTECTOR; HEAT,DPD
(A) 		8-97611-086-0 01 1 1310-
589 PROTECTOR; HEAT,DPD
(B) 		8-97628-261-0 01 1 1310-
589 PROTECTOR; HEAT,DPD
(C) 		8-97628-262-0 01 1 1310-
589 PROTECTOR; HEAT,DPD
(D) 		8-98140-713-0 01 1 1310-
605 PLATE; NUT 8-98148-511-0 01 1 1310-
617 CHAMBER SUB ASM; MIXER 8-98204-944-1 01 1 1310-
620 CHAMBER ASM; RR 8-98205-011-0 01 1 1310-
621 BRACKET; PROTECTOR 8-98159-190-1 01 1 1310-
623 STUD; FLANGE
M6 		8-98141-351-0 03 1 1310-
632 GASKET; FILTER,DEF 8-97628-257-0 03 1 1310-
633 CHAMBER SUB ASM; DEF,FRONT 8-98138-451-0 01 1 1310-
634 GASKET; MIXER 8-98118-422-1 01 1 1310-
636 BOLT; FLANGE,DEF FRONT
(A) M8X30 FLANGE 		0-28050-830-0 07 1 1310-
636 BOLT; FLANGE,DEF FRONT
(B) M8X40 FLANGE 		0-28050-840-0 09 1 1310-
636 BOLT; FLANGE,DEF FRONT
(C) M10X40 FLANGE 		0-28051-040-0 03 1 1310-
637 NUT; FLANGE,DEF FRONT
(A) M8 FLANGE 		0-91180-108-0 15 1 1310-
637 NUT; FLANGE,DEF FRONT
(B) M10 FLANGE 		0-91180-110-0 03 1 1310-
638 CATALYST ASM; DEF 8-98205-010-0 01 1 1310-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(A) 		8-98136-188-0 01 1 1310-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(B) 		8-98136-189-1 01 1 1310-
