1-46 — DEF TANK AND PIPING (#128376) — 157 parça

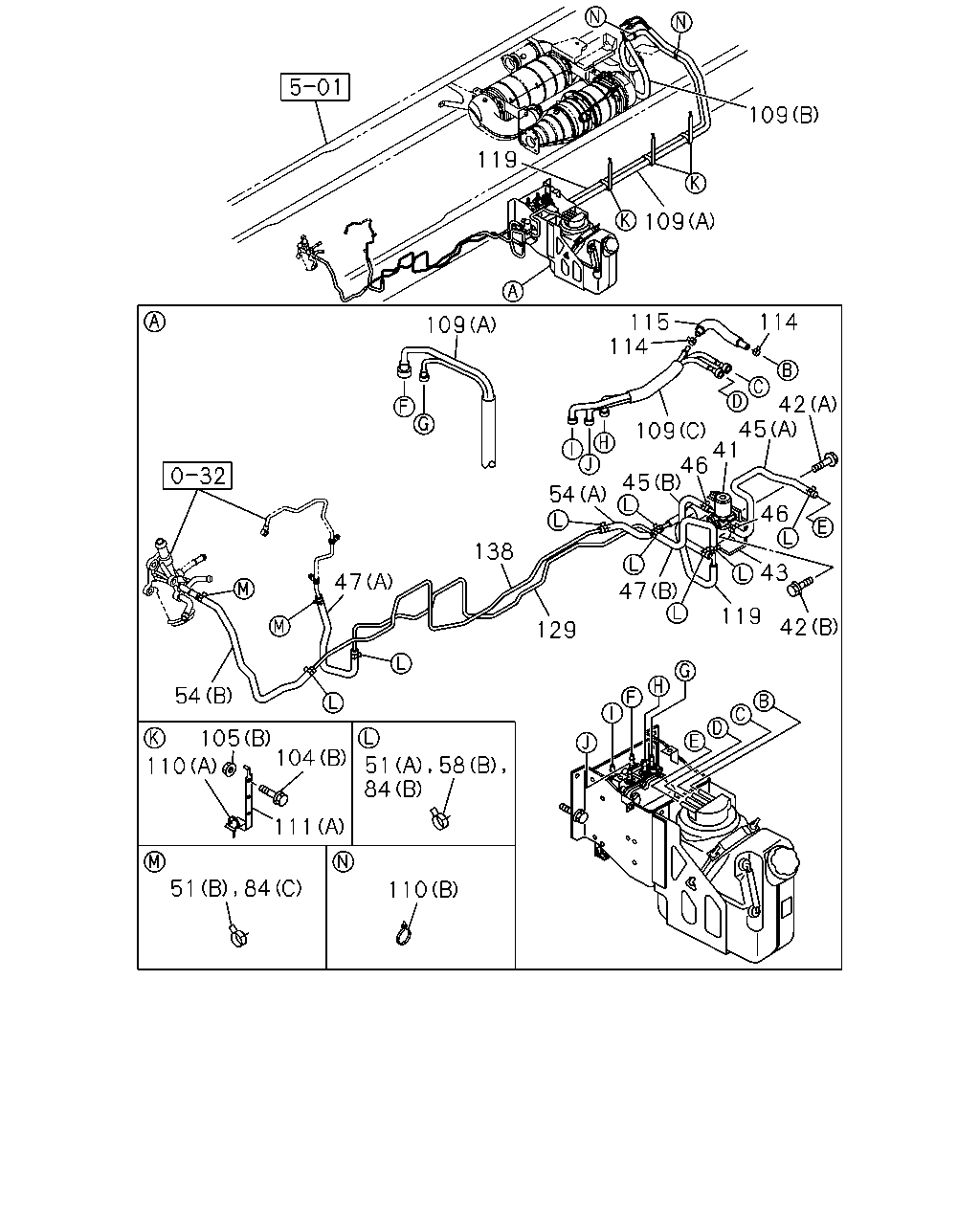

çizim 380957
129 58 51 84 110 84 51 110 105 104 111 54 47 138 109 54 45 47 119 42 43 46 46 41 45 42 114 114 115 109 109 119 109
BalonParca AdiParca NoAdetTipApplied Date
41 VALVE ASM; DEF TANK HTR DLVY 8-97628-956-1 01 1 1310-
42 BOLT; DEF RSVR HTR DLVY VLV
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
42 BOLT; DEF RSVR HTR DLVY VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
43 BRACKET; DEF RSVR HTR DLVY VLV 8-98206-706-0 01 1 1310-
45 HOSE ASM; DEF TANK HTR DLVY
(B) 		8-98206-772-0 01 1 1310-
45 HOSE ASM; DEF TANK HTR DLVY
(A) 		8-98206-773-1 01 1 1310-
46 CLAMP; DEF TANK HTR DLVY
ID=16 		8-97329-628-0 02 1 1310-
47 HOSE; DEF DCM COOL DLVY
(A) 		8-98206-774-0 01 1 1310-
47 HOSE; DEF DCM COOL DLVY
(B) 		8-98210-707-1 01 1 1310-
51 CLIP; DEF DCM MDL COOL DLVY HOSE
(A) ID=16 		8-97329-628-0 03 1 1310-
51 CLIP; DEF DCM MDL COOL DLVY HOSE
(B) ID=16 		8-98008-098-0 01 1 1310-
54 HOSE; DEF DCM COOL RTN
(A) L=330 SERVICED BY L=3000 		0-03561-300-0 01 1 1310-
54 HOSE; DEF DCM COOL RTN
(B) 		8-98239-522-0 01 1 1310-
58 CLIP; DEF RSVR HTR DLVY HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1310-
58 CLIP; DEF RSVR HTR DLVY HOSE
(B) ID=16 		8-97329-628-0 02 1 1310-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1310-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(B) ID=16 		8-97329-628-0 03 1 1310-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(C) ID=16 		8-98008-098-0 01 1 1310-
104 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
104 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 05 1 1310-
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 07 1 1310-
104 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
105 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1310-
105 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 07 1 1310-
109 TUBE ASM; DEF & WATER
(B) 		8-98206-720-0 01 1 1310-
109 TUBE ASM; DEF & WATER
(A) 		8-98210-675-1 01 1 1310-
109 TUBE ASM; DEF & WATER
(C) 		8-98233-439-0 01 1 1310-
110 CLIP; TUBE ASM
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 1310-
110 CLIP; TUBE ASM
(B) ID=11 & 13 L=17 & 18 		1-09700-748-0 01 1 1310-
110 CLIP; TUBE ASM
(C) ID=13 H=18 L=20 		1-09700-813-0 01 1 1310-
110 CLIP; TUBE ASM
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1310-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 07 1 1310-
111 BRACKET; CLIP,TUBE ASM
(B) L=225 		1-47477-646-3 02 1 1310-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-98162-761-0 03 1 1310-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98206-696-0 01 1 1310-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98206-700-0 01 1 1310-
114 CLIP; HOSE
ID=16 		8-97329-628-0 02 1 1310-
115 HOSE; DEF TANK HTR RTN 8-98237-190-0 01 1 1310-
119 TUBE ASM; DEF COOL & HTR WAT 8-98210-676-2 01 1 1310-
129 PIPE ASM; DEF DCM COOL DLVY
PTO CONTROL<SV6> 		8-98237-822-0 01 1 1310-
129 PIPE ASM; DEF DCM COOL DLVY
EXC. PTO CONTROL<SV6> 		8-98210-670-0 01 1 1310-
138 PIPE ASM; DEF DCM COOL RTN 8-98210-671-0 01 1 1310-

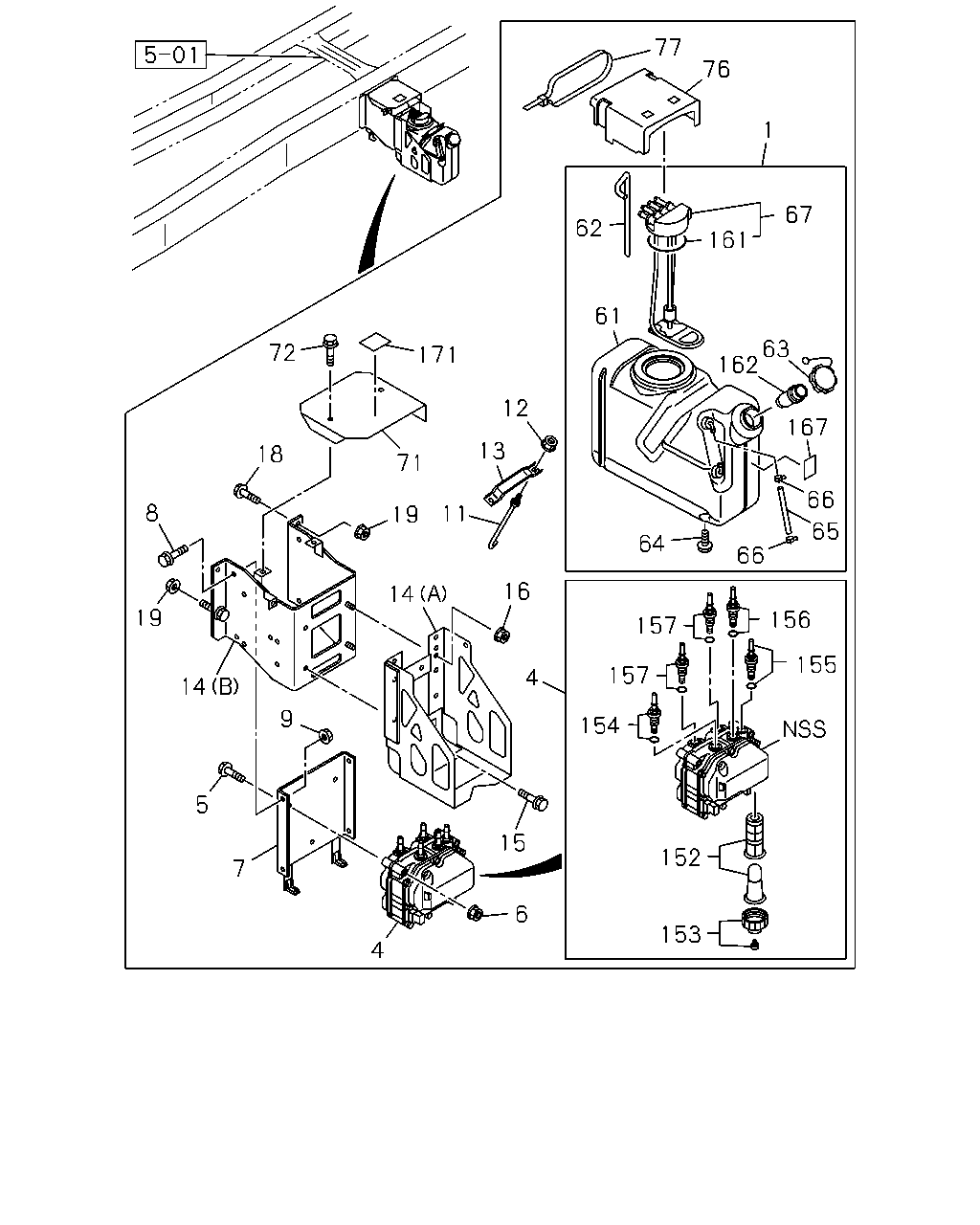

çizim 381268
155 152 153 154 157 157 156 66 64 65 167 66 162 63 61 62 161 67 1 76 77 12 13 11 16 4 15 6 4 7 5 9 14 19 8 18 71 171 72 19 14
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; DEF 8-98239-382-3 01 1 1310-
4 PUMP ASM; DEF,DCM SPLY 8-98268-812-0 01 1 1310-
5 BOLT; PUMP ASM,DEF DCM SPLY
M8X90 FLANGE 		0-28050-890-0 03 1 1310-
6 NUT; DEF DCM SPLY
M8 FLANGE 		0-91180-108-0 03 1 1310-
7 BRACKET; DEF DCM SPLY 8-98239-367-0 01 1 1310-
8 BOLT; BRKT,DEF DCM SPLY
M8X20 FLANGE 		0-28050-820-0 04 1 1310-
9 NUT; BRKT,DEF DCM SPLY
M8 FLANGE 		0-91180-208-0 04 1 1310-
11 BOLT; DEF TANK 8-98157-936-0 02 1 1310-
12 NUT; DEF TANK
M10 FLANGE 		0-91180-110-0 02 1 1310-
13 RETAINER; DEF TANK 8-98156-747-0 01 1 1310-
14 BRACKET ASM; DEF TANK
(A) 		8-98214-590-0 01 1 1310-
14 BRACKET ASM; DEF TANK
(B) 		8-98239-989-1 01 1 1310-
15 BOLT; BRKT,DEF TANK
M10X40 FLANGE 		0-28651-040-0 02 1 1310-
16 NUT; BRKT,DEF TANK
M10 FLANGE 		0-91180-210-0 04 1 1310-
18 BOLT; BRKT,DEF TANK
M10X40 FLANGE 		0-28651-040-0 02 1 1310-
19 NUT; BRKT,DEF TANK
M10 FLANGE 		0-91180-210-0 04 1 1310-
61 BODY ASM; DEF TANK 8-98220-878-1 01 1 1310-
62 HOSE; VENT,DEF TANK 8-98239-981-1 01 1 1310-
63 CAP ASM; FILLER,DEF TANK 8-98147-581-1 01 1 1310-
64 PLUG; DRAIN,DEF TANK 8-98120-263-0 01 1 1310-
65 HOSE; WATER LEVEL 8-98120-264-1 01 1 1310-
66 CLAMP; WATER LEVEL HOSE 8-98120-265-1 02 1 1310-
67 SENSOR ASM; DEF TANK 8-98213-926-1 01 1 1310-
71 COVER; DEF DCM SPLY 8-98233-434-0 01 1 1310-
72 BOLT; COVER,DEF DCM SPLY
M8X20 FLANGE 		0-28650-820-0 02 1 1310-
76 COVER; DEF TANK CAP 8-98156-298-1 01 1 1310-
77 CLIP; DEF TANK CAP CVR
L=350 		1-09707-183-0 01 1 1310-
152 FILTER KIT; PUMP ASM,DEF DCM SPLY 8-98169-403-0 01 1 1310-
153 COVER KIT; PUMP ASM,DEF DCM SPLY 8-98169-408-0 01 1 1310-
154 CONNECTOR KIT; INLET PUMP,DEF 8-98169-409-0 01 1 1310-
155 CONNECTOR KIT; OUTLET PUMP,DEF 8-98169-411-0 01 1 1310-
156 CONNECTOR KIT; RETURN PUMP,DEF 8-98268-813-0 01 1 1310-
157 CONNECTOR KIT; COOLANT PUMP,DEF 8-98169-414-1 02 1 1310-
161 GASKET; SENSOR ASM,DEF TANK 8-98170-383-0 01 1 1310-
162 ADAPTER; DEF TANK 8-98131-158-0 01 1 1310-
167 PLATE; CAUTION,DEF 8-98231-935-0 01 1 1310-
171 LABEL; NO STEP 8-98158-131-0 01 1 1310-

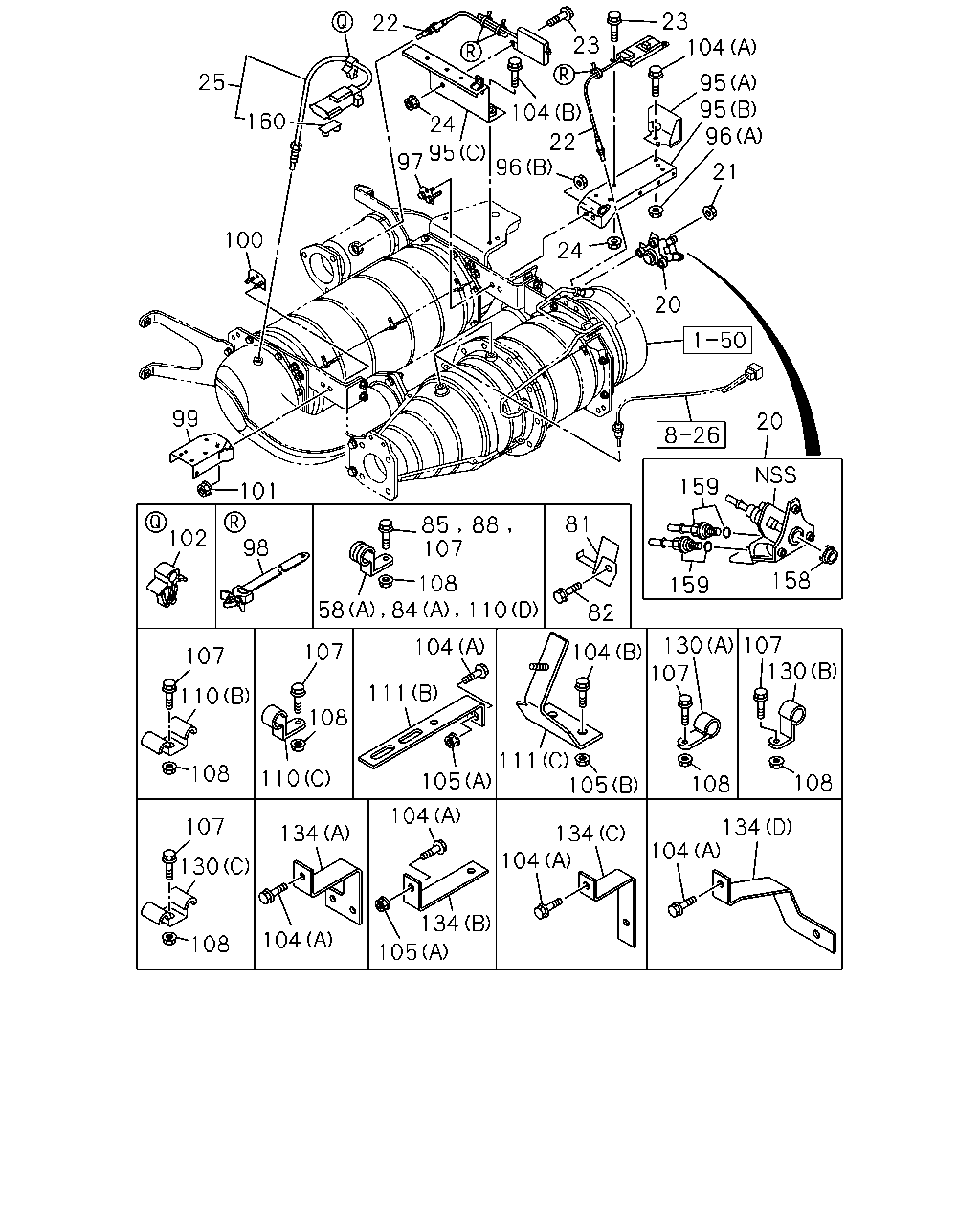

çizim 381457
134 104 134 104 134 105 104 134 104 108 130 107 108 110 107 108 107 110 111 105 111 105 108 108 104 107 130 107 130 104 102 98 58 84 110 108 107 85 88 81 82 159 158 159 20 20 101 99 100 24 21 96 97 95 22 96 95 95 104 23 23 104 24 22 160 25
BalonParca AdiParca NoAdetTipApplied Date
20 INJECTOR ASM; DEF DCM 8-98231-898-2 01 1 1310-
21 NUT; INJECTOR ASM,DEF DCM
M6 FLANGE 		0-91180-106-0 03 1 1310-
22 SENSOR; DEF DCM EXH NOX 8-98236-920-0 02 1 1310-1502
22 SENSOR; DEF DCM EXH NOX 8-98302-394-0 02 1 1503-
23 BOLT; SENSOR,DEF DCM EXH NOX 8-98155-181-0 04 1 1310-
24 NUT; SENSOR,DEF DCM EXH NOX
M6 FLANGE 		0-91180-106-0 04 1 1310-
25 SENSOR; DEF DCM EXH TEMP 8-98086-329-0 01 1 1310-
58 CLIP; DEF RSVR HTR DLVY HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1310-
58 CLIP; DEF RSVR HTR DLVY HOSE
(B) ID=16 		8-97329-628-0 02 1 1310-
81 BRACKET;DEF DCM MDL COOL RTN HOSE 8-98239-525-0 01 1 1310-
82 BOLT/SCREW;DEF DCM MDL COOL RTN HOSE B
M8X30 FLANGE 		0-28650-830-0 01 1 1310-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1310-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(B) ID=16 		8-97329-628-0 03 1 1310-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(C) ID=16 		8-98008-098-0 01 1 1310-
85 BOLT/SCREW;DEF DCM MDL COOL RTN HOSE C
M8X20 FLANGE 		0-28650-820-0 01 1 1310-
88 BOLT; CLIP,DEF RSVR HTR DLVY HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 1310-
95 BRACKET; HARN,DEF DCM EXH NOX SEN
(B) 		8-98142-266-3 01 1 1310-
95 BRACKET; HARN,DEF DCM EXH NOX SEN
(A) 		8-98170-211-0 01 1 1310-
95 BRACKET; HARN,DEF DCM EXH NOX SEN
(C) 		8-98241-870-0 01 1 1310-
96 NUT; BRACKET,DEF DCM EXH NOX SEN HARN
(A) M8 FLANGE 		0-91180-108-0 02 1 1310-
96 NUT; BRACKET,DEF DCM EXH NOX SEN HARN
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
97 STUD; BRACKET,DEF DCM EXH NOX SEN HARN 8-98005-985-0 01 1 1310-
98 CLIP; DEF DCM EXH NOX SEN HARN
L=112 		8-94232-618-0 08 1 1310-
99 BRACKET; DEF DCM EXH TEMP SEN HARN 8-98248-149-0 01 1 1310-
100 BOLT; BRKT,DEF DCM EXH TEMP SEN HARN 8-98005-985-0 01 1 1310-
101 NUT; CLIP,DEF DCM EXH TEMP SEN HARN
M10 FLANGE 		0-91180-210-0 02 1 1310-
102 CLIP; DEF DCM EXH TEMP SEN HARN
ID=4.8 		1-09701-218-0 03 1 1310-
104 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
104 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 05 1 1310-
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 07 1 1310-
104 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
105 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1310-
105 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 07 1 1310-
107 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 09 1 1310-
108 NUT; CLIP
M8 FLANGE 		0-91180-108-0 10 1 1310-
110 CLIP; TUBE ASM
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 1310-
110 CLIP; TUBE ASM
(B) ID=11 & 13 L=17 & 18 		1-09700-748-0 01 1 1310-
110 CLIP; TUBE ASM
(C) ID=13 H=18 L=20 		1-09700-813-0 01 1 1310-
110 CLIP; TUBE ASM
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1310-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 07 1 1310-
111 BRACKET; CLIP,TUBE ASM
(B) L=225 		1-47477-646-3 02 1 1310-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-98162-761-0 03 1 1310-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98206-696-0 01 1 1310-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98206-700-0 01 1 1310-
130 CLIP; PIPE ASM
(B) ID=13 H=18 L=20 		1-09700-813-0 02 1 1310-
130 CLIP; PIPE ASM
(A) ID=13 L=20 		0-95235-235-0 02 1 1310-
130 CLIP; PIPE ASM
(C) ID=13 & 13 L=21.5 & 21.5 		1-09700-689-0 03 1 1310-
134 BRACKET; PIPE ASM
(A) 		8-98255-027-0 01 1 1310-
134 BRACKET; PIPE ASM
(B) 		1-34656-009-0 01 1 1310-
134 BRACKET; PIPE ASM
(C) 		8-98210-678-0 02 1 1310-
134 BRACKET; PIPE ASM
(D) 		8-98210-679-0 01 1 1310-
158 GASKET; INJECTOR ASM,DEF DCM 8-98086-333-0 01 1 1310-
159 CONNECTOR KIT; COOLANT,INJECTOR ASM DE 8-98169-416-1 02 1 1310-
160 CLIP; HARNESS,SENSOR DEF DCM EXH TEMP 8-98170-331-0 01 1 1310-

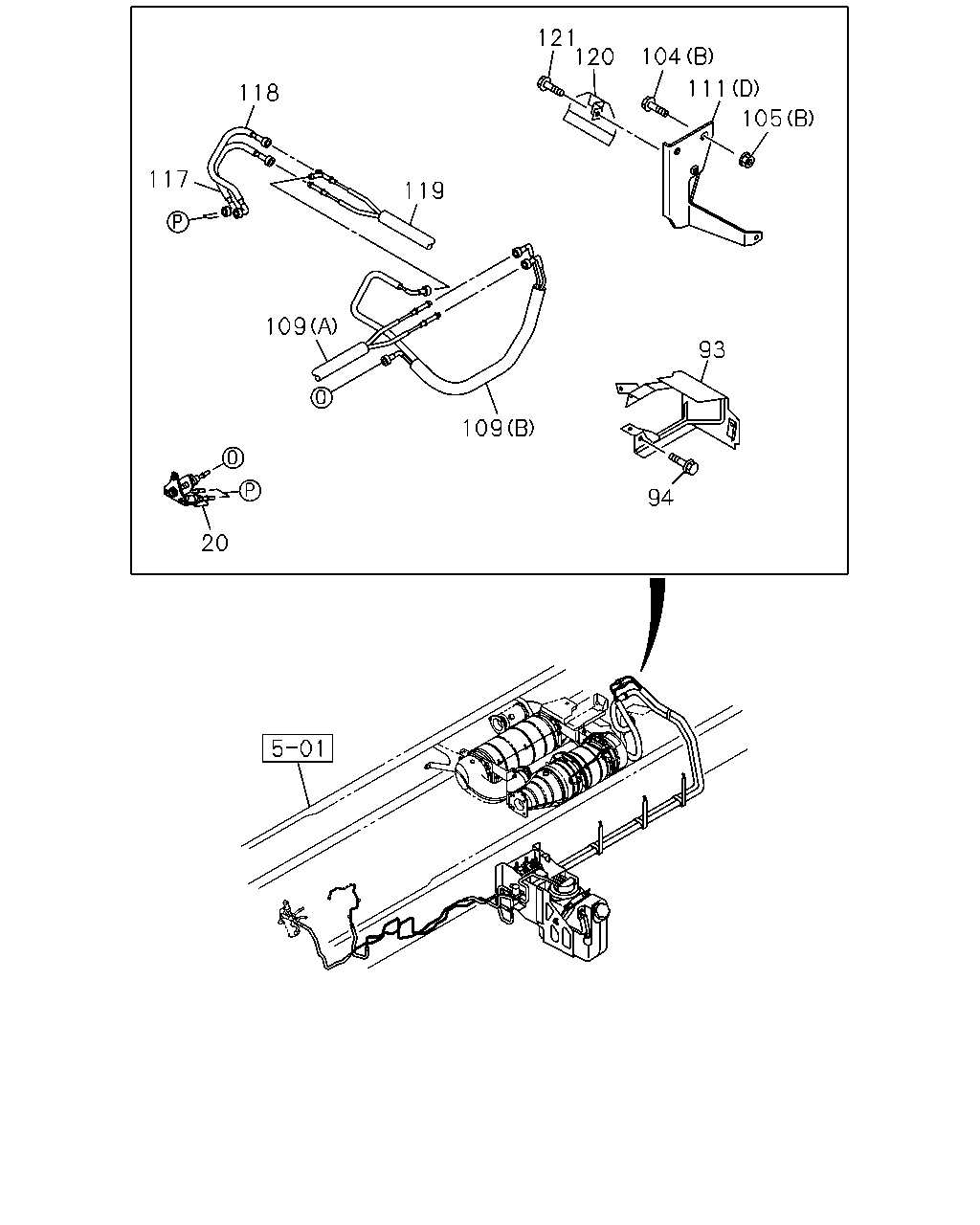

çizim 381557
94 109 109 117 118 119 121 104 120 111 105 20 93
BalonParca AdiParca NoAdetTipApplied Date
20 INJECTOR ASM; DEF DCM 8-98231-898-2 01 1 1310-
93 PROTECTOR; DEF DCM 8-98166-811-0 01 1 1310-
94 BOLT; PROTECTOR,DEF DCM
M8X25 FLANGE 		0-28650-825-0 02 1 1310-
104 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
104 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 05 1 1310-
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 07 1 1310-
104 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
105 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1310-
105 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 07 1 1310-
109 TUBE ASM; DEF & WATER
(B) 		8-98206-720-0 01 1 1310-
109 TUBE ASM; DEF & WATER
(A) 		8-98210-675-1 01 1 1310-
109 TUBE ASM; DEF & WATER
(C) 		8-98233-439-0 01 1 1310-
111 BRACKET; CLIP,TUBE ASM
(B) L=225 		1-47477-646-3 02 1 1310-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-98162-761-0 03 1 1310-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98206-696-0 01 1 1310-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98206-700-0 01 1 1310-
117 TUBE ASM; DEF DCM COOL DLVY 8-98169-122-0 01 1 1310-
118 TUBE ASM; DEF DCM COOL RTN 8-98169-121-0 01 1 1310-
119 TUBE ASM; DEF COOL & HTR WAT 8-98210-676-2 01 1 1310-
120 PROTECTOR; DEF COOL & HTR WAT TUBE 8-98169-727-0 01 1 1310-
121 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 01 1 1310-
