1-41 — FUEL PIPING; CHASSIS (#128374) — 61 parça

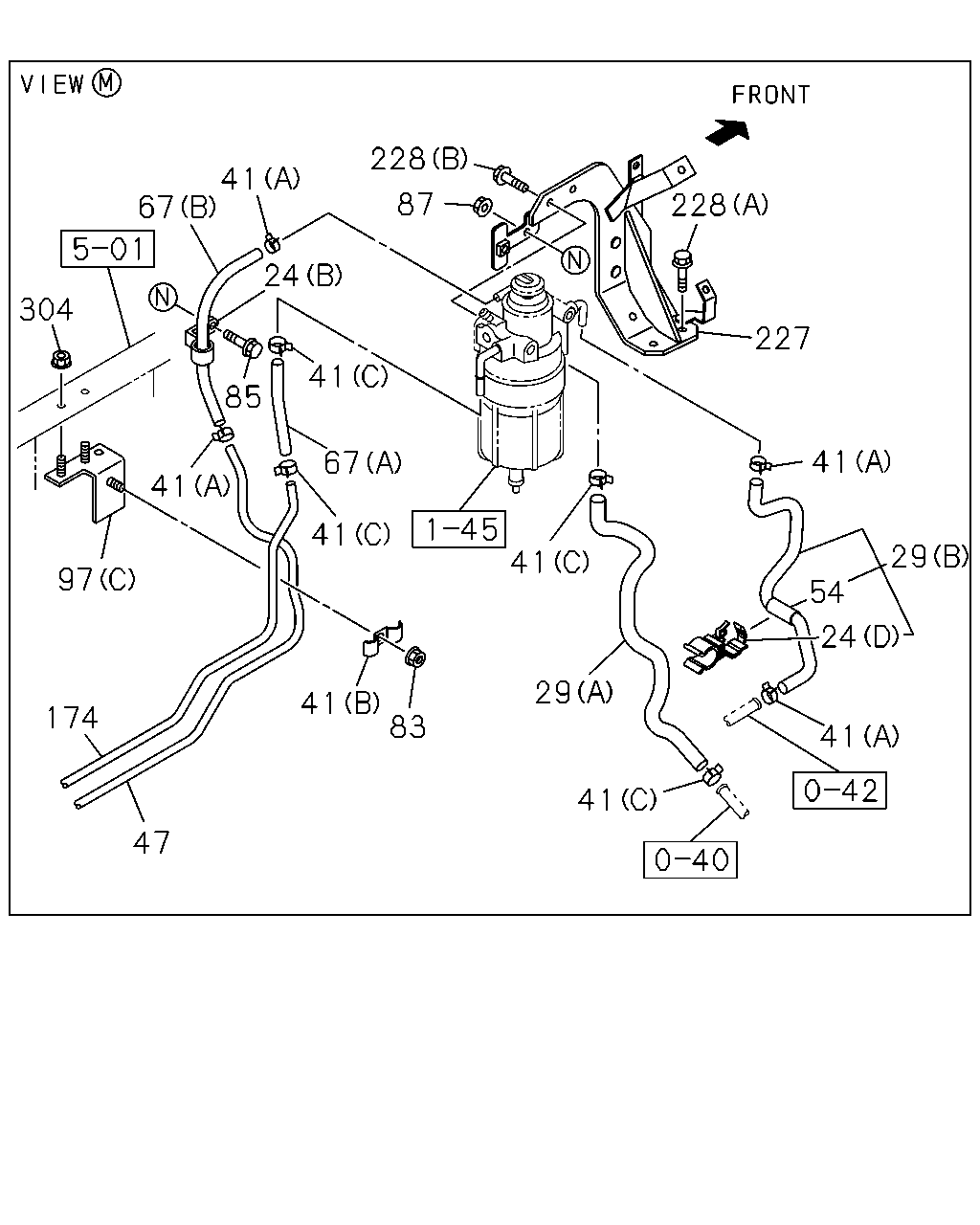

çizim 379522
228 227 41 29 54 24 41 41 29 83 41 41 41 67 41 87 228 41 67 24 85 41 97 174 47 304
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1310-
24 CLIP; FUEL HOSE
(A) ID=15 H=30 L=30 		1-09700-832-0 02 1 1310-
24 CLIP; FUEL HOSE
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 1310-
24 CLIP; FUEL HOSE
(D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1310-
29 HOSE; FUEL
(B) 		8-98147-183-0 01 1 1310-
29 HOSE; FUEL
(A) 		8-98156-676-0 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=8 H=20 L=20 		1-09700-604-0 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 06 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=11 H=20 L=20 		8-98033-780-0 01 1 1310-
47 PIPE; FUEL,RETURN
L=2861 		8-98232-282-0 01 1 1310-
54 SPACER; CLIP,FUEL PIPE 8-98148-172-0 01 1 1310-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1310-
67 HOSE; FUEL,DELIVERY
(A) L=140 SERVICED BY L=3000 		0-01859-300-0 01 1 1310-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 07 1 1310-
85 BOLT; CLIP,FUEL HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 1310-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 01 1 1310-
97 BRACKET; CLIP
(A) 		1-47471-051-0 01 1 1310-
97 BRACKET; CLIP
(B) 		8-98117-691-0 01 1 1310-
97 BRACKET; CLIP
(C) 		8-98209-221-0 01 1 1310-
174 PIPE; FUEL,FEED,FRT 8-98232-281-0 01 1 1310-
227 BRACKET; FUEL SEDIMENTER 8-98133-172-0 01 1 1310-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1310-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1310-

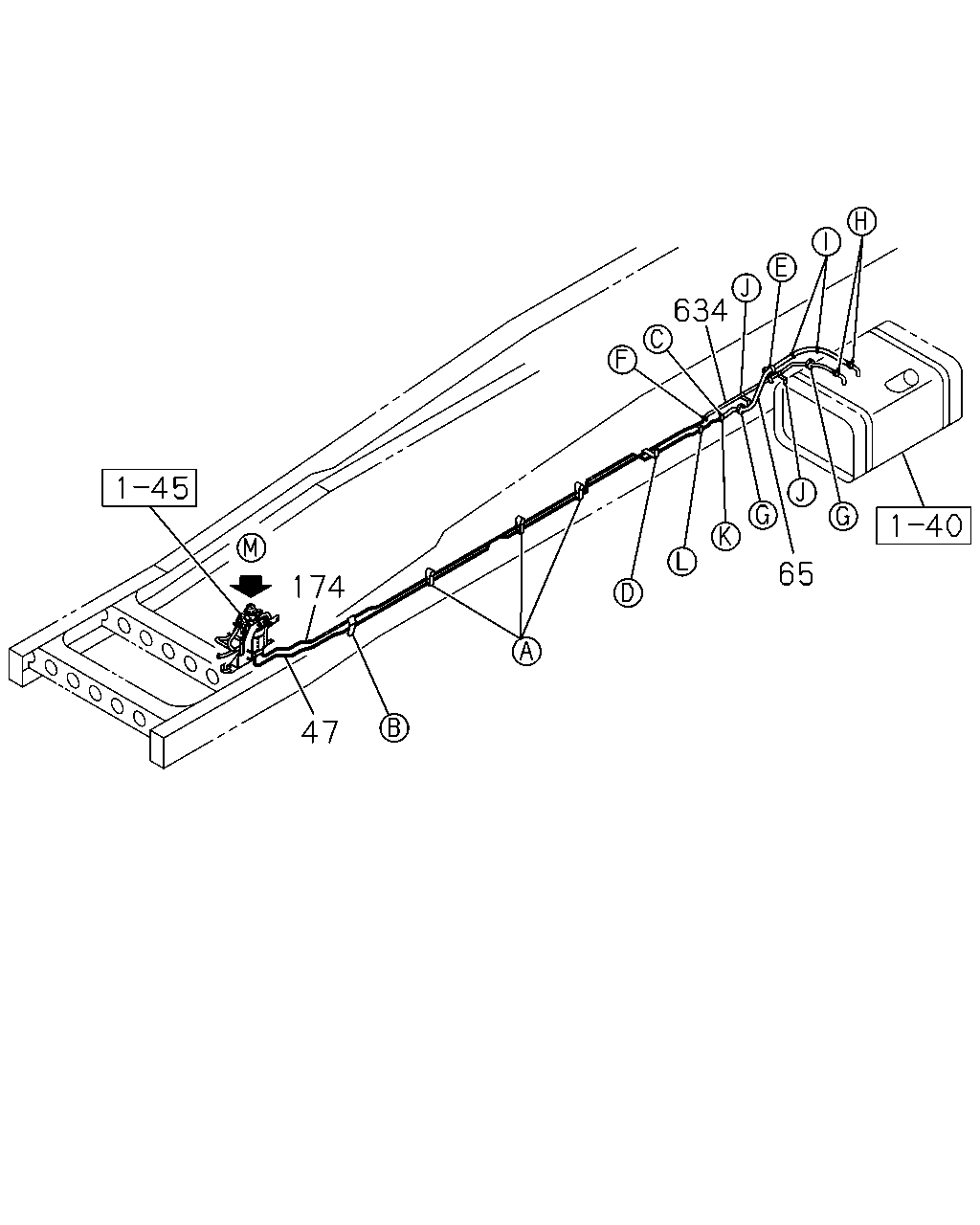

çizim 381297
174 634 65 47
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; FUEL,RETURN
L=2861 		8-98232-282-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE 8-98233-330-0 01 1 1310-
174 PIPE; FUEL,FEED,FRT 8-98232-281-0 01 1 1310-
634 HOSE; RUBBER RETURN 8-98245-305-0 01 1 1310-

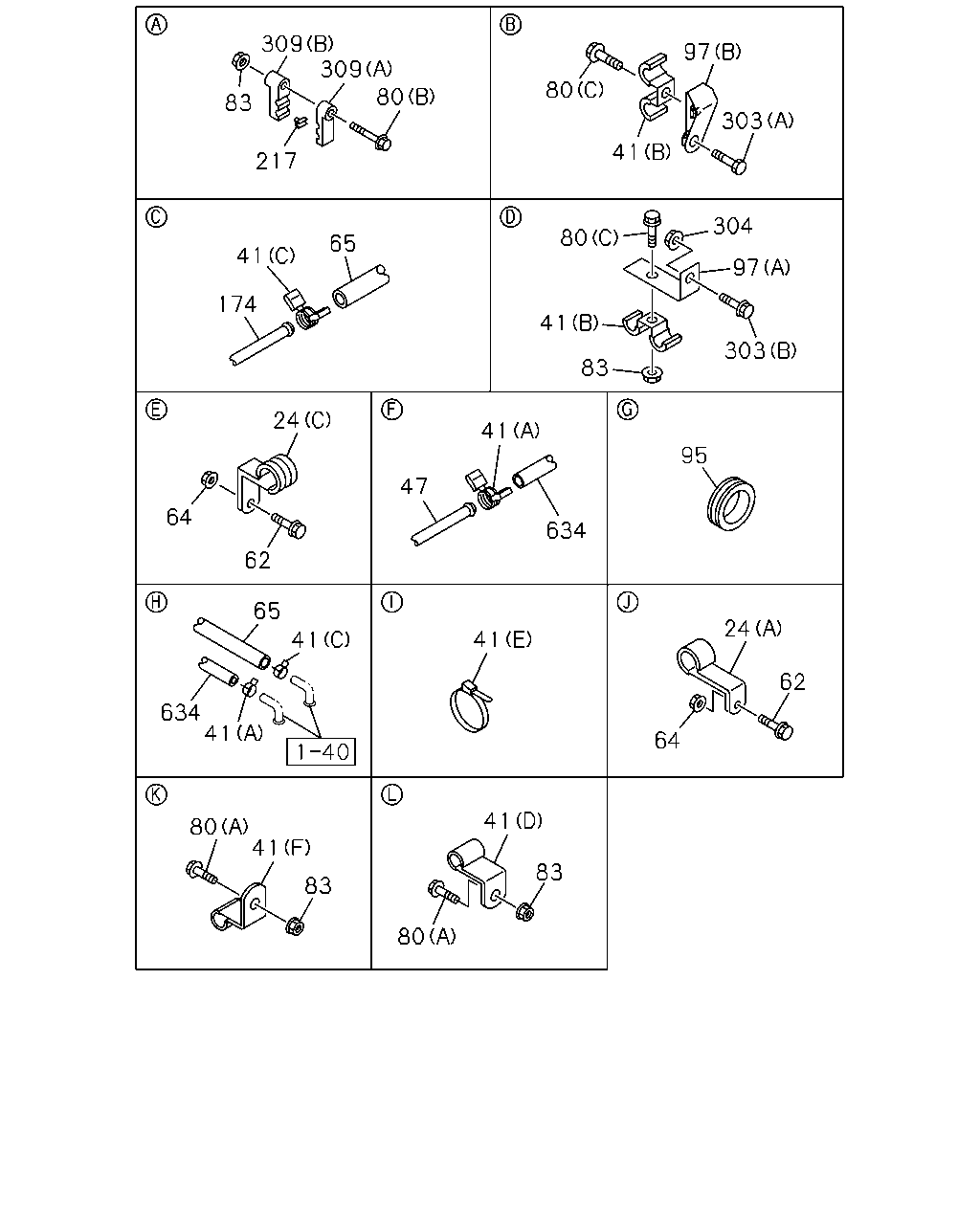

çizim 381624
309 83 217 309 80 80 97 41 303 304 80 41 97 303 83 41 634 47 95 41 64 24 62 83 41 80 83 41 80 41 634 65 41 62 64 24 174 65 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1310-
24 CLIP; FUEL HOSE
(A) ID=15 H=30 L=30 		1-09700-832-0 02 1 1310-
24 CLIP; FUEL HOSE
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 1310-
24 CLIP; FUEL HOSE
(D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=8 H=20 L=20 		1-09700-604-0 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 06 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=11 H=20 L=20 		8-98033-780-0 01 1 1310-
47 PIPE; FUEL,RETURN
L=2861 		8-98232-282-0 01 1 1310-
62 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 03 1 1310-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1310-
65 HOSE; FUEL,DELIVERY PIPE 8-98233-330-0 01 1 1310-
80 BOLT; CLIP,FUEL TANK
(B) M8X50 FLANGE 		0-28050-850-0 03 1 1310-
80 BOLT; CLIP,FUEL TANK
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
80 BOLT; CLIP,FUEL TANK
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 07 1 1310-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1310-
97 BRACKET; CLIP
(A) 		1-47471-051-0 01 1 1310-
97 BRACKET; CLIP
(B) 		8-98117-691-0 01 1 1310-
97 BRACKET; CLIP
(C) 		8-98209-221-0 01 1 1310-
174 PIPE; FUEL,FEED,FRT 8-98232-281-0 01 1 1310-
217 COLLAR; FUEL PIPE FIX
ID=8 		1-47459-011-0 03 1 1310-
303 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
303 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1310-
309 CLIP; PIPE
(A) ID=10 & 10 		1-09709-241-0 03 1 1310-
309 CLIP; PIPE
(B) ID=10 & 10 		1-09709-243-0 03 1 1310-
634 HOSE; RUBBER RETURN 8-98245-305-0 01 1 1310-
