◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#12837) — 23 parça

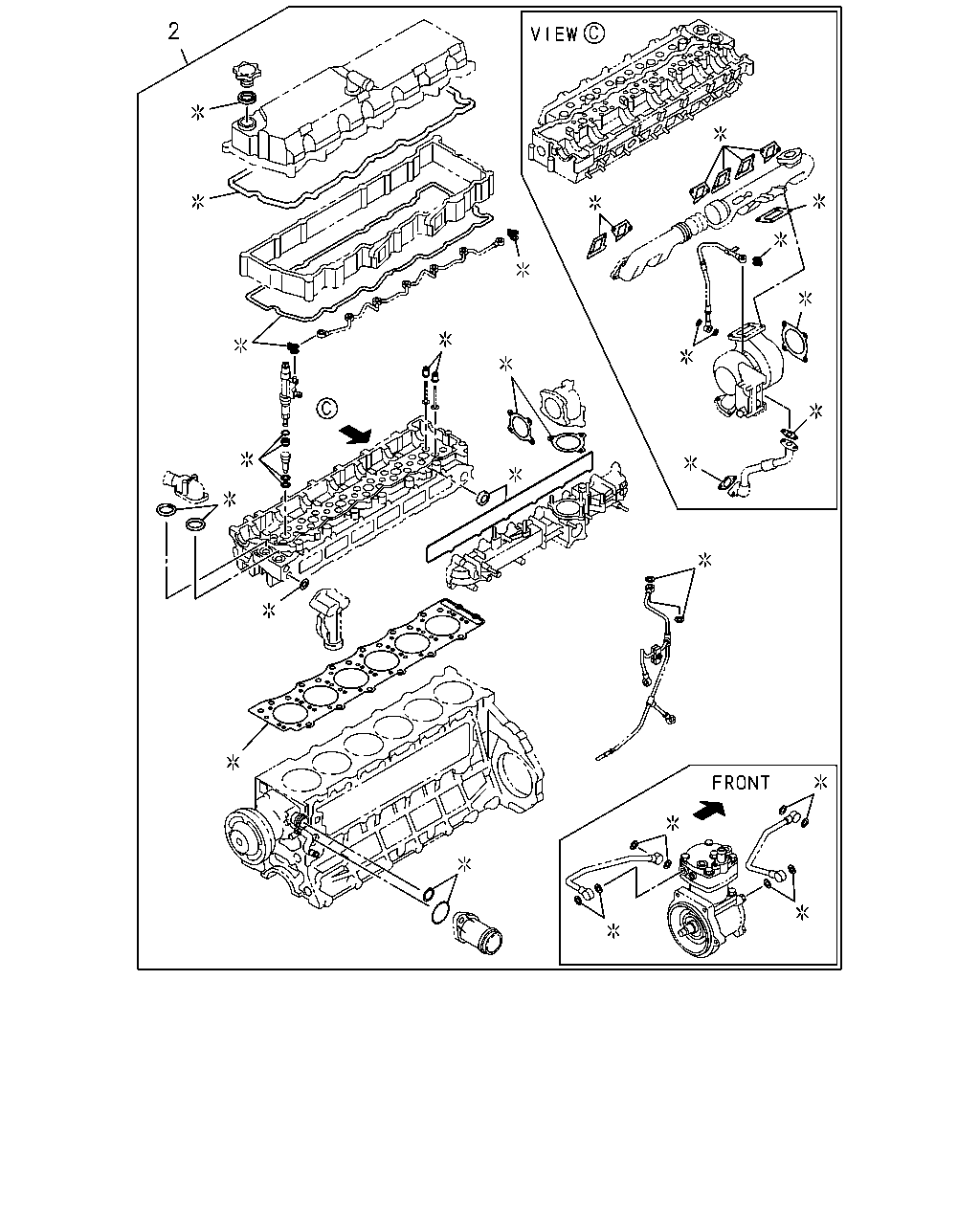

çizim 107062
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87813-225-0 01 1 0807-0909 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-507-2 01 1 0910-1102 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-603-2 01 1 1103-1301 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-065-0 01 1 1302-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-185-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-864-0 01 1 1409-1501 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87815-434-0 01 1 1502- ● ●

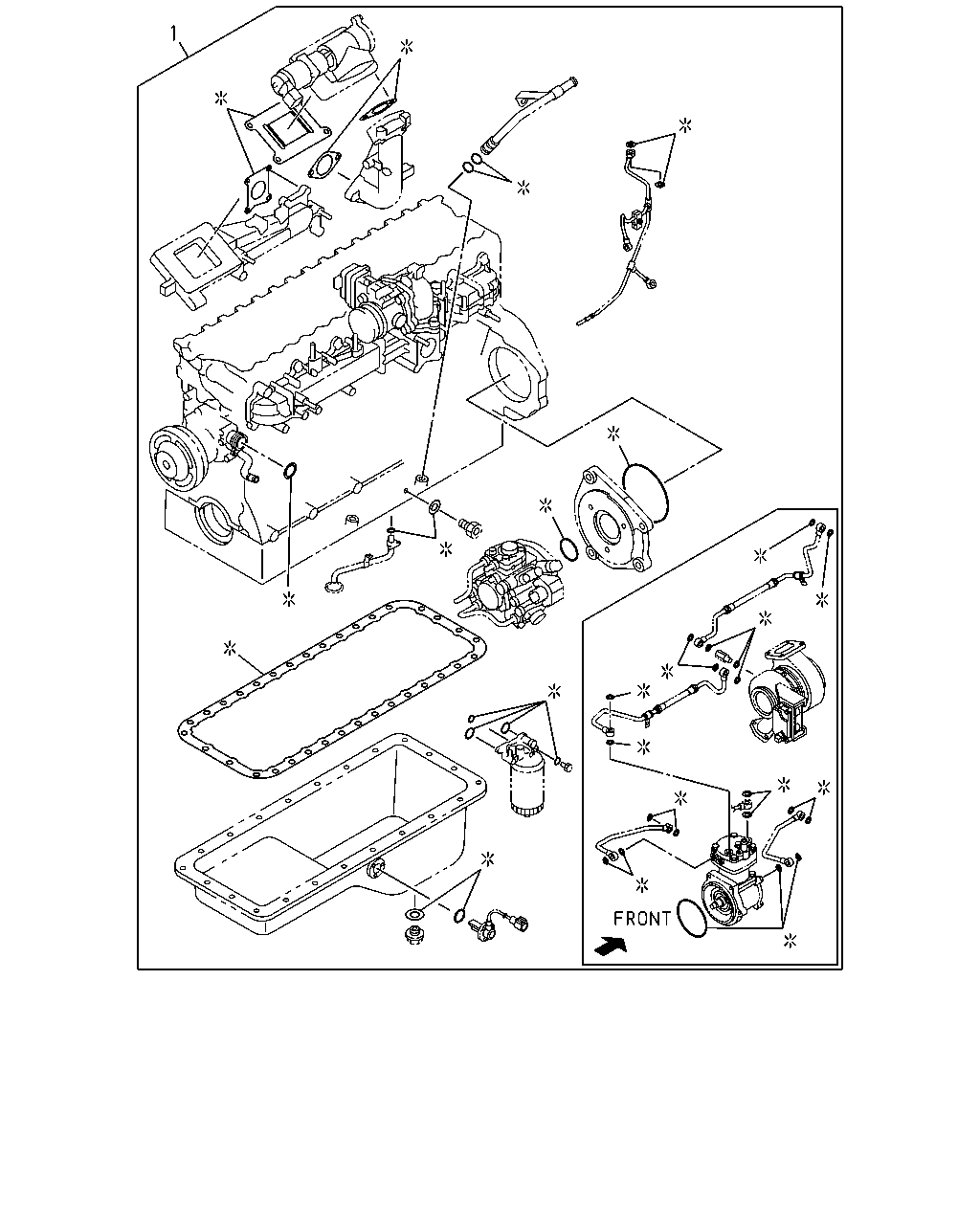

çizim 107065
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-318-0 01 1 0807-0909 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-520-0 01 1 0910-0910 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-542-3 01 1 0911-1102 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-602-3 01 1 1103-1301 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-064-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-182-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-703-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-180-0 01 1 1502- ● ●

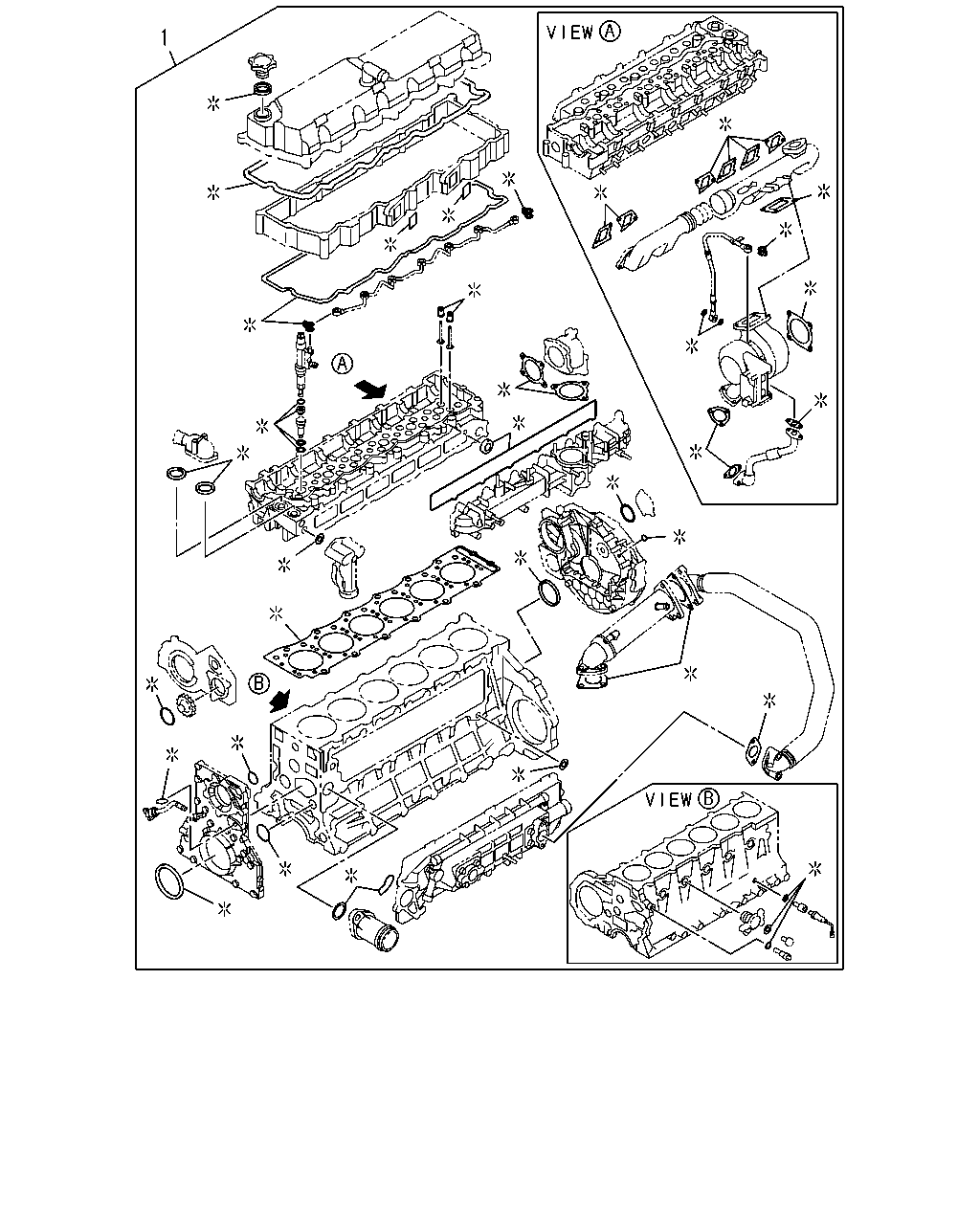

çizim 107092
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-318-0 01 1 0807-0909 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-520-0 01 1 0910-0910 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-542-3 01 1 0911-1102 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-602-3 01 1 1103-1301 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-064-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-182-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-703-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-180-0 01 1 1502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
