0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#128362) — 36 parça

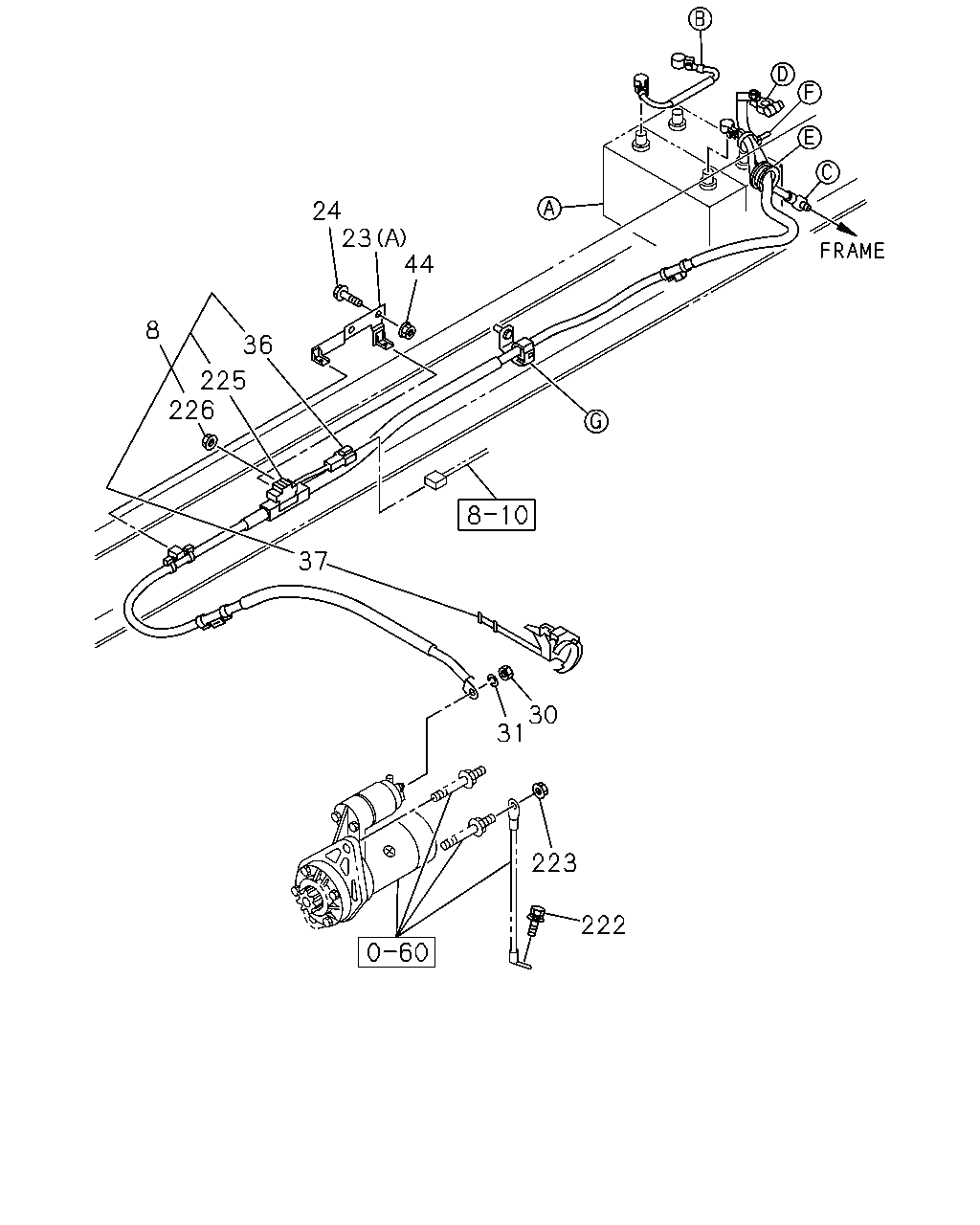

çizim 379337
24 44 23 37 36 8 225 226 30 31 223 222
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98225-741-0 01 1 1310-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-662-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98225-740-0 01 1 1310-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-663-0 01 1 1503-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-97612-957-1 01 1 1310-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98051-380-1 01 1 1310-
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 1310-
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1310-
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 1310-
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1310-1502
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503-
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1310-
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1310-
223 NUT; EARTH CABLE
M10 FLANGE 		0-91180-210-0 01 1 1310-
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1310-1502
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1310-1502
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503-

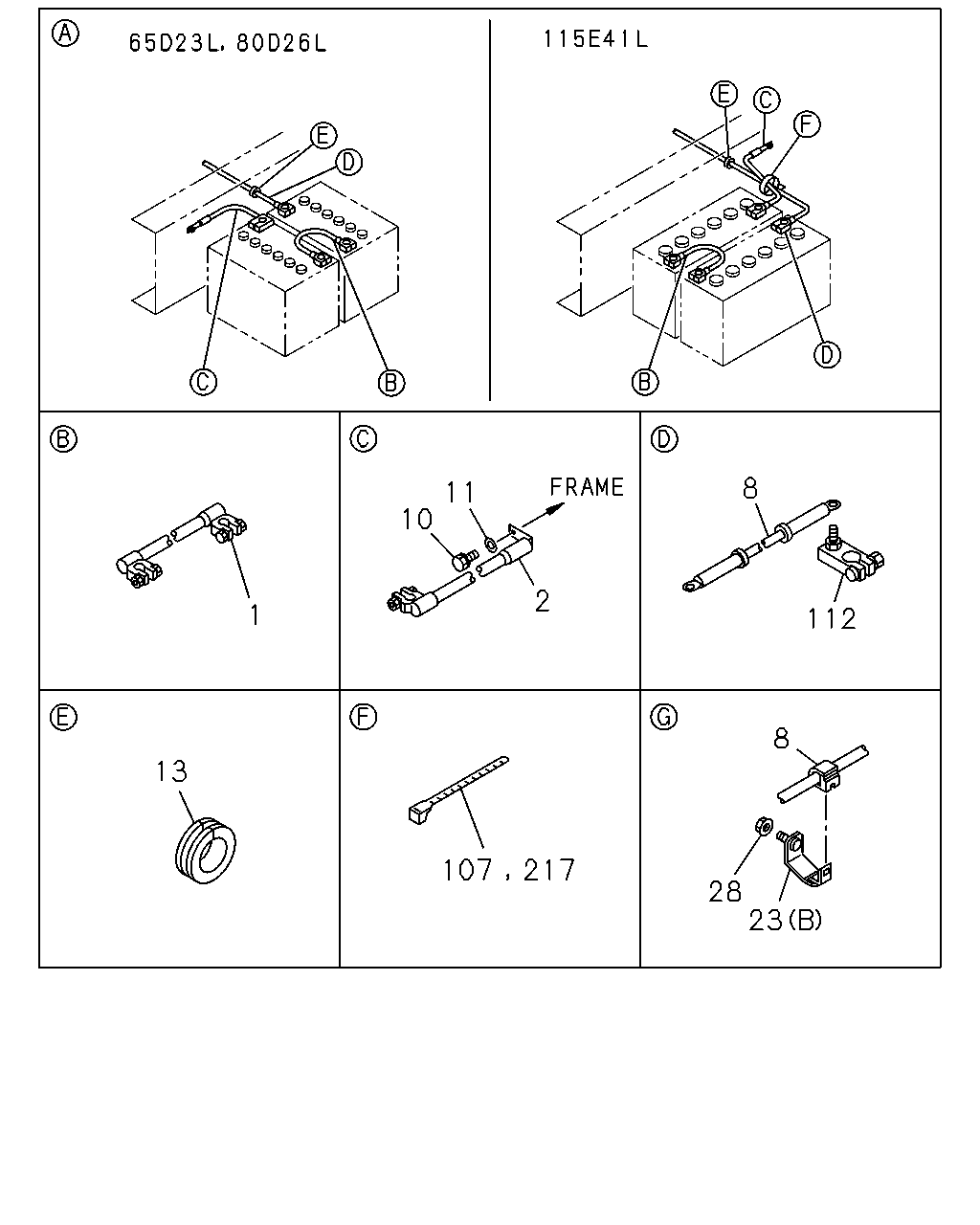

çizim 379344
107 217 23 28 8 112 8 2 11 10 1 13
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1310-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240 		1-82650-403-1 01 1 1310-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 1310-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98225-741-0 01 1 1310-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-662-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98225-740-0 01 1 1310-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-663-0 01 1 1503-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1310-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1310-
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1310-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-97612-957-1 01 1 1310-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98051-380-1 01 1 1310-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1310-
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1310-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1310-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-
217 CLIP; BAND,CABLE
L=250 		1-09707-126-0 01 1 1310-
