Isuzu WW
▶
TRUCKS
▶
FRR
▶
11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶

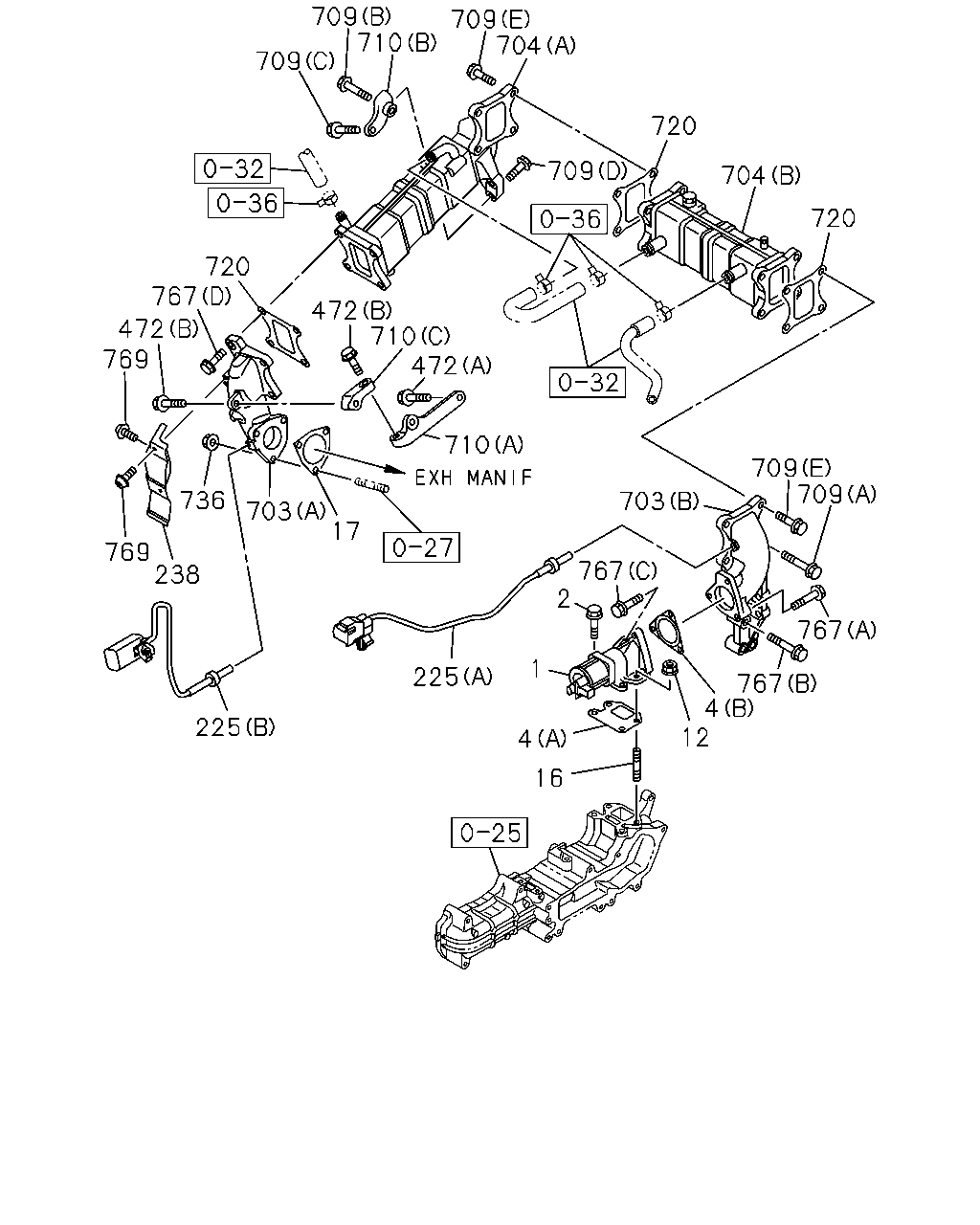

0-57 — EMISSION PIPING
(#128360) — 31 parça
709
710
709
704
720
709
709
704
720
720
767
472
769
472
710
472
710
703
736
769
238
225
17
709
703
709
767
767
767
4
12
4
1
2
225
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
8-98098-257-5
01
1
1310-
2
BOLT; EGR VLV
M8X25 FLANGE
0-28650-825-0
02
1
1310-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97306-040-0
01
1
1310-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-98036-507-0
01
1
1310-
12
NUT; EGR VLV
M8 FLANGE
0-91180-108-0
02
1
1310-
16
STUD; EGR VLV
M8X20 L=32
0-41010-820-0
02
1
1310-
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98046-192-1
01
1
1310-
225
SENSOR; THERMO,EGR
(A)
8-98028-398-0
01
1
1310-
225
SENSOR; THERMO,EGR
(B)
8-98160-440-0
01
1
1310-
238
PROTECTOR; HEAT,EGR
8-98056-572-0
01
1
1310-
472
BOLT; BRKT
(A) M8X25 FLANGE
0-28660-825-0
02
1
1310-
472
BOLT; BRKT
(B) M10X40 FLANGE
0-28751-040-0
02
1
1310-
703
DUCT; EGR
(B)
8-98233-076-0
01
1
1310-
703
DUCT; EGR
(A)
8-98237-781-0
01
1
1310-
704
COOLER ASM; EGR
(A)
8-98025-248-5
01
1
1310-
704
COOLER ASM; EGR
(B)
8-98212-718-0
01
1
1310-
709
BOLT; EGR COOLER
(A) M8X45 FLANGE
0-28060-845-0
01
1
1310-
709
BOLT; EGR COOLER
(B) M12X60 FLANGE
0-28151-260-0
01
1
1310-
709
BOLT; EGR COOLER
(C) M8X25 FLANGE
0-28660-825-0
01
1
1310-
709
BOLT; EGR COOLER
(E) M8X30 FLANGE
0-28660-830-0
07
1
1310-
709
BOLT; EGR COOLER
(D) M10X40 FLANGE
0-28751-040-0
02
1
1310-
710
BRACKET; EGR COOLER
(A)
8-98025-253-2
01
1
1310-
710
BRACKET; EGR COOLER
(B)
8-98025-254-1
01
1
1310-
710
BRACKET; EGR COOLER
(C)
8-98055-940-1
01
1
1310-
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98200-753-0
03
1
1310-
736
NUT; DUCT,EGR VLV
M8 FLANGE
8-97061-401-1
03
1
1310-
767
BOLT; DUCT,EGR
(A) M8X45 FLANGE
0-28050-845-0
02
1
1310-
767
BOLT; DUCT,EGR
(B) M12X50 FLANGE
0-28151-250-0
02
1
1310-
767
BOLT; DUCT,EGR
(C) M8X30 FLANGE
0-28650-830-0
01
1
1310-
767
BOLT; DUCT,EGR
(D) M8X28 FLANGE
8-98043-528-0
04
1
1310-
769
BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER
8-98054-289-0
04
1
1310-
