Isuzu WW
▶
TRUCKS
▶
FRR
▶
11546 - FRR RHD EUROPE EURO6 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

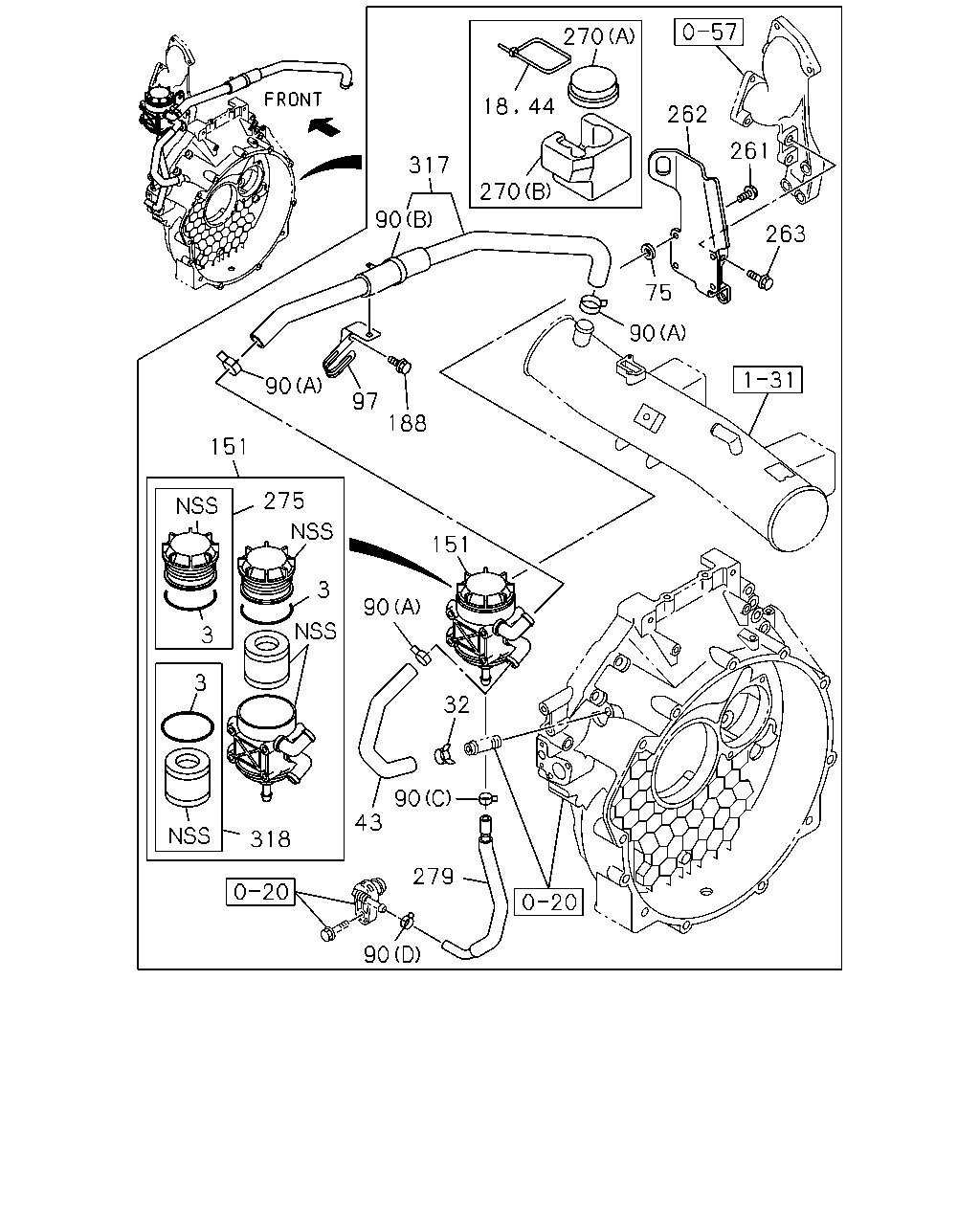

0-28 — VENTILATION SYSTEM
(#128346) — 23 parça
151
3
3
3
275
318
90
151
32
90
43
279
90
90
75
270
317
90
97
90
188
263
261
262
44
18
270
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1310-
18
CLIP; RUBBER HOSE,AIR BREATHER
L=250
8-98216-430-0
14
1
1310-
32
CLIP; VENT HOSE
ID=21
8-94242-034-0
01
1
1310-
43
HOSE; PCV
8-98195-078-0
01
1
1310-
44
CLIP; HOSE,PCV
L=700
1-09707-190-0
01
1
1310-
75
WASHER
ID=9 OD=18 T=5
9-14149-173-0
04
1
1310-
90
CLIP; RUBBER HOSE
(A) ID=28
1-09707-124-0
03
1
1310-
90
CLIP; RUBBER HOSE
(B) L=212
8-94107-652-0
01
1
1310-
90
CLIP; RUBBER HOSE
(C) ID=13
8-94238-571-0
01
1
1310-
90
CLIP; RUBBER HOSE
(D) ID=11.5
8-97138-011-0
01
1
1310-
97
BRACKET; HOSE
8-98093-946-3
01
1
1310-
151
SEPARATOR; OIL,PCV
8-97324-682-1
01
1
1310-
188
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
01
1
1310-
261
BOLT; SEPARETOR
M8X30 FLANGE
0-28650-830-0
04
1
1310-
262
BRACKET; OIL SEPARETOR
8-98036-498-0
01
1
1310-1501
262
BRACKET; OIL SEPARETOR
8-98296-130-0
01
1
1502-
263
BOLT; BRKT,OIL SEPARETOR
M12X30 FLANGE
0-28151-230-0
03
1
1310-
270
COVER; VENTILATOR
(B)
8-98139-613-0
01
1
1310-
270
COVER; VENTILATOR
(A)
8-98172-779-0
01
1
1310-
275
CAP; PCV
8-97389-360-0
01
1
1310-
279
HOSE; RUBBER,OIL DRAIN
8-97386-653-1
01
1
1310-
317
HOSE; RUBBER,OIL SEPARATOR
8-98246-378-0
01
1
1310-
318
ELEMENT KIT; PCV
8-98002-346-0
01
1
1310-
