5-01 — FRAME AND OTHER PARTS (#12832) — 80 parça

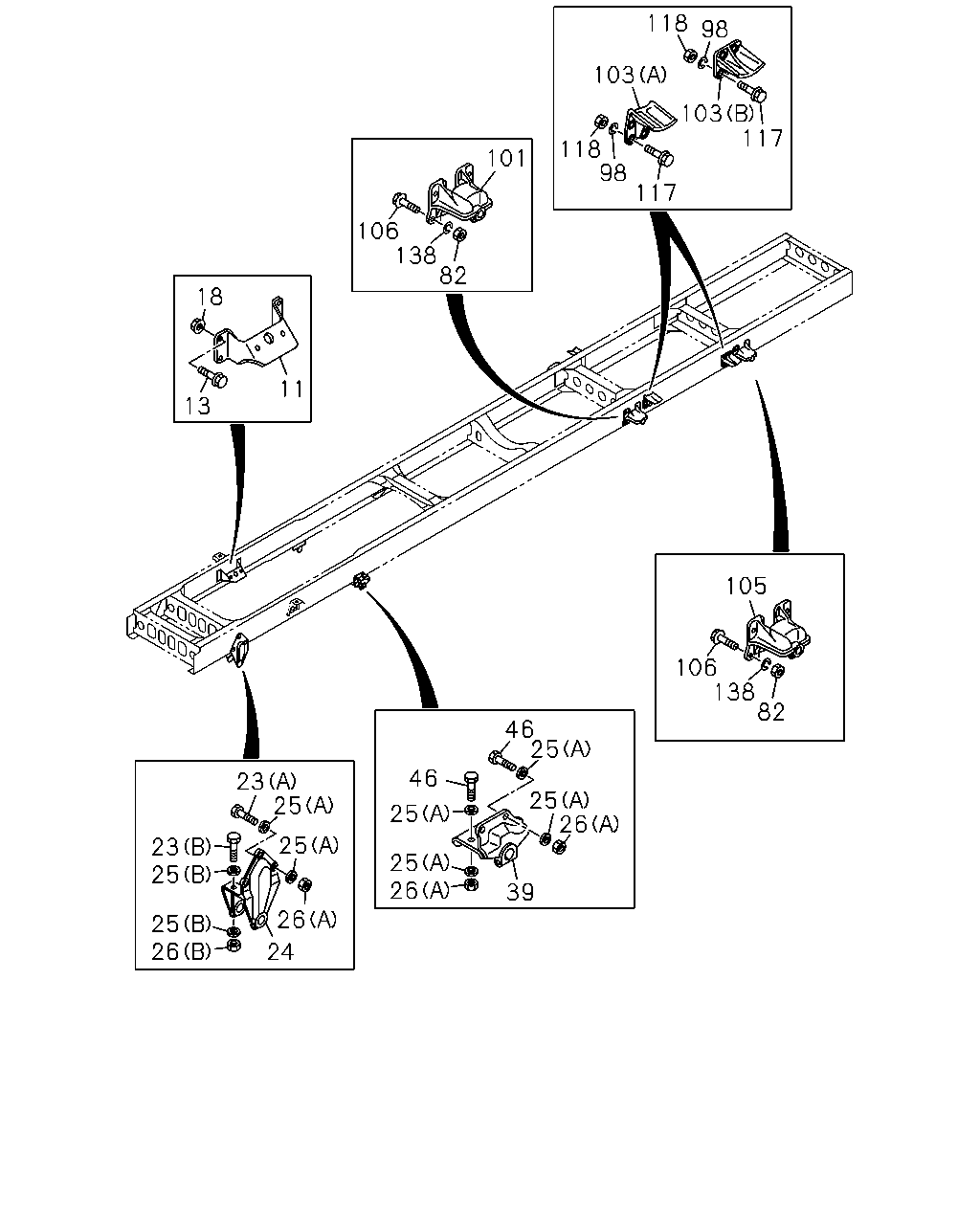

çizim 143178
118 98 103 103 117 118 98 101 117 106 138 82 18 11 13 105 106 138 82 46 25 46 23 25 25 25 26 25 23 25 25 26 39 26 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG
THA 		8-97619-549-0 02 1 0808- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE IMA 		0-28661-240-0 08 1 0808- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE THA 		0-91180-212-0 08 1 0808- ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 THA 		0-20951-450-0 06 1 0808- ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0808- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0808- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0808- ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0808- ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 THA 		8-98010-627-1 28 1 0808- ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 THA 		0-91110-514-0 14 1 0808- ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 THA 		0-91110-516-0 04 1 0808- ● ● ● ●
39 BRACKET; FRT SPR,RR
THA 		8-97924-625-0 01 1 0808- ● ● ● ●
39 BRACKET; FRT SPR,RR
THA 		8-97924-626-0 01 1 0808- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 THA 		0-20951-450-0 08 1 0808- ● ● ● ●
82 NUT; BRKT
M14 THA 		0-91110-514-0 20 1 0808- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0808- ● ● ● ●
101 BRACKET; RR SPR,FRT
THA 		8-97916-134-0 02 1 0808- ● ● ● ●
103 STOPPER; SUB SPR
(A) THA 		8-97916-135-0 02 1 0808- ● ● ● ●
103 STOPPER; SUB SPR
(B) THA 		8-97916-136-0 02 1 0808- ● ● ● ●
105 BRACKET; RR SPR,RR
THA 		8-97916-134-0 02 1 0808- ● ● ● ●
106 BOLT; BRKT
M14X50 THA 		0-20951-450-0 20 1 0808- ● ● ● ●
117 BOLT; STOPPER
M14X50 THA 		0-20951-450-0 16 1 0808- ● ● ● ●
118 NUT; STOPPER
M14 THA 		0-91110-514-0 16 1 0808- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 0808- ● ● ● ●

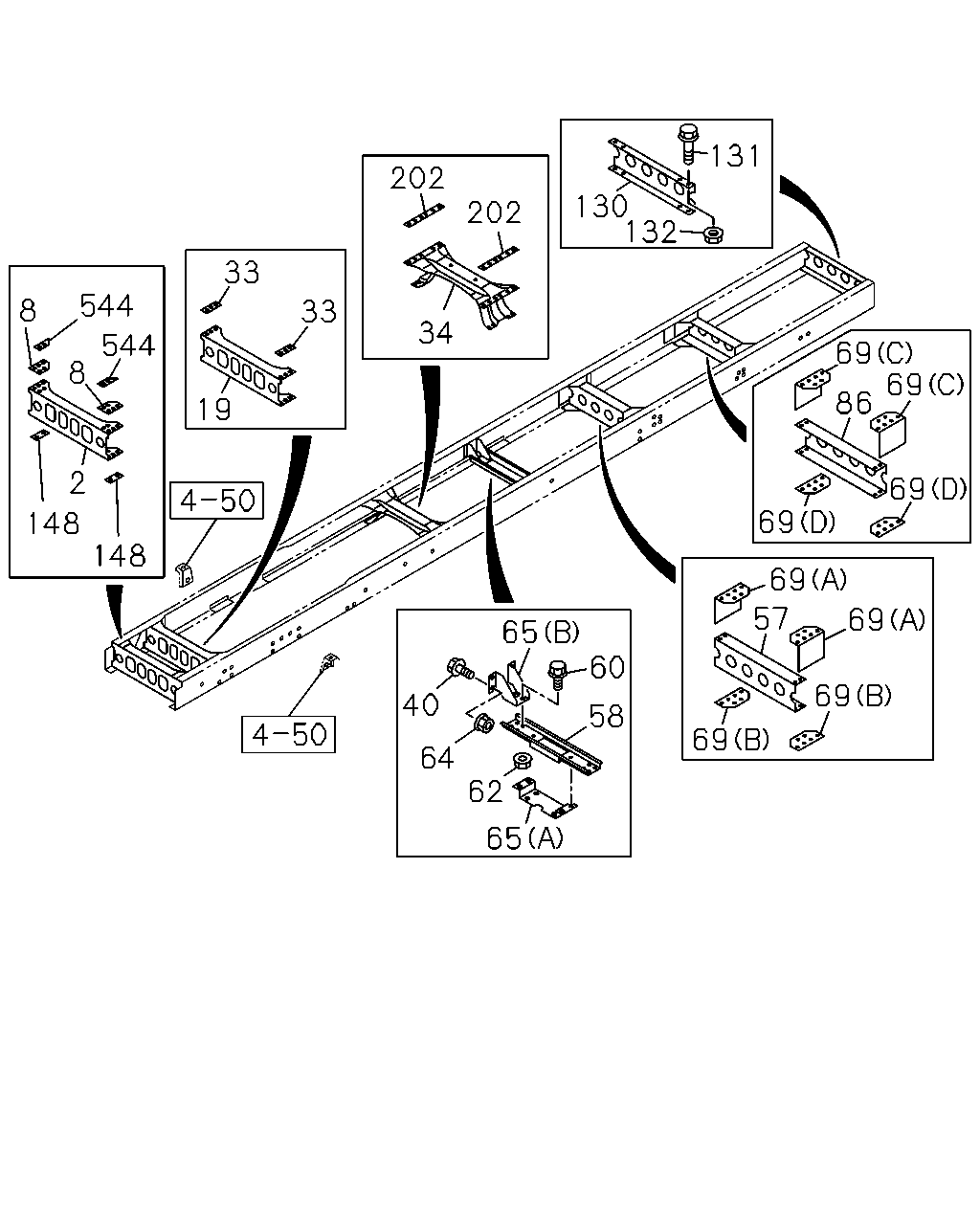

çizim 143186
131 202 130 132 202 33 544 8 33 34 544 69 69 86 8 19 69 2 69 148 148 69 57 69 65 60 69 40 58 69 64 62 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97610-852-6 01 1 0808- ● ● ● ●
8 GUSSET; 1ST C/MBR
THA 		8-97611-027-0 02 1 0808- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-4 01 1 0808- ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0808- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0808- ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X40 FLANGE THA 		0-28651-040-0 08 1 0808- ●
57 MEMBER; CROSS,RR SUSP FRT
THA 		8-97924-678-0 01 1 0808- ● ● ● ●
58 MEMBER; CENTER BRG
THA 		8-97621-933-0 01 1 0808- ●
60 BOLT; MBR
M10X25 FLANGE THA 		0-28651-025-0 08 1 0808- ●
62 NUT; MBR
M10 FLANGE THA 		0-91180-210-0 08 1 0808- ●
64 NUT; BRKT TO FRAME
M10 FLANGE THA 		0-91180-210-0 08 1 0808- ●
65 BRACKET; CENTER BRG
(A) THA 		8-97621-931-0 01 1 0808- ●
65 BRACKET; CENTER BRG
(B) THA 		8-97621-932-0 02 1 0808- ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 0808- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 0808- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 0808- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 0808- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) THA 		8-97924-714-0 01 1 0808- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) THA 		8-97924-715-0 01 1 0808- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
THA 		8-97924-678-0 01 1 0808- ● ● ● ●
130 MEMBER; CROSS,END
THA 		8-97916-031-0 01 1 0808- ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER THA 		0-50541-230-0 04 1 0808- ● ● ● ●
132 NUT; END C/MBR
M12 THA 		0-91110-512-0 04 1 0808- ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0808- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0808- ● ● ● ●
544 PLATE; CAB FRT MTG
THA 		8-97617-891-0 02 1 0808- ● ● ●
544 PLATE; CAB FRT MTG
THA 		8-97611-030-0 02 1 0808- ●

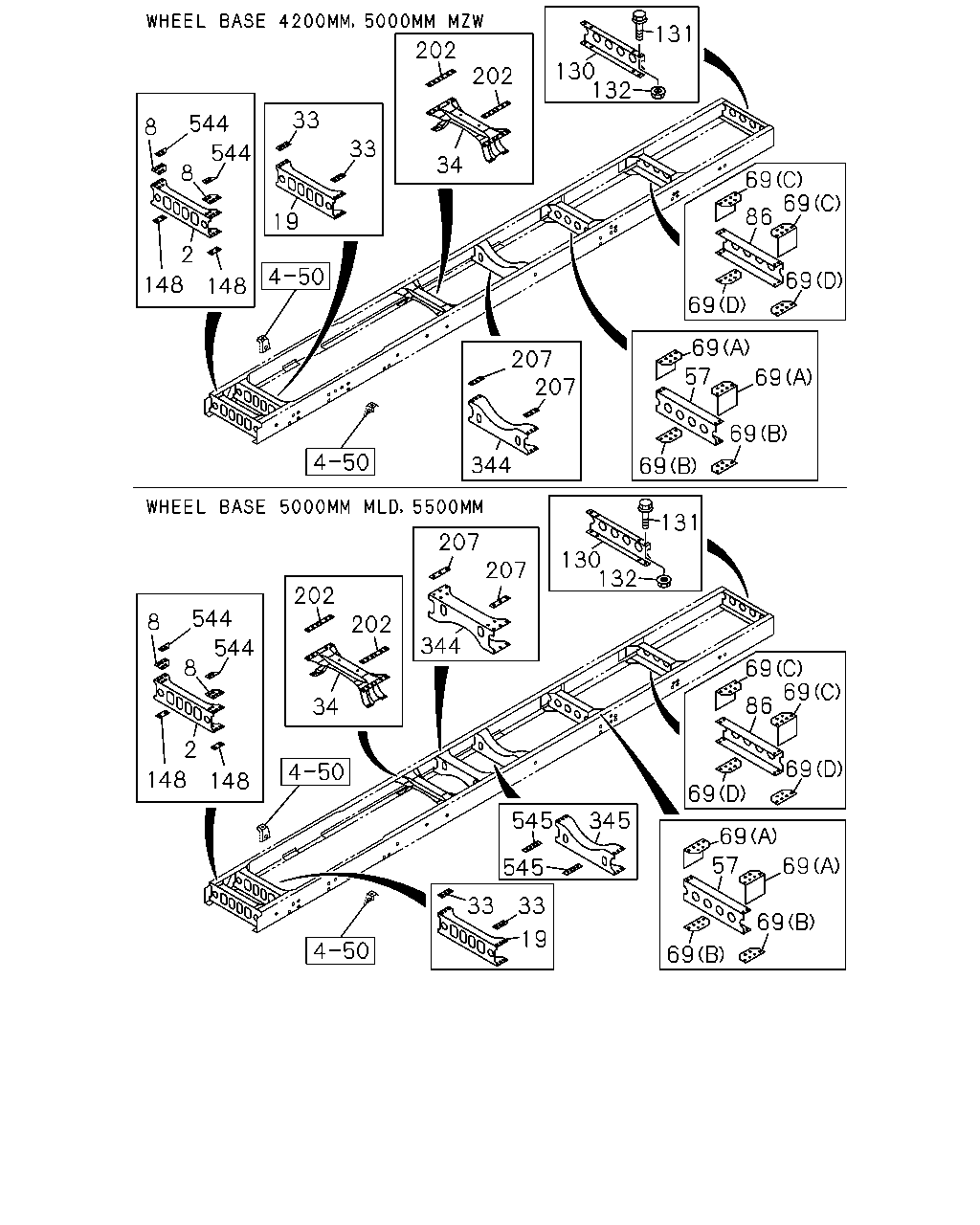

çizim 143199
131 202 130 132 202 33 544 8 33 544 34 8 69 69 86 19 2 69 148 148 69 69 207 207 57 69 69 344 69 131 130 132 207 207 202 544 8 202 344 544 8 69 69 86 34 2 69 148 148 69 545 345 69 57 545 69 69 33 33 19 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97610-852-6 01 1 0808- ● ● ● ●
8 GUSSET; 1ST C/MBR
THA 		8-97611-027-0 02 1 0808- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-4 01 1 0808- ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0808- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0808- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
THA 		8-97924-678-0 01 1 0808- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 0808- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 0808- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 0808- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 0808- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) THA 		8-97924-714-0 01 1 0808- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) THA 		8-97924-715-0 01 1 0808- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
THA 		8-97924-678-0 01 1 0808- ● ● ● ●
130 MEMBER; CROSS,END
THA 		8-97916-031-0 01 1 0808- ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER THA 		0-50541-230-0 04 1 0808- ● ● ● ●
132 NUT; END C/MBR
M12 THA 		0-91110-512-0 04 1 0808- ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0808- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0808- ● ● ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 0808- ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0808- ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0808- ● ● ●
345 MEMBER; CROSS,5TH
MLD6W M/T<Y2C> 		8-97611-238-1 01 1 0808-1102 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0808-1102 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1103- ●
544 PLATE; CAB FRT MTG
THA 		8-97617-891-0 02 1 0808- ● ● ●
544 PLATE; CAB FRT MTG
THA 		8-97611-030-0 02 1 0808- ●
545 SPACER; 5TH C/MBR
MLD6W M/T<Y2C> 0.24KG 		8-97611-245-0 02 1 0808-1102 ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 0808-1102 ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 1103- ●
