8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#128319) — 78 parça

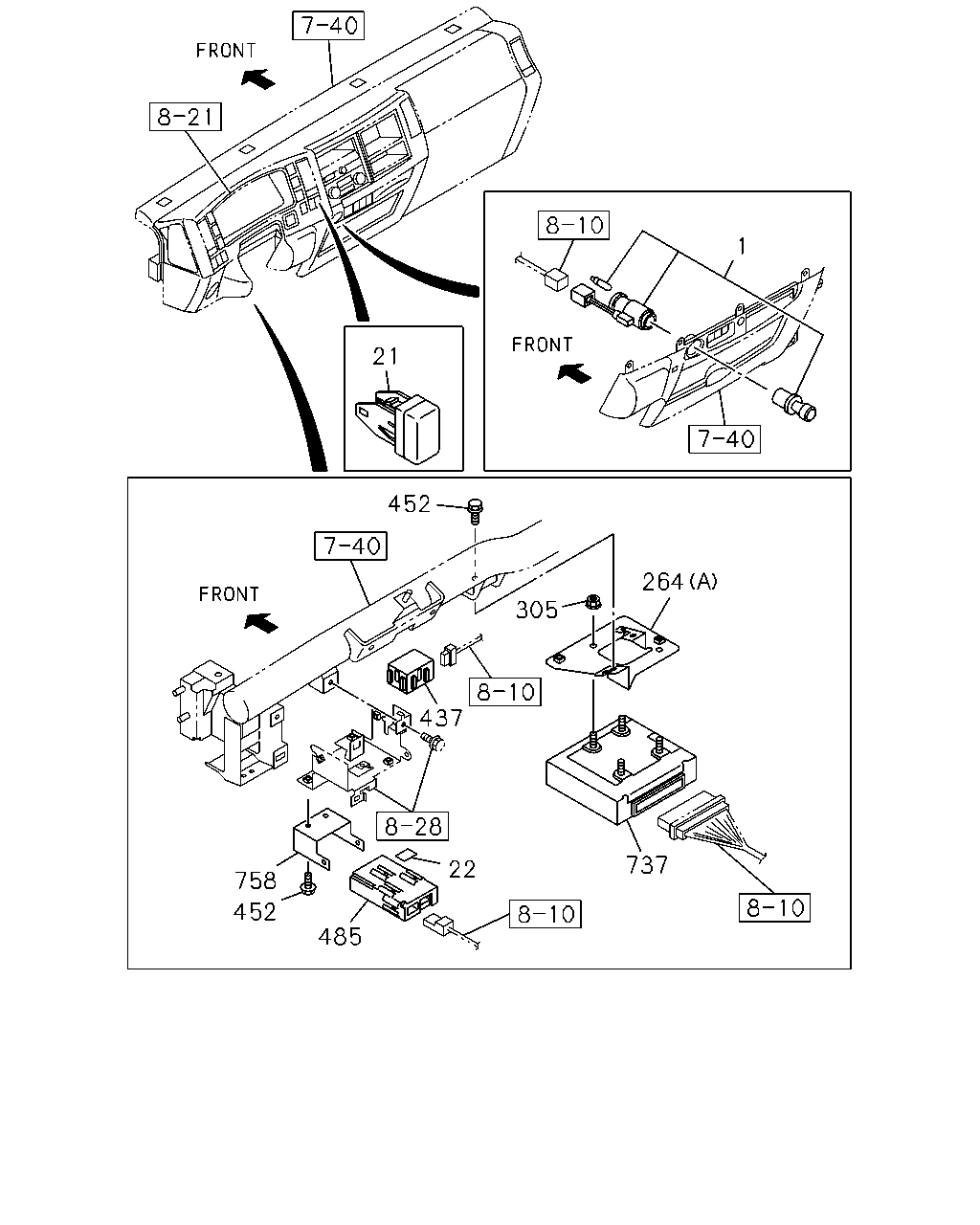

çizim 381012
21 452 264 305 737 22 485 452 437 758 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1310- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1310- ● ●
22 SEAL; TAPE 8-98166-639-0 02 1 1310- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 1310- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1310- ● ●
305 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6 FLANGE 		0-91180-106-0 04 1 1310- ● ●
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1310- ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1310- ● ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1310- ● ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80190-059-1 01 1 1310- ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-059-1 01 1 1310- ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>, TACHOGRAPHDIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80190-059-1 01 1 1310- ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 1310- ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		1-80190-061-0 01 1 1310- ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 1310- ●
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98241-075-3 01 1 1310- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1310- ● ●

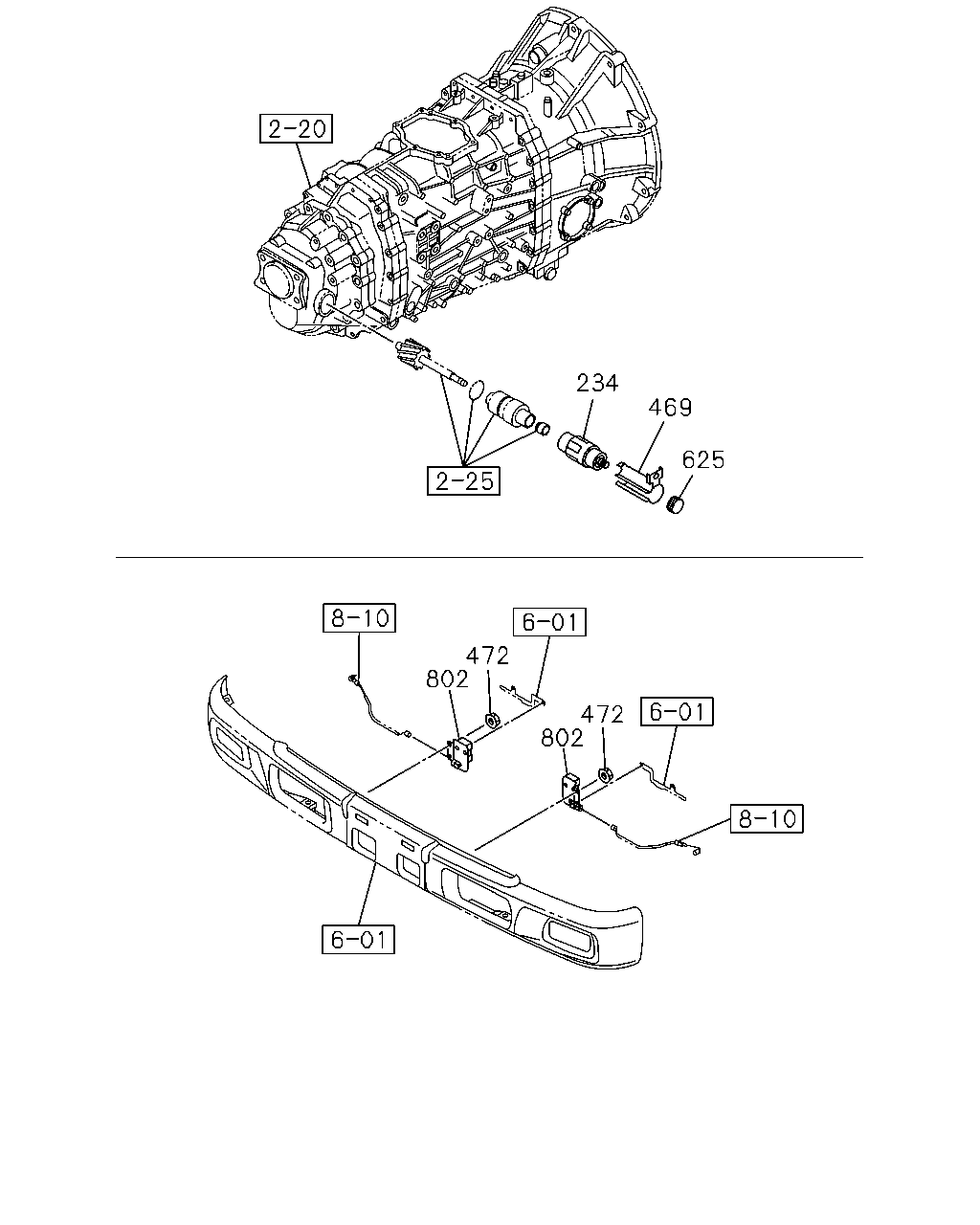

çizim 381031
234 625 469 802 802 472 472
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
TRANSMISSION CONTROL-SMOOTHER(8GF) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1310- ●
234 SENSOR; VEHICLE SPD
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1310- ●
234 SENSOR; VEHICLE SPD
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>, TACHOGRAPHDIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1310- ●
469 PROTECTOR; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-901-0 01 1 1310- ●
469 PROTECTOR; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98119-901-0 01 1 1310- ●
469 PROTECTOR; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>, TACHOGRAPHDIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-901-0 01 1 1310- ●
472 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 04 1 1310- ● ●
625 CAP; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-83129-133-0 01 1 1310- ● ●
802 RESISTOR; DAYTIME RUNNING LP 8-98225-337-1 02 1 1310- ● ●

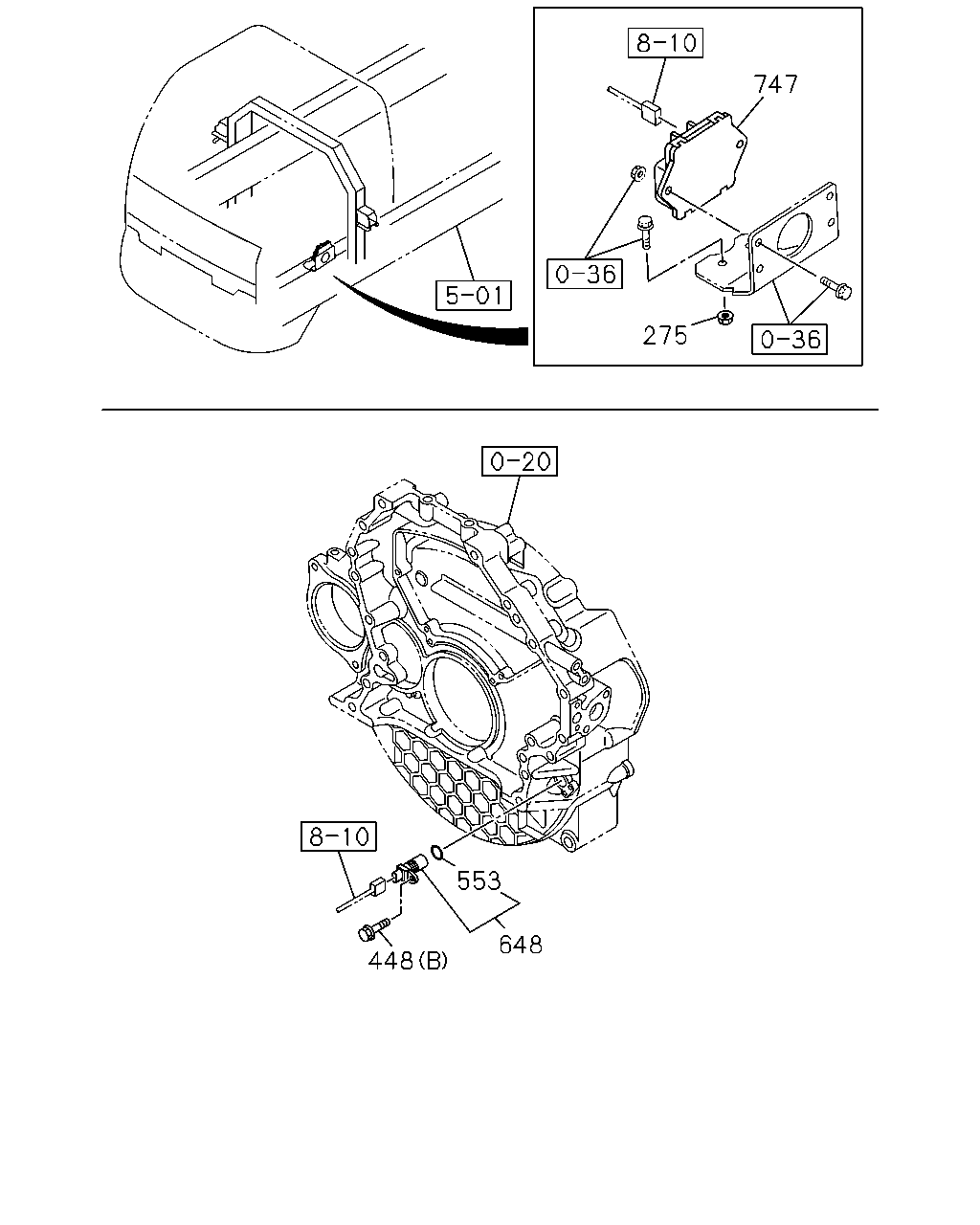

çizim 381526
747 275 448 648 553
BalonParca AdiParca NoAdetTipApplied Date A B
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1310- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1310- ● ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1310- ● ●
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1310- ● ●
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1310- ● ●
747 CONTROL UNIT; TURBOCHARGER 8-98133-124-1 01 1 1310- ● ●

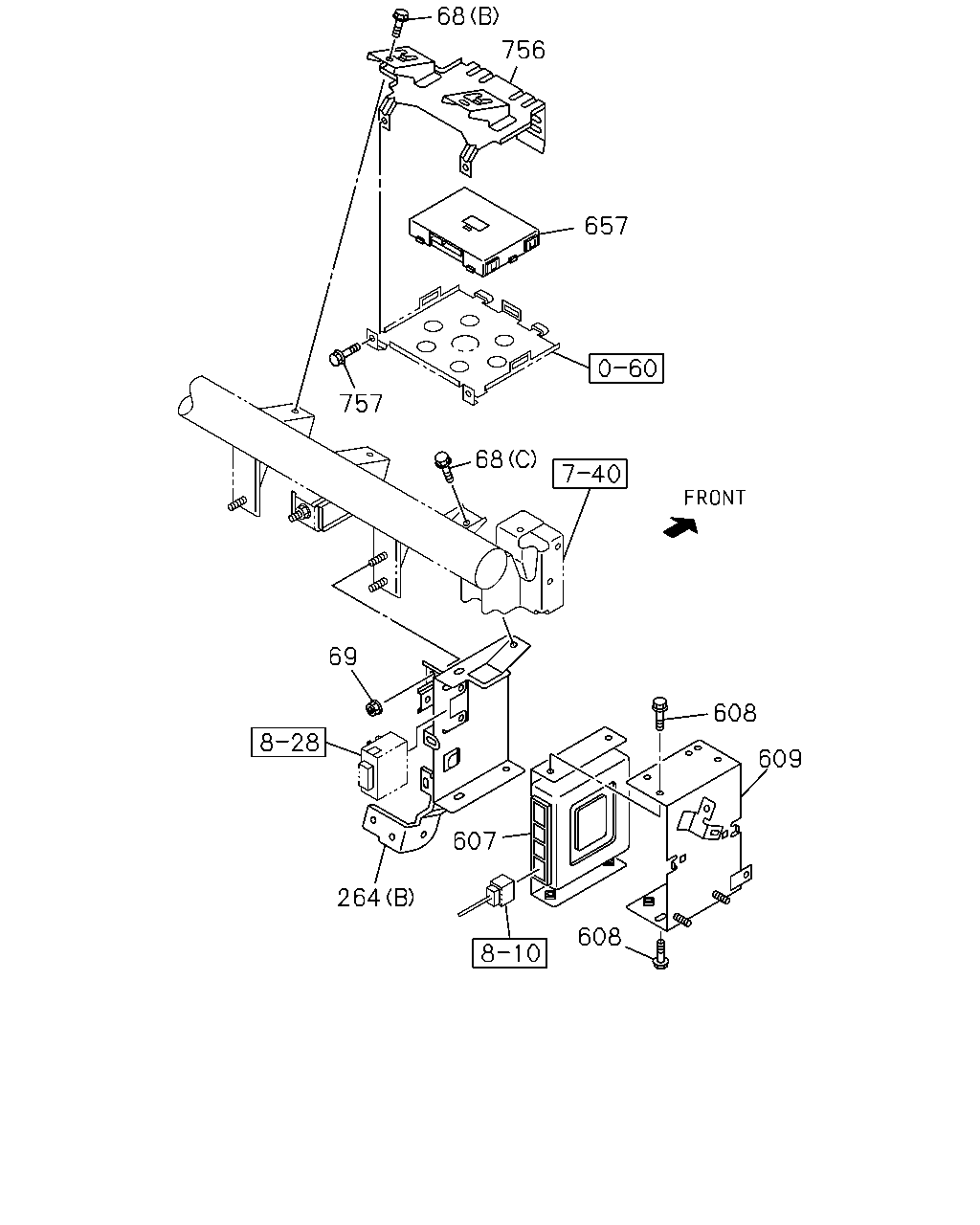

çizim 381888
609 608 608 607 264 69 68 757 657 756 68
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X25 FLANGE 		0-28650-825-0 03 1 1310- ● ●
68 BOLT; BRKT
EXC. THROTTLE CONTROL SYSTEM(6XH) (A) M8X25 FLANGE 		0-28650-825-0 03 1 1310- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1310- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1310- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1310- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 1310- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1310- ● ●
607 CONTROL UNIT; AIR SUSPENSION 8-98081-298-1 01 1 1310- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 04 1 1310- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1310- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98226-231-1 01 1 1310- ●
657 CONTROL UNIT; MIMAMORI 8-98232-116-1 01 1 1310- ● ●
756 BRACKET; ECU,BCM 8-98052-797-3 01 1 1310- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1310- ● ●

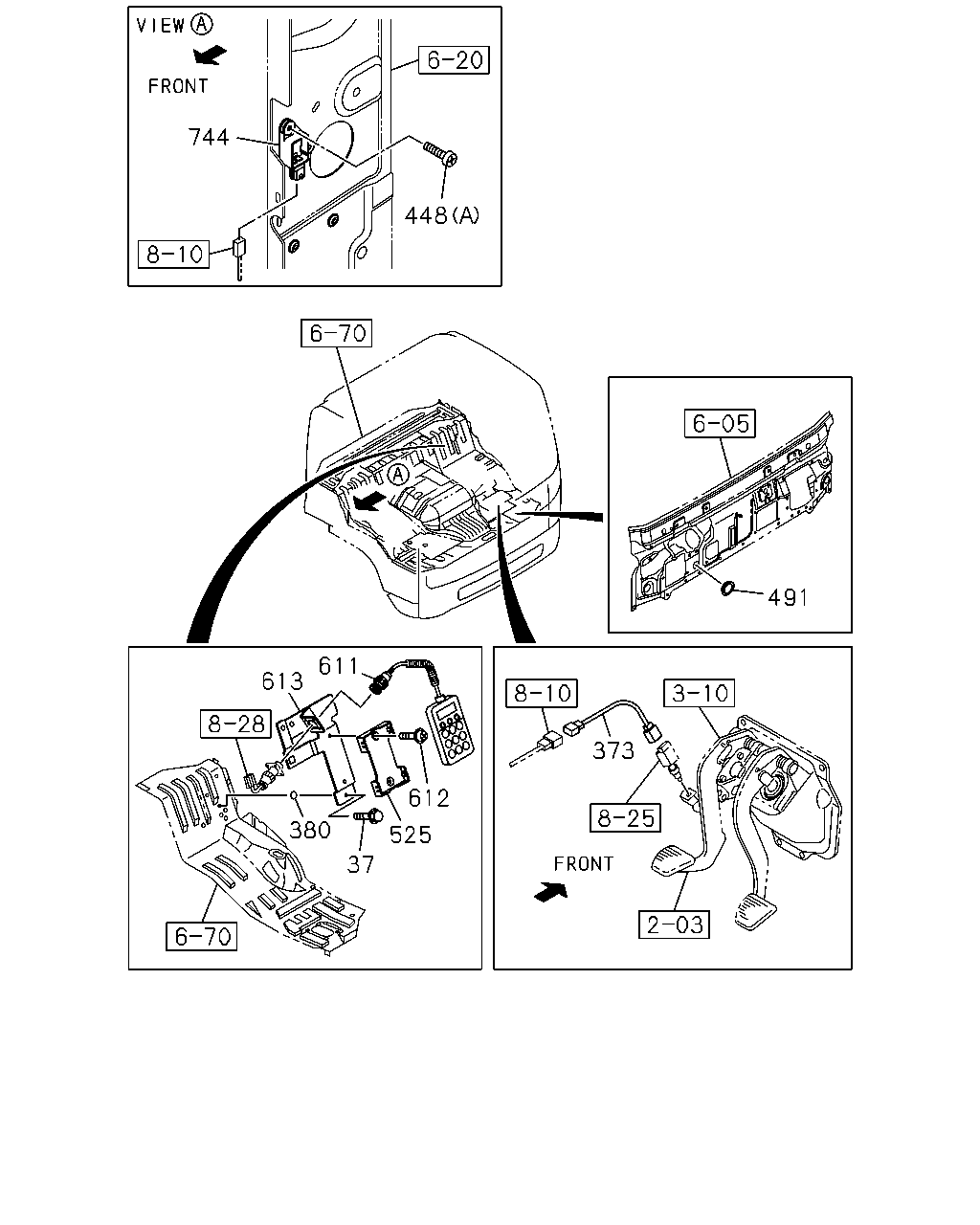

çizim 382004
744 448 611 613 612 525 37 380 373 491
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; BRKT FIX
M6X25 FLANGE 		0-28650-625-0 02 1 1310- ●
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98110-720-0 01 1 1310- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1310- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1310- ● ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1310- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1310- ● ●
525 HOLDER; SW 1-82389-018-0 01 1 1310- ●
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 1310- ●
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 1310- ●
613 BRACKET; HOLDER,SW 8-97619-255-3 01 1 1310- ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1310- ● ●

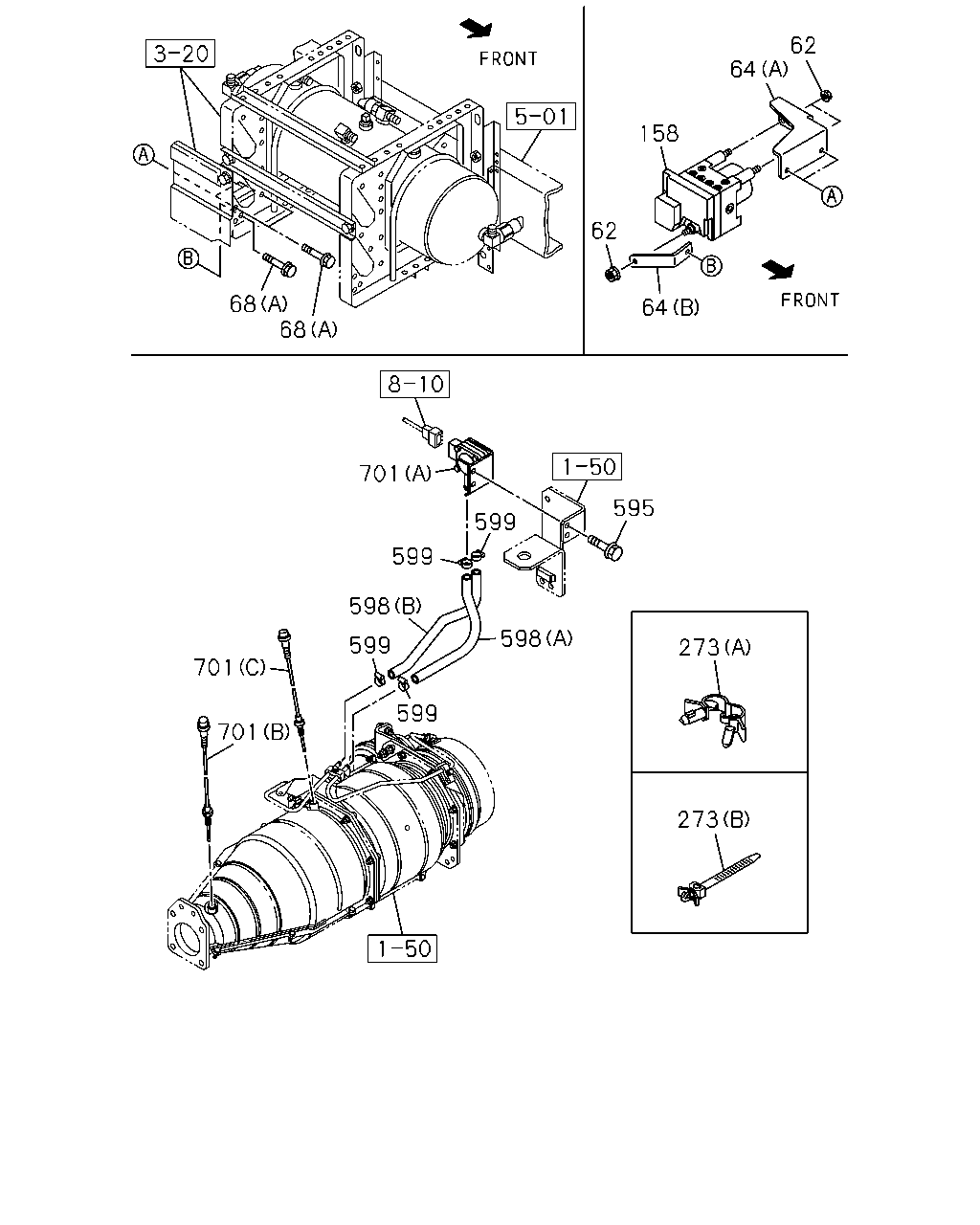

çizim 382049
68 68 701 599 598 599 701 701 599 598 595 599 273 273 64 62 158 62 64
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 03 1 1310- ● ●
62 NUT; BRKT
EXC. THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 03 1 1310- ● ●
64 BRACKET; CONTROLLER
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98044-238-2 01 1 1310- ● ●
64 BRACKET; CONTROLLER
EXC. THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98044-238-2 01 1 1310- ● ●
64 BRACKET; CONTROLLER
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98044-239-1 01 1 1310- ● ●
64 BRACKET; CONTROLLER
EXC. THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98044-239-1 01 1 1310- ● ●
68 BOLT; BRKT
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X25 FLANGE 		0-28650-825-0 03 1 1310- ● ●
68 BOLT; BRKT
EXC. THROTTLE CONTROL SYSTEM(6XH) (A) M8X25 FLANGE 		0-28650-825-0 03 1 1310- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1310- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1310- ● ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-1 01 1 1310- ● ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-1 01 1 1310- ● ●
273 CLIP; HARNESS
(B) L=112 		8-94232-618-0 02 1 1310- ● ●
273 CLIP; HARNESS
(A) ID=7 L=7.5 		8-97369-561-0 01 1 1310- ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1310- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98138-715-0 01 1 1310- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98138-716-0 01 1 1310- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1310- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1310- ● ●
701 SENSOR; DPD
(B) 		8-98004-329-0 01 1 1310- ● ●
701 SENSOR; DPD
(C) 		8-98004-330-0 01 1 1310- ● ●
