Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#128314) — 463 parça

6 231 6 6 13 558 700

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

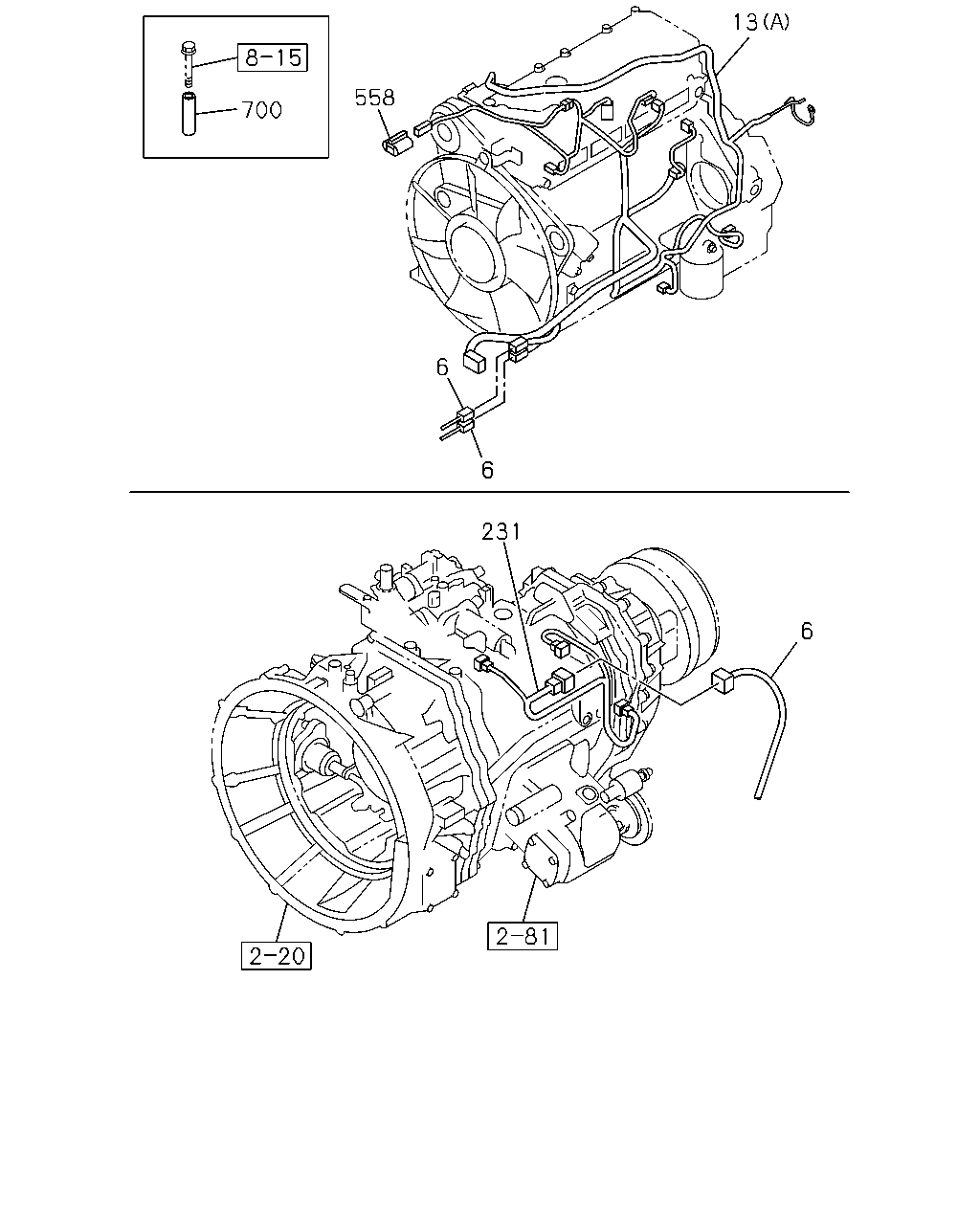

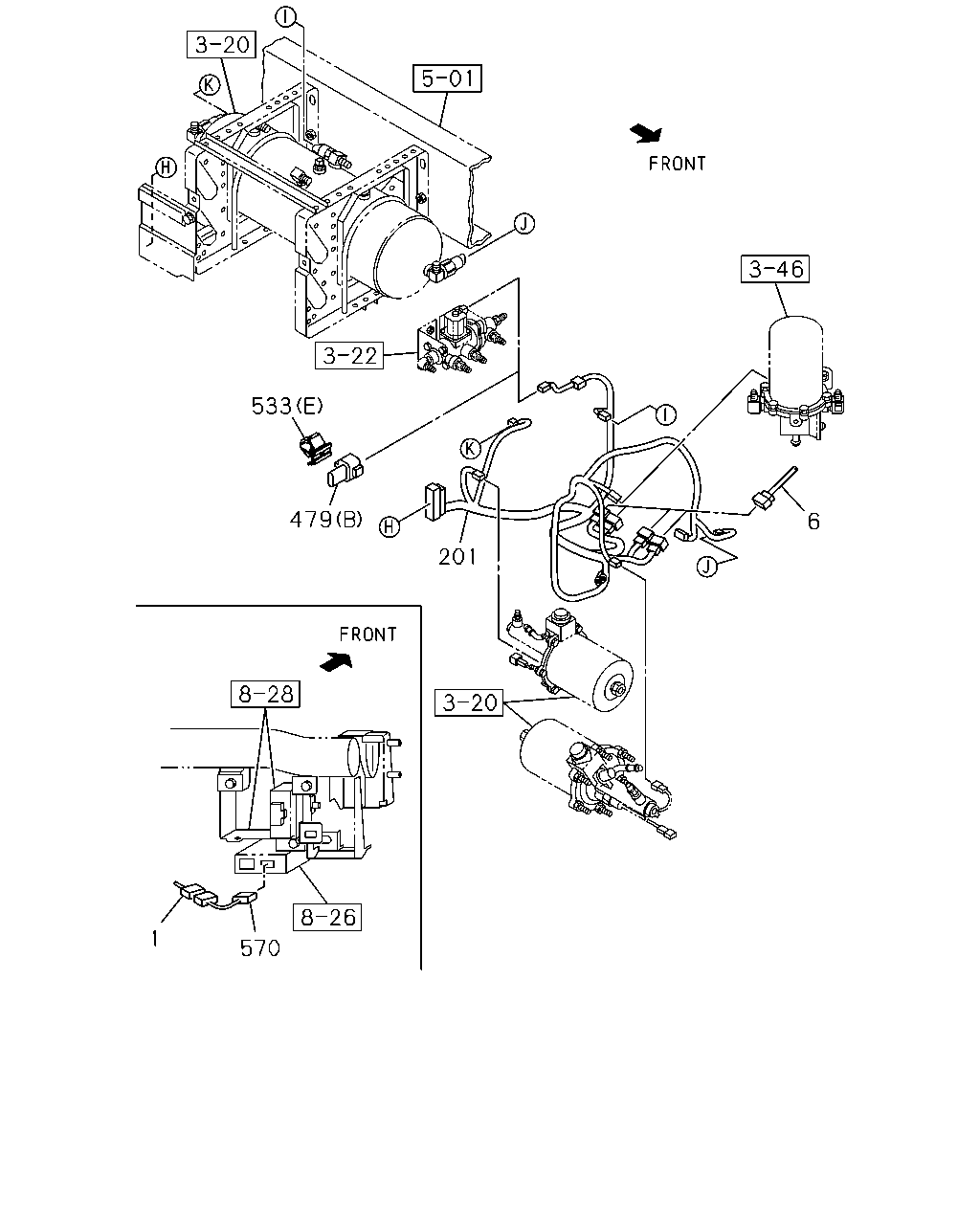

6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-848-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-849-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-846-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-847-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98231-320-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-321-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DIFF LOCK<C3N>	8-98222-815-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>	8-98222-816-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-844-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-845-4	01	1	1310-		●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98200-792-4	01	1	1310-1406	●	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-085-0	01	1	1407-	●	●
13	HARNESS; ENG (B)	8-98203-297-0	01	1	1310-	●	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98200-791-4	01	1	1310-1406	●	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98274-084-0	01	1	1407-	●	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97620-317-3	01	1	1310-	●	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98151-320-1	01	1	1310-	●	●
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1310-	●	●
700	TUBE; DISTANCE ID=9 OD=18 T=5	9-14149-173-0	01	1	1310-	●	●
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	02	1	1310-	●	●

18 12 18 378 378 204 483 1 1 486

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-016-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-014-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-017-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-015-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-012-3	01	1	1310-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-010-3	01	1	1310-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-013-3	01	1	1310-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-011-3	01	1	1310-		●
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98079-073-2	01	1	1310-	●	●
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98084-249-1	01	1	1310-	●	●
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98080-127-3	01	1	1310-	●	●
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98080-128-3	01	1	1310-	●	●
18	HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98178-803-0	01	1	1310-	●	●
18	HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98178-804-0	01	1	1310-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-500-0	01	1	1405-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-220-1	01	1	1405-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-501-0	01	1	1405-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-223-2	01	1	1405-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98218-519-0	01	1	1310-1404	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98218-519-0	01	1	1405-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98218-517-0	01	1	1310-1404	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98218-517-0	01	1	1405-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98218-520-0	01	1	1310-1404	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98218-520-0	01	1	1405-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98218-518-0	01	1	1310-1404	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98218-518-0	01	1	1405-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-224-0	01	1	1310-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-218-0	01	1	1310-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-225-1	01	1	1310-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-219-1	01	1	1310-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-226-0	01	1	1310-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-221-0	01	1	1310-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-227-1	01	1	1310-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-222-1	01	1	1310-		●
378	HARNESS; EXT,MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98125-654-0	02	1	1310-	●
378	HARNESS; EXT,MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. ISRAEL COUNTRY(CV4)	8-98125-654-0	02	1	1310-		●
378	HARNESS; EXT,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98125-653-0	02	1	1310-	●
378	HARNESS; EXT,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. ISRAEL COUNTRY(CV4)	8-98125-653-0	02	1	1310-		●
483	HARNESS; EXT,RADIO	8-98116-875-0	01	1	1310-	●	●
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	1310-	●	●

668 668 668 668 668 668 668 668 668 668 668 668 668

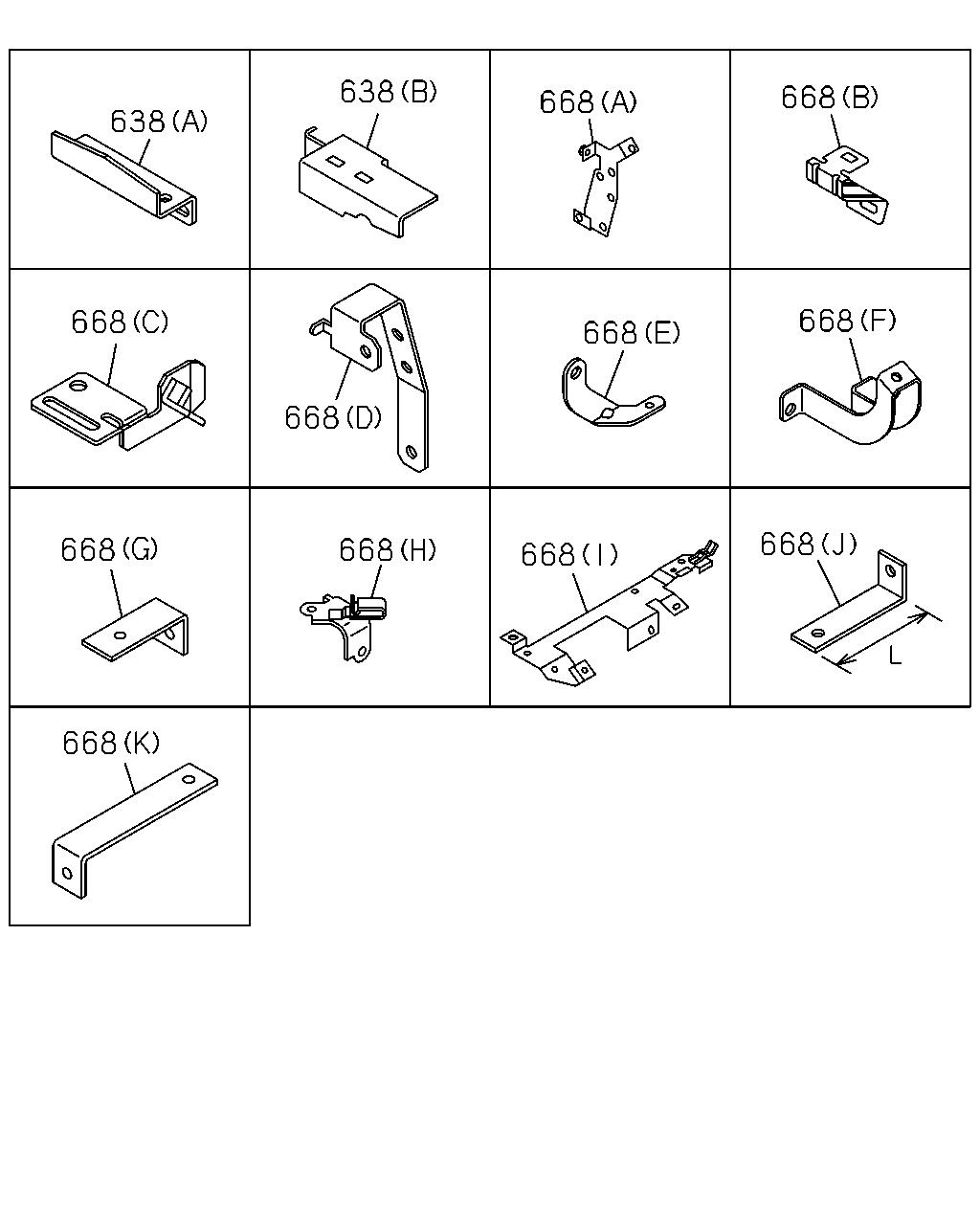

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1310-1408	●	●
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-	●	●
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1310-	●	●
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1310-	●	●
668	BRACKET; HARNESS (H)	8-98061-780-0	01	1	1310-	●	●
668	BRACKET; HARNESS (I)	8-98200-797-3	01	1	1310-	●	●
668	BRACKET; HARNESS (T)	8-98240-490-0	01	1	1310-	●	●
668	BRACKET; HARNESS (U)	8-98240-491-0	01	1	1310-	●	●
668	BRACKET; HARNESS WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (D)	8-97619-097-1	01	1	1310-	●	●
668	BRACKET; HARNESS (J) L=95	1-82699-085-0	01	1	1310-	●
668	BRACKET; HARNESS (K) L=145	1-47475-655-0	02	1	1310-	●
668	BRACKET; HARNESS (K) L=145	1-47475-655-0	02	1	1310-	●
668	BRACKET; HARNESS (M)	1-82698-569-0	01	1	1310-	●	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1310-1502	●	●
668	BRACKET; HARNESS (X)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (N)	8-98047-276-1	01	1	1310-	●	●
668	BRACKET; HARNESS (B)	8-98111-712-1	01	1	1310-	●	●
668	BRACKET; HARNESS (O)	8-98168-184-0	01	1	1310-	●	●
668	BRACKET; HARNESS (P)	8-98171-607-0	02	1	1310-	●	●
668	BRACKET; HARNESS (V)	8-98207-041-0	01	1	1310-	●	●
668	BRACKET; HARNESS (W)	8-98207-042-0	01	1	1310-	●	●
668	BRACKET; HARNESS (L)	8-98235-073-0	01	1	1310-	●	●
668	BRACKET; HARNESS DIFF LOCK<C3N> (G) L=55	1-47475-304-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (Q)	8-98216-631-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (R)	8-98216-632-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (S)	8-98216-633-0	01	1	1310-		●

1 28 668 41 5 4 29 693 2 2 431 280 276 694 261 431

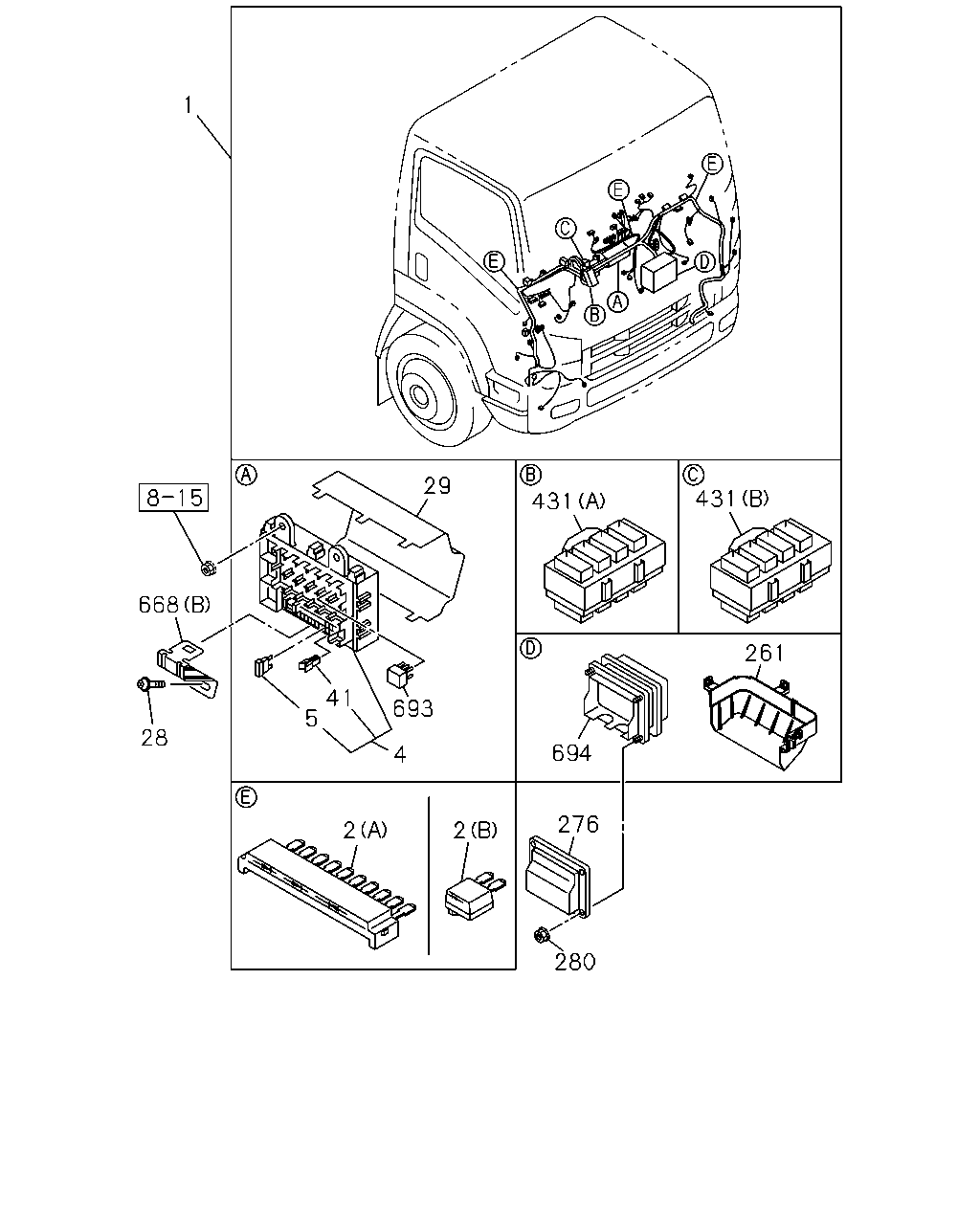

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-016-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-014-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-017-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-015-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-012-3	01	1	1310-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-010-3	01	1	1310-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-013-3	01	1	1310-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-011-3	01	1	1310-		●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	1310-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	03	1	1310-	●	●

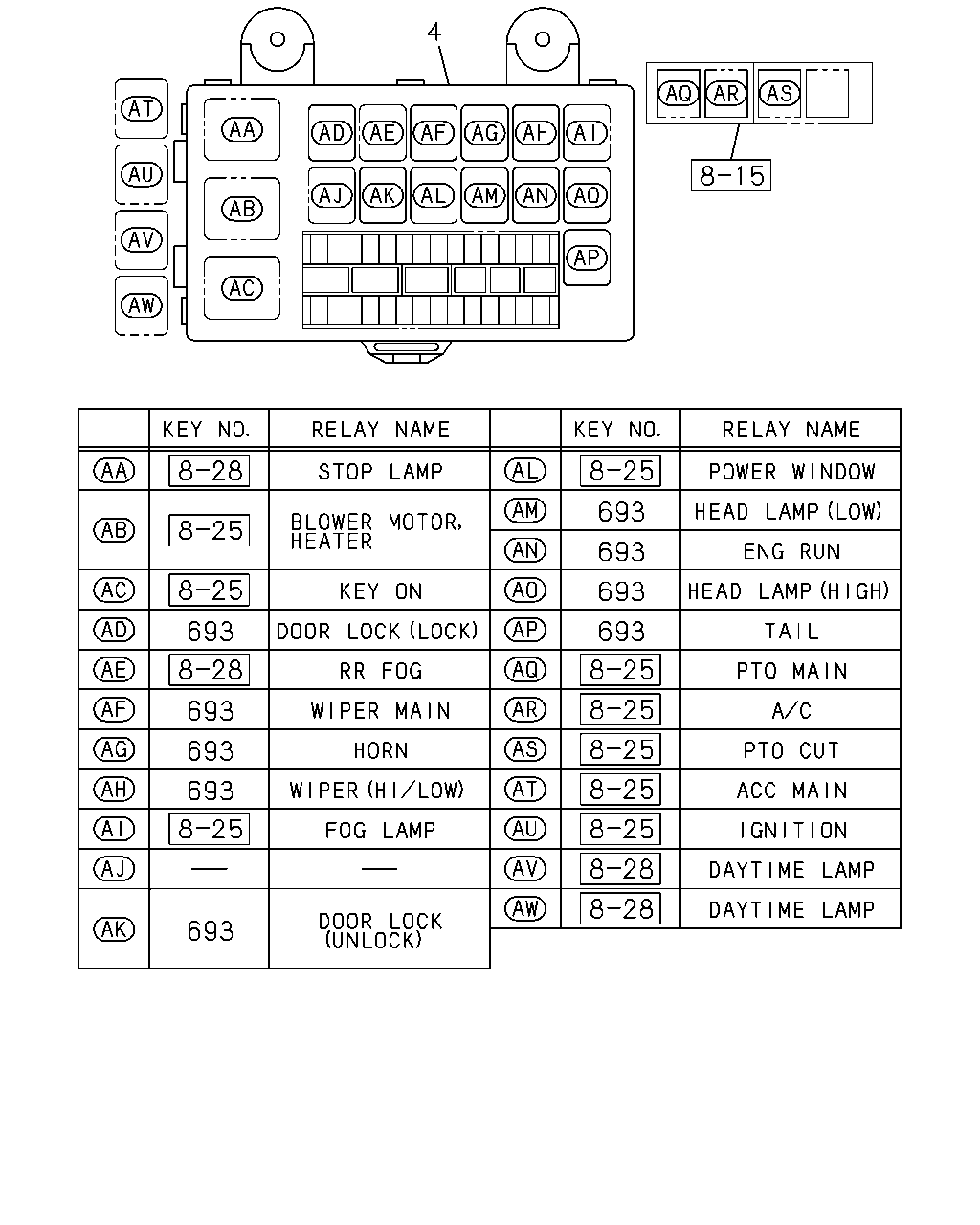

4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1310-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1310-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1310-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1310-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1310-	●	●
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1310-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1310-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1310-	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1310-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1310-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1310-	●	●

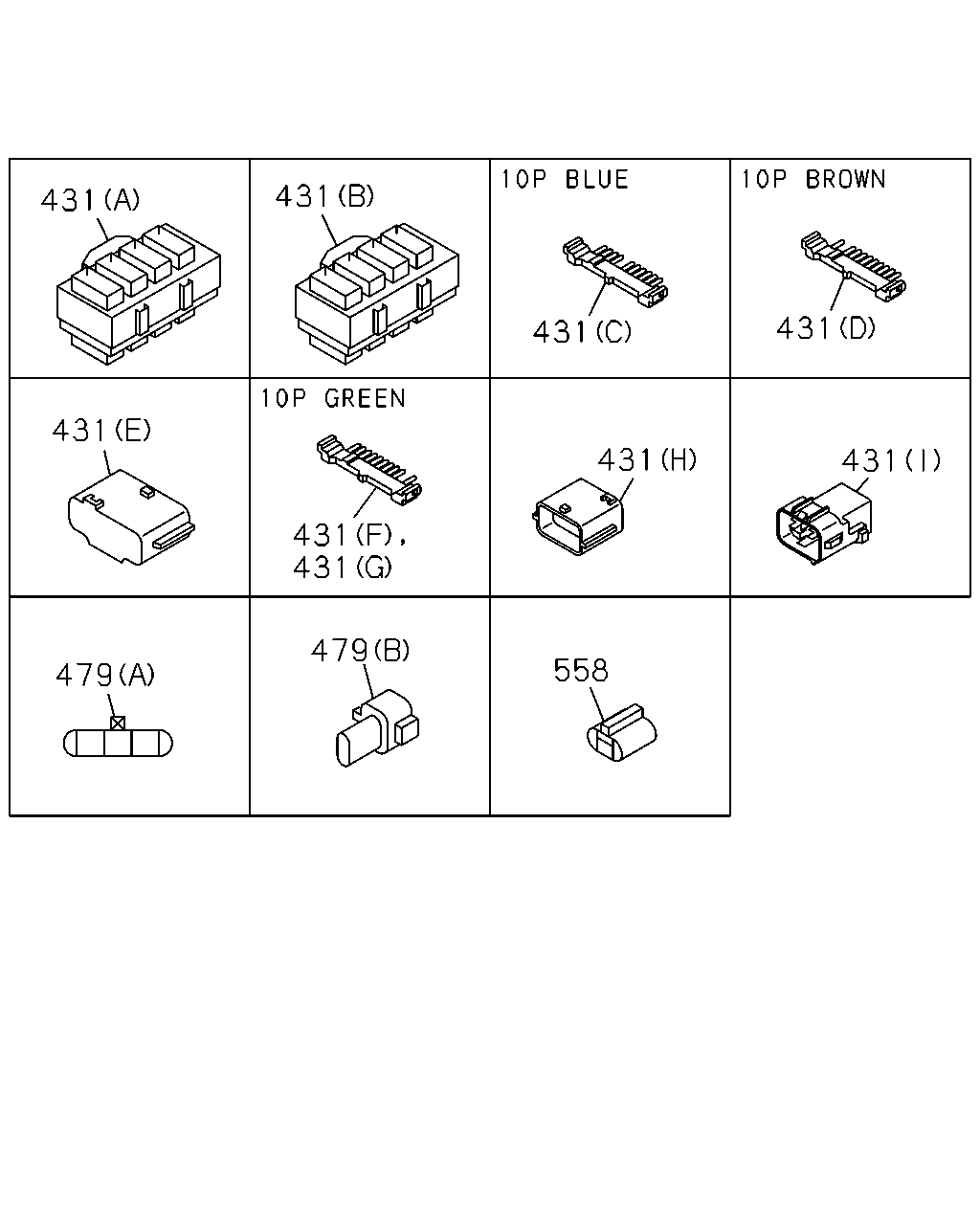

431	CONNECTOR; JOINT (E) 6P BLACK	8-97616-194-0	03	1	1310-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1310-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1310-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1310-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (E) 6P LIGHT GRAY	8-97616-195-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (H) 10P LIGHT GRAY	8-97616-198-0	03	1	1310-	●	●
431	CONNECTOR; JOINT WHEEL BASE 3400MM(34W) (I) 8P LIGHT GRAY	8-97616-202-0	01	1	1310-		●
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1310-1408	●	●
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-	●	●
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1310-	●	●
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1310-	●	●
668	BRACKET; HARNESS (H)	8-98061-780-0	01	1	1310-	●	●
668	BRACKET; HARNESS (I)	8-98200-797-3	01	1	1310-	●	●
668	BRACKET; HARNESS (T)	8-98240-490-0	01	1	1310-	●	●
668	BRACKET; HARNESS (U)	8-98240-491-0	01	1	1310-	●	●
668	BRACKET; HARNESS WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (D)	8-97619-097-1	01	1	1310-	●	●
668	BRACKET; HARNESS (J) L=95	1-82699-085-0	01	1	1310-	●
668	BRACKET; HARNESS (K) L=145	1-47475-655-0	02	1	1310-	●
668	BRACKET; HARNESS (K) L=145	1-47475-655-0	02	1	1310-	●
668	BRACKET; HARNESS (M)	1-82698-569-0	01	1	1310-	●	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1310-1502	●	●
668	BRACKET; HARNESS (X)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (N)	8-98047-276-1	01	1	1310-	●	●
668	BRACKET; HARNESS (B)	8-98111-712-1	01	1	1310-	●	●
668	BRACKET; HARNESS (O)	8-98168-184-0	01	1	1310-	●	●
668	BRACKET; HARNESS (P)	8-98171-607-0	02	1	1310-	●	●
668	BRACKET; HARNESS (V)	8-98207-041-0	01	1	1310-	●	●
668	BRACKET; HARNESS (W)	8-98207-042-0	01	1	1310-	●	●
668	BRACKET; HARNESS (L)	8-98235-073-0	01	1	1310-	●	●
668	BRACKET; HARNESS DIFF LOCK<C3N> (G) L=55	1-47475-304-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (Q)	8-98216-631-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (R)	8-98216-632-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (S)	8-98216-633-0	01	1	1310-		●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1310-	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1310-	●	●

13 13 534 668 668 102 540 668 102 102 668 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

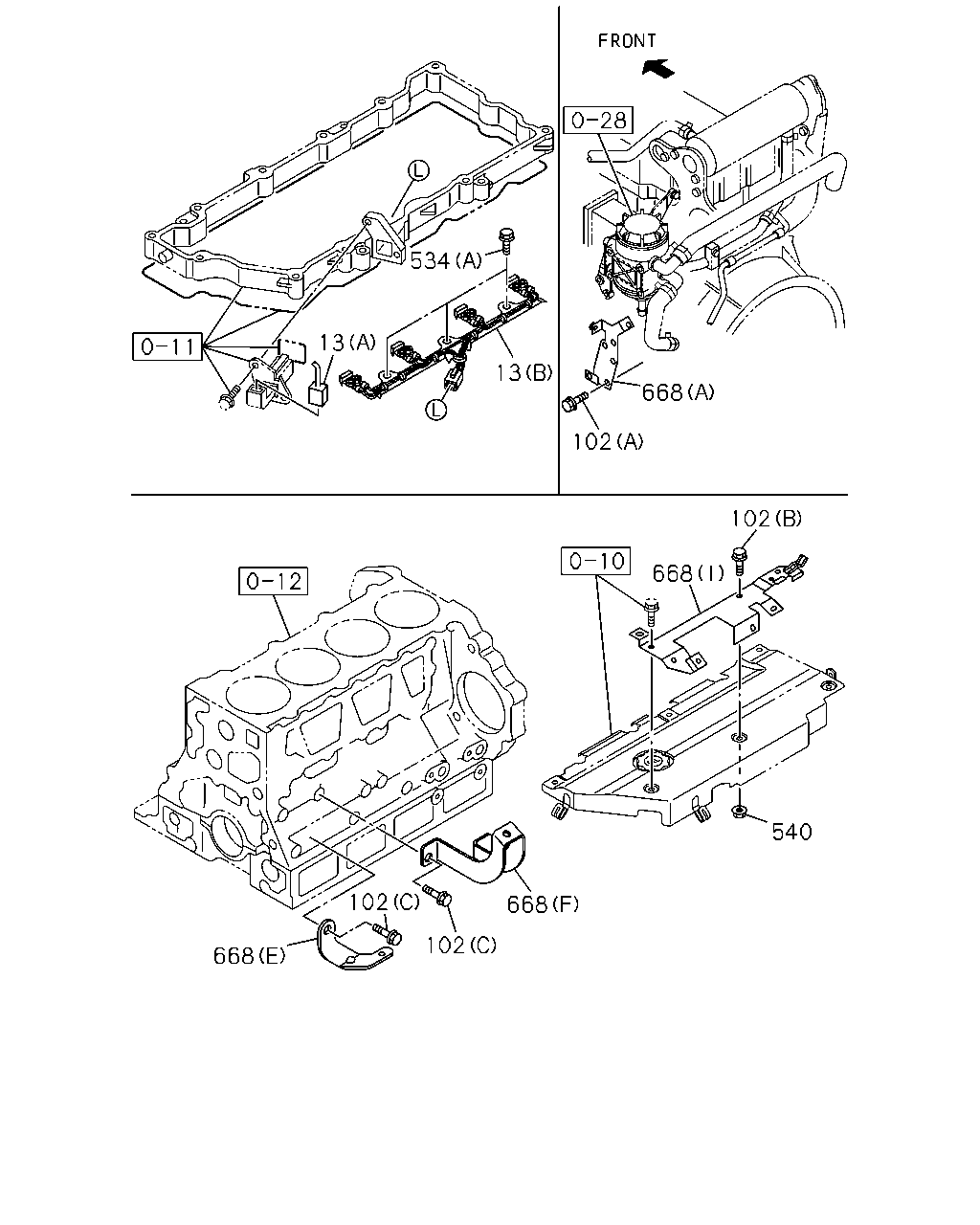

13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98200-792-4	01	1	1310-1406	●	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-085-0	01	1	1407-	●	●
13	HARNESS; ENG (B)	8-98203-297-0	01	1	1310-	●	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98200-791-4	01	1	1310-1406	●	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98274-084-0	01	1	1407-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR (A) M8X16 FLANGE	0-28050-816-0	03	1	1310-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR (C) M10X16 FLANGE	0-28151-016-0	03	1	1310-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●
534	BOLT (A) M10X55 FLANGE	8-97365-449-0	03	1	1310-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1310-	●	●
540	NUT; BRKT FIX M6 FLANGE	0-91180-106-0	03	1	1310-	●	●
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1310-1408	●	●
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-	●	●
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1310-	●	●
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1310-	●	●
668	BRACKET; HARNESS (H)	8-98061-780-0	01	1	1310-	●	●
668	BRACKET; HARNESS (I)	8-98200-797-3	01	1	1310-	●	●
668	BRACKET; HARNESS (T)	8-98240-490-0	01	1	1310-	●	●
668	BRACKET; HARNESS (U)	8-98240-491-0	01	1	1310-	●	●
668	BRACKET; HARNESS WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (D)	8-97619-097-1	01	1	1310-	●	●
668	BRACKET; HARNESS (J) L=95	1-82699-085-0	01	1	1310-	●
668	BRACKET; HARNESS (K) L=145	1-47475-655-0	02	1	1310-	●
668	BRACKET; HARNESS (K) L=145	1-47475-655-0	02	1	1310-	●
668	BRACKET; HARNESS (M)	1-82698-569-0	01	1	1310-	●	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1310-1502	●	●
668	BRACKET; HARNESS (X)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (N)	8-98047-276-1	01	1	1310-	●	●
668	BRACKET; HARNESS (B)	8-98111-712-1	01	1	1310-	●	●
668	BRACKET; HARNESS (O)	8-98168-184-0	01	1	1310-	●	●
668	BRACKET; HARNESS (P)	8-98171-607-0	02	1	1310-	●	●
668	BRACKET; HARNESS (V)	8-98207-041-0	01	1	1310-	●	●
668	BRACKET; HARNESS (W)	8-98207-042-0	01	1	1310-	●	●
668	BRACKET; HARNESS (L)	8-98235-073-0	01	1	1310-	●	●
668	BRACKET; HARNESS DIFF LOCK<C3N> (G) L=55	1-47475-304-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (Q)	8-98216-631-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (R)	8-98216-632-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (S)	8-98216-633-0	01	1	1310-		●

533 479 201 6 1 570

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-016-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-014-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-017-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-015-3	01	1	1310-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-012-3	01	1	1310-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-010-3	01	1	1310-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-013-3	01	1	1310-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-011-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-848-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-849-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-846-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-847-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98231-320-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-321-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DIFF LOCK<C3N>	8-98222-815-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>	8-98222-816-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-844-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-845-4	01	1	1310-		●
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98156-704-2	01	1	1310-	●	●
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-705-2	01	1	1310-	●	●
479	CAP; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-82690-667-0	01	1	1310-	●	●
479	CAP; CONNECTOR EXC. H.S.A SYSTEM<6EP> (B)	1-82691-191-0	01	1	1310-	●	●

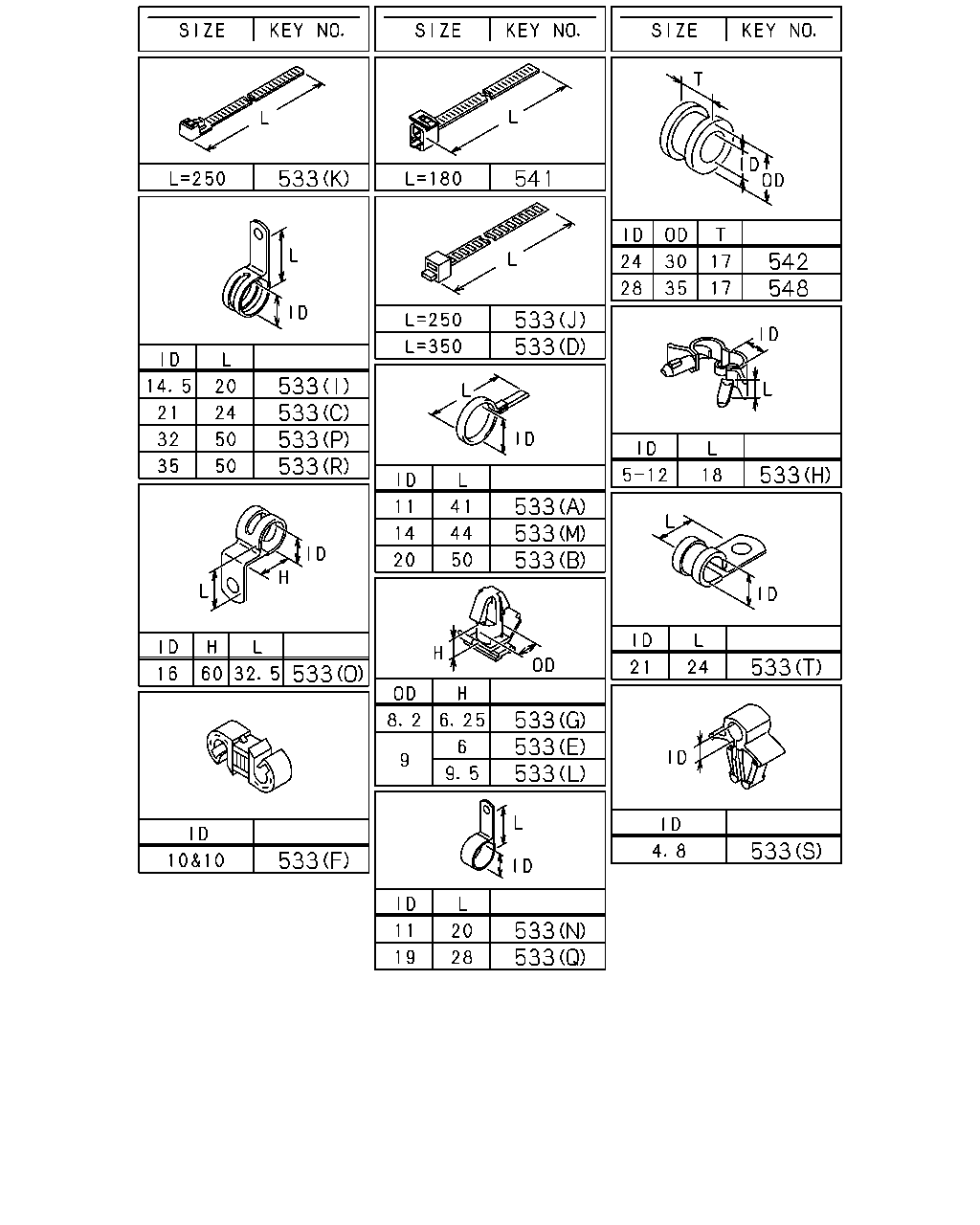

533	CLIP (F) ID=10 & 10	1-09709-277-1	02	1	1504-	●	●
533	CLIP WHEEL BASE 4600MM(46W) (B) ID=20 L=50	9-09917-430-0	14	1	1310-	●
533	CLIP PTO CONTROL<SV6> (D) L=350	1-09707-183-0	01	1	1310-	●	●
533	CLIP WHEEL BASE 3700MM(37W) (B) ID=20 L=50	9-09917-430-0	09	1	1310-	●
533	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (K) L=250	5-09707-030-1	01	1	1310-	●
533	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (A) ID=11 L=41	1-09700-403-0	01	1	1310-	●
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1310-		●
533	CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (K) L=250	5-09707-030-1	02	1	1310-	●
533	CLIP (K) L=250	5-09707-030-1	02	1	1310-	●
533	CLIP WHEEL BASE 4000MM(40W) (B) ID=20 L=50	9-09917-430-0	10	1	1310-	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	01	1	1310-	●	●
533	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	01	1	1310-	●
533	CLIP DIFF LOCK<C3N> (M) ID=14 L=44	9-09917-427-0	01	1	1310-		●
533	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (K) L=250	5-09707-030-1	03	1	1310-	●
533	CLIP WHEEL BASE 3400MM(34W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (K) L=250	5-09707-030-1	03	1	1310-		●
533	CLIP WHEEL BASE 4900MM(49W) (M) ID=14 L=44	9-09917-427-0	02	1	1310-	●
533	CLIP WHEEL BASE 4900MM(49W) (B) ID=20 L=50	9-09917-430-0	15	1	1310-	●
533	CLIP (R) ID=35 L=50	1-09701-214-0	01	1	1310-	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=35 L=50	1-09701-214-0	01	1	1310-		●
533	CLIP (N) ID=11 L=20	0-95235-035-0	02	1	1310-	●
533	CLIP (Q) ID=19 L=28	0-95235-856-0	02	1	1310-	●
533	CLIP (A) ID=11 L=41	1-09700-403-0	02	1	1310-	●
533	CLIP (C) ID=21 L=24	8-94176-807-1	03	1	1310-	●
533	CLIP (F) ID=10 & 10	1-09709-277-1	01	1	1310-1503	●	●
533	CLIP (F) ID=10 & 10	1-09709-277-1	01	1	1310-1503	●	●
533	CLIP (F) ID=10 & 10	1-09709-277-1	01	1	1504-	●	●
533	CLIP (O) ID=16 H=60 L=32.5	1-09700-214-0	01	1	1310-	●	●
533	CLIP (J) L=250	1-09707-126-0	02	1	1310-	●	●
533	CLIP (D) L=350	1-09707-183-0	02	1	1310-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	02	1	1310-	●	●
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1310-	●	●
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	02	1	1310-	●	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1310-	●	●
533	CLIP DIFF LOCK<C3N> (A) ID=11 L=41	1-09700-403-0	06	1	1310-		●
533	CLIP DIFF LOCK<C3N> (I) ID=14.5 L=20	1-09701-012-0	02	1	1310-		●
533	CLIP DIFF LOCK<C3N> (S) ID=4.8	1-09701-218-0	01	1	1310-		●
533	CLIP DIFF LOCK<C3N> (G) OD=8.95 H=6.25	8-97375-754-0	01	1	1310-		●
533	CLIP DIFF LOCK<C3N> (T) ID=21 L=24	8-98019-191-0	02	1	1310-		●
533	CLIP WHEEL BASE 3400MM(34W) (M) ID=14 L=44	9-09917-427-0	08	1	1310-		●
533	CLIP WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	11	1	1310-		●
533	CLIP WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	15	1	1310-		●
533	CLIP WHEEL BASE 4900MM(49W) (M) ID=14 L=44	9-09917-427-0	16	1	1310-		●
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	18	1	1310-		●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1310-		●
570	HARNESS; SPEED SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98058-327-1	01	1	1310-	●
570	HARNESS; SPEED SENSOR TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>, TACHOGRAPHDIGITAL EEC REGULATIONS<8PM> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98058-327-1	01	1	1310-		●
570	HARNESS; SPEED SENSOR TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>, TACHOGRAPHDIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF>	8-98058-327-1	01	1	1310-		●
570	HARNESS; SPEED SENSOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98091-562-0	01	1	1310-	●	●

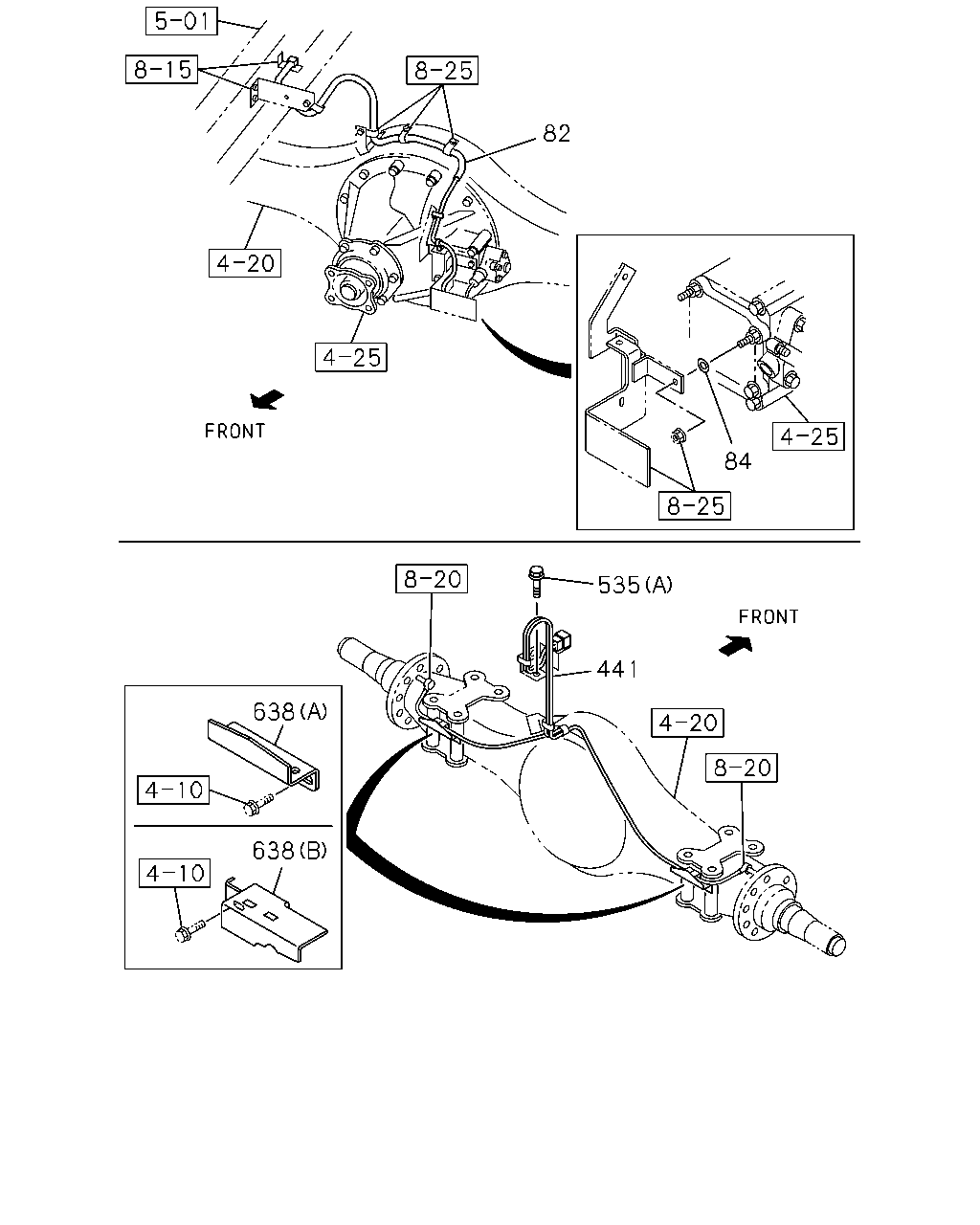

82 441 535 84 638 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	HARNESS; DIFF LOCK DIFF LOCK<C3N>	8-98215-660-0	01	1	1310-		●
84	WASHER; LK DIFF LOCK<C3N> ID=6.4	0-91614-506-0	03	1	1310-		●
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	1310-	●	●
535	BOLT; BRKT FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) M10X30 FLANGE	0-28651-030-0	01	1	1310-	●	●
535	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
535	BOLT; BRKT FIX (D) M8X30 FLANGE	0-28650-830-0	02	1	1310-	●
535	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	01	1	1310-	●	●
535	BOLT; BRKT FIX (A) M8X10 W/LK WASHER	8-98029-928-0	02	1	1310-	●	●
638	BRACKET; SPD SENSOR (B)	8-98012-539-0	01	1	1310-	●
638	BRACKET; SPD SENSOR (B)	8-98012-540-0	01	1	1310-	●
638	BRACKET; SPD SENSOR (A)	8-98012-580-1	02	1	1310-		●

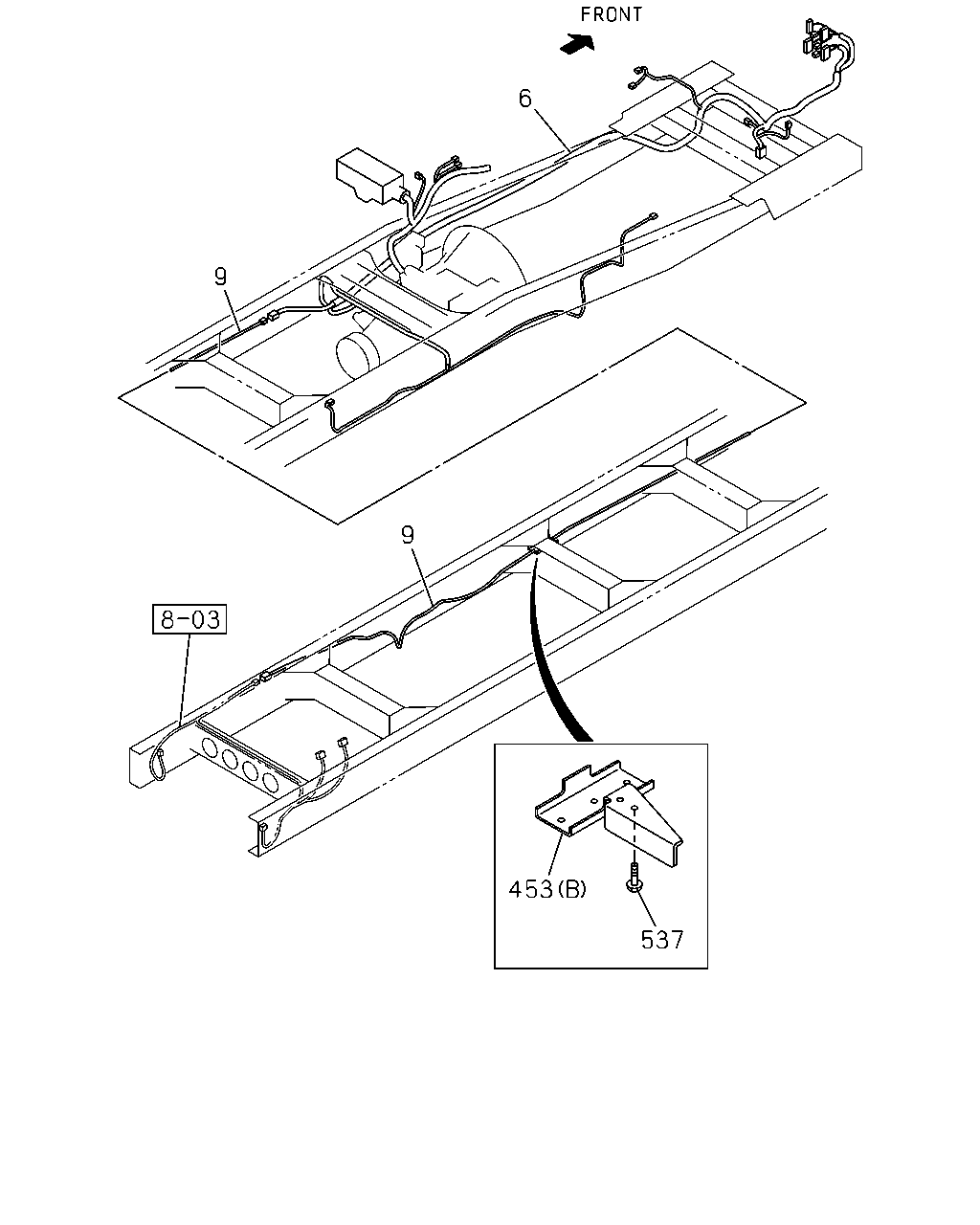

6 453 388 174 10 184 184 290 534 720 431 431 431 431 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-848-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-849-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-846-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-847-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98231-320-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-321-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DIFF LOCK<C3N>	8-98222-815-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>	8-98222-816-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-844-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-845-4	01	1	1310-		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1310-	●	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1310-	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	01	1	1310-	●	●
27	FUSE UNIT 20A YELLOW	8-98054-259-0	01	1	1310-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1310-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1310-	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	1310-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1310-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1310-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1310-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1310-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1310-	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1310-	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1310-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	06	1	1310-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	04	1	1310-	●	●
290	NUT; BRKT DIFF LOCK<C3N> (C) M6 FLANGE	0-91180-106-0	03	1	1310-		●
290	NUT; BRKT DIFF LOCK<C3N> (A) M8 FLANGE	0-91180-108-0	03	1	1310-		●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1310-	●	●
431	CONNECTOR; JOINT (E) 6P BLACK	8-97616-194-0	03	1	1310-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1310-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1310-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1310-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (E) 6P LIGHT GRAY	8-97616-195-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (H) 10P LIGHT GRAY	8-97616-198-0	03	1	1310-	●	●
431	CONNECTOR; JOINT WHEEL BASE 3400MM(34W) (I) 8P LIGHT GRAY	8-97616-202-0	01	1	1310-		●
453	PROTECTOR; HARNESS (A)	1-82699-709-0	02	1	1310-	●	●
453	PROTECTOR; HARNESS (B)	8-98042-155-0	01	1	1310-	●
534	BOLT (A) M10X55 FLANGE	8-97365-449-0	03	1	1310-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1310-	●	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1310-	●	●

693 693 693 693 693 693 693 693 693 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1310-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1310-	●	●

102 102 267 280 540 290 290 639 639 295 525 640 290 102 535 267 537 535 267 535 267 267 535 535 534 534 639 28 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1310-	●	●
84	WASHER; LK DIFF LOCK<C3N> ID=6.4	0-91614-506-0	03	1	1310-		●
102	BOLT; BRKT,HARNESS CONNECTOR (A) M8X16 FLANGE	0-28050-816-0	03	1	1310-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR (C) M10X16 FLANGE	0-28151-016-0	03	1	1310-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●
267	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	1310-	●	●
267	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1310-	●
267	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1310-	●	●
267	BOLT; BRKT DIFF LOCK<C3N> (B) M8X30 FLANGE	0-28650-830-0	03	1	1310-		●
267	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●
267	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1310-	●	●
267	BOLT; BRKT DIFF LOCK<C3N> (E) M8X10 W/LK WASHER	8-98029-928-0	02	1	1310-		●
267	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	1310-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1310-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1310-	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1310-	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1310-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	06	1	1310-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	04	1	1310-	●	●
290	NUT; BRKT DIFF LOCK<C3N> (C) M6 FLANGE	0-91180-106-0	03	1	1310-		●
290	NUT; BRKT DIFF LOCK<C3N> (A) M8 FLANGE	0-91180-108-0	03	1	1310-		●
295	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1310-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1310-	●
525	NUT; CLIP DIFF LOCK<C3N> M8 FLANGE	0-91180-108-0	02	1	1310-		●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1310-	●	●
534	BOLT (A) M10X55 FLANGE	8-97365-449-0	03	1	1310-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1310-	●	●
535	BOLT; BRKT FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) M10X30 FLANGE	0-28651-030-0	01	1	1310-	●	●
535	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
535	BOLT; BRKT FIX (D) M8X30 FLANGE	0-28650-830-0	02	1	1310-	●
535	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	01	1	1310-	●	●
535	BOLT; BRKT FIX (A) M8X10 W/LK WASHER	8-98029-928-0	02	1	1310-	●	●
537	BOLT M8X25 FLANGE	0-28650-825-0	02	1	1310-	●
540	NUT; BRKT FIX M6 FLANGE	0-91180-106-0	03	1	1310-	●	●
639	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	1310-	●
639	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1310-	●
639	BOLT; CLIP DIFF LOCK<C3N> (B) M8X25 FLANGE	0-28650-825-0	02	1	1310-		●
639	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	1310-	●	●
639	BOLT; CLIP DIFF LOCK<C3N> (A) M8X16 FLANGE	0-28050-816-0	02	1	1310-		●
640	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1310-	●

6 9 9 453 537

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-848-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-849-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-846-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-847-3	01	1	1310-	●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98231-320-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-321-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DIFF LOCK<C3N>	8-98222-815-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>	8-98222-816-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98223-844-3	01	1	1310-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-845-4	01	1	1310-		●
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98223-770-0	01	1	1310-	●
9	HARNESS; FRAME,RR WHEEL BASE 4000MM(40W)	8-98223-763-0	01	1	1310-	●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98223-764-0	01	1	1310-	●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W)	8-98223-765-0	01	1	1310-	●
9	HARNESS; FRAME,RR WHEEL BASE 4000MM(40W) DIFF LOCK<C3N>	8-98223-759-0	01	1	1310-		●
9	HARNESS; FRAME,RR WHEEL BASE 4000MM(40W) EXC. DIFF LOCK<C3N>	8-98224-007-0	01	1	1310-		●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) DIFF LOCK<C3N>	8-98223-760-0	01	1	1310-		●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) EXC. DIFF LOCK<C3N>	8-98224-009-0	01	1	1310-		●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W) DIFF LOCK<C3N>	8-98223-761-0	01	1	1310-		●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W) EXC. DIFF LOCK<C3N>	8-98224-010-0	01	1	1310-		●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W) DIFF LOCK<C3N>	8-98223-762-0	01	1	1310-		●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W) EXC. DIFF LOCK<C3N>	8-98224-011-0	01	1	1310-		●
453	PROTECTOR; HARNESS (A)	1-82699-709-0	02	1	1310-	●	●
453	PROTECTOR; HARNESS (B)	8-98042-155-0	01	1	1310-	●
537	BOLT M8X25 FLANGE	0-28650-825-0	02	1	1310-	●

533 533 533 533 533 541 533 533 533 533 533 533 533 533 533 533 533 542 533 548 533 533 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
533	CLIP (F) ID=10 & 10	1-09709-277-1	02	1	1504-	●	●
533	CLIP WHEEL BASE 4600MM(46W) (B) ID=20 L=50	9-09917-430-0	14	1	1310-	●
533	CLIP PTO CONTROL<SV6> (D) L=350	1-09707-183-0	01	1	1310-	●	●
533	CLIP WHEEL BASE 3700MM(37W) (B) ID=20 L=50	9-09917-430-0	09	1	1310-	●
533	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (K) L=250	5-09707-030-1	01	1	1310-	●
533	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (A) ID=11 L=41	1-09700-403-0	01	1	1310-	●
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1310-		●
533	CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (K) L=250	5-09707-030-1	02	1	1310-	●
533	CLIP (K) L=250	5-09707-030-1	02	1	1310-	●
533	CLIP WHEEL BASE 4000MM(40W) (B) ID=20 L=50	9-09917-430-0	10	1	1310-	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	01	1	1310-	●	●
533	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	01	1	1310-	●
533	CLIP DIFF LOCK<C3N> (M) ID=14 L=44	9-09917-427-0	01	1	1310-		●
533	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (K) L=250	5-09707-030-1	03	1	1310-	●
533	CLIP WHEEL BASE 3400MM(34W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (K) L=250	5-09707-030-1	03	1	1310-		●
533	CLIP WHEEL BASE 4900MM(49W) (M) ID=14 L=44	9-09917-427-0	02	1	1310-	●
533	CLIP WHEEL BASE 4900MM(49W) (B) ID=20 L=50	9-09917-430-0	15	1	1310-	●
533	CLIP (R) ID=35 L=50	1-09701-214-0	01	1	1310-	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=35 L=50	1-09701-214-0	01	1	1310-		●
533	CLIP (N) ID=11 L=20	0-95235-035-0	02	1	1310-	●
533	CLIP (Q) ID=19 L=28	0-95235-856-0	02	1	1310-	●
533	CLIP (A) ID=11 L=41	1-09700-403-0	02	1	1310-	●
533	CLIP (C) ID=21 L=24	8-94176-807-1	03	1	1310-	●
533	CLIP (F) ID=10 & 10	1-09709-277-1	01	1	1310-1503	●	●
533	CLIP (F) ID=10 & 10	1-09709-277-1	01	1	1310-1503	●	●
533	CLIP (F) ID=10 & 10	1-09709-277-1	01	1	1504-	●	●
533	CLIP (O) ID=16 H=60 L=32.5	1-09700-214-0	01	1	1310-	●	●
533	CLIP (J) L=250	1-09707-126-0	02	1	1310-	●	●
533	CLIP (D) L=350	1-09707-183-0	02	1	1310-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	02	1	1310-	●	●
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1310-	●	●
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	02	1	1310-	●	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1310-	●	●
533	CLIP DIFF LOCK<C3N> (A) ID=11 L=41	1-09700-403-0	06	1	1310-		●
533	CLIP DIFF LOCK<C3N> (I) ID=14.5 L=20	1-09701-012-0	02	1	1310-		●
533	CLIP DIFF LOCK<C3N> (S) ID=4.8	1-09701-218-0	01	1	1310-		●
533	CLIP DIFF LOCK<C3N> (G) OD=8.95 H=6.25	8-97375-754-0	01	1	1310-		●
533	CLIP DIFF LOCK<C3N> (T) ID=21 L=24	8-98019-191-0	02	1	1310-		●
533	CLIP WHEEL BASE 3400MM(34W) (M) ID=14 L=44	9-09917-427-0	08	1	1310-		●
533	CLIP WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	11	1	1310-		●
533	CLIP WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	15	1	1310-		●
533	CLIP WHEEL BASE 4900MM(49W) (M) ID=14 L=44	9-09917-427-0	16	1	1310-		●
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	18	1	1310-		●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1310-		●
541	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=180	1-09707-162-1	01	1	1310-	●	●
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	02	1	1310-	●	●
548	GROMMET ID=28 OD=35 T=17	9-09956-256-2	03	1	1310-	●	●

668 668 668 668 668 668 668 668 668 668 668 638 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
638	BRACKET; SPD SENSOR (B)	8-98012-539-0	01	1	1310-	●
638	BRACKET; SPD SENSOR (B)	8-98012-540-0	01	1	1310-	●
638	BRACKET; SPD SENSOR (A)	8-98012-580-1	02	1	1310-		●
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1310-1408	●	●
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-	●	●
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1310-	●	●
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1310-	●	●
668	BRACKET; HARNESS (H)	8-98061-780-0	01	1	1310-	●	●
668	BRACKET; HARNESS (I)	8-98200-797-3	01	1	1310-	●	●
668	BRACKET; HARNESS (T)	8-98240-490-0	01	1	1310-	●	●
668	BRACKET; HARNESS (U)	8-98240-491-0	01	1	1310-	●	●
668	BRACKET; HARNESS WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (D)	8-97619-097-1	01	1	1310-	●	●
668	BRACKET; HARNESS (J) L=95	1-82699-085-0	01	1	1310-	●
668	BRACKET; HARNESS (K) L=145	1-47475-655-0	02	1	1310-	●
668	BRACKET; HARNESS (K) L=145	1-47475-655-0	02	1	1310-	●
668	BRACKET; HARNESS (M)	1-82698-569-0	01	1	1310-	●	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1310-1502	●	●
668	BRACKET; HARNESS (X)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (N)	8-98047-276-1	01	1	1310-	●	●
668	BRACKET; HARNESS (B)	8-98111-712-1	01	1	1310-	●	●
668	BRACKET; HARNESS (O)	8-98168-184-0	01	1	1310-	●	●
668	BRACKET; HARNESS (P)	8-98171-607-0	02	1	1310-	●	●
668	BRACKET; HARNESS (V)	8-98207-041-0	01	1	1310-	●	●
668	BRACKET; HARNESS (W)	8-98207-042-0	01	1	1310-	●	●
668	BRACKET; HARNESS (L)	8-98235-073-0	01	1	1310-	●	●
668	BRACKET; HARNESS DIFF LOCK<C3N> (G) L=55	1-47475-304-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (Q)	8-98216-631-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (R)	8-98216-632-0	01	1	1310-		●
668	BRACKET; HARNESS DIFF LOCK<C3N> (S)	8-98216-633-0	01	1	1310-		●

558 479 479 431 431 431 431 431 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
431	CONNECTOR; JOINT (E) 6P BLACK	8-97616-194-0	03	1	1310-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1310-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1310-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1310-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (E) 6P LIGHT GRAY	8-97616-195-0	01	1	1310-	●	●
431	CONNECTOR; JOINT (H) 10P LIGHT GRAY	8-97616-198-0	03	1	1310-	●	●
431	CONNECTOR; JOINT WHEEL BASE 3400MM(34W) (I) 8P LIGHT GRAY	8-97616-202-0	01	1	1310-		●
479	CAP; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-82690-667-0	01	1	1310-	●	●
479	CAP; CONNECTOR EXC. H.S.A SYSTEM<6EP> (B)	1-82691-191-0	01	1	1310-	●	●
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1310-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
