Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#128308) — 625 parça

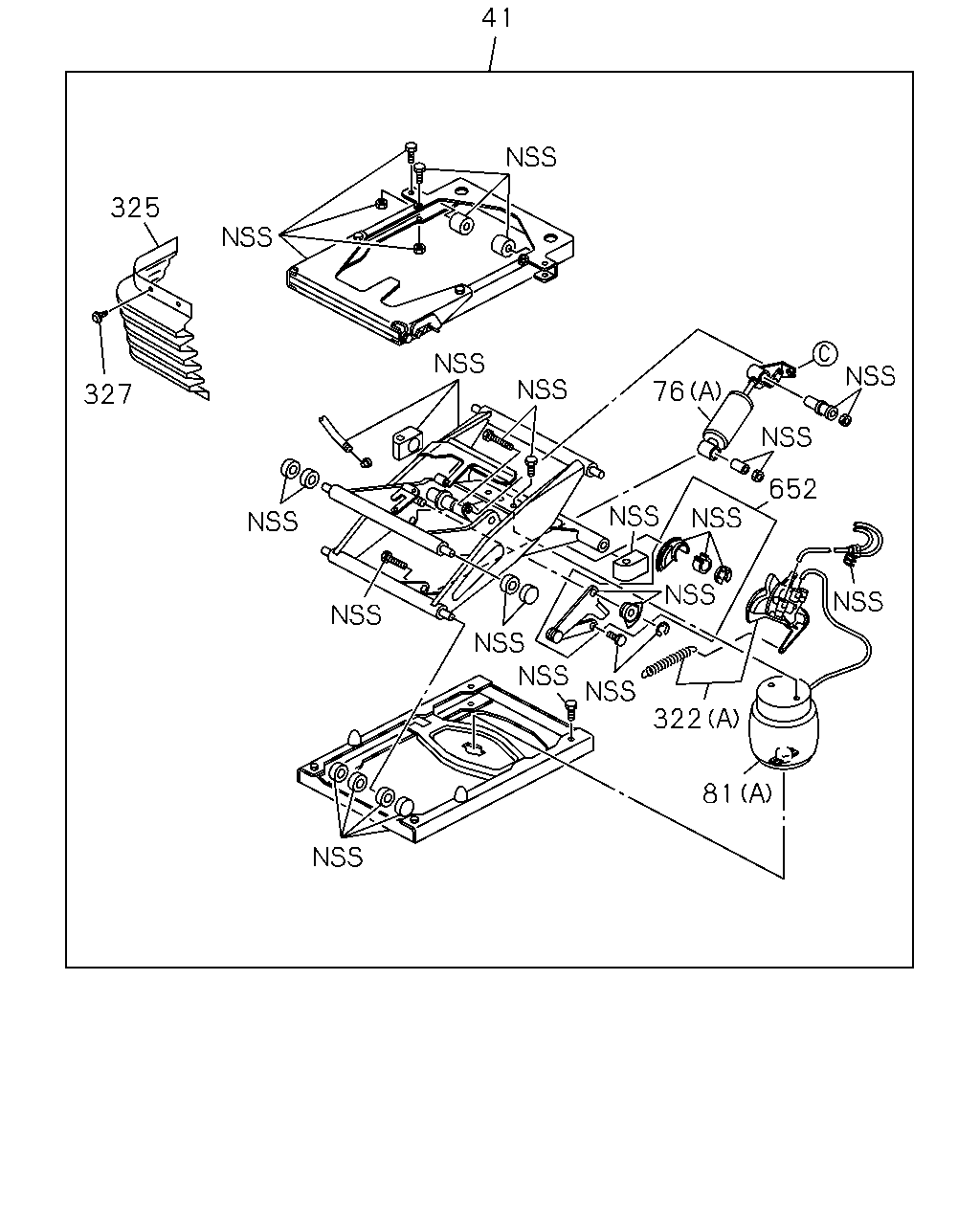

41 325 327 76 322 81 652

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX>	8-98302-798-1	01	1	1501-	●	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98195-065-0	01	1	1310-1404		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98195-065-0	01	1	1405-1412	●	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98195-065-1	01	1	1501-	●	●

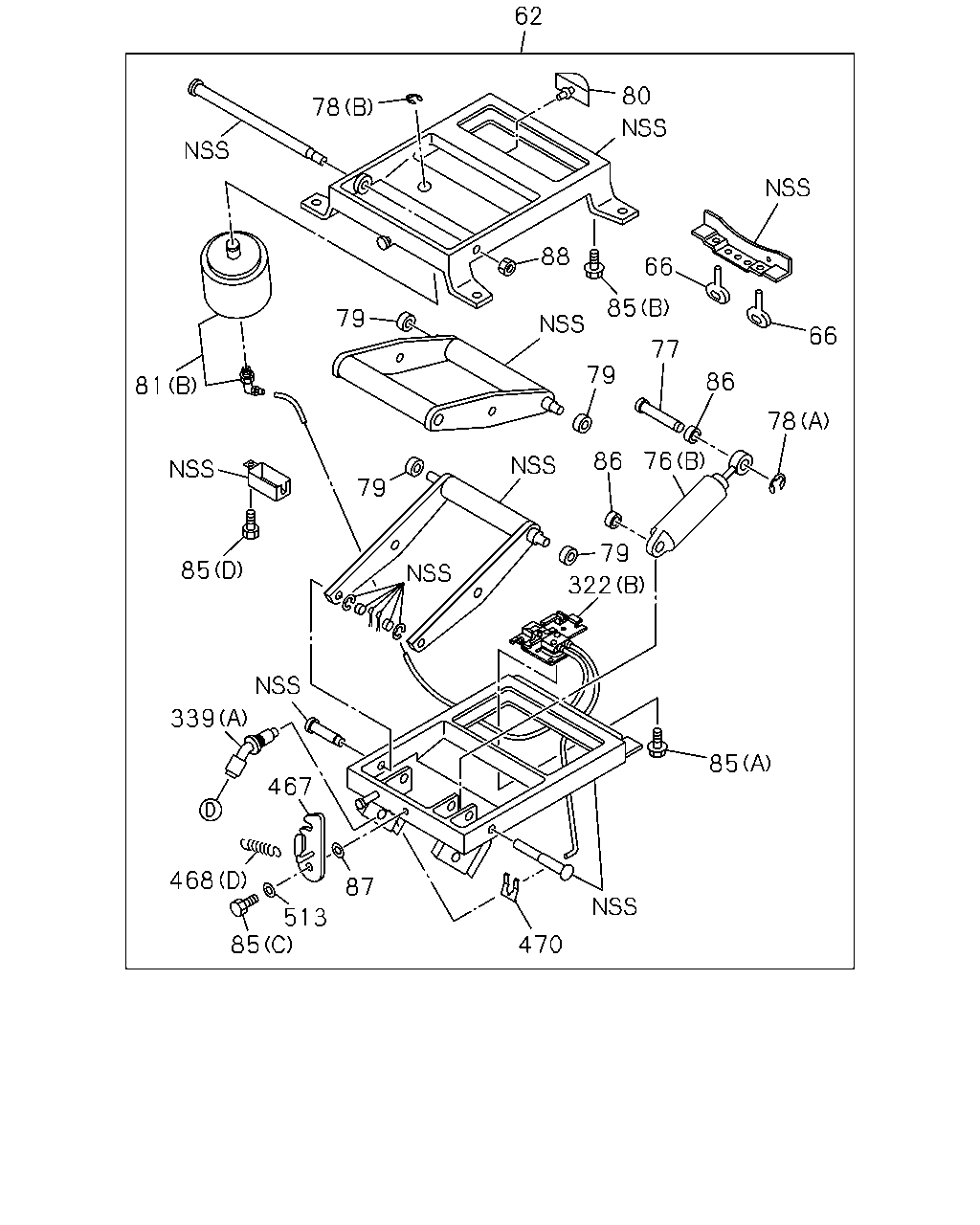

76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1510-	●	●
76	DAMPER; AIR SUSP (B)	1-75538-139-0	01	1	1310-1404	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1310-1404		●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1405-1506	●	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-999-0	01	1	1310-1404		●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-999-0	01	1	1405-	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1510-	●	●
81	SPRING; AIR (B)	1-75538-151-2	01	1	1310-1312	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	1310-1312		●
81	SPRING; AIR (B)	8-98242-816-0	01	1	1401-1404	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-1404		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1405-1506	●	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-000-0	01	1	1310-1404		●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-000-0	01	1	1405-	●	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A)	8-98331-314-0	01	1	1501-1508	●	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98331-314-0	01	1	1509-	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1510-	●	●
322	VALVE; AIR SPRING (B)	1-75538-187-3	01	1	1310-1404	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1310-1404		●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1405-1506	●	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-001-0	01	1	1310-1404		●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-001-0	01	1	1405-1412	●	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98098-001-0	01	1	1501-1508	●	●
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-003-0	01	1	1310-1404		●
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-003-0	01	1	1405-	●	●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-004-0	01	1	1310-1404		●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-004-0	01	1	1405-	●	●
327	CLIP; COVER	1-09987-273-0	01	1	1310-1404	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-273-0	01	1	1310-1404		●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-273-0	01	1	1405-	●	●
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-002-0	01	1	1310-1404		●
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-002-0	01	1	1405-	●	●

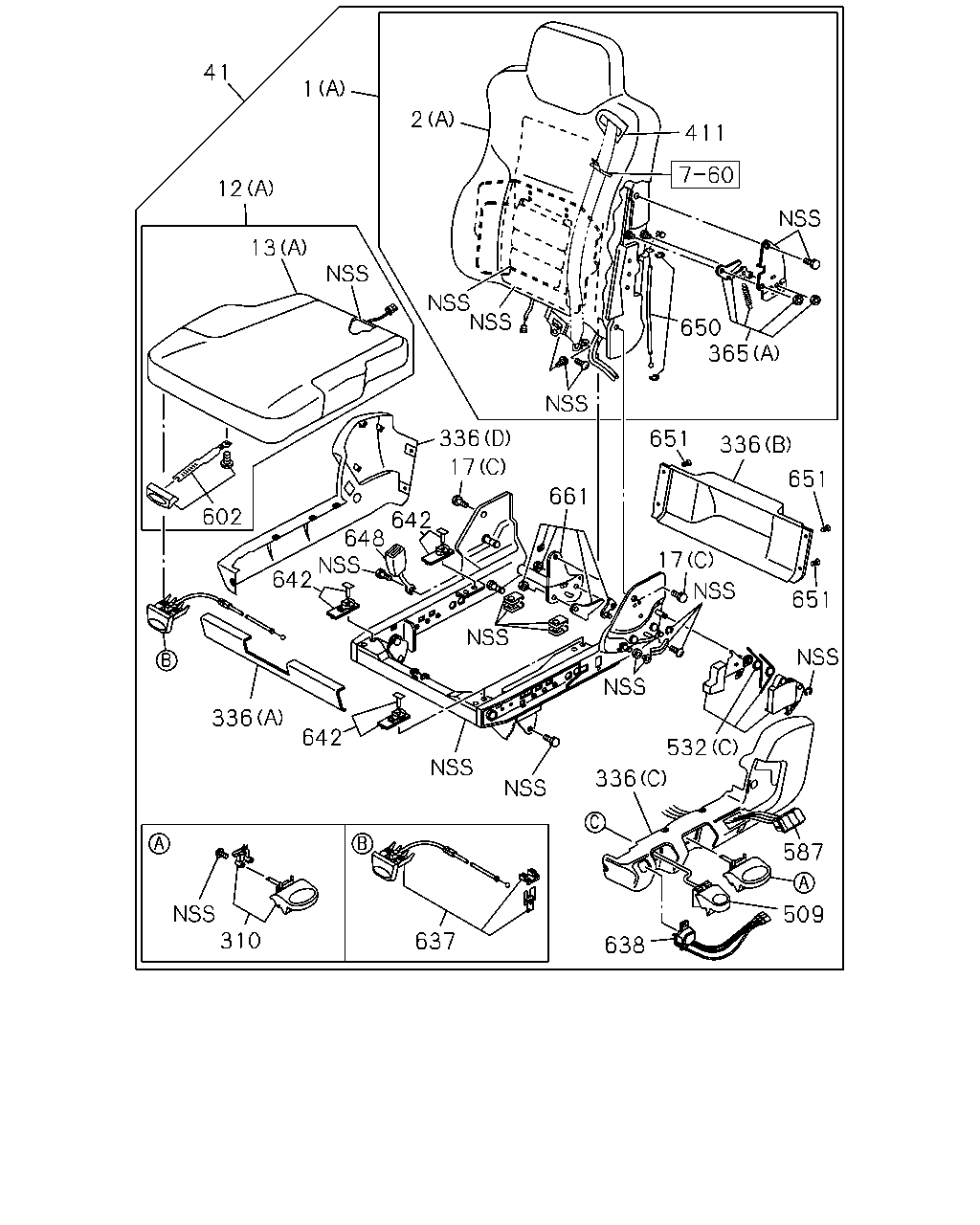

2 1 41 411 650 336 651 661 17 13 12 365 651 651 17 336 642 648 642 602 336 642 336 587 532 638 509 310 637

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A)	8-98333-914-0	01	1	1501-	●	●
1	BACK ASM; SEAT (B) DARK GRAY	8-97421-408-1	01	1	1310-1404	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1310-1404		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1405-1512	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97466-623-0	01	1	1601-	●	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-962-0	01	1	1310-1404		●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-962-0	01	1	1405-1412	●	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-962-0	01	1	1501-	●	●
2	COVER; TRIM,FRT SEAT,BACK (B) DARK GRAY	8-97421-413-0	01	1	1310-1404	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1310-1404		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1405-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98232-352-0	01	1	1310-1404		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98232-352-0	01	1	1405-	●	●
12	CUSHION; SEAT,FRT (B) DARK GRAY	8-97421-400-1	01	1	1310-1404	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-1	01	1	1310-1404		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-2	01	1	1405-1512	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97466-613-0	01	1	1601-	●	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-006-0	01	1	1310-1404		●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-006-0	01	1	1405-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION (B) DARK GRAY	8-97421-404-1	01	1	1310-1404	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-1	01	1	1310-1404		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-2	01	1	1405-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-007-0	01	1	1310-1404		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-007-0	01	1	1405-	●	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1510-	●	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1310-1404	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1310-1404		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1405-1506	●	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1310-	●	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	1310-1404		●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	1405-	●	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX>	8-98302-798-1	01	1	1501-	●	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98195-065-0	01	1	1310-1404		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98195-065-0	01	1	1405-1412	●	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98195-065-1	01	1	1501-	●	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-991-0	01	1	1310-1404		●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-991-0	01	1	1405-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (D)	8-98333-916-0	01	1	1501-1508	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (D)	8-98333-916-0	01	1	1509-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (D)	8-98097-977-0	01	1	1310-1404		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (D)	8-98097-977-0	01	1	1405-1412	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (D)	8-98097-977-0	01	1	1501-1508	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-983-0	01	1	1310-1404		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-983-0	01	1	1405-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-995-0	01	1	1310-1404		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-995-0	01	1	1405-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98097-996-0	01	1	1310-1404		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98097-996-0	01	1	1405-	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1310-	●	●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-972-0	01	1	1310-1404		●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-972-0	01	1	1405-	●	●
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-967-0	01	1	1310-1404		●
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-967-0	01	1	1405-	●	●
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-987-0	01	1	1310-1404		●
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-987-0	01	1	1405-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1510-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1510-	●	●
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	1310-1404	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1310-1404		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1405-1506	●	●
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	1310-1404	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1310-1404		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1405-1506	●	●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-981-0	01	1	1310-1404		●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-981-0	01	1	1405-	●	●
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-985-0	01	1	1310-1404		●
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-985-0	01	1	1405-	●	●
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-008-0	01	1	1310-1404		●
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-008-0	01	1	1405-	●	●
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-989-0	01	1	1310-1404		●
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-989-0	01	1	1405-	●	●
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-993-0	01	1	1310-1404		●
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-993-0	01	1	1405-	●	●
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT<SJA>	8-98192-932-0	04	1	1310-1404		●
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT<SJA>	8-98192-932-0	04	1	1405-	●	●
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-976-0	01	1	1310-1404		●
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-976-0	01	1	1405-	●	●
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98232-354-0	01	1	1310-1404		●
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98232-354-0	01	1	1405-	●	●
651	RIVET DRIVER ISRINGHAUSEN SEAT<SJA>	8-98194-075-0	04	1	1310-1404		●
651	RIVET DRIVER ISRINGHAUSEN SEAT<SJA>	8-98194-075-0	04	1	1405-	●	●
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-979-0	01	1	1310-1404		●
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-979-0	01	1	1405-	●	●

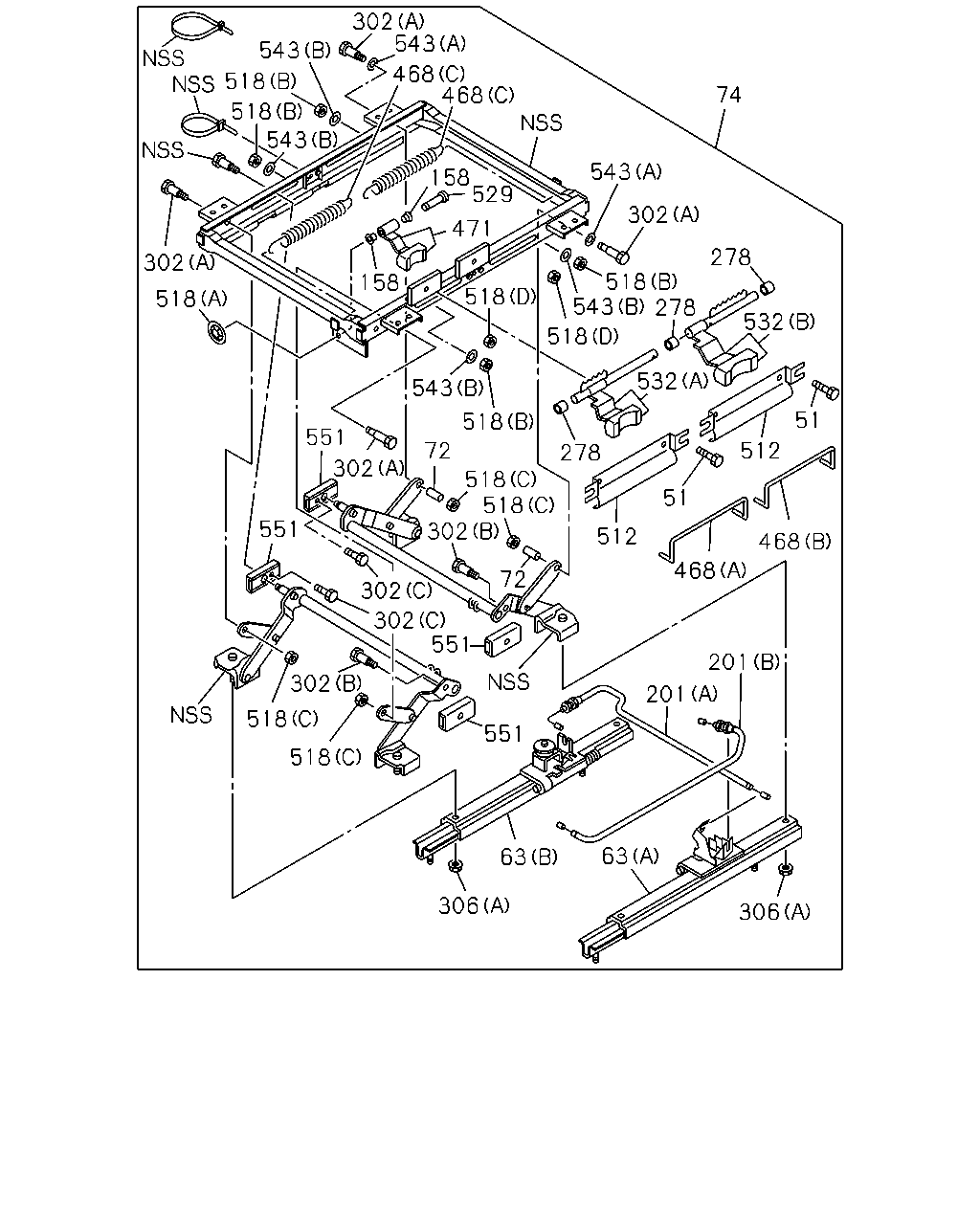

518 543 302 543 468 468 543 74 302 278 532 51 512 51 512 468 201 201 468 306 63 63 306 518 551 518 302 551 302 72 302 302 551 72 518 518 518 543 518 518 278 302 551 518 302 518 543 158 471 158 529 518 543 278 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1510-	●	●
51	SCREW; COVER	1-75518-325-1	04	1	1310-1404	●
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1310-1404		●
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1405-1506	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1510-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1510-	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	1310-1404	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1310-1404		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1405-1506	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-324-0	01	1	1310-1404	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1310-1404		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1405-1506	●	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98098-005-0	01	1	1310-1404		●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98098-005-0	01	1	1405-	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1510-	●	●
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	1310-1404	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	1310-1404		●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	1405-1502	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-1506	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1510-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98093-429-0	01	1	1310-1404	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1310-1404		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1405-1502	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-1506	●	●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	1510-	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1310-1404	●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	1310-1404		●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	1405-1506	●	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	1510-	●	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	1510-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1310-1404	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	1310-1404		●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	1405-1506	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1310-1404	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	1310-1404		●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	1405-1506	●	●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1510-	●	●
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1310-1404	●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1310-1404		●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1405-1506	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1510-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1510-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1510-	●	●
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-266-2	02	1	1310-1404	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1310-1404		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1405-1506	●	●
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	1310-1404	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	1310-1404		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	1405-1502	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-1506	●	●
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-336-1	02	1	1310-1404	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1310-1404		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1405-1506	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1310-1404	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1310-1404		●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1405-1506	●	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1310-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-	●	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1310-1404	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1310-1404		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1405-1506	●	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1310-1404	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1310-1404		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1405-1506	●	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1310-1404	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1310-1404		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1405-1506	●	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1310-1404	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1310-1404		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1405-1506	●	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	1510-	●	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1310-1404	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	1310-1404		●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	1405-1506	●	●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1510-	●	●
512	COVER; LEVER	1-75518-245-1	02	1	1310-1404	●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1310-1404		●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1405-1506	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1510-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1310-1404	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1310-1404		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1405-1506	●	●
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1310-1404	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1310-1404		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1405-1506	●	●
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1310-1404	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1310-1404		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1405-1506	●	●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1310-1404	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1310-1404		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1405-1506	●	●
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1310-1404	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1310-1404		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1405-1506	●	●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	1510-	●	●
529	PIN; LINK	1-75518-262-0	01	1	1310-1404	●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	1310-1404		●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	1405-1506	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1510-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1510-	●	●
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	1310-1404	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1310-1404		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1405-1506	●	●
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	1310-1404	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1310-1404		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1405-1506	●	●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-981-0	01	1	1310-1404		●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-981-0	01	1	1405-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1510-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1510-	●	●
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	1310-1404	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	1310-1404		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	1405-1502	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1506	●	●
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1310-1404	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1310-1404		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1405-1506	●	●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1510-	●	●
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1310-1404	●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1310-1404		●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1405-1506	●	●

62 66 80 88 86 66 85 79 77 78 76 86 79 322 85 470 87 513 85 468 467 339 79 85 81 79 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1510-	●	●
62	DAMPER ASM; SEAT SUSP	1-75538-185-8	01	1	1310-1403	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	1310-1403		●
62	DAMPER ASM; SEAT SUSP	8-98261-451-0	01	1	1404-1404	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-1404		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1405-1506	●	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1510-	●	●
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1310-1404	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1310-1404		●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1405-1506	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1510-	●	●
76	DAMPER; AIR SUSP (B)	1-75538-139-0	01	1	1310-1404	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1310-1404		●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1405-1506	●	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-999-0	01	1	1310-1404		●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-999-0	01	1	1405-	●	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1510-	●	●
77	PIN; DAMPER	1-75538-138-2	01	1	1310-1404	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1310-1404		●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1405-1506	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1510-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1510-	●	●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1310-1404	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1310-1404		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1405-1506	●	●
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1310-1404	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1310-1404		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1405-1506	●	●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98101-900-0	02	1	1310-1404		●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98101-900-0	02	1	1405-	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1510-	●	●
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	1310-1403	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	1310-1403		●
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1404-1404	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-1404		●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1405-1506	●	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1510-	●	●
80	RUBBER; STOPPER	1-09987-123-0	01	1	1310-1404	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1310-1404		●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1405-1506	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1510-	●	●
81	SPRING; AIR (B)	1-75538-151-2	01	1	1310-1312	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	1310-1312		●
81	SPRING; AIR (B)	8-98242-816-0	01	1	1401-1404	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-1404		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1405-1506	●	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-000-0	01	1	1310-1404		●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-000-0	01	1	1405-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1510-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1510-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-	●	●
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1404	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1404		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1405-1506	●	●
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1310-1404	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1310-1404		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1405-1506	●	●
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1310-1404	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1310-1404		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1405-1506	●	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1310-1312	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1310-1312		●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1404	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1404		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1405-1506	●	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-	●	●
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1310-1404	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1310-1404		●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1405-1506	●	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1510-	●	●
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1310-1404	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1310-1404		●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1405-1506	●	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-	●	●
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1310-1404	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1310-1404		●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1405-1506	●	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A)	8-98331-314-0	01	1	1501-1508	●	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98331-314-0	01	1	1509-	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1510-	●	●
322	VALVE; AIR SPRING (B)	1-75538-187-3	01	1	1310-1404	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1310-1404		●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1405-1506	●	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-001-0	01	1	1310-1404		●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-001-0	01	1	1405-1412	●	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98098-001-0	01	1	1501-1508	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-	●	●
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1310-1404	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1310-1404		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1405-1506	●	●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1310-1404	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98014-971-0	01	1	1310-1404		●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1405-	●	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1510-	●	●
467	LEVER; LOCK	1-75538-134-0	01	1	1310-1404	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1310-1404		●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1405-1506	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-	●	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1310-1404	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1310-1404		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1405-1506	●	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1310-1404	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1310-1404		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1405-1506	●	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1310-1404	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1310-1404		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1405-1506	●	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1310-1404	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1310-1404		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1405-1506	●	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1510-	●	●
470	CLIP; HOSE	1-75538-137-0	01	1	1310-1404	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1310-1404		●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1405-1506	●	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1510-	●	●
513	SPACER; LEVER	1-75538-133-0	01	1	1310-1404	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1310-1404		●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1405-1506	●	●

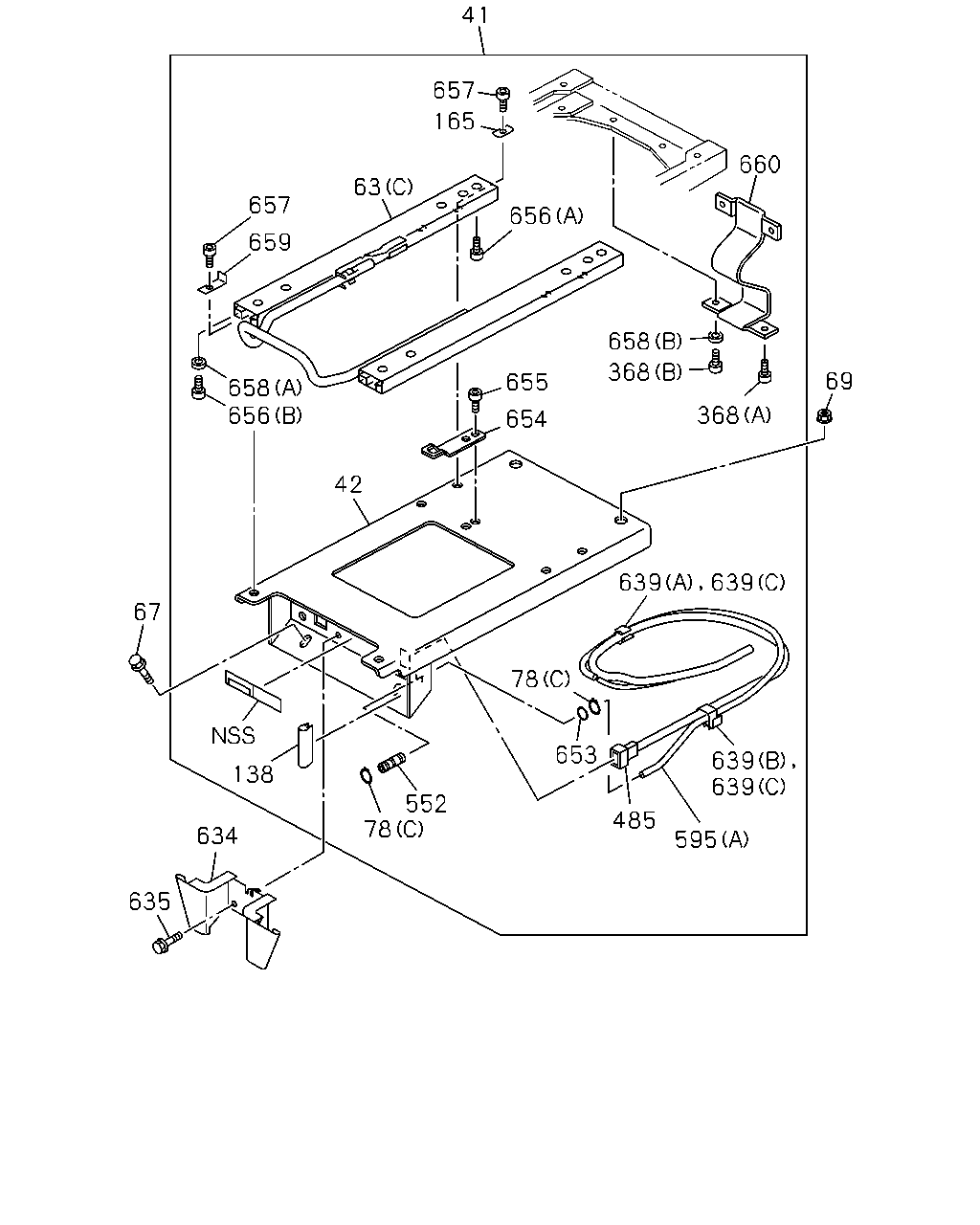

41 657 63 657 659 658 656 42 67 138 552 78 634 635 78 653 485 595 639 639 639 639 654 655 658 368 368 69 660 656 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX>	8-98302-798-1	01	1	1501-	●	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98195-065-0	01	1	1310-1404		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98195-065-0	01	1	1405-1412	●	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98195-065-1	01	1	1501-	●	●
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-346-0	01	1	1310-1404		●
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-346-0	01	1	1405-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1510-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1510-	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	1310-1404	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1310-1404		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1405-1506	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-324-0	01	1	1310-1404	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1310-1404		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1405-1506	●	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98098-005-0	01	1	1310-1404		●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98098-005-0	01	1	1405-	●	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1310-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1310-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1510-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1510-	●	●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1310-1404	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1310-1404		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1405-1506	●	●
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1310-1404	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1310-1404		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1405-1506	●	●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98101-900-0	02	1	1310-1404		●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98101-900-0	02	1	1405-	●	●
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-351-0	01	1	1310-1404		●
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-351-0	01	1	1405-	●	●
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT<SJA>	1-75590-086-0	04	1	1310-1404		●
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT<SJA>	1-75590-086-0	04	1	1405-	●	●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-353-0	03	1	1310-1404		●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-353-0	03	1	1405-	●	●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-358-0	01	1	1310-1404		●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-358-0	01	1	1405-	●	●
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-360-0	01	1	1310-1404		●
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-360-0	01	1	1405-	●	●
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT<SJA>	8-98101-902-0	01	1	1310-1404		●
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT<SJA>	8-98101-902-0	01	1	1405-1508	●	●
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT<SJA>	8-98308-101-0	01	1	1509-	●	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1310-1404	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98067-762-0	01	1	1310-1404		●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1405-	●	●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-348-0	01	1	1310-1404		●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-348-0	01	1	1405-	●	●
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98088-279-0	01	1	1310-1404		●
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98088-279-0	01	1	1405-	●	●
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT<SJA> M6X16	0-52000-616-0	02	1	1310-1404		●
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT<SJA> M6X16	0-52000-616-0	02	1	1405-	●	●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-349-0	01	1	1310-1404		●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-349-0	01	1	1405-1508	●	●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98308-100-0	02	1	1509-	●	●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-350-0	01	1	1310-1404		●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-350-0	01	1	1405-1508	●	●
653	GASKET DRIVER ISRINGHAUSEN SEAT<SJA>	8-98101-901-0	01	1	1310-1404		●
653	GASKET DRIVER ISRINGHAUSEN SEAT<SJA>	8-98101-901-0	01	1	1405-	●	●
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-352-0	01	1	1310-1404		●
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-352-0	01	1	1405-	●	●
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-353-0	02	1	1310-1404		●
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-353-0	02	1	1405-	●	●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	1-75590-085-0	04	1	1310-1404		●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	1-75590-085-0	04	1	1405-	●	●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-354-0	02	1	1310-1404		●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-354-0	02	1	1405-	●	●
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT<SJA>	1-75590-085-0	06	1	1310-1404		●
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT<SJA>	1-75590-085-0	06	1	1405-	●	●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-355-0	02	1	1310-1404		●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-355-0	02	1	1405-	●	●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-359-0	01	1	1310-1404		●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-359-0	01	1	1405-	●	●
659	STOPPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-356-0	02	1	1310-1404		●
659	STOPPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-356-0	02	1	1405-	●	●
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-357-0	01	1	1310-1404		●
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-357-0	01	1	1405-	●	●

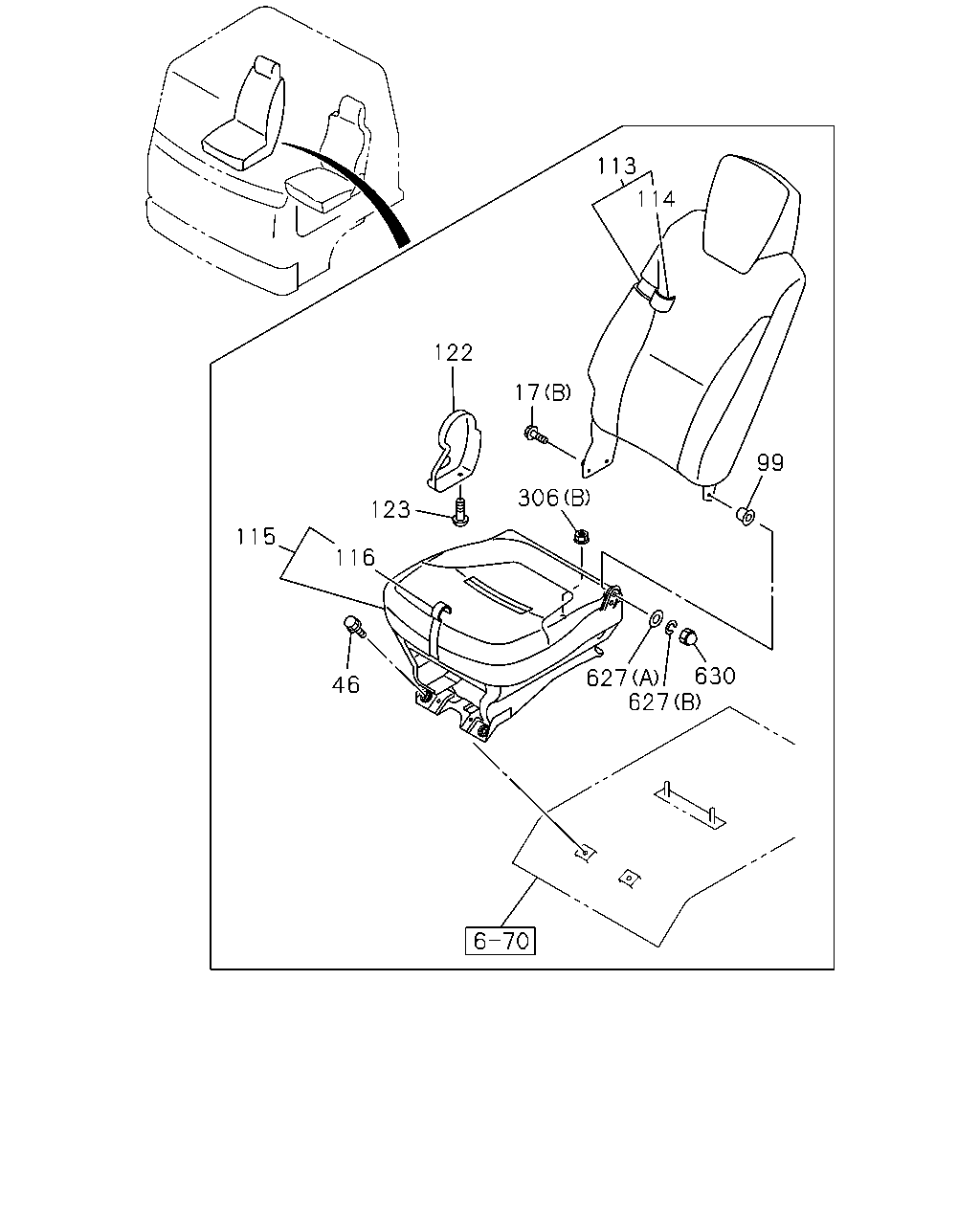

113 99 17 122 306 123 116 115 46 627 627 114 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1510-	●	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1310-1404	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1310-1404		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1405-1506	●	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1310-	●	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	1310-1404		●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	1405-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1310-	●	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1310-	●	●
113	BACK ASM; SEAT DARK GRAY	8-97421-423-0	01	1	1310-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-425-0	01	1	1310-	●	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-419-2	01	1	1310-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-421-1	01	1	1310-	●	●
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	1310-	●	●
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1310-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1310-1404	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1310-1404		●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1405-1506	●	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1310-	●	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1310-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1310-	●	●
630	NUT; CAP M8	8-98063-225-0	01	1	1310-	●	●

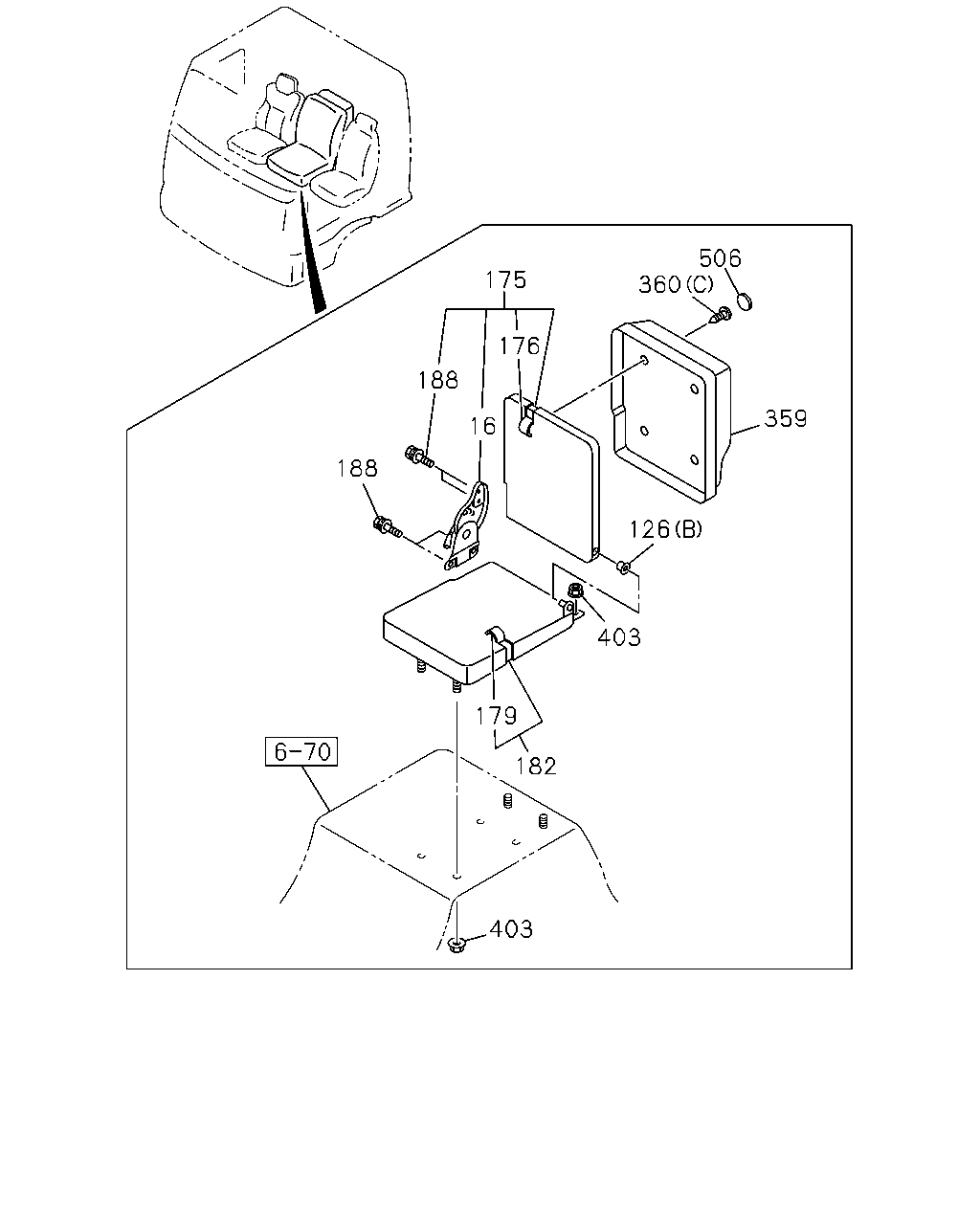

506 359 126 403 182 179 176 175 188 188 403 16 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1310-	●	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1510-1512	●	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98286-007-0	01	1	1601-	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1310-	●	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1310-1404	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1310-1404		●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1405-1506	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1310-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1310-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-433-1	01	1	1310-	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-431-3	01	1	1310-	●	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1310-	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1310-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1310-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1310-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1310-	●	●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1310-	●	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1310-	●	●

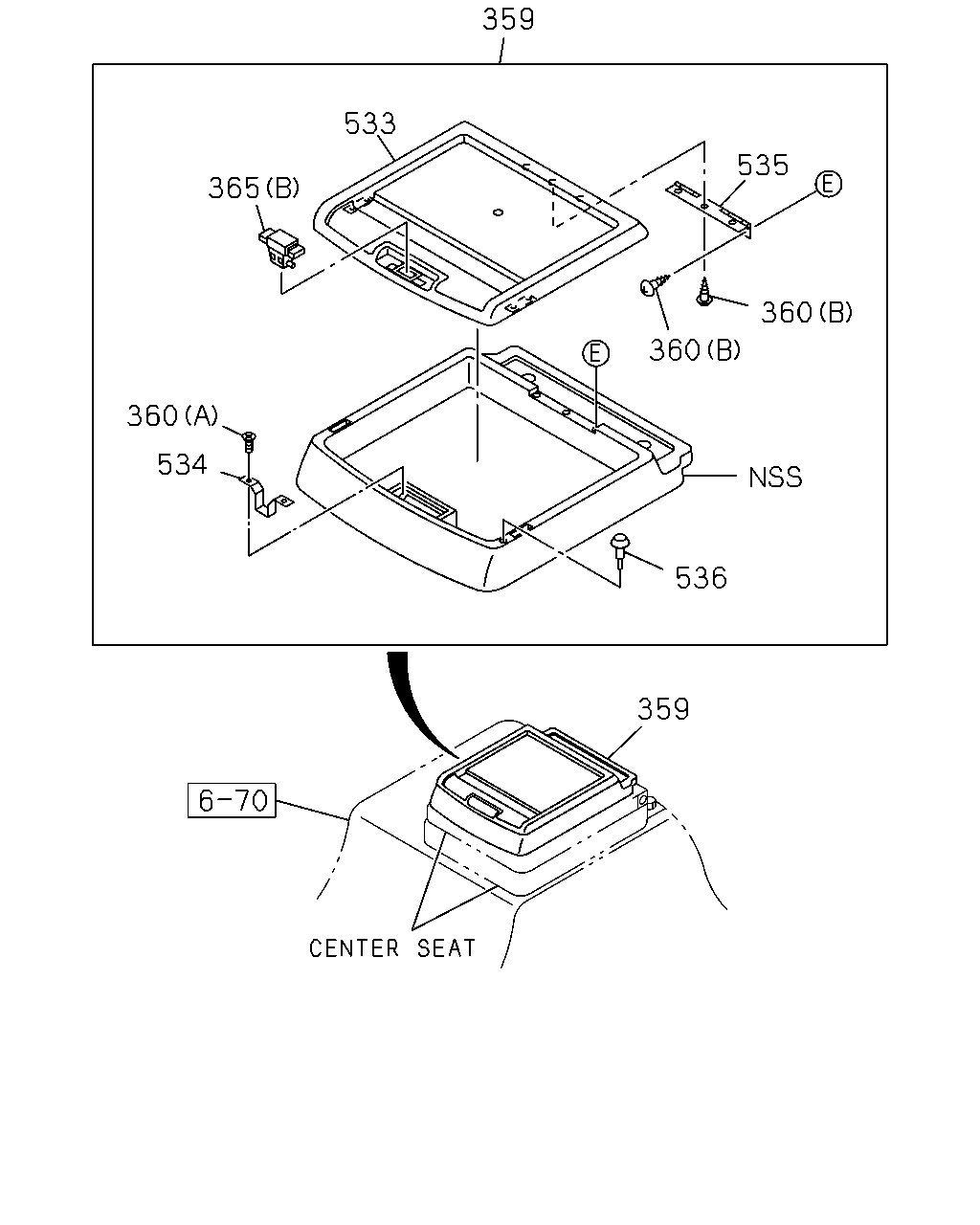

359 533 365 360 534 360 360 535 536 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1310-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1310-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1310-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1310-	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1310-	●	●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-972-0	01	1	1310-1404		●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-972-0	01	1	1405-	●	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1310-	●	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1310-	●	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1310-	●	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1310-	●	●

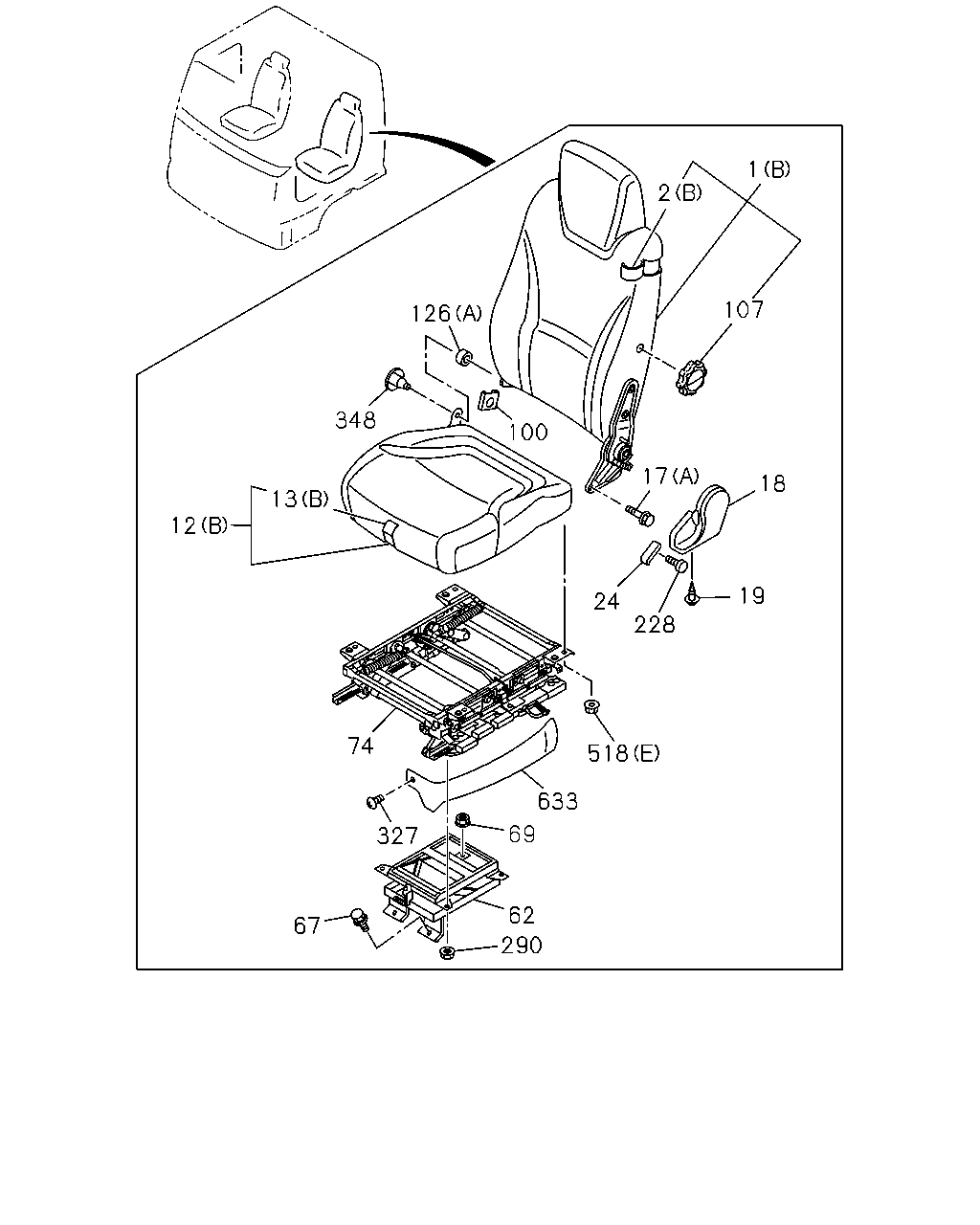

1 2 107 18 19 228 24 518 633 69 62 290 327 67 74 17 126 100 348 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A)	8-98333-914-0	01	1	1501-	●	●
1	BACK ASM; SEAT (B) DARK GRAY	8-97421-408-1	01	1	1310-1404	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1310-1404		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1405-1512	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97466-623-0	01	1	1601-	●	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-962-0	01	1	1310-1404		●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-962-0	01	1	1405-1412	●	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-962-0	01	1	1501-	●	●
2	COVER; TRIM,FRT SEAT,BACK (B) DARK GRAY	8-97421-413-0	01	1	1310-1404	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1310-1404		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1405-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98232-352-0	01	1	1310-1404		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98232-352-0	01	1	1405-	●	●
12	CUSHION; SEAT,FRT (B) DARK GRAY	8-97421-400-1	01	1	1310-1404	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-1	01	1	1310-1404		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-2	01	1	1405-1512	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97466-613-0	01	1	1601-	●	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-006-0	01	1	1310-1404		●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-006-0	01	1	1405-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION (B) DARK GRAY	8-97421-404-1	01	1	1310-1404	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-1	01	1	1310-1404		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-2	01	1	1405-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-007-0	01	1	1310-1404		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-007-0	01	1	1405-	●	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1510-	●	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1310-1404	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1310-1404		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1405-1506	●	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1310-	●	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	1310-1404		●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	1405-	●	●
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	1310-1404	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-361-0	01	1	1310-1404		●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-361-0	01	1	1405-	●	●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	1510-	●	●
19	SCREW; COVER M5	8-98062-663-0	01	1	1310-1404	●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	1310-1404		●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	1405-1506	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1310-1404	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-362-0	01	1	1310-1404		●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-362-0	01	1	1405-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1510-	●	●
62	DAMPER ASM; SEAT SUSP	1-75538-185-8	01	1	1310-1403	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	1310-1403		●
62	DAMPER ASM; SEAT SUSP	8-98261-451-0	01	1	1404-1404	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-1404		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1405-1506	●	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1310-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1310-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1510-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98093-429-0	01	1	1310-1404	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1310-1404		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1405-1502	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-1506	●	●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1510-1512	●	●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98286-009-0	01	1	1601-	●	●
100	COVER; HINGE	8-98203-070-0	01	1	1310-1404	●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1310-1404		●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1405-1506	●	●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1510-	●	●
107	DIAL; SEAT RECLINING	8-98063-174-0	01	1	1310-1404	●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1310-1404		●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1405-1506	●	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1510-1512	●	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98286-007-0	01	1	1601-	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1310-	●	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1310-1404	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1310-1404		●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1405-1506	●	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	1510-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1310-1404	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	1310-1404		●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	1405-1506	●	●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1510-	●	●
290	NUT; ADJ TO SUSP M8 FLANGE	1-75538-207-0	04	1	1310-1404	●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1310-1404		●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1405-1506	●	●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-004-0	01	1	1310-1404		●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-004-0	01	1	1405-	●	●
327	CLIP; COVER	1-09987-273-0	01	1	1310-1404	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-273-0	01	1	1310-1404		●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-273-0	01	1	1405-	●	●
348	BOLT; HINGE,SEAT AIR SUSP DRIVER SEAT<A56>	8-98286-008-0	01	1	1601-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1510-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1310-1404	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1310-1404		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1405-1506	●	●
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1310-1404	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1310-1404		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1405-1506	●	●
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1310-1404	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1310-1404		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1405-1506	●	●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1310-1404	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1310-1404		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1405-1506	●	●
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1310-1404	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1310-1404		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1405-1506	●	●
633	COVER; ADJ,TILT GRAY	8-97414-118-0	01	1	1310-1404	●
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	1310-1404		●
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	1405-	●	●

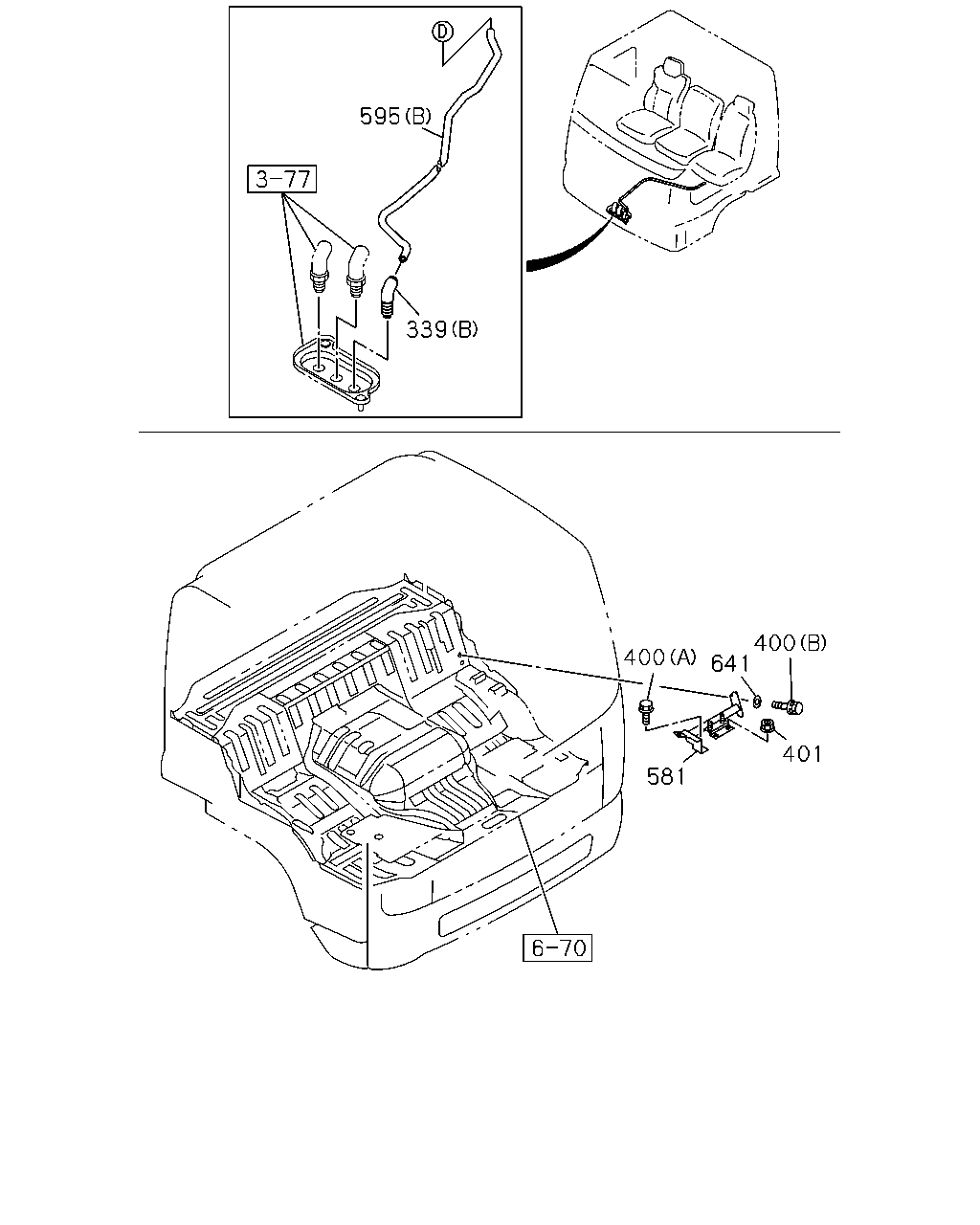

595 339 400 400 641 401 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-	●	●
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1310-1404	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1310-1404		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1405-1506	●	●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1310-1404	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98014-971-0	01	1	1310-1404		●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1405-	●	●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	1310-1404		●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	1405-	●	●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98098-996-0	02	1	1310-1404		●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98098-996-0	02	1	1405-	●	●
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> M10 FLANGE	0-91180-110-0	02	1	1310-1404		●
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> M10 FLANGE	0-91180-110-0	02	1	1405-	●	●
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98049-531-3	01	1	1310-1404		●
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98049-531-3	01	1	1405-	●	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1310-1404	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98067-762-0	01	1	1310-1404		●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1405-	●	●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-348-0	01	1	1310-1404		●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-348-0	01	1	1405-	●	●
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98099-007-0	02	1	1310-1404		●
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98099-007-0	02	1	1405-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
