◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#128307) — 22 parça

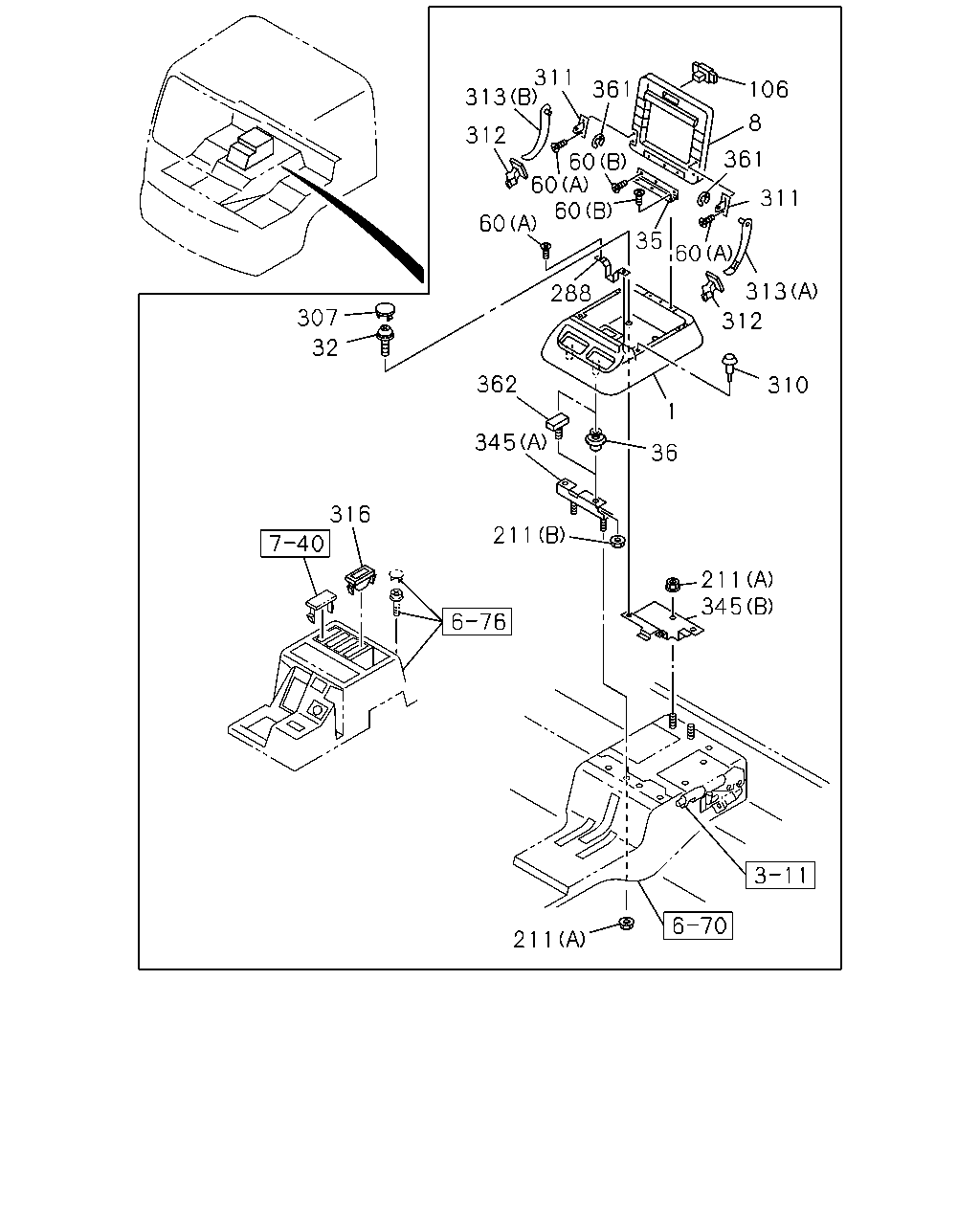

çizim 379672
36 310 312 313 311 361 8 106 361 311 313 312 60 288 35 60 60 362 345 211 316 32 307 60 60 211 345 211 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOX; PARCEL
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97408-710-0 01 1 1310- ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97408-712-0 01 1 1310- ● ●
32 SCREW; PARCEL BOX
CENTER SEAT DELETE 2 CREWS<SP9> M6X16 		0-38050-616-0 02 1 1310- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-182-1 01 1 1310- ● ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-09984-190-0 02 1 1310- ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 1310- ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (B) M5X14 		8-94279-325-0 04 1 1310- ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-312-0 01 1 1310- ● ●
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A) M8 FLANGE 		0-91180-108-0 04 1 1310- ● ●
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B) M8 FLANGE 		8-94279-518-0 02 1 1310- ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-190-0 01 1 1310- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97407-951-0 02 1 1310- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-187-0 02 1 1310- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-188-2 02 1 1310- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-186-1 02 1 1310- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-184-3 01 1 1310- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B) 		1-72538-185-3 01 1 1310- ● ●
316 BOX; COIN 8-94482-280-2 02 1 1310- ● ●
345 BRACKET; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-232-1 01 1 1310- ● ●
345 BRACKET; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B) 		1-72538-233-0 01 1 1310- ● ●
361 RING; SNAP
CENTER SEAT DELETE 2 CREWS<SP9> ID=5 		9-09185-405-0 02 1 1310- ● ●
362 STUD; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-308-0 02 1 1310- ● ●
