◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#128306) — 64 parça

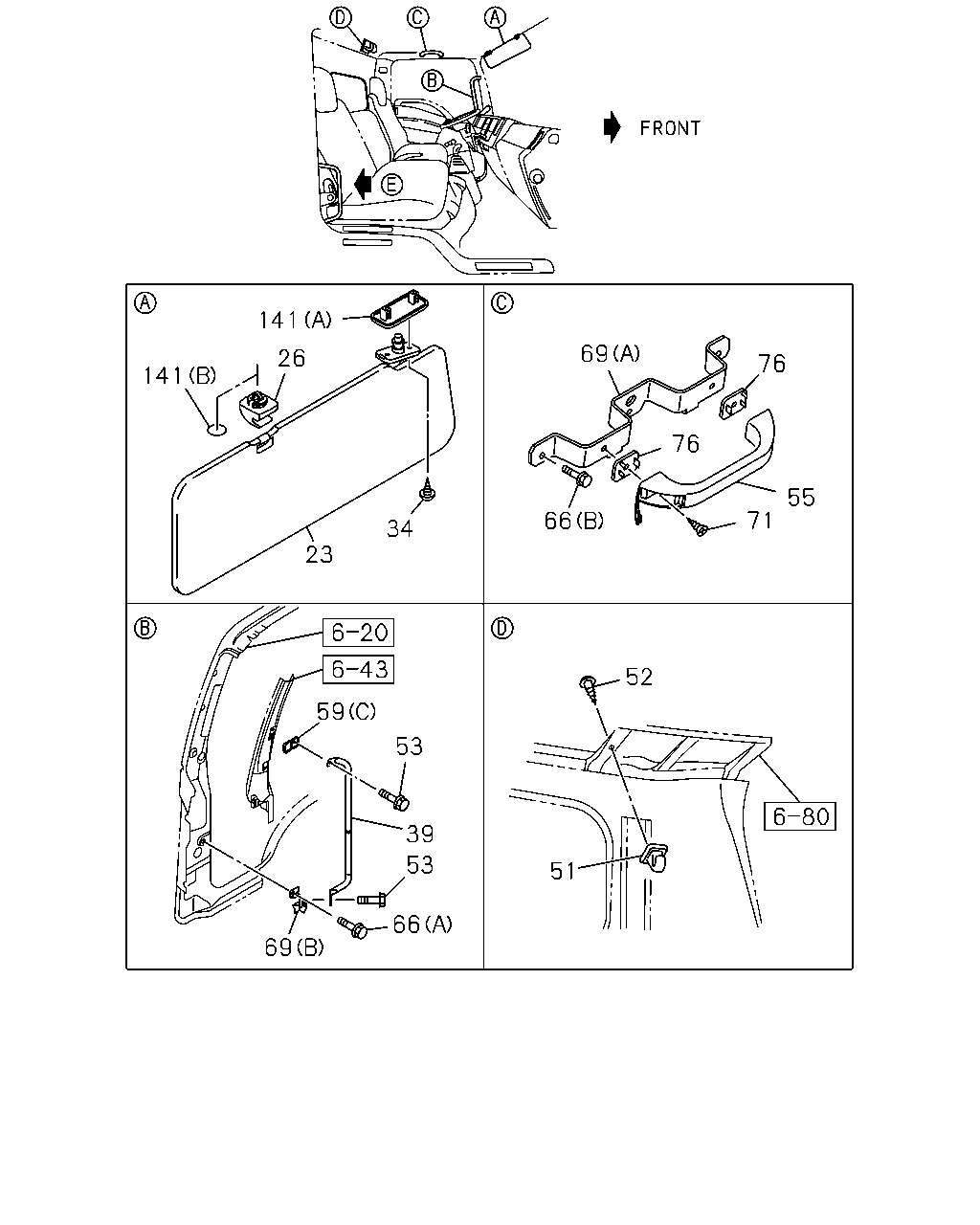

çizim 379682
141 141 26 23 34 59 53 39 53 66 69 52 51 69 76 55 71 76 66
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
DARK GRAY 		8-97407-373-2 01 1 1310- ● ●
23 SUN VISOR
DARK GRAY 		8-97427-612-0 01 1 1310- ● ●
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1310- ● ●
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1310- ● ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 1310- ● ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 1310- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97412-923-1 01 1 1310- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97412-924-1 01 1 1310- ● ●
51 HOOK; COAT HANGER
DARK GRAY 		8-97409-845-0 02 1 1310- ● ●
52 SCREW; HOOK
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 1310- ● ●
53 SCREW; ASSIST HANDLE
M8X20 FLANGE 		0-28650-820-0 04 1 1310- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 1310- ● ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1310- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1310- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1310- ● ●
66 BOLT; ASSIST GRIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1310- ● ●
66 BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE 		8-97108-669-0 06 1 1310- ● ●
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 02 1 1310- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-973-3 01 1 1310- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-974-3 01 1 1310- ● ●
71 SCREW
M6X28 		8-98004-344-0 02 1 1310- ● ●
76 SPACER; ASSIST GRIP
DARK GRAY 		8-97405-286-0 02 1 1310- ● ●
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1310- ● ●
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1310- ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1310-1401 ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1310-1401 ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1402- ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1402- ● ●

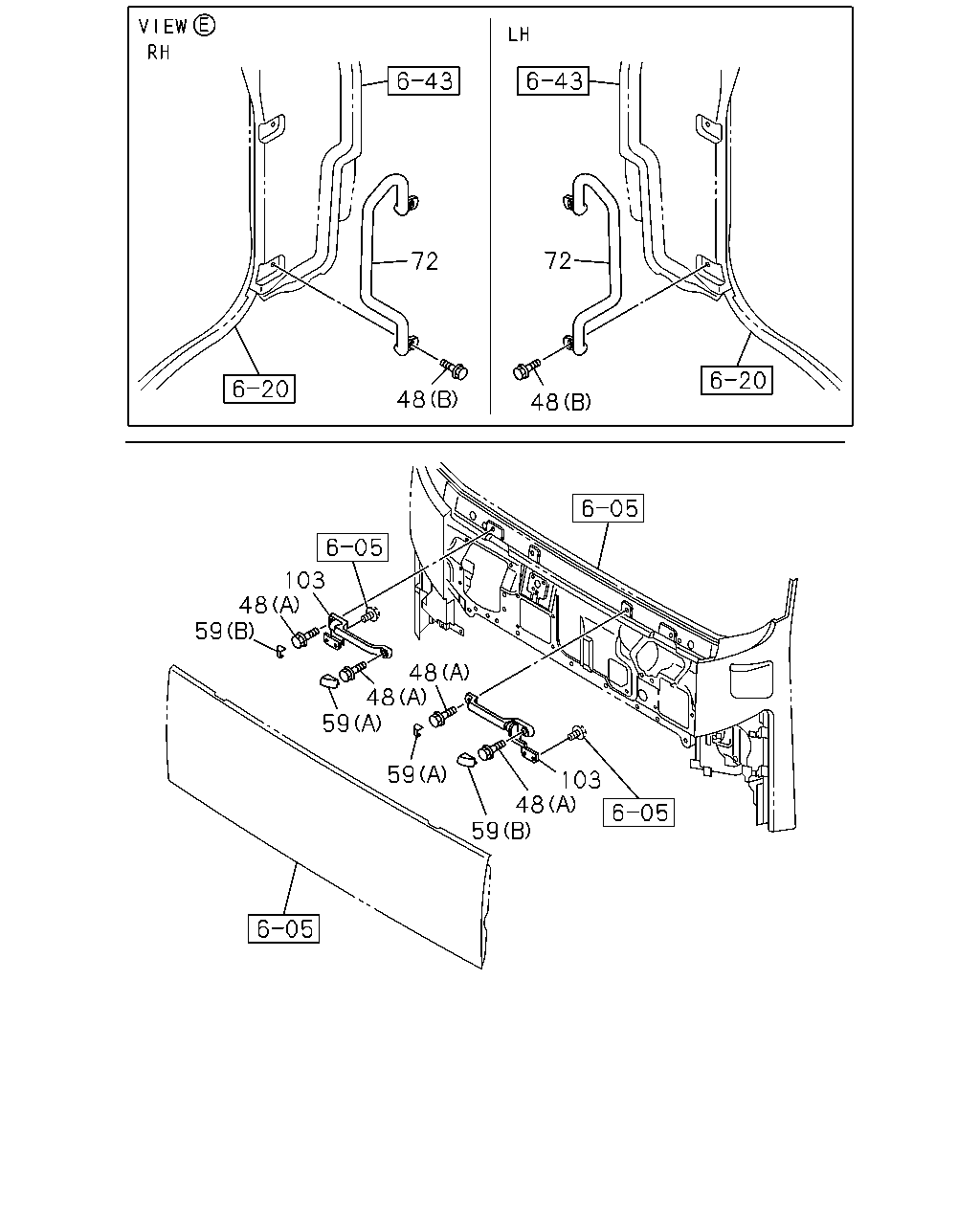

çizim 379704
48 48 72 72 103 48 59 59 59 59 103 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1310- ● ●
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1310- ● ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1310- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1310- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1310- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK 8-98084-136-1 01 1 1310- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK 8-98084-137-1 01 1 1310- ● ●
103 GRIP; ASSIST,FRT PNL 8-98036-565-1 01 1 1310- ● ●
103 GRIP; ASSIST,FRT PNL 8-98036-566-1 01 1 1310- ● ●

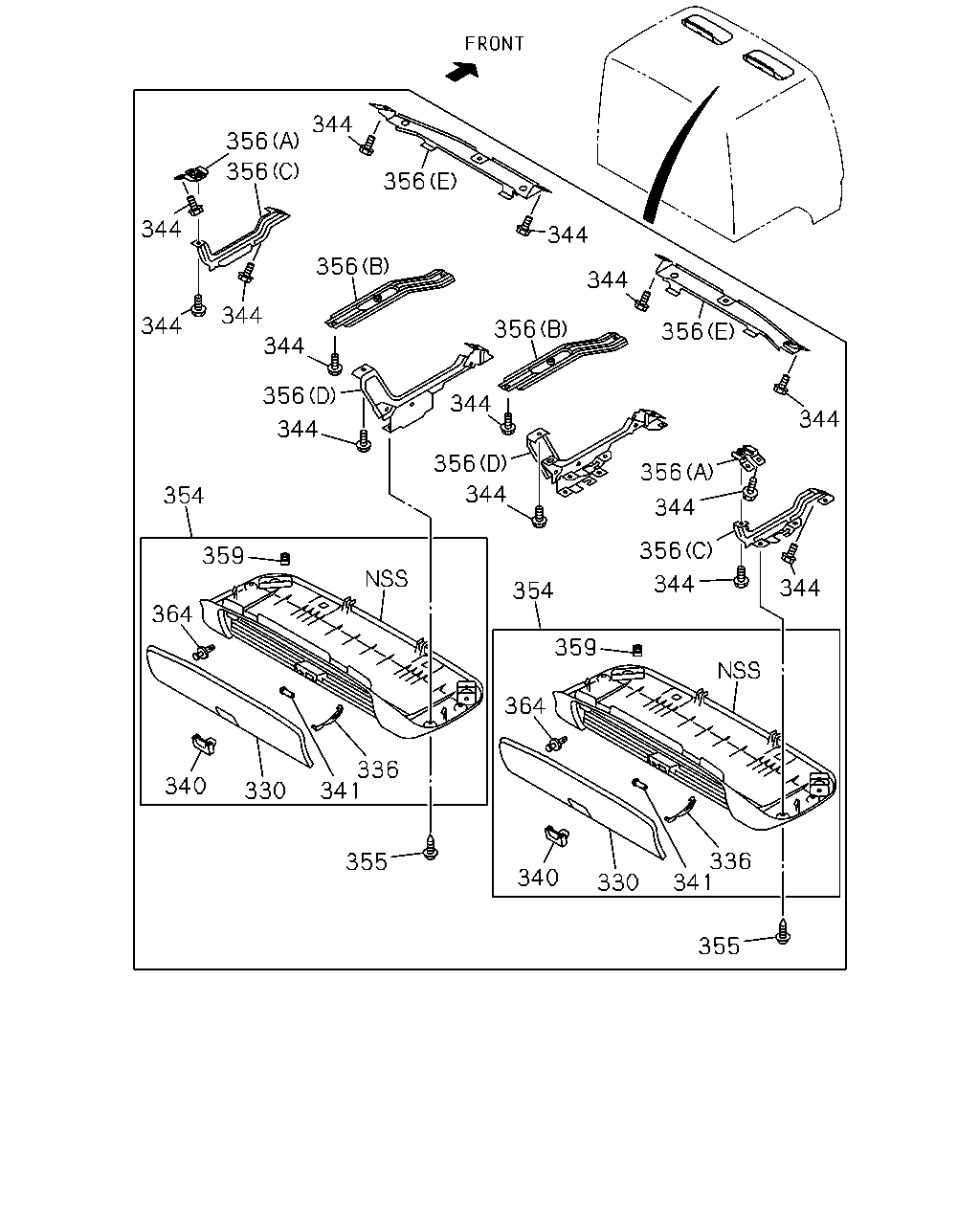

çizim 381820
344 356 344 344 356 344 356 356 344 344 344 356 344 356 344 356 344 356 344 356 344 356 344 344 354 359 364 340 330 341 336 355 354 359 364 340 330 341 355 336
BalonParca AdiParca NoAdetTipApplied Date A B
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 1310- ● ●
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 1310- ● ●
336 STAY; LID 1-72448-379-3 02 1 1310- ● ●
336 STAY; LID 1-72448-379-3 02 1 1310- ● ●
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 1310- ● ●
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 1310- ● ●
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 1310- ● ●
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 1310- ● ●
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 20 1 1310- ● ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97407-386-5 01 1 1310-1401 ● ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97407-386-5 01 1 1310-1401 ● ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97428-821-0 01 1 1402- ● ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97428-821-0 01 1 1402- ● ●
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1310- ● ●
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1310- ● ●
356 BRACKET; ROOF OUTER
(A) 		8-97386-874-1 02 1 1310- ● ●
356 BRACKET; ROOF OUTER
(B) 		8-98010-059-0 02 1 1310- ● ●
356 BRACKET; ROOF OUTER
(C) 		8-98014-088-3 01 1 1310- ● ●
356 BRACKET; ROOF OUTER
(C) 		8-98016-871-3 01 1 1310- ● ●
356 BRACKET; ROOF OUTER
(D) 		8-98023-257-2 01 1 1310- ● ●
356 BRACKET; ROOF OUTER
(D) 		8-98042-009-2 01 1 1310- ● ●
356 BRACKET; ROOF OUTER
(E) 		8-98042-015-3 01 1 1310- ● ●
356 BRACKET; ROOF OUTER
(E) 		8-98042-016-3 01 1 1310- ● ●
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 1310- ● ●
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 1310- ● ●
364 STOPPER; LID 8-98010-867-1 03 1 1310- ● ●
364 STOPPER; LID 8-98010-867-1 03 1 1310- ● ●
