7-20 — MIRROR AND MIRROR STAY (#128302) — 141 parça

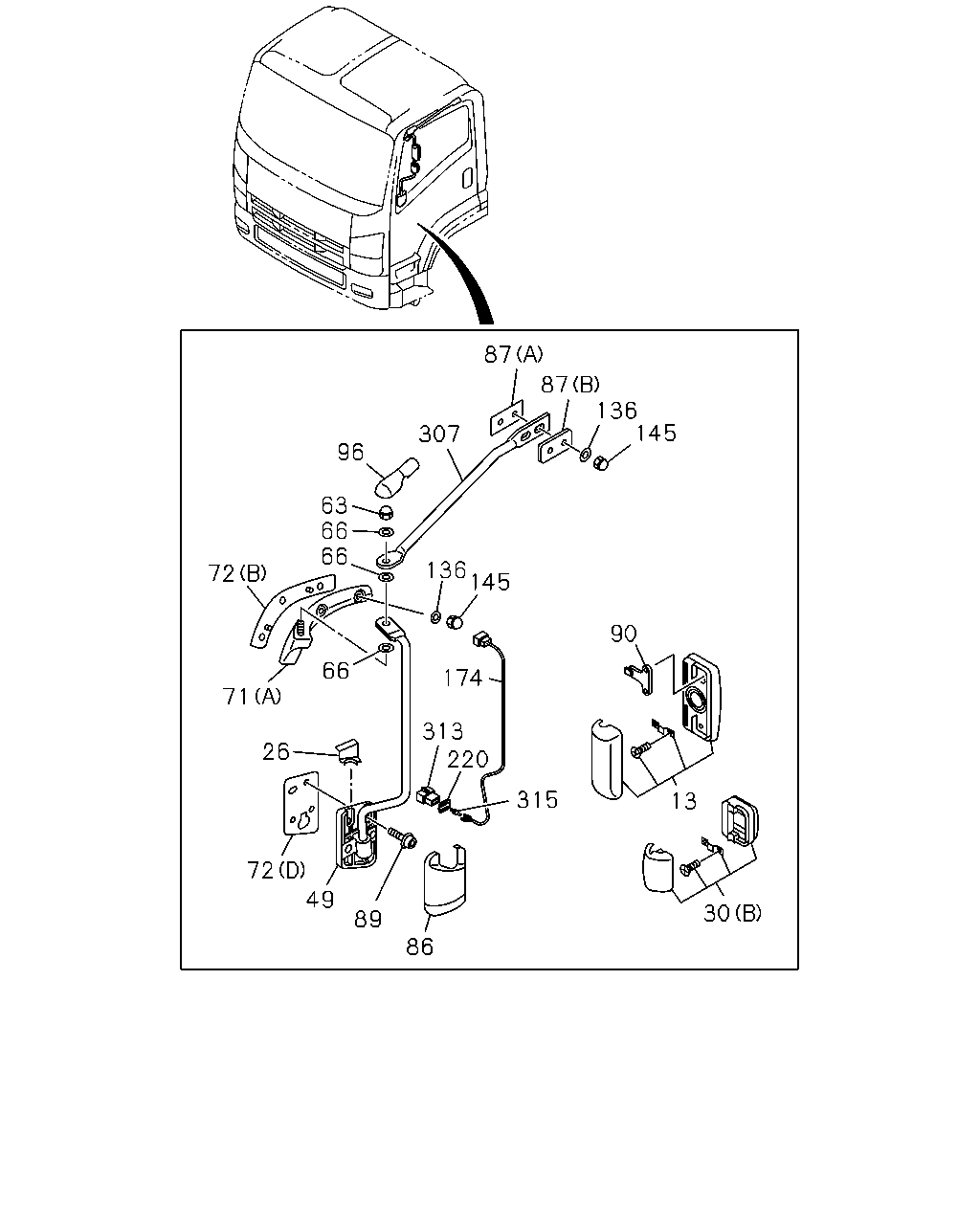

çizim 379606
96 63 66 66 72 71 26 72 49 89 86 30 13 315 220 313 174 145 136 307 136 87 87 66 90 145
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 1310- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 1310- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-991-1 01 1 1310- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-992-1 01 1 1310- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1310- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1310- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1310- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1310- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1310-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-188-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-189-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-180-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-181-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-194-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-195-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-206-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-207-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-190-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-191-0 01 1 1310- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1310- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1310- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1310- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 1310- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 1310- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1310- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1310- ● ●
72 SHEET
(C) 		8-98031-796-0 01 1 1310- ● ●
72 SHEET
(B) 		8-98031-797-0 01 1 1310- ● ●
72 SHEET
(E) 		8-98060-225-1 01 1 1310- ● ●
72 SHEET
(A) 		8-98064-773-0 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1310- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1310- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 1310- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1310- ● ●
90 BRACKET; MIRROR STAY
ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98129-822-0 02 1 1310-1505 ●
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98129-822-0 02 1 1506- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1310- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1310- ● ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98125-654-0 02 1 1310- ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 1310- ●
220 HOLDER; CONNECTOR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-536-0 02 1 1310- ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1310- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1310- ● ●
313 CONNECTOR; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-532-0 02 1 1310- ●
315 RUBBER ASM; CONNECTOR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82691-026-0 02 1 1310- ●

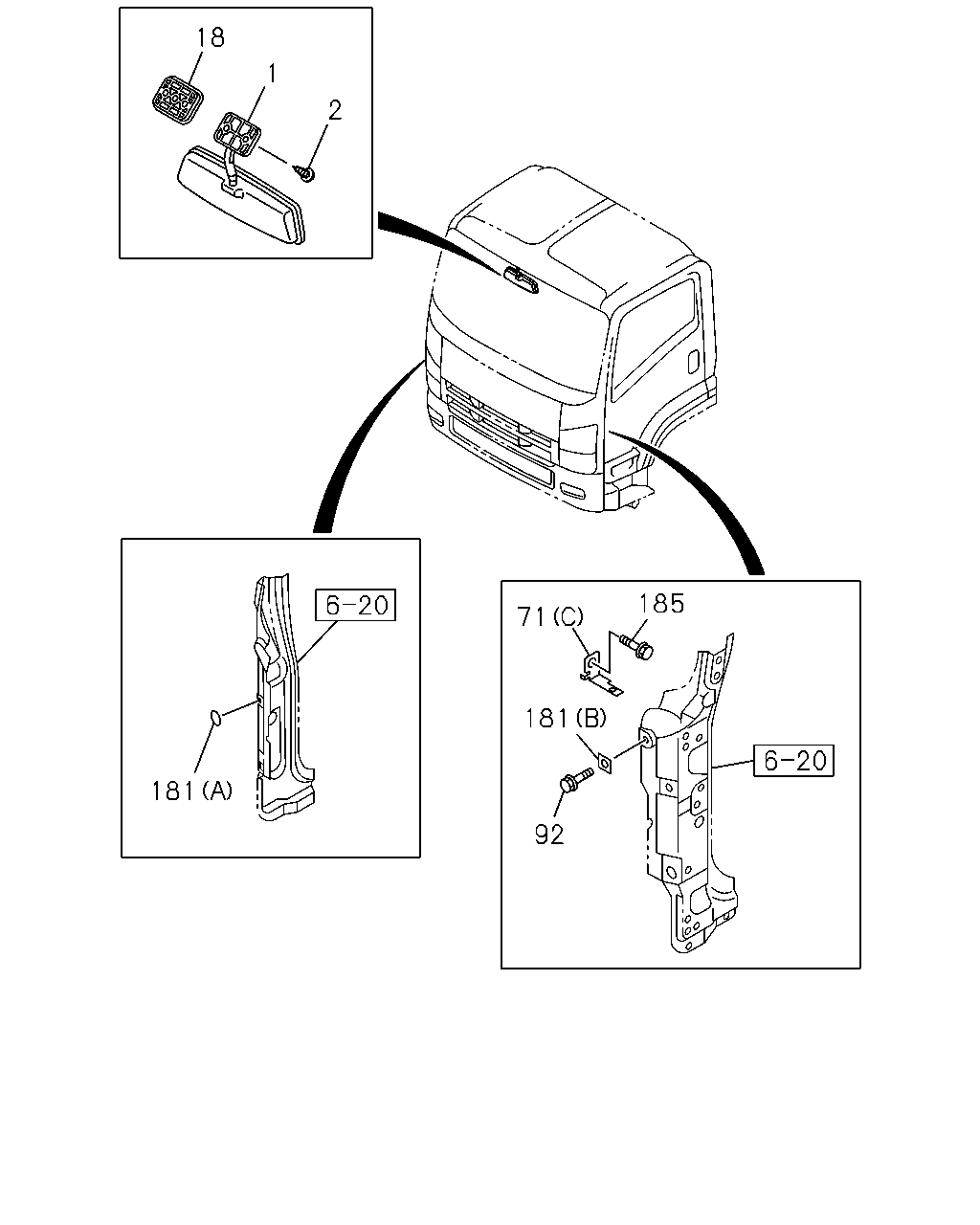

çizim 379629
18 1 2 181 185 71 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
RR VIEW MIRROR<D31> DARK GRAY 		8-98097-534-1 01 1 1310- ● ●
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X26 		8-98033-674-0 02 1 1310- ● ●
18 CLIP; MIRROR
RR VIEW MIRROR<D31> DARK GRAY 		8-97408-241-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1310- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1310- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 1310- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1310- ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> M8X16 FLANGE 		0-28050-816-0 02 1 1310- ● ●

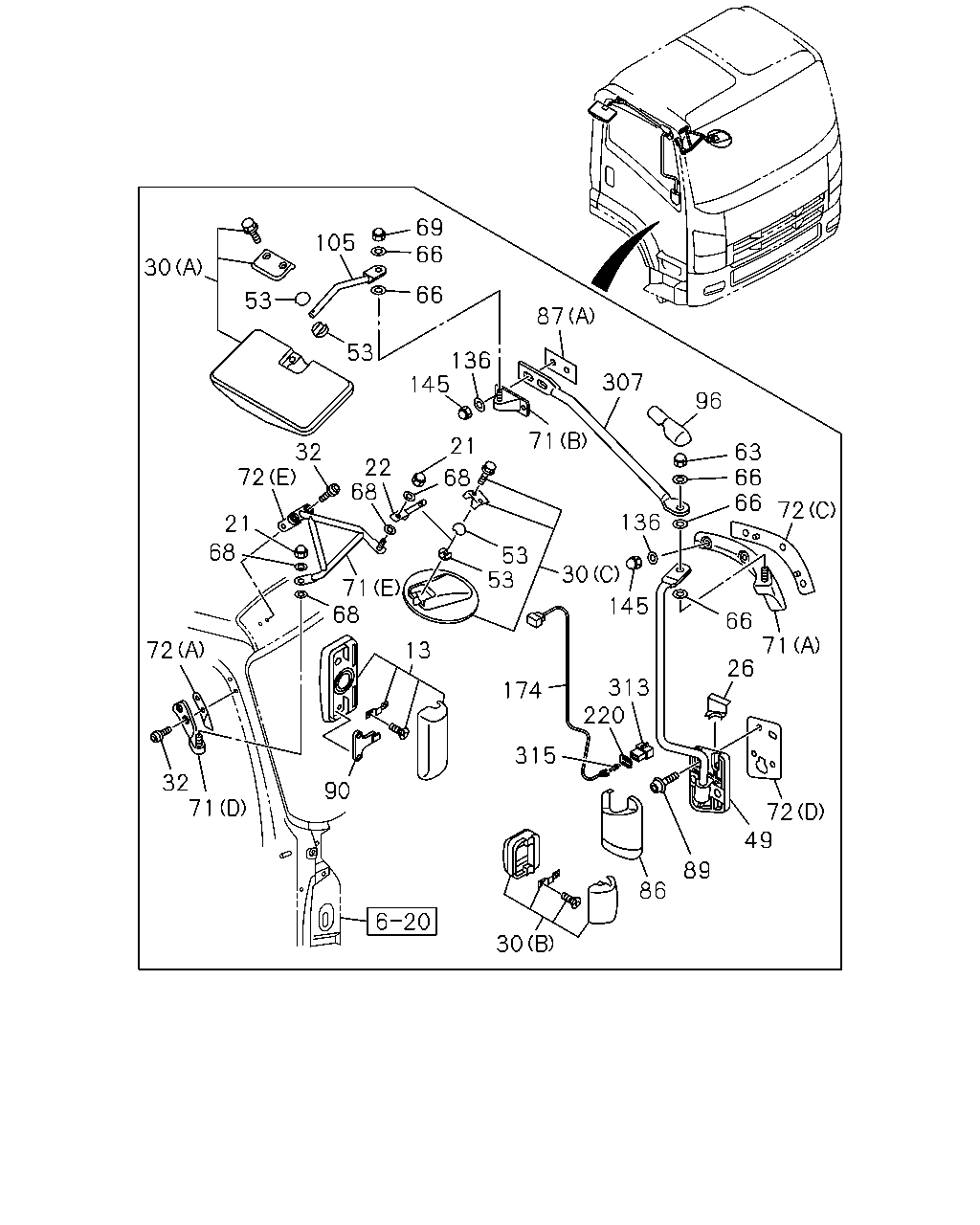

çizim 380878
30 53 105 69 66 66 87 136 145 53 72 21 68 72 32 71 90 145 313 174 315 86 30 89 49 72 71 26 66 30 53 53 136 66 72 66 63 96 307 71 21 68 68 22 32 68 13 71 220
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 1310- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 1310- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-991-1 01 1 1310- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-992-1 01 1 1310- ● ●
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1310- ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1310- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1310- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1310- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1310- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1310- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1310-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1310- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-188-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-189-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-180-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-181-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-194-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-195-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-206-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-207-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-190-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-191-0 01 1 1310- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1310- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1310- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1310- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1310- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1310- ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1310- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1310- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 1310- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 1310- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1310- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1310- ● ●
72 SHEET
(C) 		8-98031-796-0 01 1 1310- ● ●
72 SHEET
(B) 		8-98031-797-0 01 1 1310- ● ●
72 SHEET
(E) 		8-98060-225-1 01 1 1310- ● ●
72 SHEET
(A) 		8-98064-773-0 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1310- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1310- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 1310- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1310- ● ●
90 BRACKET; MIRROR STAY
ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98129-822-0 02 1 1310-1505 ●
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98129-822-0 02 1 1506- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1310- ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1310- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1310- ● ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98125-654-0 02 1 1310- ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 1310- ●
220 HOLDER; CONNECTOR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-536-0 02 1 1310- ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1310- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1310- ● ●
313 CONNECTOR; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-532-0 02 1 1310- ●
315 RUBBER ASM; CONNECTOR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82691-026-0 02 1 1310- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
