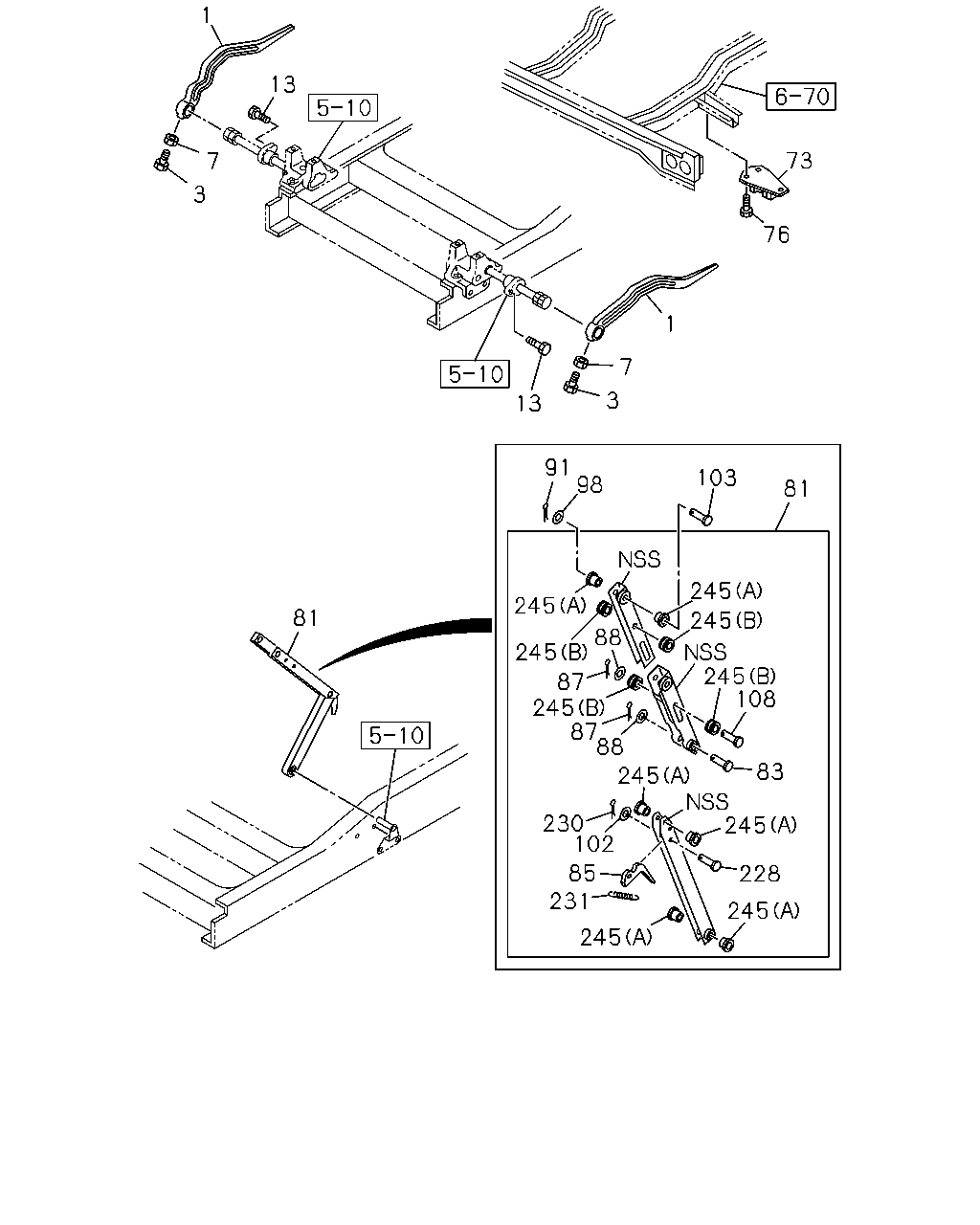

5-15 — CAB MOUNTING; CAB SIDE (#1283) — 73 parça
çizim 27328
1 13 73 7 3 76 1 7 3 13 91 103 98 81 245 245 81 245 88 245 245 108 87 245 87 88 83 245 245 230 102 85 231 228 245 245
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; TORSION BAR 1-53459-770-3 01 1 9202- ● ●
1 LEVER; TORSION BAR 1-53459-769-3 01 1 9202- ● ●
3 BOLT; LEVER
M10X32 		1-09000-435-0 04 1 9202- ● ●
7 NUT; LK,LEVER
M10 		9-09110-510-0 04 1 9202- ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9202- ● ●
73 PAD; TORSION BAR 1-53459-790-1 02 1 9202- ● ●
76 BOLT; PAD
M10X30 		1-09980-517-0 06 1 9202- ● ●
81 STAY ASM; CAB TILT 1-62500-579-4 01 1 9202- ●
81 STAY ASM; CAB TILT
EXC. CAB SUSPENSION SEMI FLOATING<SDK> 		1-62500-579-4 01 1 9202- ●
81 STAY ASM; CAB TILT
CAB SUSPENSION SEMI FLOATING<SDK> 		1-62500-577-4 01 1 9202- ●
83 PIN; JOINT,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 9202- ● ●
85 LEVER; LOCK,CAB STAY 1-62500-503-0 01 1 9202- ● ●
87 PIN; SPLIT,CAB STAY PIN 1-09746-021-0 02 1 9202- ● ●
88 WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 		1-09985-183-0 02 1 9202- ● ●
91 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9202- ● ●
98 WASHER; CAB STAY
ID=10.5 T=2.0 		1-09985-183-0 01 1 9202- ● ●
102 WASHER; PL,CAB STAY
ID=8.4 OD=16 		1-09985-174-0 01 1 9202- ● ●
103 PIN; JOINT,CAB STAY 1-09744-108-1 01 1 9202- ● ●
108 PIN; ADJ,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 9202- ● ●
228 PIN; SAFETY LOCK SPRING,CAB STAY 1-09744-086-2 01 1 9202- ● ●
230 PIN; SPLIT CAB STAY 1-09746-019-0 01 1 9202- ● ●
231 SPRING; RETURN,LOCK LEVER,CAB STAY 1-09583-244-0 01 1 9202- ● ●
245 BUSHING; CAB STAY
(A) 		1-62500-587-0 06 1 9202- ● ●
245 BUSHING; CAB STAY
(B) 		1-62500-588-0 04 1 9202- ● ●

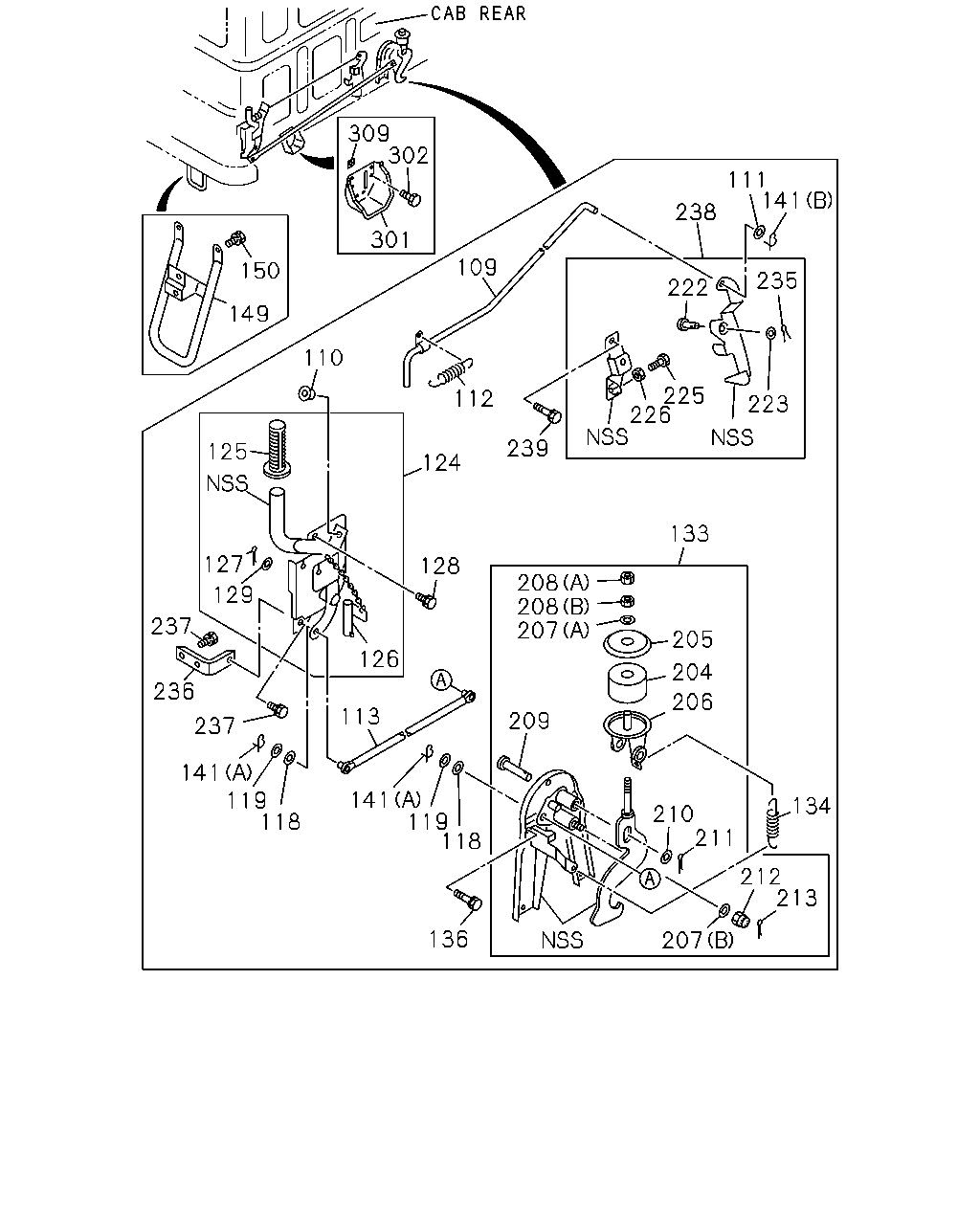

çizim 28393
309 302 111 141 238 301 109 150 235 222 149 110 112 225 226 223 239 125 124 133 127 128 208 208 207 129 237 205 126 204 236 206 113 209 237 141 119 118 141 119 118 134 210 211 212 213 136 207
BalonParca AdiParca NoAdetTipApplied Date A B
109 ROD; SAFETY,CAB LK 1-79718-276-8 01 1 9202- ● ●
110 BUSHING; SAFETY ROD,CAB LOCK 1-79718-319-1 01 1 9202- ● ●
111 WASHER; PL,SAFETY ROD 1-09985-137-0 01 1 9202- ● ●
112 SPRING; RETURN,SAFETY ROD 1-79718-285-1 01 1 9202- ● ●
113 ROD; CONN,CAB LK 1-79718-267-1 01 1 9202- ● ●
118 WASHER; PL,CONNROD
ID=10.5 		1-09985-107-0 02 1 9202- ● ●
119 WASHER; WAVE,CAB LOCK ROD 1-09985-045-0 02 1 9202- ● ●
124 LEVER ASM; HAND,CAB LK 1-79718-477-1 01 1 9202- ● ●
125 GRIP; HAND LEVER,CAB LOCK 1-79718-303-2 01 1 9202-9508 ● ●
126 PIN; LK,HAND LEVER 1-79718-479-0 01 1 9202- ● ●
127 PIN; SPLIT,BRKT
L=30 		1-09987-080-0 01 1 9202-9508 ● ●
128 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09980-548-0 03 1 9202- ● ●
129 WASHER; PL,BRKT
ID=17 		1-09985-109-0 01 1 9202-9508 ● ●
133 LOCK ASM; CAB 1-79718-426-4 01 1 9202-9311 ● ●
133 LOCK ASM; CAB 1-79718-550-3 01 1 9312- ● ●
134 SPRING; CAB LK LEVER 1-09985-044-0 01 1 9202- ● ●
136 BOLT; CAB LK
M10X25 W/LK&PL WASHER 		1-09980-488-0 05 1 9202- ● ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=27.7 		1-09987-141-0 01 1 9202- ● ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=32.6 		1-09987-142-0 02 1 9202- ● ●
149 HANDLE; TILT 1-71998-522-0 01 1 9202- ● ●
150 BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 9202- ● ●
204 RUBBER; REBOUND,CAB LK 1-79718-429-1 01 1 9202- ● ●
205 PLATE; SUPPORT,REBOUND RUBBER 1-79718-129-1 01 1 9202- ● ●
206 SUPPORT; REBOUND RUBBER 1-79718-434-0 01 1 9202- ● ●
207 WASHER; PL,SUPPORT PLATE
(A) ID=15 OD=36 		1-09985-112-0 01 1 9202-9509 ● ●
207 WASHER; PL,SUPPORT PLATE
(B) ID=19 OD=44 		1-09985-113-0 01 1 9202- ● ●
208 NUT; SUPPORT PLATE
(A) M14 		1-09984-066-0 01 1 9202- ● ●
208 NUT; SUPPORT PLATE
(B) M14 		1-09984-067-0 01 1 9202- ● ●
209 PIN; JOINT,SUPPORT 1-09987-083-0 01 1 9202- ● ●
210 WASHER; PL,SUPPORT
ID=17 		1-09985-109-0 01 1 9202- ● ●
211 PIN; SPLIT,SUPPORT
L=30 		1-09987-080-0 01 1 9202-9509 ● ●
211 PIN; SPLIT,SUPPORT
OD=3.7 L=28 		9-08114-028-0 01 1 9510- ● ●
212 NUT; BRKT,CAB LOCK
M18 SLOTTED 		1-09984-079-0 01 1 9202- ● ●
213 PIN; SPLIT,BRKT,CAB LK
L=30 		1-09987-080-0 01 1 9202-9509 ● ●
213 PIN; SPLIT,BRKT,CAB LK
OD=3.7 L=30 		9-08114-030-0 01 1 9510- ● ●
222 PIN; JOINT,SAFETY LK 1-09987-159-0 01 1 9202- ● ●
223 WASHER; PL,SAFETY LK
ID=12.5 OD=22 T=1.6 		1-09985-108-0 01 1 9202- ● ●
225 BOLT; SAFETY LK
M8X30 		1-09980-277-0 01 1 9202- ● ●
226 NUT; SAFETY LK
M8 		1-09984-065-0 01 1 9202- ● ●
235 PIN; SNAP 1-09987-158-1 01 1 9202- ● ●
236 SUPPORT ASM; HAND LEVER,CAB LOCK 1-79718-286-3 01 1 9202- ● ●
237 BOLT; HAND LEVER SUPPORT,CAB LOCK
M8X25 		1-09980-491-0 02 1 9202- ● ●
238 LOCK ASM; SAFETY,CAB TILT 1-79718-307-9 01 1 9202-9507 ● ●
238 LOCK ASM; SAFETY,CAB TILT 1-79718-602-1 01 1 9508- ● ●
239 BOLT; SAFETY LK 1-09980-487-0 02 1 9202- ● ●
301 BRACKET; RR MTG,CAB 1-62580-165-0 01 1 9202- ● ●
301 BRACKET; RR MTG,CAB 1-62580-053-2 01 1 9202- ● ●
302 BOLT; BRKT,CAB
M8X25 W/LK&PL WASHER 		1-09980-526-0 12 1 9202- ● ●
309 SEAL; WATER
25X25 		8-94272-533-0 08 1 9202- ● ●
