Isuzu WW
▶
TRUCKS
▶
FRR
▶
11545 - FRR-LHD(EU)SPACE EU6
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

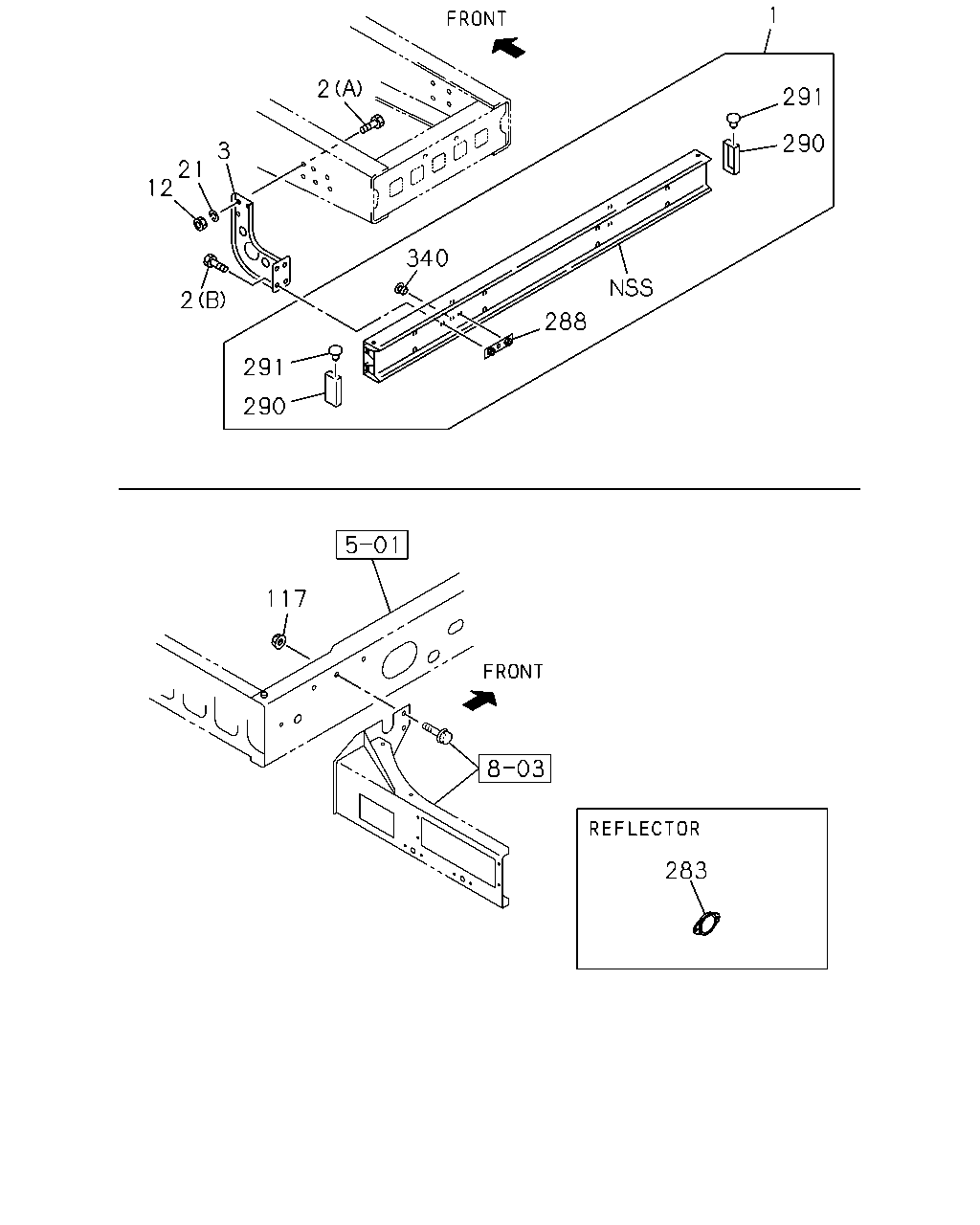

6-90 — REAR BUMPER
(#128299) — 21 parça
Tümü
A - FCD6CS
B - FCR6CS
283
117
290
291
2
12
21
3
340
288
2
290
291
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER; RR
STAMP D8M
1-71220-269-0
01
1
1310-
●
●
2
BOLT; BACK BAR
(B) M12X30 FLANGE
0-28651-230-0
08
1
1310-
●
●
2
BOLT; BACK BAR
(A) M16X40
0-20851-640-0
08
1
1310-
●
2
BOLT; BACK BAR
EXC. ISRAEL COUNTRY(CV4) (A) M16X40
0-20851-640-0
08
1
1310-
●
2
BOLT; BACK BAR
ISRAEL COUNTRY(CV4) (A) M16X40
0-20851-640-0
04
1
1310-
●
3
BRACKET; BUMPER
STAMP GL
1-71230-272-2
01
1
1310-
●
●
3
BRACKET; BUMPER
STAMP GL
1-71230-273-2
01
1
1310-
●
●
12
NUT; BRKT
M16
0-91110-516-0
08
1
1310-
●
12
NUT; BRKT
EXC. ISRAEL COUNTRY(CV4) M16
0-91110-516-0
08
1
1310-
●
12
NUT; BRKT
ISRAEL COUNTRY(CV4) M16
0-91110-516-0
04
1
1310-
●
21
WASHER; LK,BUMPER
ID=16.2
0-91510-816-0
08
1
1310-
●
21
WASHER; LK,BUMPER
EXC. ISRAEL COUNTRY(CV4) ID=16.2
0-91510-816-0
08
1
1310-
●
21
WASHER; LK,BUMPER
ISRAEL COUNTRY(CV4) ID=16.2
0-91510-816-0
04
1
1310-
●
117
NUT; BRKT
M10 FLANGE
0-91180-210-0
06
1
1310-
●
●
117
NUT; BRKT
WHEEL BASE 3400MM(34W) M10 FLANGE
0-91180-210-0
02
1
1310-
●
283
REFLECTOR; REFLEX,RR
WHEEL BASE 3400MM(34W),WHEEL BASE 3700MM(37W), WHEEL BASE 4000MM(40W)
1-82290-011-1
04
1
1310-
●
●
283
REFLECTOR; REFLEX,RR
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W)
1-82290-011-1
08
1
1310-
●
●
288
PLATE; RR BUMPER,REFLECTOR
1-71290-066-0
04
1
1310-
●
●
290
COVER; RR
8-98070-331-0
02
1
1310-
●
●
291
RIVET; REFLECTOR
1-71290-062-0
04
1
1310-
●
●
340
RIVET
1-71290-065-0
04
1
1310-
●
●
