6-76 — FLOOR EQUIPMENT AND SEALING (#128294) — 13 parça

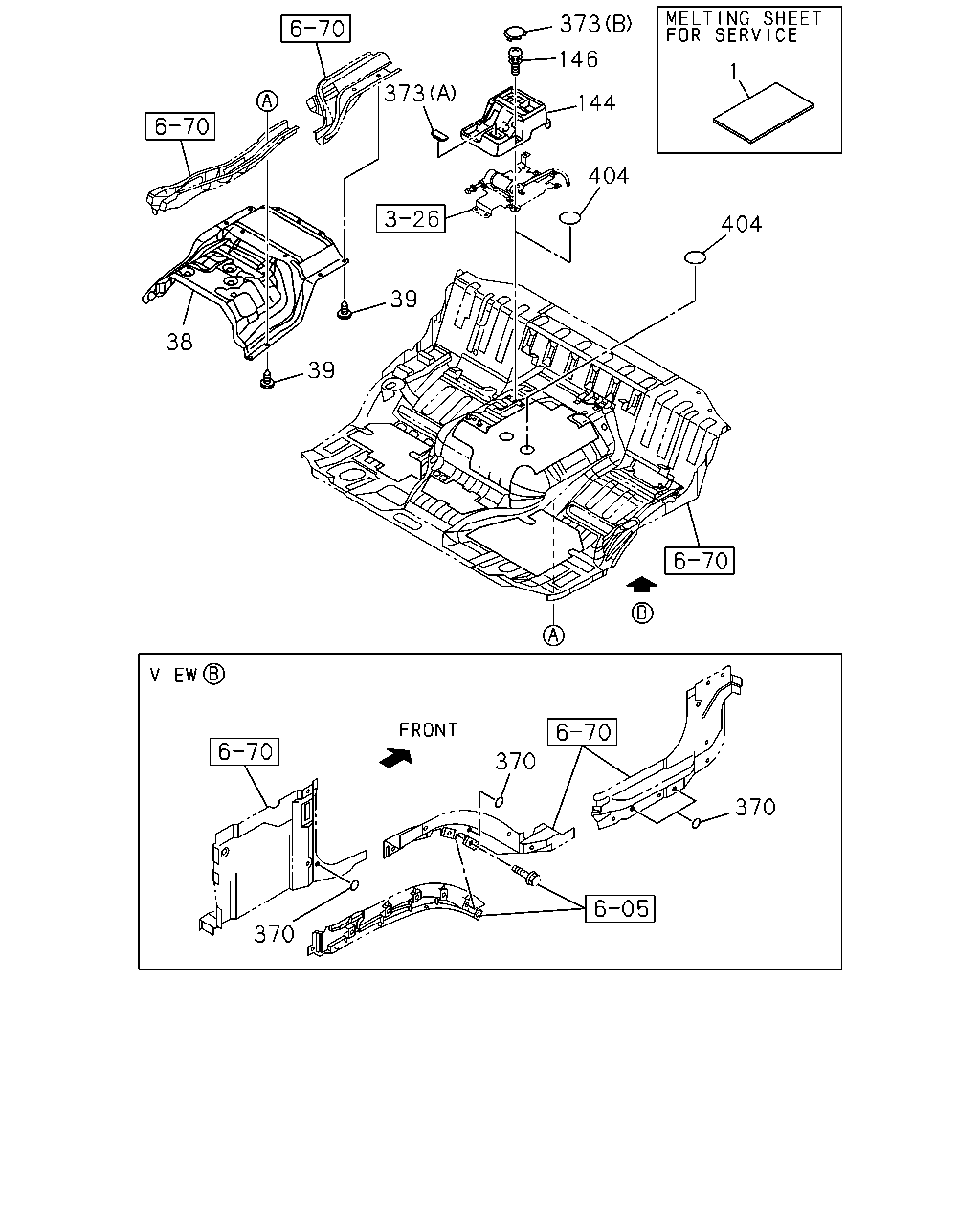

çizim 379560
373 373 38 370 370 370 404 39 39 404 144 146 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1310- ● ●
38 INSULATOR; ENG COVER 8-97586-181-6 01 1 1310-1310 ● ●
38 INSULATOR; ENG COVER 8-98240-136-1 01 1 1311- ● ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 19 1 1310- ● ●
144 COVER; HAND BRK VLV
GRAY 		8-97407-974-0 01 1 1310- ● ●
146 BOLT; COVER BRKT
M6X16 		0-38050-616-0 04 1 1310- ● ●
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1310- ● ●
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 1310- ● ●
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 1310- ● ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1310-1404 ●
404 SEAL; FLOOR,HOLE
AIR SUSP DRIVER SEAT<A56> OD=25 BLACK 		1-76798-019-0 01 1 1310-1404 ●
404 SEAL; FLOOR,HOLE
AIR SUSP DRIVER SEAT<A56> OD=25 BLACK 		1-76798-019-0 01 1 1405- ● ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 12 1 1310- ● ●
