Sayfa 6-60 - Isuzu EPC

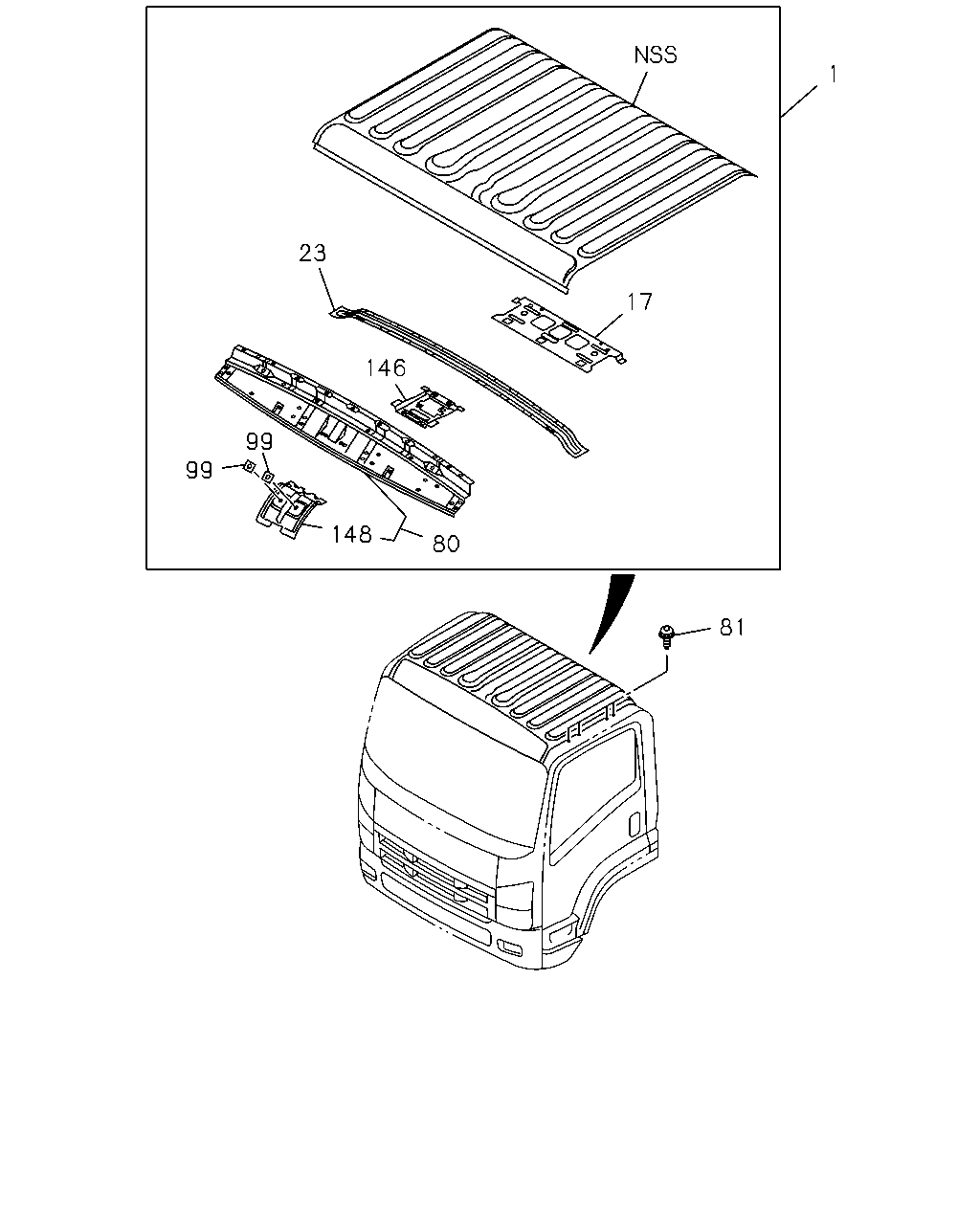

6-60 — ROOF PANEL (#128290) — 9 parça

80 148 99 99 23 146 17 1 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; ROOF FLUORESCENT LAMP<6UC>	8-98056-962-3	01	1	1310-	●	●
1	PANEL; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98158-312-1	01	1	1310-	●	●
17	REINFORCEMENT; ROOF PNL CENTER FLUORESCENT LAMP<6UC>	8-97584-203-5	01	1	1310-	●	●
23	REINFORCEMENT; ROOF PANEL,FRT	8-98019-310-0	01	1	1310-	●	●
80	PANEL; HEADER,ROOF	8-98047-270-2	01	1	1310-	●	●
81	BOLT; ROOF M8X15.5 HEXALOBULAR	8-98141-874-0	08	1	1310-	●	●
99	SEAL; BODY,METAL 30X30 ID=20 T=0.7	1-61281-380-2	02	1	1310-	●	●
146	REINFORCEMENT; ROOM LAMP	8-98075-827-0	01	1	1310-	●	●
148	REINFORCEMENT; MIRROR	8-97411-013-0	01	1	1310-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
