Isuzu WW
▶
TRUCKS
▶
FTR
▶
11125 - FTR(THAI)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

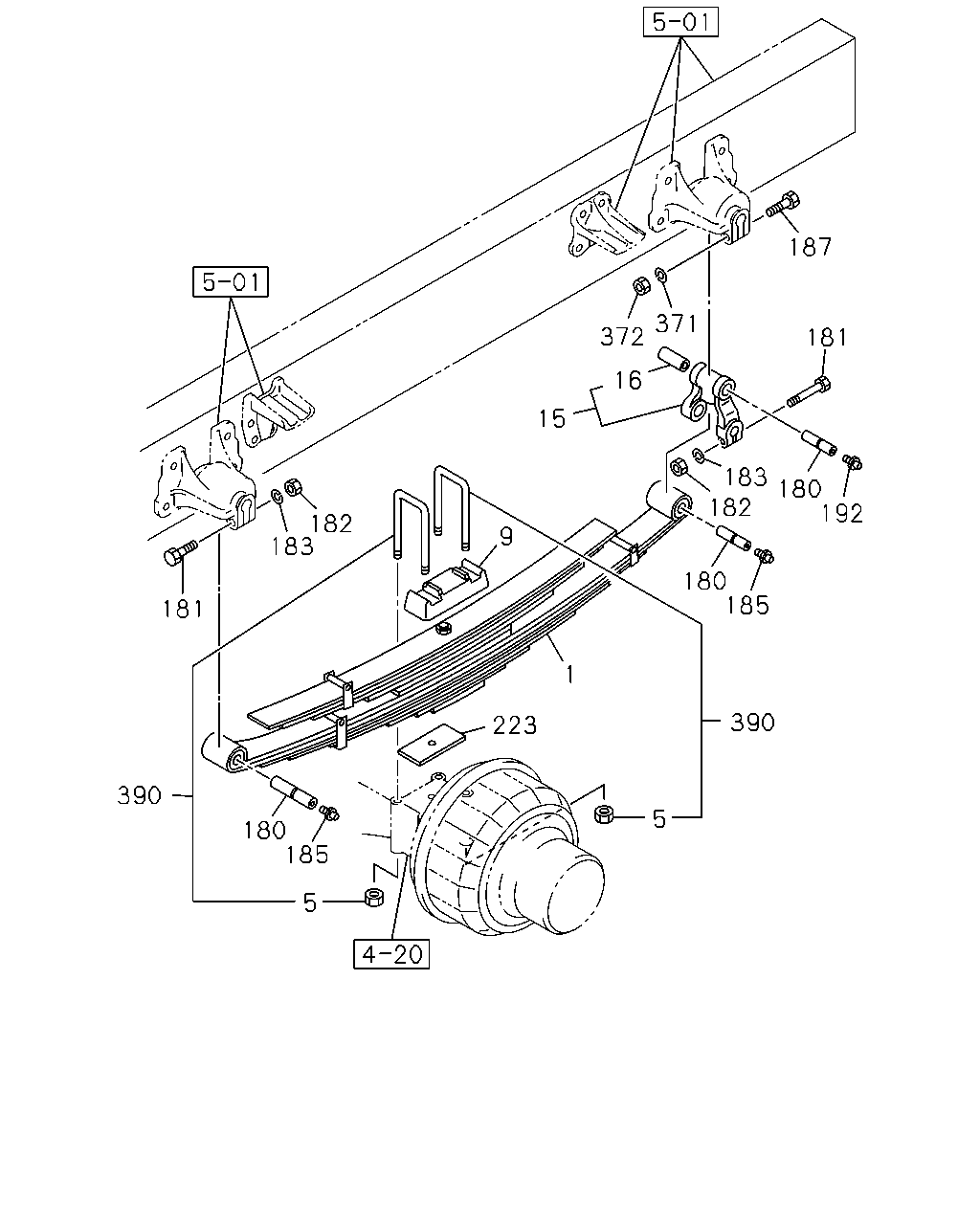

4-60 — REAR SUSPENSION
(#12829) — 22 parça
187
371
372
181
16
15
183
182
180
192
182
183
9
180
185
181
1
390
223
390
5
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98017-564-0
02
1
0808-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
0808-
9
PAD; U BOLT,RR SPR
THA
8-97916-138-0
02
1
0808-
15
SHACKLE; RR SPR
1-51362-049-2
02
1
0808-
16
BUSHING; SHACKLE,RR SPR
9-51351-019-2
02
1
0808-0902
16
BUSHING; SHACKLE,RR SPR
8-98081-830-0
02
1
0903-
16
BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS
1-87610-163-0
02
1
0903-
180
PIN; RR SPR
DO=28 L=131 PT1/8
1-51361-015-0
06
1
0808-
181
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
04
1
0808-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
0808-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
0808-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
0808-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
0808-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT THA
0-90301-410-0
02
1
0808-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT THA
0-90301-410-0
02
1
0808-
187
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
02
1
0808-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT THA
0-90301-410-0
02
1
0808-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 3600MM<36W>
8-98083-789-0
02
1
0808-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W>
1-51377-166-0
02
1
0808-
371
WASHER; LK,SHACKLE
ID=14.2
0-91510-514-0
02
1
0808-
372
NUT; SHACKLE
M14 THA
0-91110-514-0
02
1
0808-
390
U-BOLT SET; RR SPRING
L=455
1-87870-268-1
04
1
0808-
