◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#128288) — 22 parça

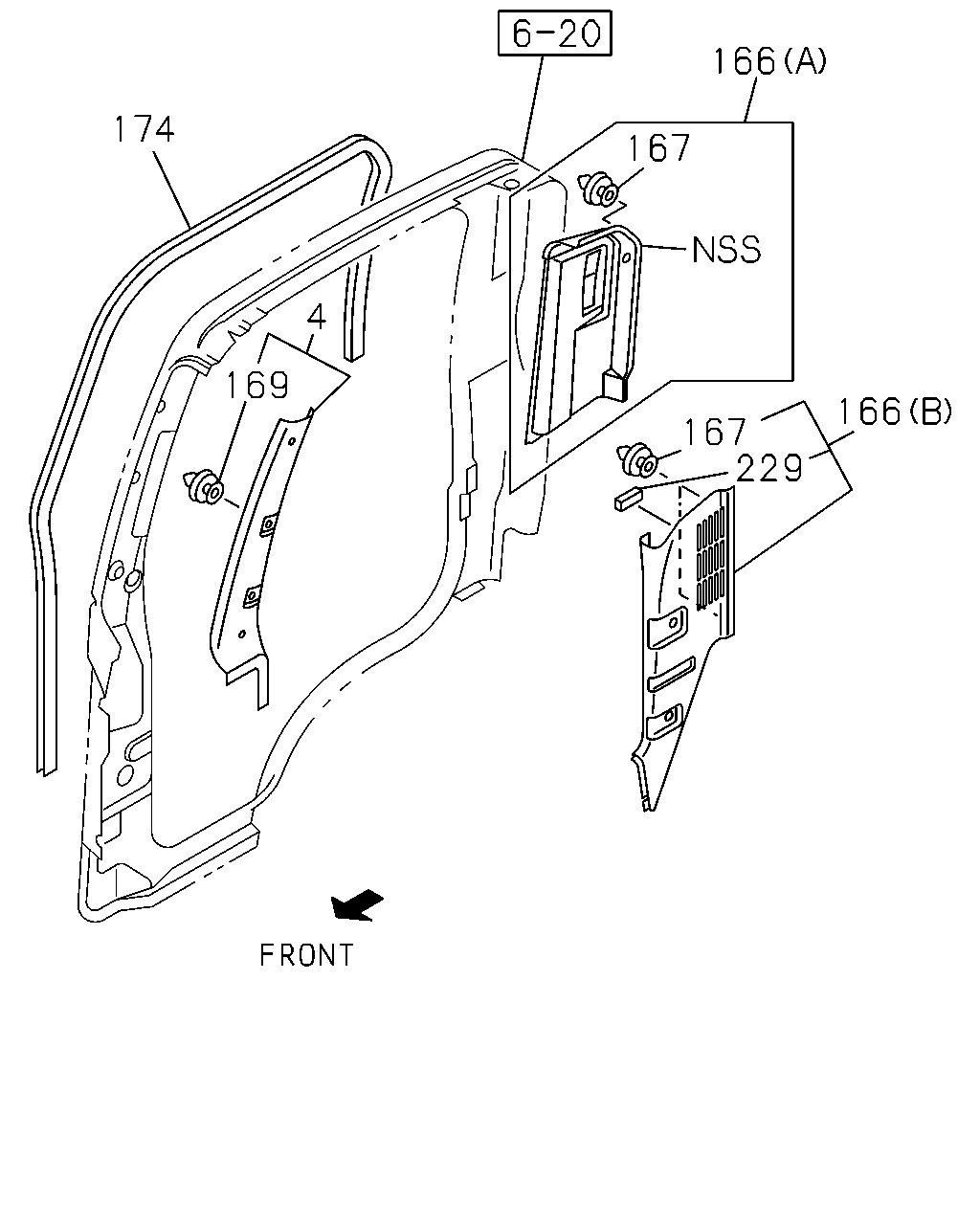

çizim 380440
174 169 4 229 167 166 167 166
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1310- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1310- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-540-0 01 1 1310-1404 ●
166 TRIM; RR PILLAR
AIR SUSP DRIVER SEAT<A56> (B) GRAY 		8-97407-540-0 01 1 1310-1404 ●
166 TRIM; RR PILLAR
AIR SUSP DRIVER SEAT<A56> (B) GRAY 		8-97407-540-0 01 1 1405- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-539-0 01 1 1310-1404 ●
166 TRIM; RR PILLAR
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) GRAY 		8-97407-539-0 01 1 1310-1404 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-539-0 01 1 1405- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97406-796-1 01 1 1310- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97407-900-0 01 1 1310- ● ●
166 TRIM; RR PILLAR
DRIVER ISRINGHAUSEN SEAT<SJA> (B) GRAY 		8-97414-302-0 01 1 1310-1404 ●
166 TRIM; RR PILLAR
DRIVER ISRINGHAUSEN SEAT<SJA> (B) GRAY 		8-97414-302-0 01 1 1405- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 1310- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 1310- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1310- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1310- ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1310-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510- ● ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1310-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510- ● ●
229 SEAL
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98092-662-0 01 1 1310-1404 ●
229 SEAL
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98092-662-0 01 1 1405- ● ●
