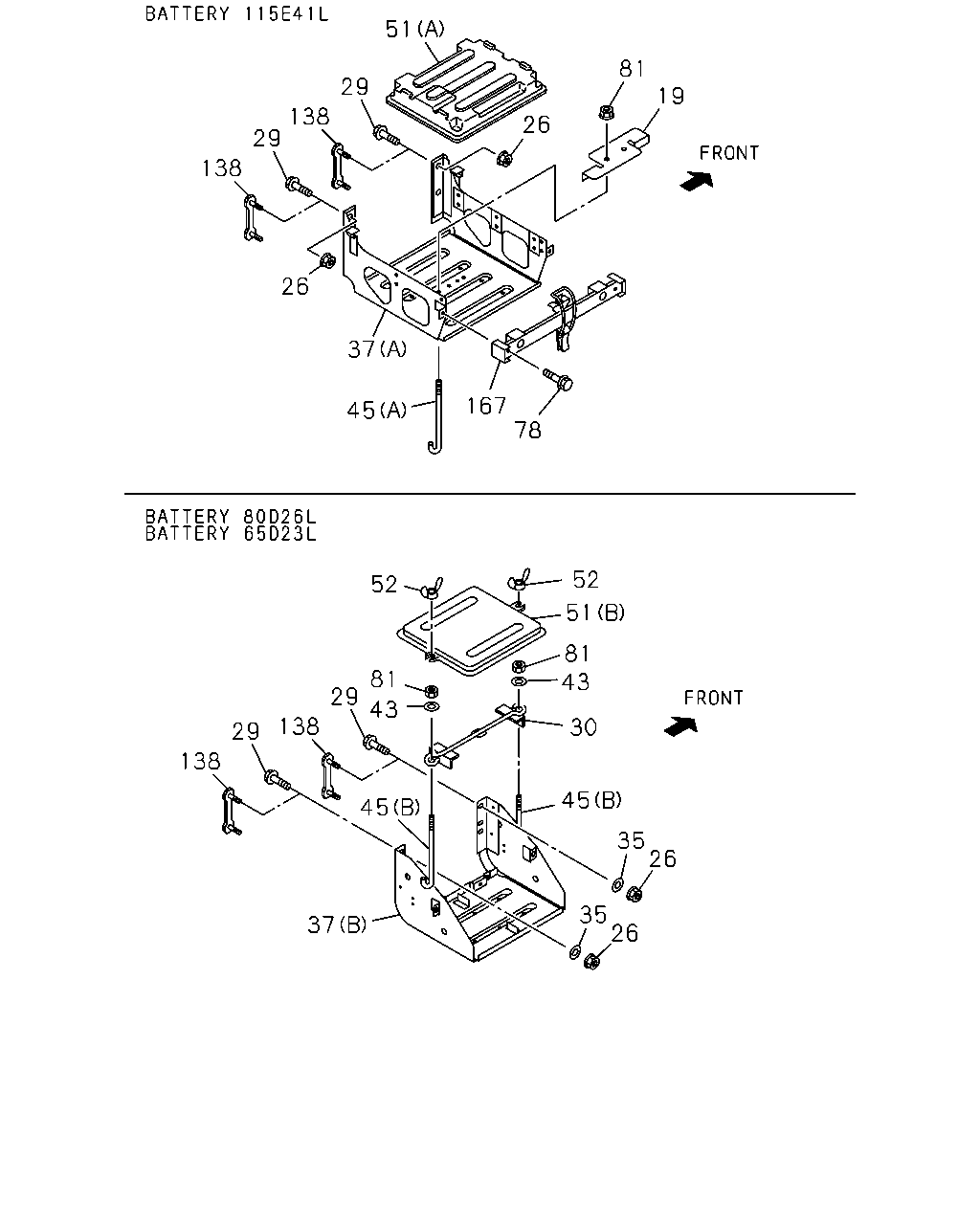

5-20 — BATTERY CARRIER (#128276) — 27 parça

51 81 26 29 138 29 138 26 37 45 167 19 78 52 52 51 81 43 30 45 35 26 35 26 37 45 81 29 138 29 138 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY BATTERY 115E41L<8MA>	8-98120-443-0	01	1	1310-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1310-	●	●
29	BOLT; BRKT TO FRAME WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X35 FLANGE	0-28651-035-0	02	1	1310-	●	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1310-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1310-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B)	8-97384-067-2	01	1	1310-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (B)	8-97384-068-2	01	1	1310-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (A)	8-98204-178-2	01	1	1310-	●
37	BRACKET; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)	8-98204-178-2	01	1	1310-		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)	8-98204-177-2	01	1	1310-		●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=8.4 OD=22	0-91614-708-0	02	1	1310-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1310-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=235	8-98120-478-0	02	1	1310-	●
45	ROD; TENSION,BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) L=235	8-98120-478-0	02	1	1310-		●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) L=250	1-53616-108-0	02	1	1310-		●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1310-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	1310-	●
51	COVER; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	1310-		●
51	COVER; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)	1-53612-037-2	01	1	1310-		●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1310-	●	●
78	BOLT; COVER BATTERY 115E41L<8MA> M8X20 FLANGE	0-28650-820-0	02	1	1310-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1310-	●	●
138	STUD WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98178-497-0	01	1	1310-1311	●	●
138	STUD WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98255-710-0	01	1	1312-	●	●
138	STUD WHEEL BASE 3400MM(34W)	8-98178-497-0	02	1	1310-1311		●
138	STUD WHEEL BASE 3400MM(34W)	8-98255-710-0	02	1	1312-		●
167	BRACKET; STOPPER BATTERY 115E41L<8MA>	8-98204-179-2	01	1	1310-	●	●
