◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#128274) — 81 parça

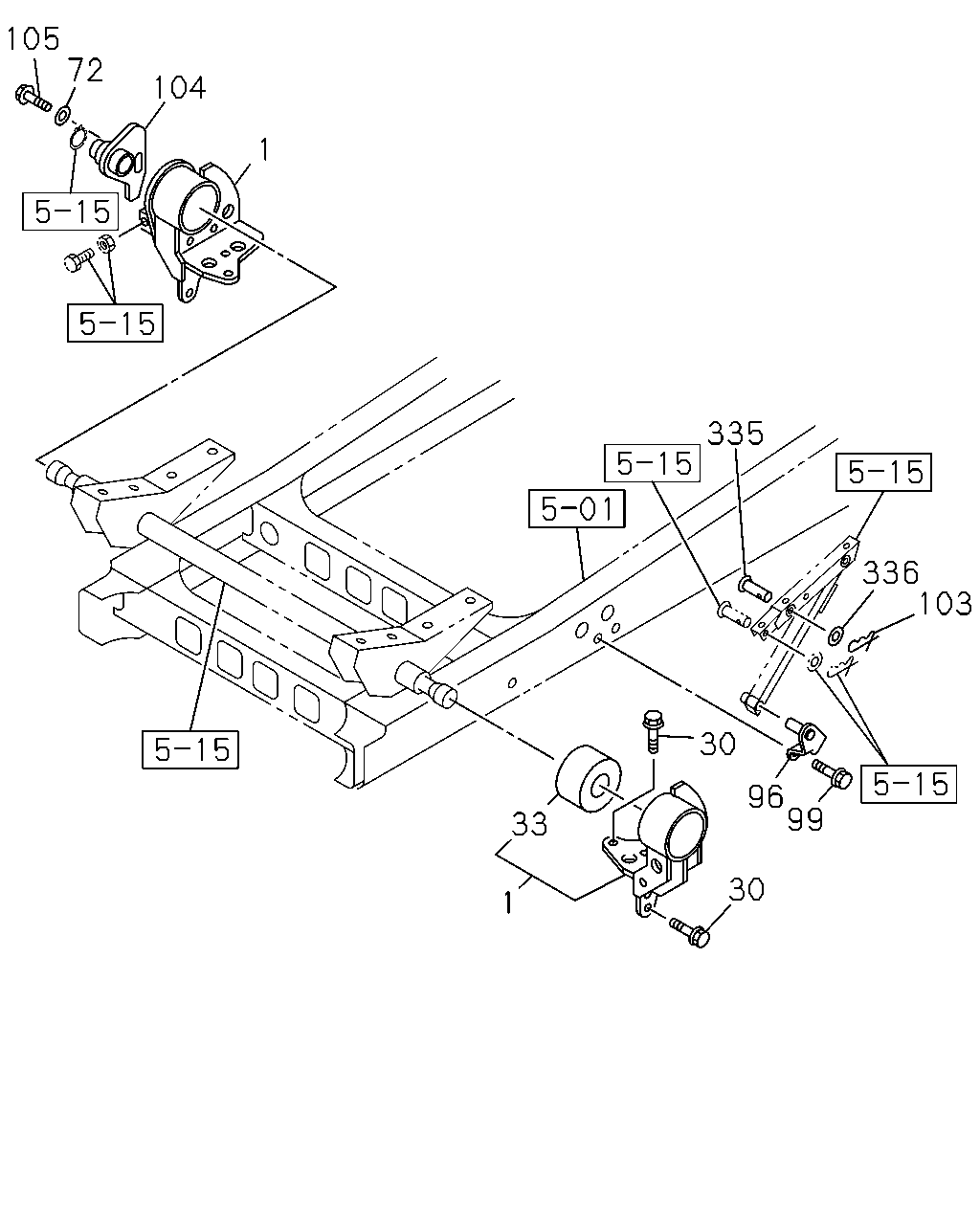

çizim 379998
105 72 104 1 335 336 103 30 96 99 33 1 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 8-98051-001-1 01 1 1310- ● ●
1 BRACKET; CAB MTG 8-98051-002-1 01 1 1310- ● ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 1310- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 8-98013-932-2 02 1 1310- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 		0-91614-714-0 01 1 1310- ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 1310- ● ●
99 BOLT; BRKT
M10X30 FLANGE 		0-28661-030-0 02 1 1310- ● ●
103 PIN; SPLIT,CAB STAY
L=32.6 		8-98062-280-0 01 1 1310- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98017-610-3 01 1 1310-1511 ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98330-669-0 01 1 1512- ● ●
105 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE 		0-28661-435-0 01 1 1310- ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 1310- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 1310- ● ●

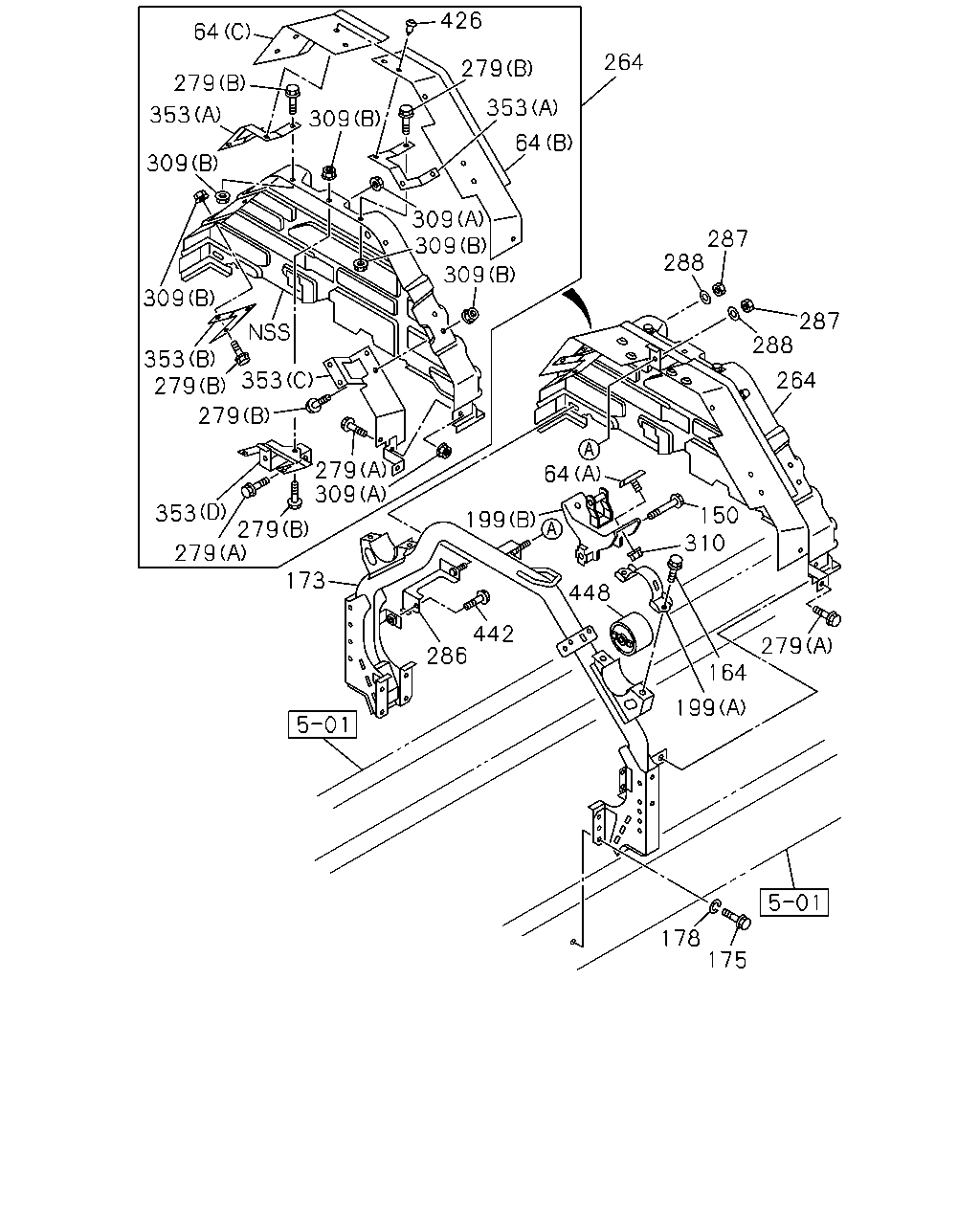

çizim 380781
64 279 353 309 309 353 279 353 279 353 279 173 279 309 309 426 279 353 64 264 309 309 309 288 287 287 288 64 199 286 448 442 150 310 279 164 199 178 175 264 279
BalonParca AdiParca NoAdetTipApplied Date A B
64 RUBBER; CUSHION
FRIGID ZONE KIT<YL3> (C) 		8-98254-251-0 01 1 1311-1311 ● ●
64 RUBBER; CUSHION
(C) 		8-98254-251-0 01 1 1311- ●
64 RUBBER; CUSHION
FRIGID ZONE KIT<YL3> (C) 		8-98254-251-0 01 1 1311- ●
64 RUBBER; CUSHION
FRIGID ZONE KIT<YL3> (B) 		8-98254-252-0 01 1 1311-1311 ● ●
64 RUBBER; CUSHION
(B) 		8-98254-252-0 01 1 1311- ●
64 RUBBER; CUSHION
FRIGID ZONE KIT<YL3> (B) 		8-98254-252-0 01 1 1311- ●
64 RUBBER; CUSHION
(A) 		8-97113-340-0 04 1 1310- ● ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 1310- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M12X25 FLANGE 		0-28651-225-0 04 1 1310- ● ●
173 MEMBER; CAB MTG RR
FRIGID ZONE KIT<YL3> 		8-98253-147-0 01 1 1310-1310 ● ●
173 MEMBER; CAB MTG RR 8-98253-147-0 01 1 1311- ●
173 MEMBER; CAB MTG RR
FRIGID ZONE KIT<YL3> 		8-98253-147-0 01 1 1311- ●
173 MEMBER; CAB MTG RR 8-98010-756-5 01 1 1310-1310 ● ●
173 MEMBER; CAB MTG RR
EXC. FRIGID ZONE KIT<YL3> 		8-98010-756-5 01 1 1310-1310 ● ●
173 MEMBER; CAB MTG RR
EXC. FRIGID ZONE KIT<YL3> 		8-98010-756-5 01 1 1311- ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1310- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1310- ● ●
199 BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98099-068-0 01 1 1503- ●
199 BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98297-105-0 01 1 1503- ●
199 BRACKET; CAB RR MTG
(B) 		8-98099-068-0 02 1 1310-1502 ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98099-068-0 02 1 1503- ●
199 BRACKET; CAB RR MTG
KD PREPARATORY PACK<6HF> (B) 		8-98099-068-0 02 1 1503- ●
199 BRACKET; CAB RR MTG
(A) 		8-98158-426-0 02 1 1310- ● ●
264 PANEL; BACK
FRIGID ZONE KIT<YL3> 		8-98250-055-0 01 1 1310-1310 ● ●
264 PANEL; BACK 8-98250-055-0 01 1 1311- ●
264 PANEL; BACK
FRIGID ZONE KIT<YL3> 		8-98250-055-0 01 1 1311- ●
279 BOLT
FRIGID ZONE KIT<YL3> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1310-1310 ● ●
279 BOLT
FRIGID ZONE KIT<YL3> (A) M8X25 FLANGE 		0-28650-825-0 03 1 1311-1311 ● ●
279 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1311- ●
279 BOLT
FRIGID ZONE KIT<YL3> (A) M8X25 FLANGE 		0-28650-825-0 03 1 1311- ●
279 BOLT
FRIGID ZONE KIT<YL3> (B) M6X16 FLANGE 		0-28650-616-0 09 1 1311-1311 ● ●
279 BOLT
(B) M6X16 FLANGE 		0-28650-616-0 09 1 1311- ●
279 BOLT
FRIGID ZONE KIT<YL3> (B) M6X16 FLANGE 		0-28650-616-0 09 1 1311- ●
286 BRACKET; LOW
FRIGID ZONE KIT<YL3> 		8-98250-056-0 01 1 1310-1310 ● ●
286 BRACKET; LOW 8-98250-056-0 01 1 1311- ●
286 BRACKET; LOW
FRIGID ZONE KIT<YL3> 		8-98250-056-0 01 1 1311- ●
287 NUT
FRIGID ZONE KIT<YL3> M8 FLANGE 		0-91180-108-0 02 1 1310-1310 ● ●
287 NUT
M8 FLANGE 		0-91180-108-0 02 1 1311- ●
287 NUT
FRIGID ZONE KIT<YL3> M8 FLANGE 		0-91180-108-0 02 1 1311- ●
288 WASHER; PL
FRIGID ZONE KIT<YL3> ID=8.4 OD=26 		0-91614-808-0 02 1 1310-1310 ● ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 02 1 1311- ●
288 WASHER; PL
FRIGID ZONE KIT<YL3> ID=8.4 OD=26 		0-91614-808-0 02 1 1311- ●
309 NUT
FRIGID ZONE KIT<YL3> (A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1311-1311 ● ●
309 NUT
(A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1311- ●
309 NUT
FRIGID ZONE KIT<YL3> (A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1311- ●
309 NUT
FRIGID ZONE KIT<YL3> (B) M6 W/DISHED WASHER 		8-98029-921-0 09 1 1311-1311 ● ●
309 NUT
(B) M6 W/DISHED WASHER 		8-98029-921-0 09 1 1311- ●
309 NUT
FRIGID ZONE KIT<YL3> (B) M6 W/DISHED WASHER 		8-98029-921-0 09 1 1311- ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1310- ● ●
353 BRACKET
FRIGID ZONE KIT<YL3> (A) 		8-98254-245-0 02 1 1311-1311 ● ●
353 BRACKET
(A) 		8-98254-245-0 02 1 1311- ●
353 BRACKET
FRIGID ZONE KIT<YL3> (A) 		8-98254-245-0 02 1 1311- ●
353 BRACKET
FRIGID ZONE KIT<YL3> (B) 		8-98254-250-0 01 1 1311-1311 ● ●
353 BRACKET
(B) 		8-98254-250-0 01 1 1311- ●
353 BRACKET
FRIGID ZONE KIT<YL3> (B) 		8-98254-250-0 01 1 1311- ●
353 BRACKET
FRIGID ZONE KIT<YL3> (D) 		8-98254-309-0 01 1 1311-1311 ● ●
353 BRACKET
(D) 		8-98254-309-0 01 1 1311- ●
353 BRACKET
FRIGID ZONE KIT<YL3> (D) 		8-98254-309-0 01 1 1311- ●
353 BRACKET
FRIGID ZONE KIT<YL3> (C) 		8-98254-310-0 01 1 1311-1311 ● ●
353 BRACKET
(C) 		8-98254-310-0 01 1 1311- ●
353 BRACKET
FRIGID ZONE KIT<YL3> (C) 		8-98254-310-0 01 1 1311- ●
426 CLIP
FRIGID ZONE KIT<YL3> 		8-98258-483-0 10 1 1311-1311 ● ●
426 CLIP 8-98258-483-0 10 1 1311- ●
426 CLIP
FRIGID ZONE KIT<YL3> 		8-98258-483-0 10 1 1311- ●
442 BOLT; BRKT
FRIGID ZONE KIT<YL3> M8X20 FLANGE 		0-28650-820-0 01 1 1310-1310 ● ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1311- ●
442 BOLT; BRKT
FRIGID ZONE KIT<YL3> M8X20 FLANGE 		0-28650-820-0 01 1 1311- ●
448 BUSHING; CAB MTG 8-98010-759-2 02 1 1310- ● ●
