5-01 — FRAME AND OTHER PARTS (#128273) — 134 parça

451 84 452 456 453 453 452 450 84 18 11 13 39 31 377 106 25 25 26 23 23 25 25 24 26 456

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

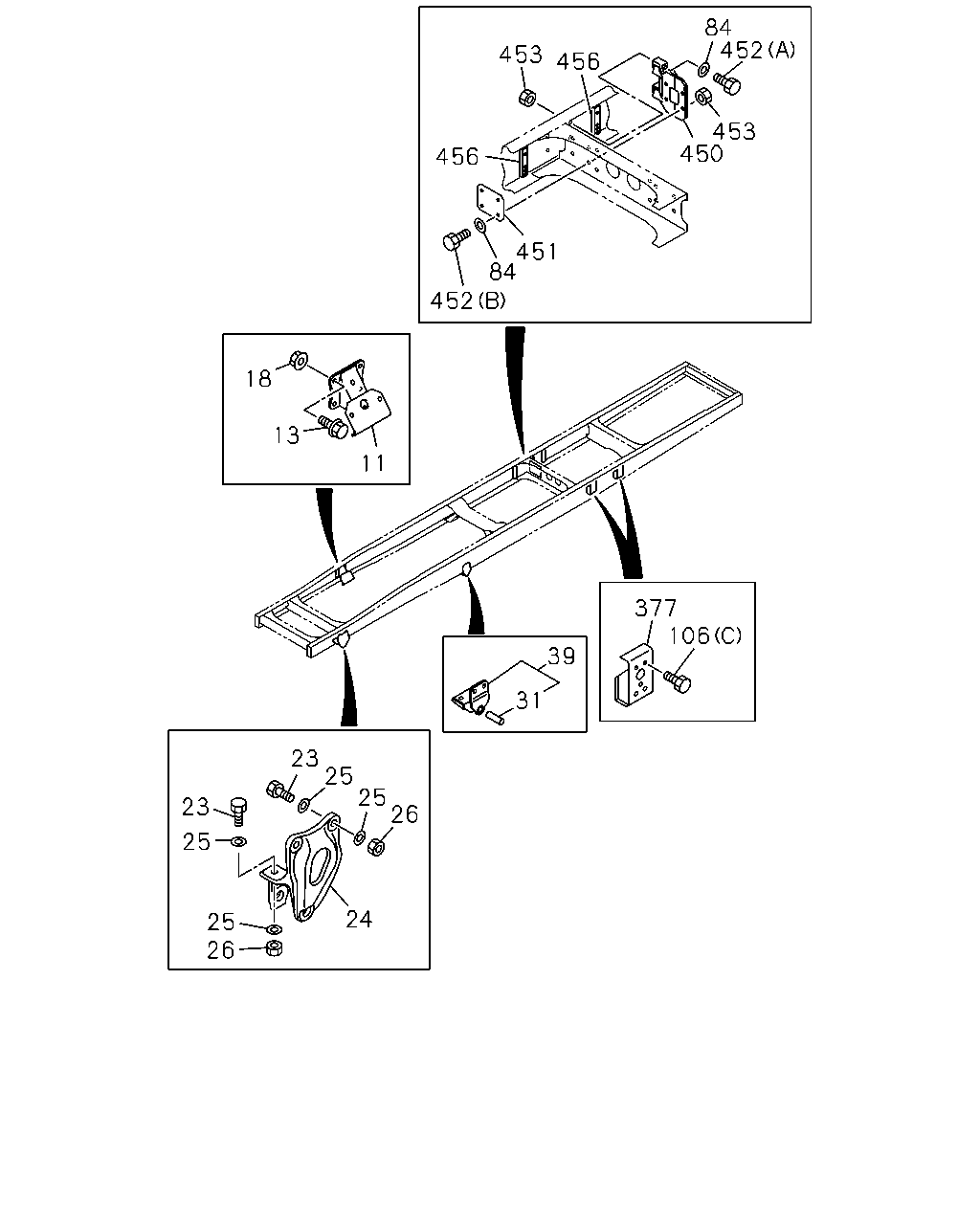

11	BRACKET; ENG MTG	8-97639-363-0	02	1	1310-	●	●	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1310-	●	●	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1310-	●	●	●	●	●	●
23	BOLT; BRKT,SPR M14X50	0-20951-450-0	08	1	1310-	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98059-201-0	01	1	1310-	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98059-203-0	01	1	1310-	●	●	●	●	●	●
25	WASHER; PL,BRKT ID=15	8-98010-627-1	16	1	1310-	●	●	●	●	●	●
26	NUT; BRKT,SPR FRR AIR SUS(FCD***) M14	0-91110-514-0	08	1	1310-		●	●	●
26	NUT; BRKT,SPR M14	0-91110-514-0	08	1	1310-					●
26	NUT; BRKT,SPR FRR LEAF SUS(FCR***) M14	0-91110-514-0	12	1	1310-	●		●	●		●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	1310-	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-154-2	02	1	1310-	●	●	●	●	●	●
84	WASHER; PL,BRKT FRR AIR SUS(FCD***) ID=16.2	1-09503-316-0	12	1	1310-		●	●	●	●
106	BOLT; BRKT FRR AIR SUS(FCD***) (B) M10X35	0-10961-035-0	04	1	1310-		●	●	●	●
106	BOLT; BRKT FRR AIR SUS(FCD***) (C) M14X35 FLANGE	0-28661-435-0	12	1	1310-		●	●	●	●
106	BOLT; BRKT FRR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	02	1	1310-	●		●	●		●
106	BOLT; BRKT FRR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	06	1	1310-					●
377	BRACKET; TOP PLATE FRR AIR SUS(FCD***)	8-98061-350-0	04	1	1310-		●	●	●	●
450	BRACKET; V ROD FRR AIR SUS(FCD***)	1-53353-121-0	02	1	1310-		●	●	●	●
451	GUSSET; V ROD FRR AIR SUS(FCD***)	8-97610-436-0	02	1	1310-		●	●	●	●
452	BOLT; V ROD FRR AIR SUS(FCD***) (B) M16X50	1-09000-679-0	08	1	1310-		●	●	●	●
452	BOLT; V ROD FRR AIR SUS(FCD***) (A) M16X110	1-09000-738-0	04	1	1310-		●	●	●	●
453	NUT; V ROD FRR AIR SUS(FCD***) M16 FLANGE	1-09440-066-0	12	1	1310-		●	●	●	●
456	PATCH; STOPPER FRR AIR SUS(FCD***)	8-97610-437-1	04	1	1310-		●	●	●	●

82 112 105 97 106 110 109 109 89 111 138 82 26 101 138 106 46 27 25 26 25 23 23 25 25 26 24 31 39 117 103 118 11 18 13 96 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

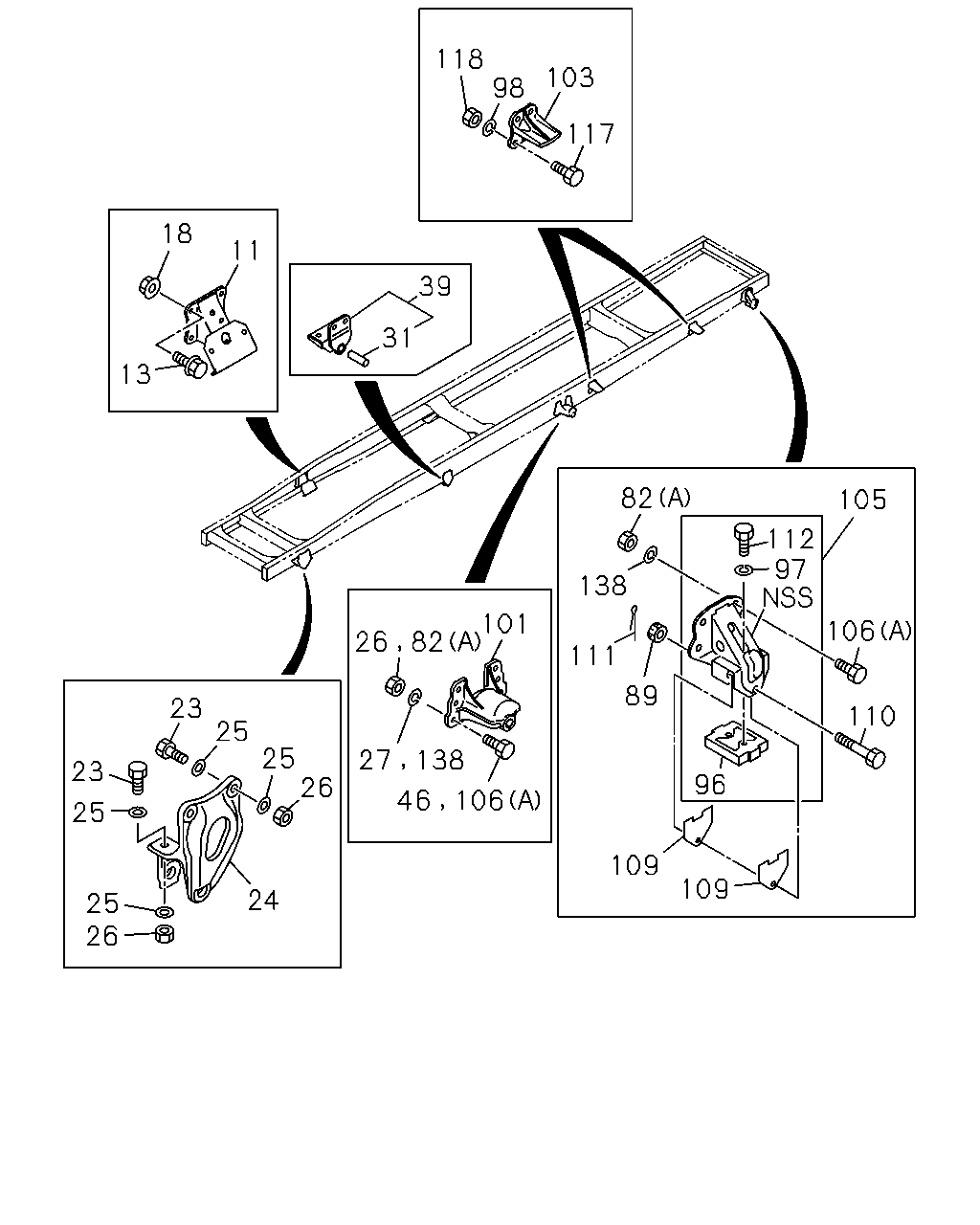

11	BRACKET; ENG MTG	8-97639-363-0	02	1	1310-	●	●	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1310-	●	●	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1310-	●	●	●	●	●	●
23	BOLT; BRKT,SPR M14X50	0-20951-450-0	08	1	1310-	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98059-201-0	01	1	1310-	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98059-203-0	01	1	1310-	●	●	●	●	●	●
25	WASHER; PL,BRKT ID=15	8-98010-627-1	16	1	1310-	●	●	●	●	●	●
26	NUT; BRKT,SPR FRR AIR SUS(FCD***) M14	0-91110-514-0	08	1	1310-		●	●	●
26	NUT; BRKT,SPR M14	0-91110-514-0	08	1	1310-					●
26	NUT; BRKT,SPR FRR LEAF SUS(FCR***) M14	0-91110-514-0	12	1	1310-	●		●	●		●
27	WASHER; LK,BRKT,FRT SPR FRR LEAF SUS(FCR***) ID=14.2	0-91510-614-0	04	1	1310-	●		●	●		●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	1310-	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-154-2	02	1	1310-	●	●	●	●	●	●
46	BOLT; BRKT FIX FRR LEAF SUS(FCR***) M14X50	0-20951-450-0	04	1	1310-	●		●	●		●
82	NUT; BRKT FRR AIR SUS(FCD***) (B) M10	0-91110-510-0	04	1	1310-		●	●	●	●
82	NUT; BRKT FRR LEAF SUS(FCR***) (A) M14	0-91110-514-0	02	1	1310-	●		●	●		●
82	NUT; BRKT FRR LEAF SUS(FCR***) (A) M14	0-91110-514-0	06	1	1310-					●
89	NUT; LEAF SPR STOPPER FRR LEAF SUS(FCR***) M12	0-91116-512-0	02	1	1310-	●		●	●	●	●
96	PAD; RR SPR FRR LEAF SUS(FCR***)	1-53359-051-2	02	1	1310-	●		●	●	●	●
97	WASHER; LK,PAD FRR LEAF SUS(FCR***) ID=14.2	0-91510-514-0	04	1	1310-	●		●	●	●	●
98	WASHER; LK,STOPPER FRR LEAF SUS(FCR***) ID=14.2	0-91510-614-0	16	1	1310-	●		●	●	●	●
101	BRACKET; RR SPR,FRT FRR LEAF SUS(FCR***)	1-53353-090-4	02	1	1310-	●		●	●	●	●
103	STOPPER; SUB SPR FRR LEAF SUS(FCR***)	1-53356-059-1	04	1	1310-	●		●	●	●	●
105	BRACKET; RR SPR,RR FRR LEAF SUS(FCR***)	1-53354-072-0	02	1	1310-	●		●	●	●	●
106	BOLT; BRKT FRR AIR SUS(FCD***) (B) M10X35	0-10961-035-0	04	1	1310-		●	●	●	●
106	BOLT; BRKT FRR AIR SUS(FCD***) (C) M14X35 FLANGE	0-28661-435-0	12	1	1310-		●	●	●	●
106	BOLT; BRKT FRR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	02	1	1310-	●		●	●		●
106	BOLT; BRKT FRR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	06	1	1310-					●
109	SHIM; RR SPR FRR LEAF SUS(FCR***)	1-53359-043-1	04	1	1310-	●		●	●	●	●
110	BOLT; LEAF SPR STOPPER FRR LEAF SUS(FCR***) M12X121	8-98010-414-0	02	1	1310-	●		●	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER FRR LEAF SUS(FCR***) OD=2.8 L=28	0-81123-028-0	02	1	1310-	●		●	●	●	●
112	BOLT; PAD FRR LEAF SUS(FCR***) M14X25	0-20851-425-0	04	1	1310-	●		●	●	●	●
117	BOLT; STOPPER FRR LEAF SUS(FCR***) M14X50	0-20951-450-0	16	1	1310-	●		●	●	●	●
118	NUT; STOPPER FRR LEAF SUS(FCR***) M14	0-91110-514-0	16	1	1310-	●		●	●	●	●
138	WASHER; LK,BRKT FRR LEAF SUS(FCR***) ID=14.2	0-91510-614-0	02	1	1310-	●		●	●		●
138	WASHER; LK,BRKT FRR LEAF SUS(FCR***) ID=14.2	0-91510-614-0	06	1	1310-					●

77 106 126 126 82 531 530 531 67 16 363 6 363 2 8 364 364 8 19 58 62 64 40 41 60 77 132 131 130 34 202 202 530 531 531 77 77 132 131 130 34 202 202 16 360 363 2 6 8 67 364 364 8 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

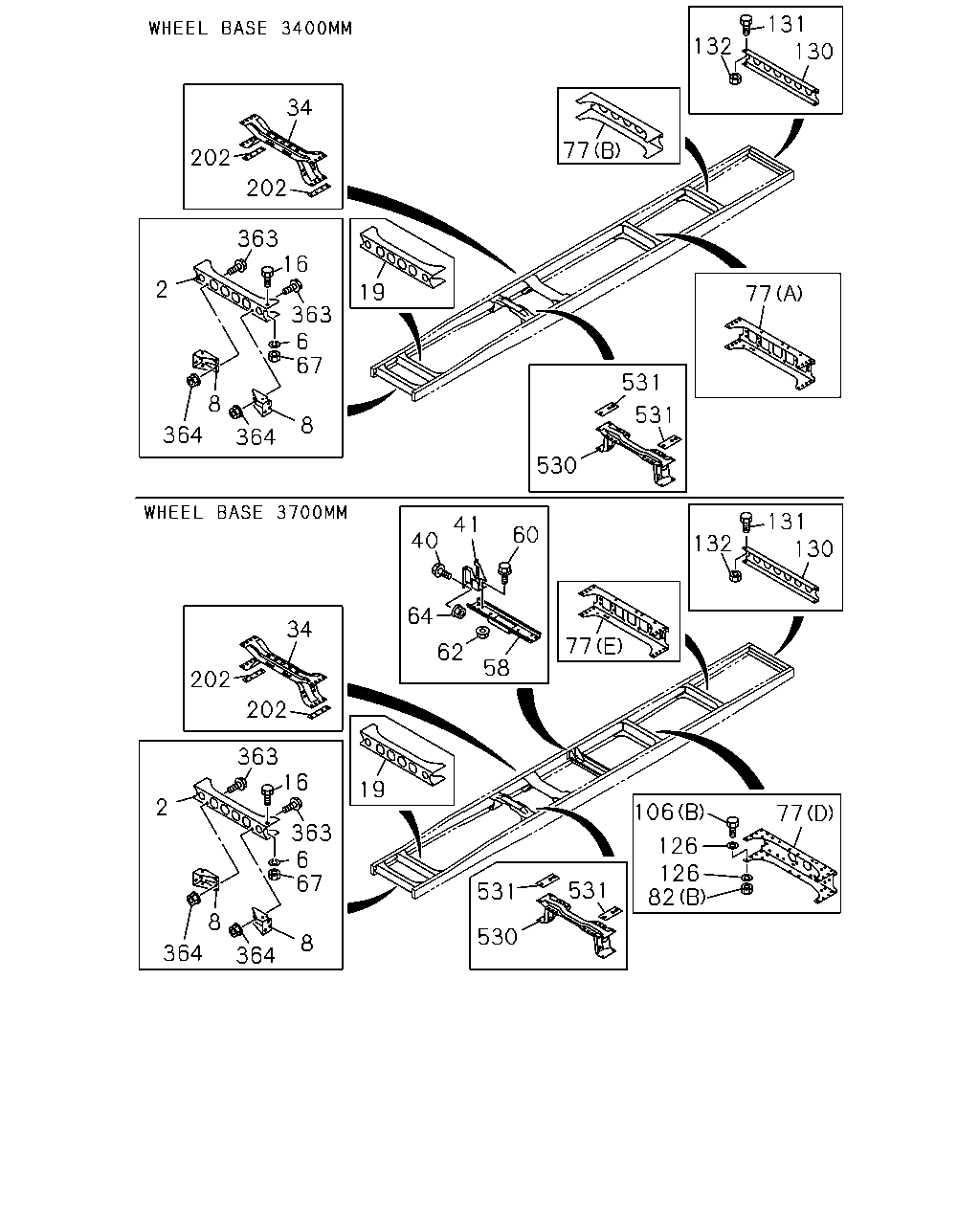

2	MEMBER; CROSS,1ST	8-97609-462-9	01	1	1310-	●	●	●	●	●	●
6	WASHER; LK,1ST C/MBR ID=12.2	0-91510-512-0	02	1	1310-	●	●	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97617-910-2	01	1	1310-	●	●	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97617-911-3	01	1	1310-	●	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M12X30	0-20851-230-0	02	1	1310-	●	●	●	●	●	●
19	MEMBER; CROSS,2ND	8-97629-428-5	01	1	1310-	●	●	●	●	●	●
34	MEMBER; CROSS,3RD	8-97609-501-2	01	1	1310-	●	●	●	●	●	●
40	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1310-		●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97615-973-2	01	1	1310-		●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97615-974-2	01	1	1310-		●
58	MEMBER; CENTER BRG	8-97636-022-0	01	1	1310-		●
60	BOLT; MBR M10X25 FLANGE	0-28651-025-0	08	1	1310-		●
62	NUT; MBR M10 FLANGE	0-91180-110-0	08	1	1310-		●
64	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	08	1	1310-		●
67	NUT; C/MBR M12	0-91110-512-0	02	1	1310-	●	●	●	●	●	●
77	MEMBER; CROSS,TRUNNION RR FRR AIR SUS(FCD***) (E)	8-97609-481-4	01	1	1310-		●	●	●	●
77	MEMBER; CROSS,TRUNNION RR FRR AIR SUS(FCD***) (D)	8-97609-483-0	01	1	1310-		●	●	●	●
77	MEMBER; CROSS,TRUNNION RR (B)	8-97609-475-2	01	1	1310-	●
77	MEMBER; CROSS,TRUNNION RR (A)	8-97609-478-4	01	1	1310-	●
77	MEMBER; CROSS,TRUNNION RR FRR LEAF SUS(FCR***) (C)	8-97610-935-1	02	1	1310-			●	●	●	●
82	NUT; BRKT FRR AIR SUS(FCD***) (B) M10	0-91110-510-0	04	1	1310-		●	●	●	●
82	NUT; BRKT FRR LEAF SUS(FCR***) (A) M14	0-91110-514-0	02	1	1310-	●		●	●		●
82	NUT; BRKT FRR LEAF SUS(FCR***) (A) M14	0-91110-514-0	06	1	1310-					●
106	BOLT; BRKT FRR AIR SUS(FCD***) (B) M10X35	0-10961-035-0	04	1	1310-		●	●	●	●
106	BOLT; BRKT FRR AIR SUS(FCD***) (C) M14X35 FLANGE	0-28661-435-0	12	1	1310-		●	●	●	●
106	BOLT; BRKT FRR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	02	1	1310-	●		●	●		●
106	BOLT; BRKT FRR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	06	1	1310-					●
126	WASHER; PL,BRKT FRR AIR SUS(FCD***) ID=10.5 OD=22	0-91614-610-0	08	1	1310-		●	●	●	●
130	MEMBER; CROSS,END	8-97609-470-0	01	1	1310-		●	●	●	●	●
130	MEMBER; CROSS,END	8-97609-471-0	01	1	1310-	●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	1310-	●	●	●	●	●	●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	1310-	●	●	●	●	●	●
202	SPACER; 3RD C/MBR	8-97609-756-1	02	1	1310-	●	●	●	●	●	●
363	BOLT; GUSSET M12X25 FLANGE	0-28661-225-0	04	1	1310-	●	●	●	●	●	●
364	NUT; GUSSET M12 FLANGE	0-91180-212-0	04	1	1310-	●	●	●	●	●	●
530	MEMBER; CROSS,T/M	8-97609-809-3	01	1	1310-	●	●	●	●	●	●
531	SPACER; C/MBR,T/M	8-97616-461-1	02	1	1310-	●	●	●	●	●	●

19 16 363 363 2 364 8 67 6 8 364 363 2 16 363 6 67 8 364 364 19 207 207 344 545 345 77 77 131 130 132 77 77 106 126 126 82 202 202 34 531 531 530 202 202 34 106 126 126 82 77 77 8 545 531 530 531 77 77 344 132 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

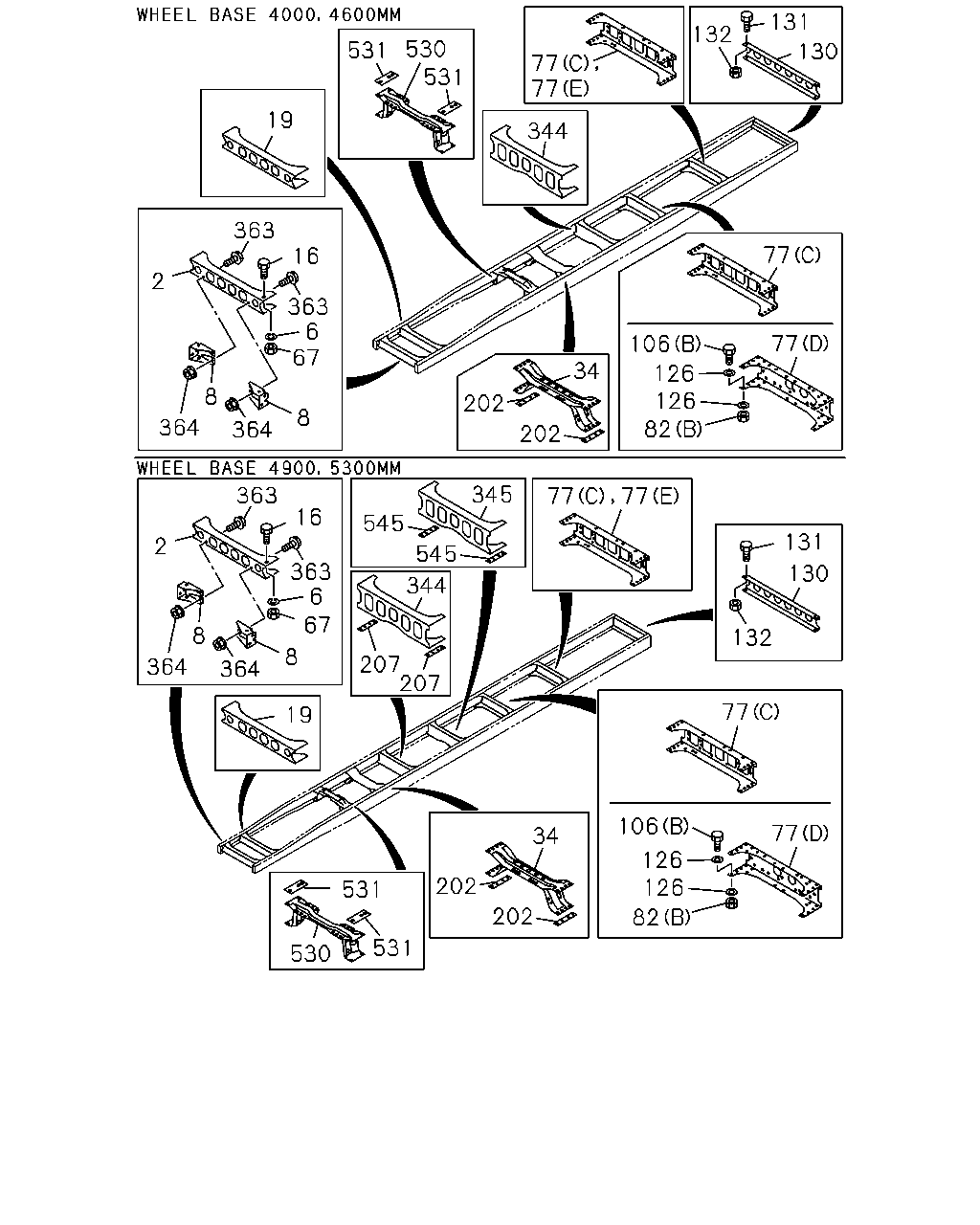

2	MEMBER; CROSS,1ST	8-97609-462-9	01	1	1310-	●	●	●	●	●	●
6	WASHER; LK,1ST C/MBR ID=12.2	0-91510-512-0	02	1	1310-	●	●	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97617-910-2	01	1	1310-	●	●	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97617-911-3	01	1	1310-	●	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M12X30	0-20851-230-0	02	1	1310-	●	●	●	●	●	●
19	MEMBER; CROSS,2ND	8-97629-428-5	01	1	1310-	●	●	●	●	●	●
34	MEMBER; CROSS,3RD	8-97609-501-2	01	1	1310-	●	●	●	●	●	●
67	NUT; C/MBR M12	0-91110-512-0	02	1	1310-	●	●	●	●	●	●
77	MEMBER; CROSS,TRUNNION RR FRR AIR SUS(FCD***) (E)	8-97609-481-4	01	1	1310-		●	●	●	●
77	MEMBER; CROSS,TRUNNION RR FRR AIR SUS(FCD***) (D)	8-97609-483-0	01	1	1310-		●	●	●	●
77	MEMBER; CROSS,TRUNNION RR (B)	8-97609-475-2	01	1	1310-	●
77	MEMBER; CROSS,TRUNNION RR (A)	8-97609-478-4	01	1	1310-	●
77	MEMBER; CROSS,TRUNNION RR FRR LEAF SUS(FCR***) (C)	8-97610-935-1	02	1	1310-			●	●	●	●
82	NUT; BRKT FRR AIR SUS(FCD***) (B) M10	0-91110-510-0	04	1	1310-		●	●	●	●
82	NUT; BRKT FRR LEAF SUS(FCR***) (A) M14	0-91110-514-0	02	1	1310-	●		●	●		●
82	NUT; BRKT FRR LEAF SUS(FCR***) (A) M14	0-91110-514-0	06	1	1310-					●
106	BOLT; BRKT FRR AIR SUS(FCD***) (B) M10X35	0-10961-035-0	04	1	1310-		●	●	●	●
106	BOLT; BRKT FRR AIR SUS(FCD***) (C) M14X35 FLANGE	0-28661-435-0	12	1	1310-		●	●	●	●
106	BOLT; BRKT FRR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	02	1	1310-	●		●	●		●
106	BOLT; BRKT FRR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	06	1	1310-					●
126	WASHER; PL,BRKT FRR AIR SUS(FCD***) ID=10.5 OD=22	0-91614-610-0	08	1	1310-		●	●	●	●
130	MEMBER; CROSS,END	8-97609-470-0	01	1	1310-		●	●	●	●	●
130	MEMBER; CROSS,END	8-97609-471-0	01	1	1310-	●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	1310-	●	●	●	●	●	●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	1310-	●	●	●	●	●	●
202	SPACER; 3RD C/MBR	8-97609-756-1	02	1	1310-	●	●	●	●	●	●
207	SPACER; 4TH C/MBR	8-97609-758-0	02	1	1310-						●
344	MEMBER; CROSS,4TH	8-97609-472-2	01	1	1310-			●
344	MEMBER; CROSS,4TH FRR LEAF SUS(FCR***)	8-97609-472-2	01	1	1310-				●
344	MEMBER; CROSS,4TH FRR AIR SUS(FCD***)	8-97609-473-2	01	1	1310-				●
344	MEMBER; CROSS,4TH	8-97609-473-2	01	1	1310-					●	●
345	MEMBER; CROSS,5TH	8-97609-473-2	01	1	1310-					●	●
363	BOLT; GUSSET M12X25 FLANGE	0-28661-225-0	04	1	1310-	●	●	●	●	●	●
364	NUT; GUSSET M12 FLANGE	0-91180-212-0	04	1	1310-	●	●	●	●	●	●
530	MEMBER; CROSS,T/M	8-97609-809-3	01	1	1310-	●	●	●	●	●	●
531	SPACER; C/MBR,T/M	8-97616-461-1	02	1	1310-	●	●	●	●	●	●
545	SPACER; 5TH C/MBR	8-97609-758-0	02	1	1310-						●
