Isuzu WW
▶
TRUCKS
▶
FRR
▶
11545 - FRR-LHD(EU)SPACE EU6
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#128266) — 45 parça
Tümü
A - FCR6CS
B - FCD6CS
◀

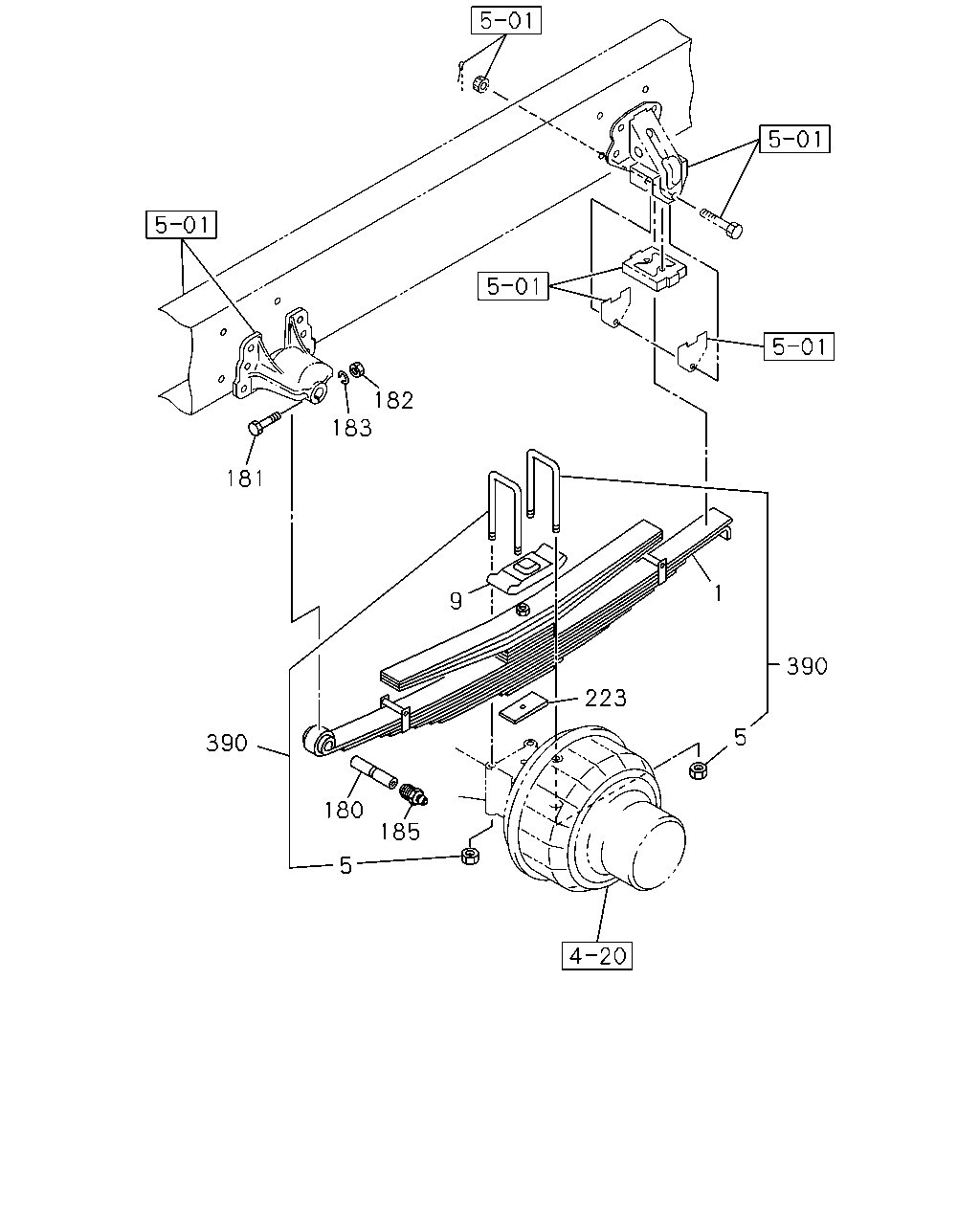

[460A] LEAF SUS (12 parça)

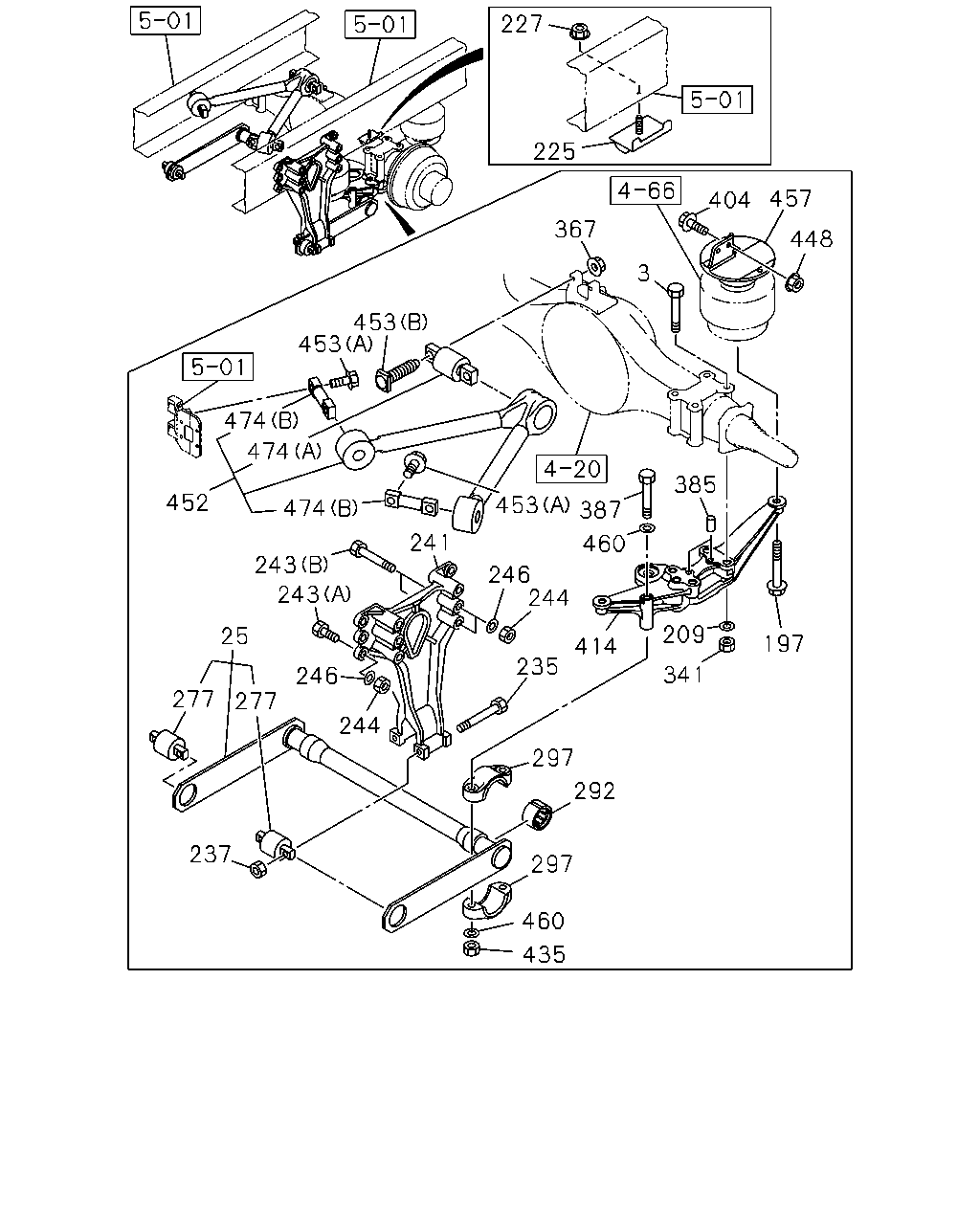

[460A] AIR SUS (33 parça)
▶
5
390
223
185
180
5
390
181
183
182
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98191-489-0
02
1
1310-
●
5
NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
1310-
●
9
PAD; U BOLT,RR SPR
1-51372-059-0
02
1
1310-
●
180
PIN; RR SPR
DO=25 L=115 PT1/8
1-51361-016-0
02
1
1310-
●
181
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
02
1
1310-
●
182
NUT; PIN,RR SPR
M12
0-91110-512-0
02
1
1310-
●
183
WASHER; LK,PIN,RR SPR
ID=12.2
0-91510-612-0
02
1
1310-
●
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1310-
●
223
SPACER; U BOLT,RR SPR
WHEEL BASE 3400MM(34W),WHEEL BASE 5300MM(53W)
8-98063-307-0
02
1
1310-
●
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4000MM(40W)
1-51377-329-1
02
1
1310-
●
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W)
8-98043-891-0
02
1
1310-
●
390
U-BOLT SET; RR SPRING
L=390
1-87870-399-0
04
1
1310-
●
227
225
404
457
367
453
453
474
452
474
243
246
25
277
277
237
297
292
297
460
435
341
414
235
197
209
244
246
241
243
474
387
453
385
3
448
244
460
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
BOLT; BEAM
M18X220
8-98015-275-0
08
1
1310-
●
25
BAR ASM; STAB,RR SUSP
8-98223-550-1
01
1
1310-
●
197
BOLT
M16X70 FLANGE
8-98010-416-0
04
1
1310-
●
209
WASHER; PL
ID=19
8-98010-401-0
08
1
1310-
●
225
RUBBER; CUSHION,RR SPR
8-98187-339-0
02
1
1310-
●
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
02
1
1310-
●
235
BOLT; TORQUE ROD
M18X170
8-98010-544-0
04
1
1310-
●
237
NUT; TORQUE ROD
M18 SELF LOCK
8-98010-391-0
04
1
1310-
●
241
BRACKET; TORQUE ROD
8-98215-267-1
02
1
1310-
●
243
BOLT; BRKT,TORQUE ROD
(A) M20X60
8-98010-410-0
04
1
1310-
●
243
BOLT; BRKT,TORQUE ROD
(B) M20X150
8-98010-546-0
08
1
1310-
●
244
NUT; BRKT
M20
8-98010-408-0
12
1
1310-
●
246
WASHER; TORQUE ROD
ID=21
8-98010-403-0
12
1
1310-
●
277
BUSHING; STAB,RR UPR
8-97604-143-1
02
1
1310-
●
292
BUSHING; RUBBER,STAB
8-98156-746-1
02
1
1310-
●
297
CAP; STAB BAR
8-98174-447-0
04
1
1310-
●
341
NUT; BEAM
M18
8-98010-407-0
08
1
1310-
●
367
NUT
M24 FLANGE
8-98010-393-0
02
1
1310-
●
385
PIN; KNOCK,SUSP BEAM
1-52179-036-2
04
1
1310-
●
387
BOLT; CAP FIX,STAB BAR
M18X200
8-98074-641-0
04
1
1310-
●
404
BOLT; PLATE
M14X110
8-98010-543-0
08
1
1310-
●
414
BEAM; AIR SPR
8-98010-000-0
01
1
1310-
●
414
BEAM; AIR SPR
8-98010-002-0
01
1
1310-
●
435
NUT; CAP
M18
8-98010-407-0
04
1
1310-
●
448
NUT; PLATE
M14 FLANGE
8-98010-395-0
08
1
1310-
●
452
ROD ASM; V
8-98239-062-0
01
1
1310-
●
453
PIN; AXLE
(B) M24X78 SQUARE HEAD
8-98010-551-0
02
1
1310-
●
453
PIN; AXLE
(A) M18X70 FLANGE
8-98183-506-0
04
1
1310-
●
457
PLATE; AIR SPRING,UPR
FORWARD RH,REARWARD LH
8-97375-200-0
02
1
1310-
●
457
PLATE; AIR SPRING,UPR
FORWARD LH,REARWARD RH
8-97375-201-0
02
1
1310-
●
460
WASHER; CAP
ID=19
8-98010-401-0
08
1
1310-
●
474
REPAIR KIT; V-ROD
(A)
8-98240-108-0
01
1
1310-
●
474
REPAIR KIT; V-ROD
(B)
8-98240-109-0
02
1
1310-
●
